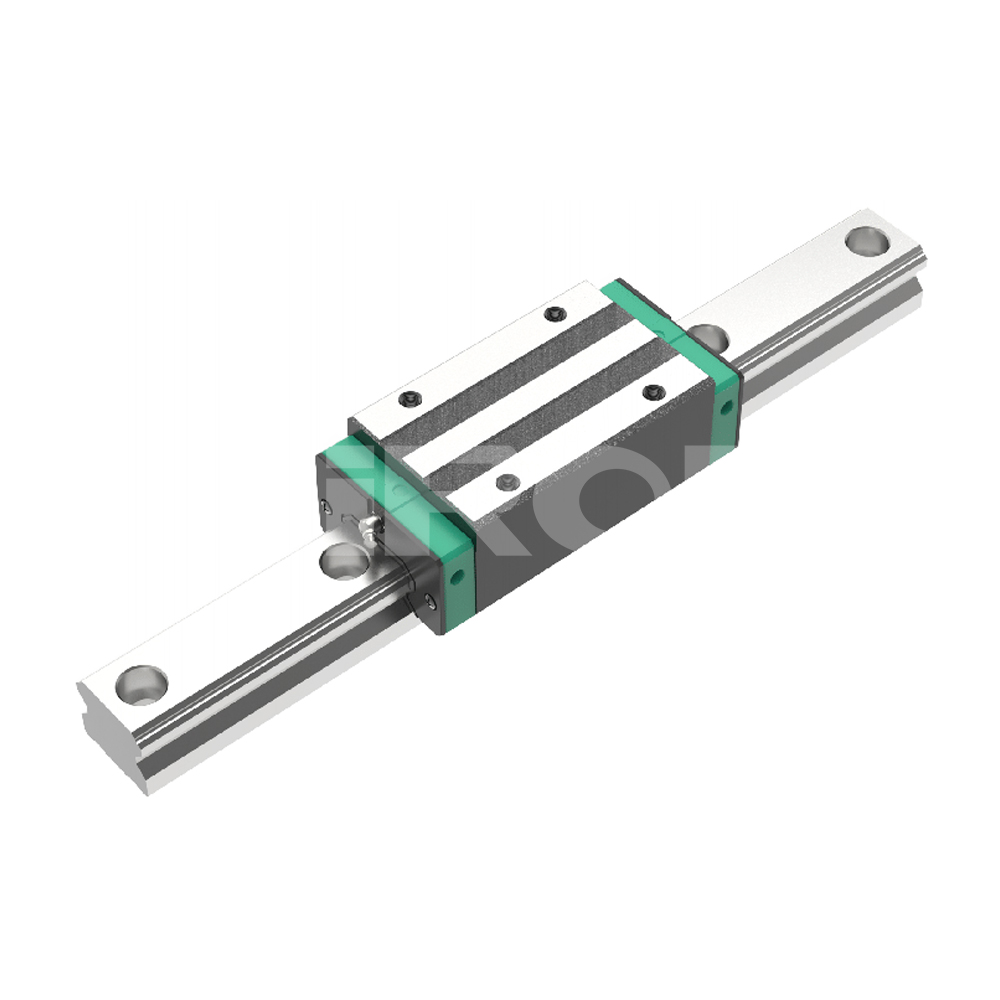

SiRON M390-HG Heavy Load Ball Linear Guide

About selection

Non-interchangeable linear guide type selection

Selection example：M390-HGW15CA2R1600ZACⅡ+DD/E2/RC It is M390-HG series, the slider type is flange type, the size is 15, the load type is heavy load, the slider  fixation mode is locked, and the number of slide blocks assembled by a single guide rail is 2.The guide rail is fixed in lock mode, the length of the guide rail is 1600mm,  the length of the guide rail is light preloaded, the ordinary grade, the number of single-axis guide rail is 2, and the dust proof accessories (double dust plate + dust strip)  are self-moistening and reinforced plug cover.

KH(Strengthen the dust plate at both ends + dust strip + upper dust strip + metal scraper), please consult our sales staff for specific selection.

* Dustproof accessories: In addition to standard dustproof accessories, there are also high dustproof accessories. The codes are SH(strengthened dust sheets at both ends + dust strip + upper dust strip), DH(strengthened double dust sheets at both ends + dust strip + upper dust strip), ZH(strengthened dust sheets at both ends + dust strip + upper dust strip + metal scraping plate)

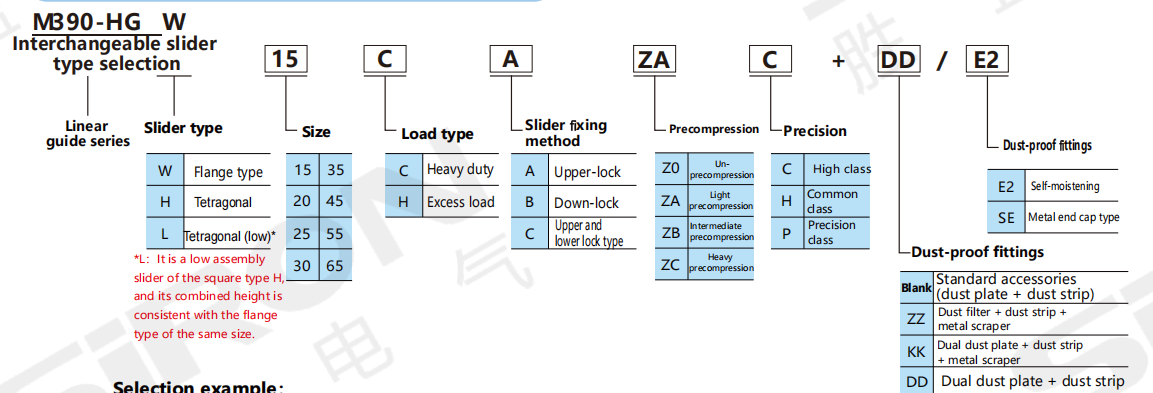

Interchangeable linear guide type selection

Selection example：

M390-HGW15CAZAC+DD/E2为M390-HG Series, the slider type is flange type, the size is 15, the load type is heavy load, the slider fixing mode is locked, light preloading, ordinary grade, dustproof accessories (double dustproof plate + dustproof strip), dustproof accessories are self-moistening.

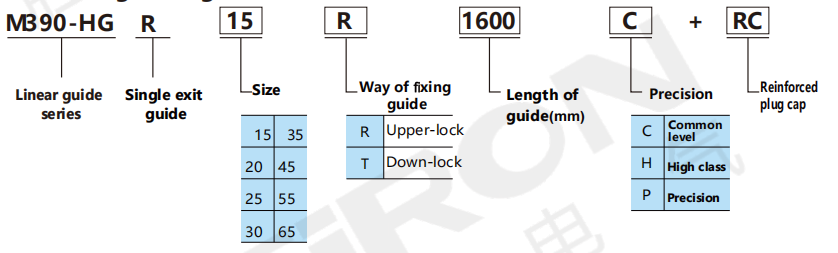

Interchangeable guide rail selection

Selection example:M390-HG series, single guide rail, the size is 15, the guide rail fixing mode is locked, ：M390-HGR15R1600C+RCthe guide rail length is 1600mm, ordinary class, reinforced type plug cover.
