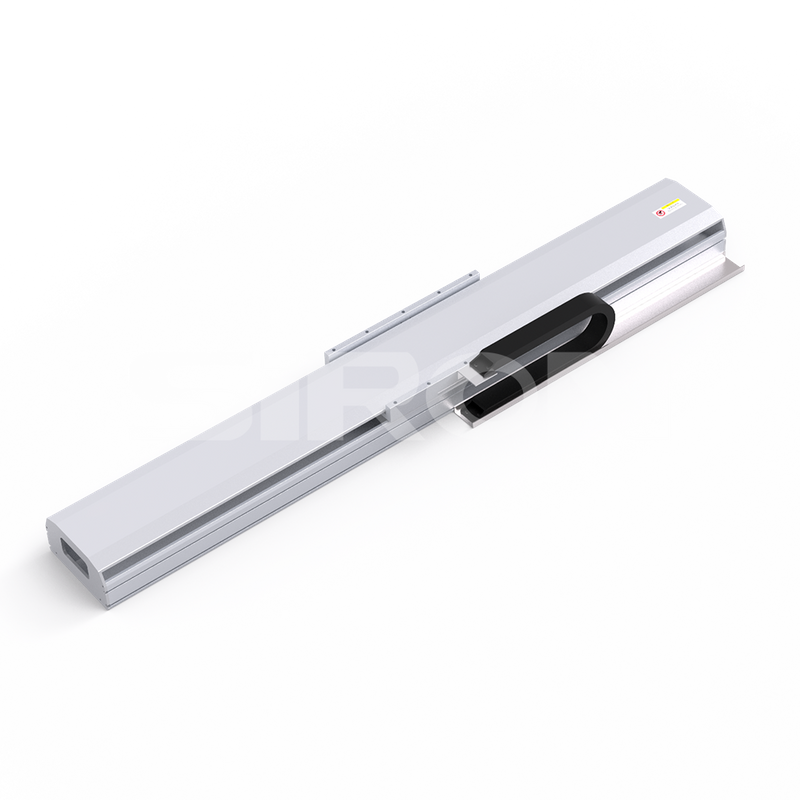

SiRON M374(C)-22 Linear Motor Economical Module

Name: SiRON M374(C)-22 Linear Motor Economical Module
Brand: SiRON
Rating: 5.0 (75 reviews)

Features:

The body is made of new aviation aluminum material, which has higher rigidity, lighter quality, simple structure, small occupation space,
and is more suitable for all kinds of installation and collocation.The fastest can reach 5000mm/s.
Long stroke, the longest can achieve 5mm stroke, high repeat positioning accuracy, heavy positioning accuracy can be ±0.01MM
different linear module positioning accuracy to meet different needs,High straightness of operation, the fluctuation value per meter of
straightness processing is less than 0.01MM to ensure smooth and smooth running of the sliding platform, smooth and stable running
of the platform with silver linear sliding rail,The use of P-class linear guide rail and imported NSK bearing, to ensure the linear module
sliding smooth stability, long service life, precision control, impact resistance, cost-effective.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M374(C)-22
Brand:
SiRON
Code:
9001909090

3225mm Maximum stroke 4000mm/s Maximum speed

Product Description

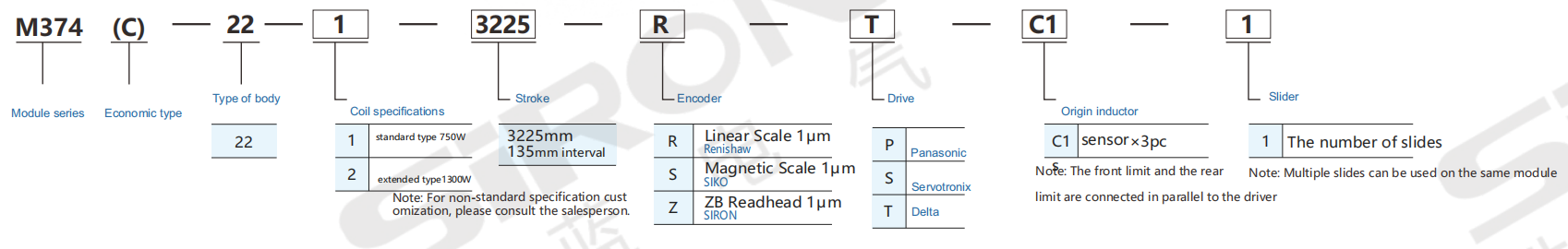

About selection

Model selection example: M374(C)-22-1-3225-R-T-C1-1 is M374(C) series, body code 22, Standard coil specification 750W, maximum stroke 3225mm, encoder grating 1μm. Delta motor driver, ruler sensor (grating), 1 slide

Product specification

Type(mm)			standard type	extended type
Speciications	Encoder		Linear Scale/Magnetic Scale/ZB Readhead
	Maximum Speed(mm/s)		4000
	Maximum Payload (G)		2.5
	Maximumpayload(kg)	Horizontal	80	140
	Resolution(μm)		1μm/5μm
	Peak Force(N)		840	1680
	Rated Force @100C(N)		280	560
	Stroke Pitch(mm)		102~3225/135mm interval
	Use Temperature(℃)		0~40
