SiRON M374(C)-14 Linear Motor Economical Module

Name: SiRON M374(C)-14 Linear Motor Economical Module
Brand: SiRON
Rating: 5.0 (63 reviews)

Features:

The body is made of new aviation aluminum material, which has higher rigidity, lighter quality, simple structure, small occupation space,
and is more suitable for all kinds of installation and collocation.The fastest can reach 5000mm/s.
Long stroke, the longest can achieve 5mm stroke, high repeat positioning accuracy, heavy positioning accuracy can be ±0.01MM
different linear module positioning accuracy to meet different needs,High straightness of operation, the fluctuation value per meter of
straightness processing is less than 0.01MM to ensure smooth and smooth running of the sliding platform, smooth and stable running
of the platform with silver linear sliding rail,The use of P-class linear guide rail and imported NSK bearing, to ensure the linear module
sliding smooth stability, long service life, precision control, impact resistance, cost-effective.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M374(C)-14
Brand:
SiRON
Code:
9001909090

2514mm Maximum stroke 3000mm/s Maximum speed 221/405/N Peak force

Product Description

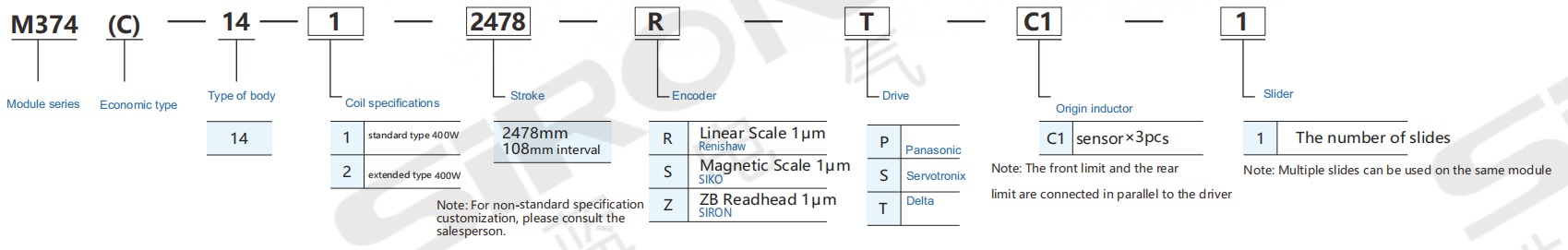

About selection

Model selection example: M374(C)-14-1-2478-R-T-C1-1 is M374(C) series, body code 14, Standard coil specification 400W, maximum stroke 2478mm, encoder grating 1μm. Delta motor driver, ruler sensor (grating), 1 slide

Product specification

Type(mm)			standard type	extended type
Speciications	Encoder		Linear Scale/Magnetic Scale/ZB Readhead
	Maximum Speed(mm/s)		4000
	Maximum Payload (G)		2.5
	Maximumpayload(kg)	Horizontal	30	60
	Resolution(μm)		1μm/5μm
	Peak Force(N)		405	810
	Rated Force @100C(N)		137	274
	Stroke Pitch(mm)		102~2478/108mm interval
	Use Temperature(℃)		0~40
