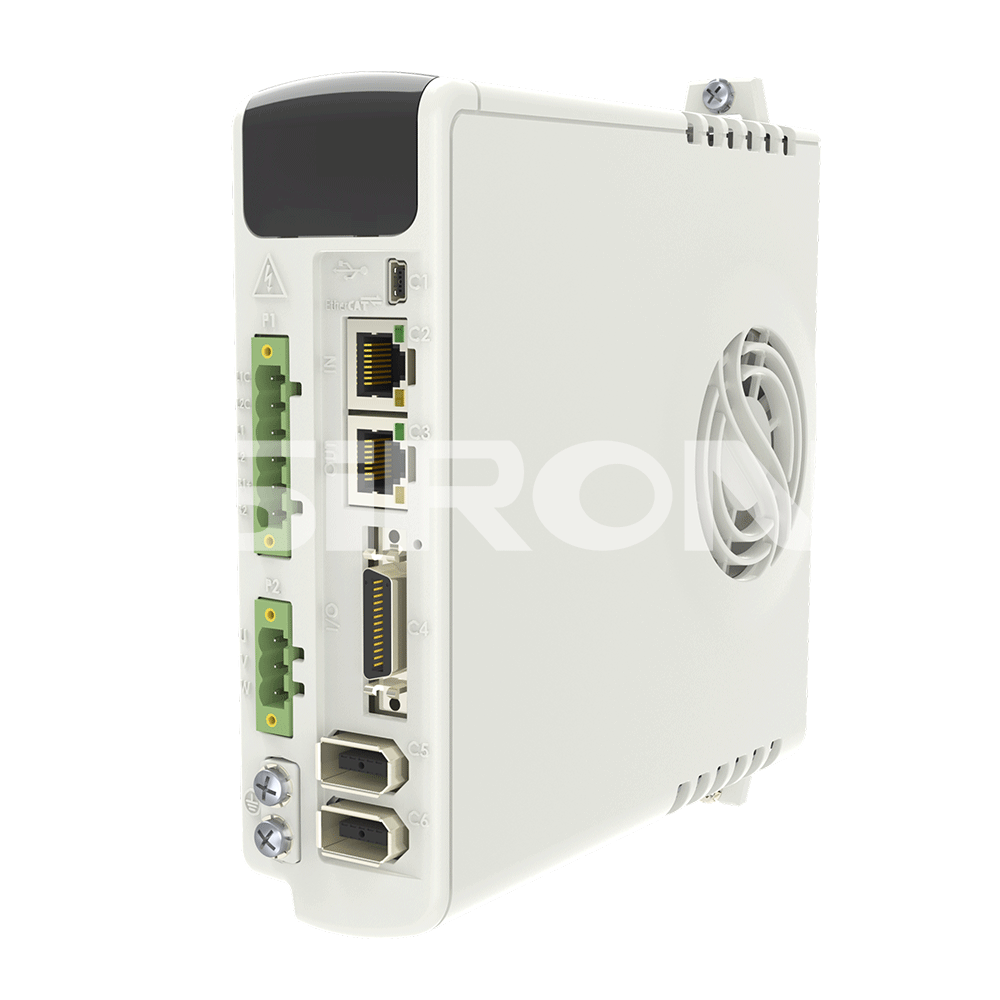

SiRON M373 Series Linear Module Adaptor Driver

Name: SiRON M373 Series Linear Module Adaptor Driver
Brand: SiRON
Rating: 5.0 (47 reviews)

Features:

◆ Lightweight and miniaturized linear motor standard products
◆ Magnetic gate/grating positioning
◆ Comprehensive replacement of screw module + servo motor, better cost performanceHigh stability,
high reliability, high response speed
◆ Smooth movement, no wear, minimal maintenance, long service lifeWidely used in desktop dispensing
machine, lock screw machine, soldering machine, etc

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M373
Brand:
SiRON
Code:
9001909090

110/220VAC EtherCAT Bus Pulse driver

Product Description

Product specification

Linear Motor Driver Model	M373-(03)	M373-(06)
Linear motor module model	M373-60,M373-82,M373-95,M373-115	M373-145,M373-165,M373-195,M373-210,M373-230
Main power	110/220VAC
Logic power	110/220VAC
Output continuous current	3Arms	6Arms
Output maximum current	9Arms	18Arms
Way to control	Position control:pulse/direction,forward and reverse pulse
	EtherCATbus
Encoder interface	DeltaA+,A-,B+,B-,Z+,Z-
Operating temperature	0～40℃
