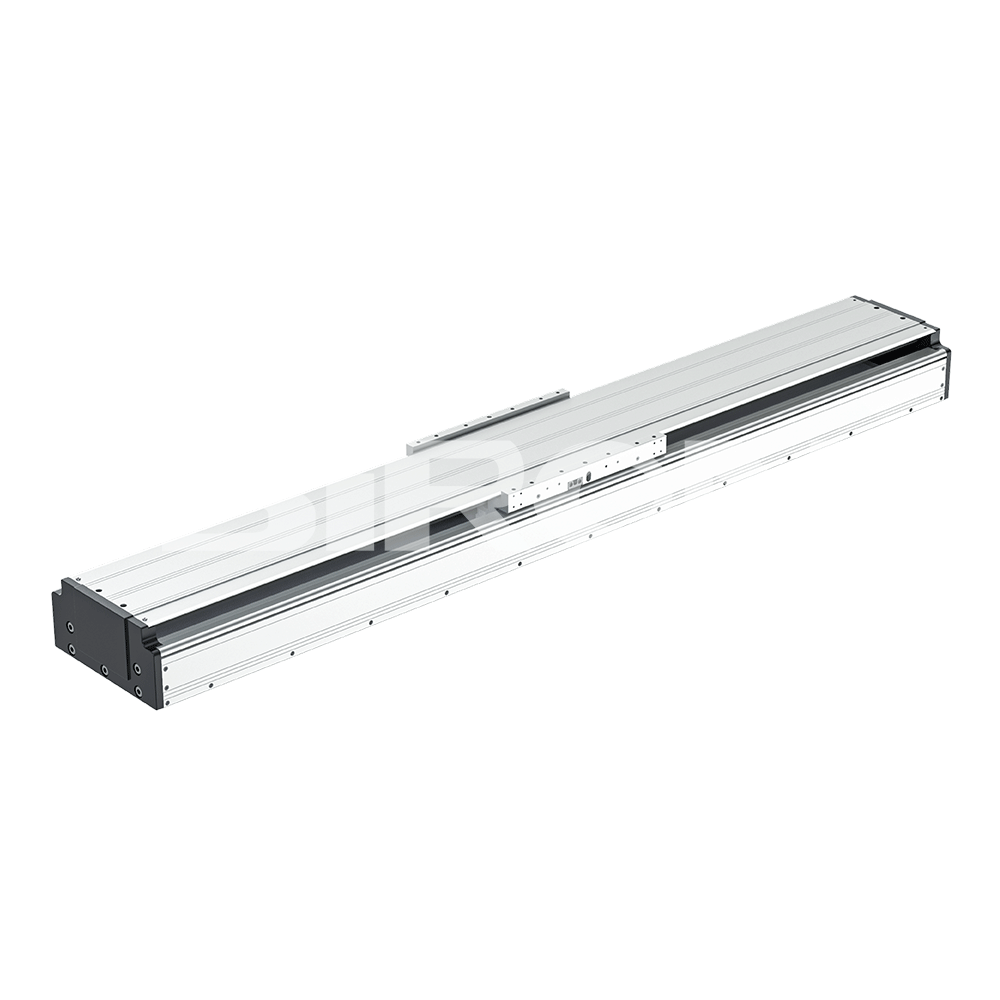

SiRON M373-210 Linear Electrical Compact Module

Name: SiRON M373-210 Linear Electrical Compact Module
Brand: SiRON
Rating: 5.0 (56 reviews)

Features:

◆ Lightweight and miniaturized linear motor standard products
◆ Magnetic gate/grating positioning
◆ Comprehensive replacement of screw module + servo motor, better cost performanceHigh stability,
high reliability, high response speed
◆ Smooth movement, no wear, minimal maintenance, long service lifeWidely used in desktop dispensing
machine, lock screw machine, soldering machine, etc

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M373-210
Brand:
SiRON
Code:
9001909090

1140mm Maximum stroke 210mm Module Base

Product Description

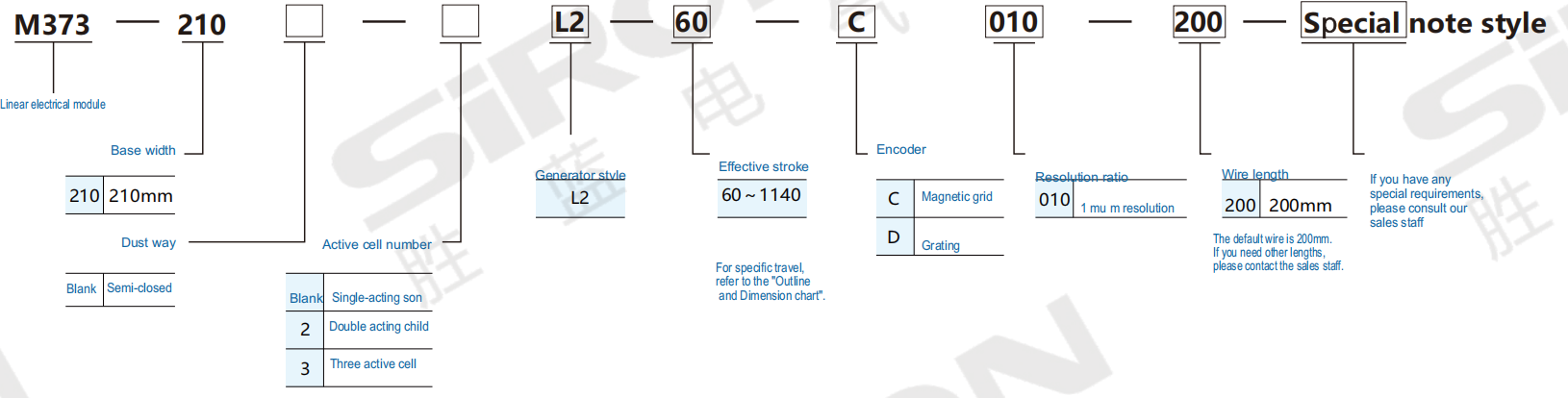

About selection

Selection examples: M373-210-L2-60-C010-200: M373 series, base width 210mm, semi-closed, single actuator, motor type L2, effective stroke 60mm, magnetic gate encoder resolution 1μm, wire length 200mm

Note:

1. The default value is "encoder magnetic grating (C010), grating (D010)". If you have other precision requirements, please consult our sales staff.

2. If you need the photoelectric switch, please order it separately

Product specification

Motor model		L2-W075
Peak thrust		2808.0N	Straightness	±10μm/300mm
Continue topush		802.0N	Interphase impedance @25°	7.6 ohms
Peak current		23.8Arms	Phase-to-phase inductance	76.0mH
Sustained current		6.8Arms	Electrical time constant	9.9ms
Motor constant @Tmax		34.9N/(W1/2)	Maximum teminal voltage	540Vdc
Maximum continuous dissipated power		527.1W	Maximum winding temperature	130℃
Force constant		118.0N/Arms	Coil weight	4.3KG
Reverse electromotive force		96.5Vpeak/(m/s)	Electrical cycle length	30.0mm
Feedback	Magnetic grid	1.0μm resolution cable length:200mm	Installation method	Horizontal mounting/side mounting
	Grating	1.0μm resolution cable length:200mm	Load	At an acceleration of 1G, a speed of 1000mm/s, and a dwell time of 0.2s,When running a 1000mm stroke: Horizontal installation: Load 70kg; Side-mounted installation: Load 50kg; Maximum operating speed limit: 2000mm/s
Repeat accuracy	Magnetic grid	±5μm
	Grating	±3μm
Guide		Inner and outer embedded four guide rails	Module weight	60mm stroke 20.0kg(for every additional 60mm stroke,an increase of 1.3kg)
Origin sensor(external)		K016-A3/K016-A4(optional)
