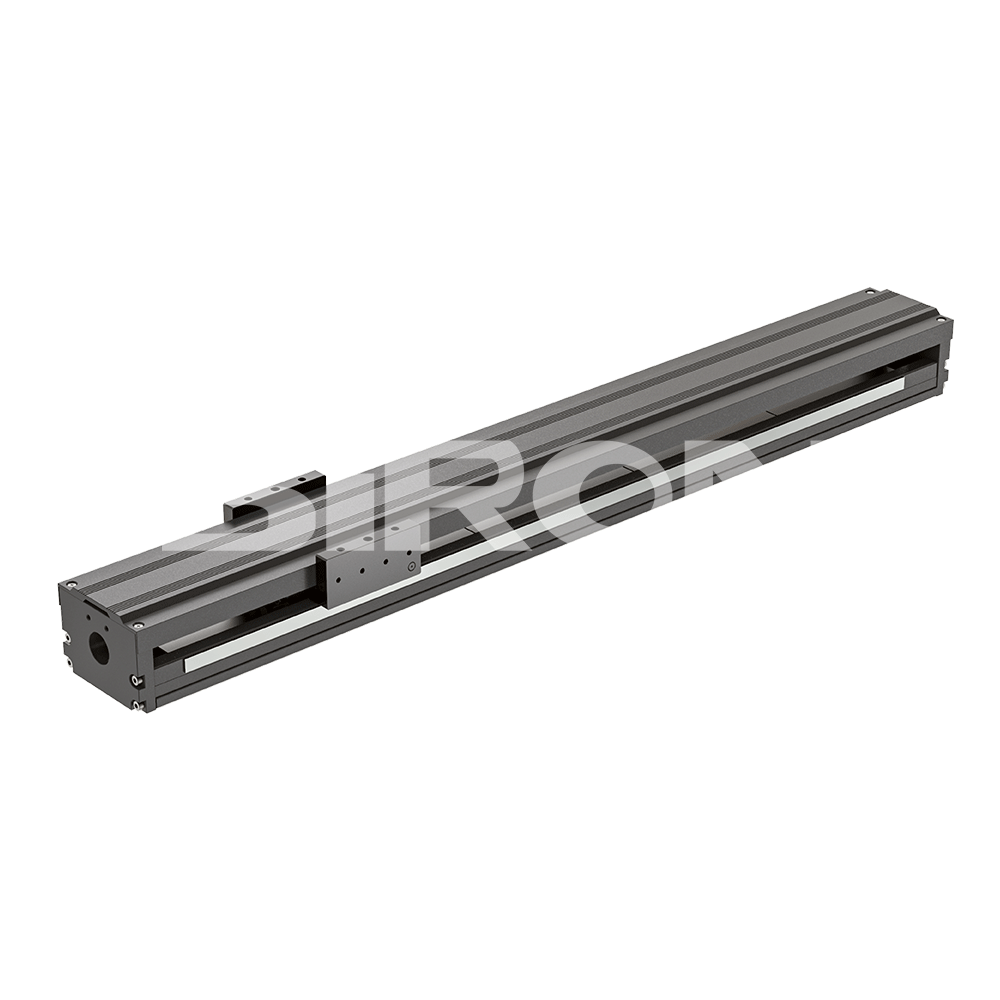

SiRON M370-86 Linear Electrical Compact Module

Name: SiRON M370-86 Linear Electrical Compact Module
Brand: SiRON
Rating: 5.0 (27 reviews)

Features:

◆ Compact structure, easy maintenance
◆ Steel base design, high rigidity
◆ Aluminum cover and organ cover are optionalThe moving stator runs without contact
◆ Smooth movement, no wear, long service life

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M370-86
Brand:
SiRON
Code:
9001909090

910mm Maximum stroke 112mm Module Base Compact Structure

Product Description

About selection

Selection example: M370-86P-740A-C-S610-300 is M370 series, motor base width 86mm, precision level, track length 740mm, small thrust, single actuator, with cover, effective stroke 610mm, line length 300mm

Product specification

Motor model		86 - A Series	86 - B Series
Peak thrust		154.0N	260.0N
Continue topush		87.0N	120.0N
Peak current		12Arms	12Arms
Sustained current		2.5Arms	2Arms
The force constant		34.6N/Arms	51.5N/Arms
Repeataccuracy		±2μm	±2μm
Positioning accuracy		±20μm	±20μm
Feedback	X-X	±10μm	±10μm
	Y-Y	±10μm	±10μm
Maximum acceleration		3G	3G
Rated speed		2m/s	2m/s
Recommended maximum speed		1.5m/s	1.5m/s
And the resistance		4.6Ω	6.7Ω
And inductance		18mH	21.2mH
Pole pitch		20mm	20mm
Length of slide.		120mm	165mm
Mass of sliding body		1kg	1.5kg
Installation		Hoizontal mounting/side mounting	Horizontal mounting/side mounting
Origin sensor(external)		K017-A6(Optional)
