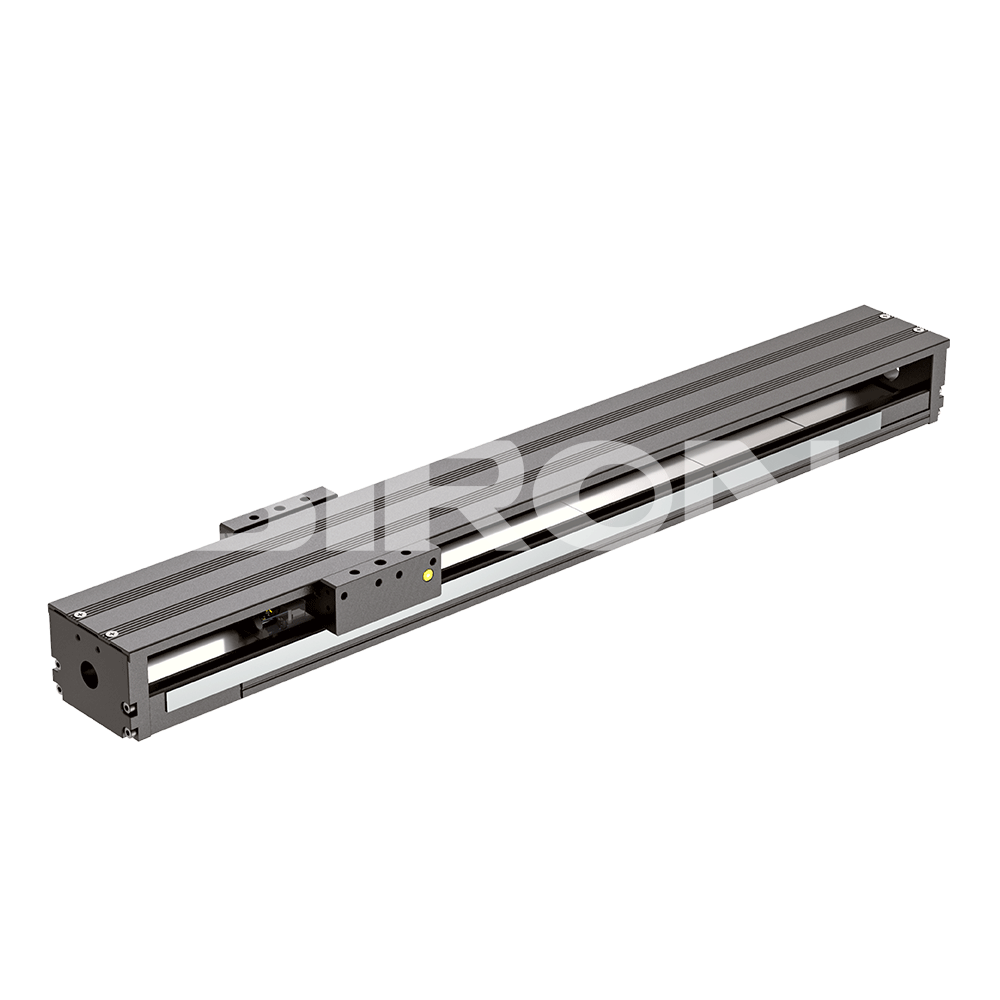

SiRON M370-60 Linear Electrical Compact Module

Name: SiRON M370-60 Linear Electrical Compact Module
Brand: SiRON
Rating: 5.0 (11 reviews)

Features:

◆ Compact structure, easy maintenance
◆ Steel base design, high rigidity
◆ Aluminum cover and organ cover are optionalThe moving stator runs without contact
◆ Smooth movement, no wear, long service life

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M370-60
Brand:
SiRON
Code:
9001909090

600mm Maximum stroke 86mm Module Base Compact Structure

Product Description

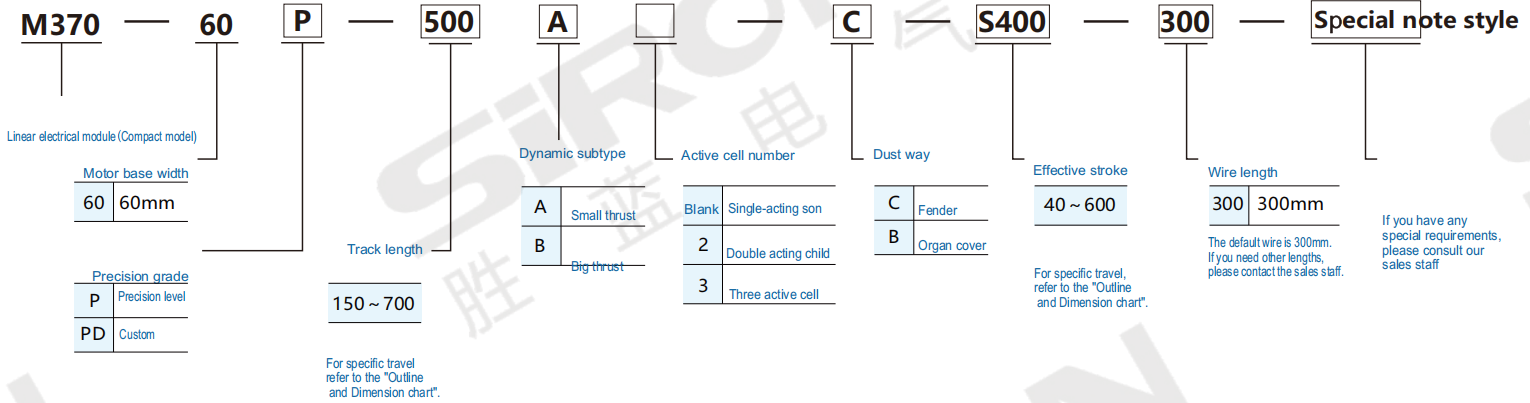

About selection

Selection example: M370-60P-500A-C-S400-300 is M370 series, motor base width 60mm, precision level, track length 500mm, small thrust, single actuator, with cover, effective stroke 400mm, line length 300mm

Product specification

Motor model		60-A Series	60-B Series
Peak thrust		56.0N	154.0N
Continue topush		25.0N	66.0N
Peak current		11.3Arms	11.3Arms2.
Sustained current		2.8Arms	6Arms
The force constant		9.6N/Arms	30N/Arms±2μ
Repeataccuracy		±2μm	m
Positioning accuracy		±20μm	±20μm
Feedback	X-X	±10μm	±10μm
	Y-Y	±10μm	±10μm
Maximum acceleration		2G	3G
Rated speed		2m/s	2m/s
Recommended maximum speed		1.5m/s	1.5m/s
And the resistance		1.32Ω	3.1Ω
And inductance		2.4mH	5.1mH
Pole pitch		20mm	20mm
Length of slide.		100mm	155mm
Mass of sliding body		0.3kg	0.6kg
Installation		Hoizontal mounting/side mounting	Horizontal mounting/side mounting
Origin sensor(external)		K017-A6(Optional)
