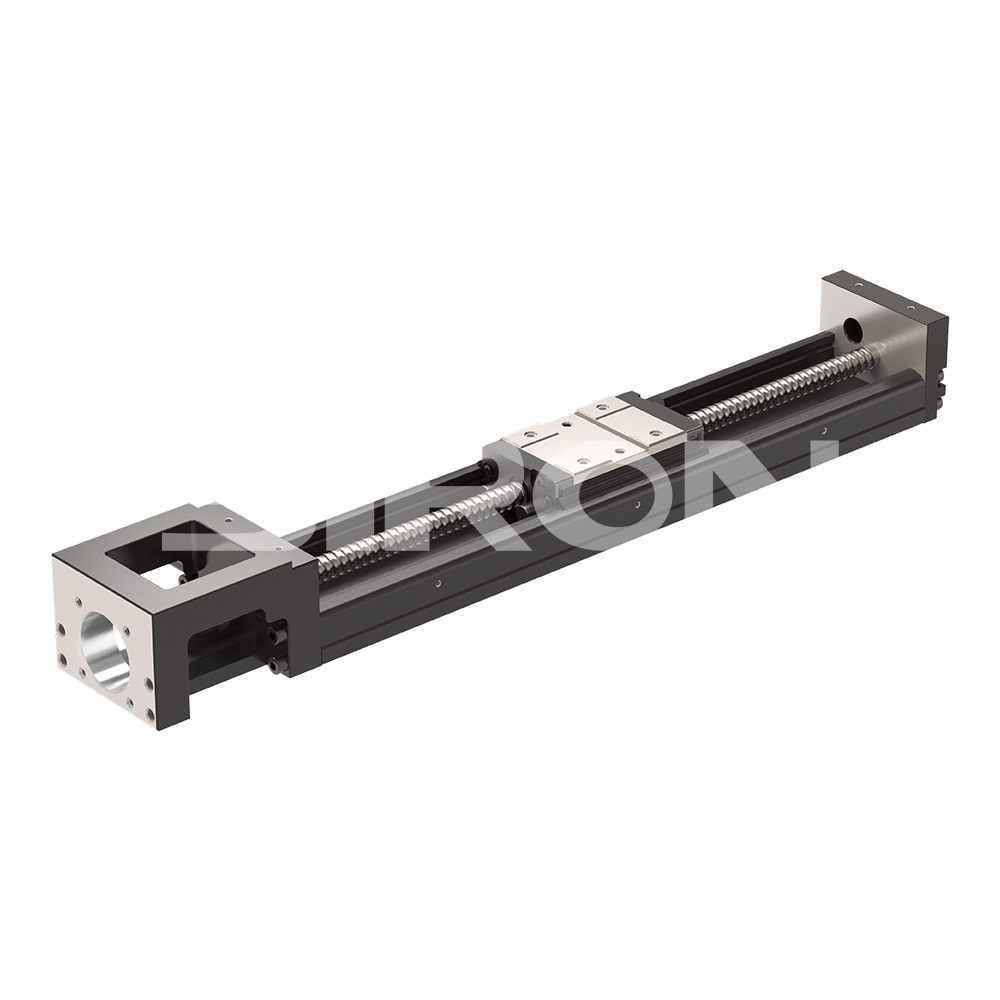

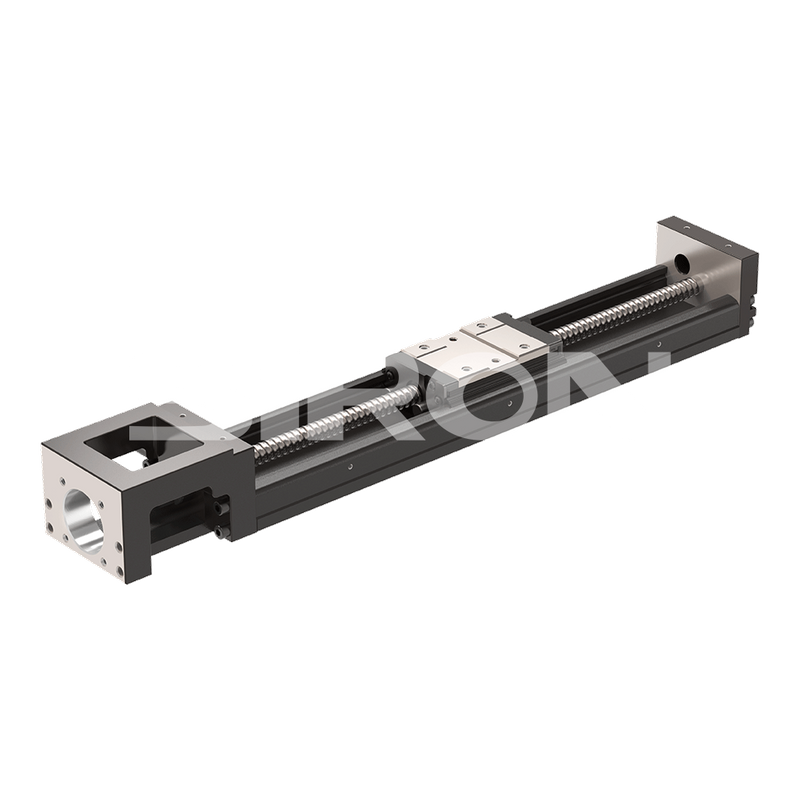

SiRON M369-50 Single Axis Slide Table

Name: SiRON M369-50 Single Axis Slide Table
Brand: SiRON
Rating: 5.0 (51 reviews)

Features:

*Integrating the function of ball screw and rolling guide railAvoid the traditional application selection, installation, debugging complexMiscellaneous, occupy a large space shortcomings.

*The guide bearing system consists of hardened steel balls on both sides Gothic double arc raceway composition, steel ball
and roll The track contact Angle is 45° to ensure that the four directions are the same Carrying capacity

*The body adopts U-shaped section, and the finite element analysis Optimization, so that the product has high rigidity and
knot Compact structure, light weight features.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M369-50
Brand:
SiRON
Code:
9001909090

50mm base 2mm lead 200mm track length 300mm track length 150mm track length

Product Description

About selection

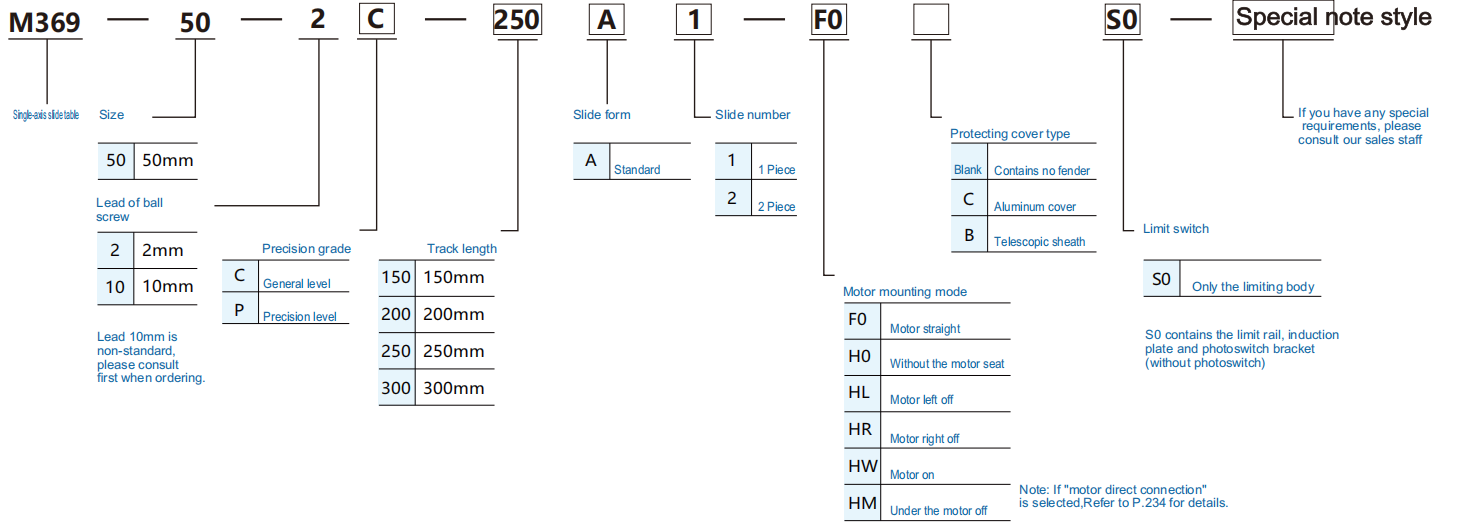

Selection example: M369-50-2C-250A1-F0S0: M369 series, size 50mm, lead 2mm, accuracy grade of general class, body length 250mm, standard sliding seat 1, motor direct connection, no cover, only limit body

Note: 1. When the length of the main body is 100mm, the number of sliding seats is only applicable to 1.

2. If you need the photoelectric switch, please order it separately

Product specification

Model					M369-50 series
Track length					150	200	250	300
Accuracy dlass	Reproduchblit oflocalizafion	Precision			±0.003
		Gemeral level			±0.01
	Positioning accuracy	Precision			±0.020
	Parallelismof walking	Precision			±0.010
	Maximum starting torque	Precision			4
		General level			2
Maximumspeed	Lead of ball screw				02
	Speed	Precision			270
		Geneal level			270
Load speccation	Ball screw	Nominal outer diameter	Precision/General level		8
		Lead	Precision/General level		2
		Basic dynamic load rating	Precisian		2136
			General level		1813
		Basic staticload rating	Precisian		3489
			General level		2910
	Linear slide	Basic dynamic load rating	Precision/General level	SlideA	8007
		Basic staticload rating	Precision/General level	SlideA	12916
		Allowable static moment	Tilt M₂ (Nm)	SlideA1	116
				Slide A2	545
			YawM₂ (N-m)	Slide A1	116
				SlideA2	545
			YawMa(N-m)	SlideA1	222
				Slide A2	444
Home senso		Outside			K017-A6(Optional)
