SiRON M364(C)-80 European Compact Economy Module

Features:
The body is made of new aviation aluminum material, which has higher rigidity, lighter quality, simple structure, small occupation space,
and is more suitable for all kinds of installation and collocation.The fastest can reach 5000mm/s.
Long stroke, the longest can achieve 5mm stroke, high repeat positioning accuracy, heavy positioning accuracy can be ±0.01MM
different linear module positioning accuracy to meet different needs,High straightness of operation, the fluctuation value per meter of
straightness processing is less than 0.01MM to ensure smooth and smooth running of the sliding platform, smooth and stable running
of the platform with silver linear sliding rail,The use of P-class linear guide rail and imported NSK bearing, to ensure the linear module
sliding smooth stability, long service life, precision control, impact resistance, cost-effective.
Availability:
Quantity:
Inquire Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • M364(C)-80

  • SiRON

  • 9001909090

3550mm Maximum stroke 2000mm/s Maximum speed 30mm belt width
Product Description

About selection

企业微信截图_1757327063228

Model selection example: M364(C)-80-13P-500-BL-T10-E5 is M364(C) series, body code 80, the lead is 13mm Synchronous belt material:polyurethane, the stroke is 500, the left linear module, Delta motor, the power is 100W, No point sensor, no end sensor, no end sensor

Product specification

Project Specification
Specifications Repeatability(mm) ±0.05
Lead(mm) 15 25 50 75 150
Maximum speed(mm/s) 750 1250 2000 2000 2000
Maximum payload(kg) Horizontal 60 45 30 20 10
Vertical 一 一 12 8 3
Reduction Ratio 1/10 1/6 1/3 1/2 1/1
Rated thrust(n) 972 583 291 194 98
Stroke pitch(mm) 500~3550mm/50mm
Sarts AC servo motor capacity (W) 750
Linear Guide(mm) W20×H15
Home sensor Outside EE-SX672(NPN)EE-SX672P(PNP)

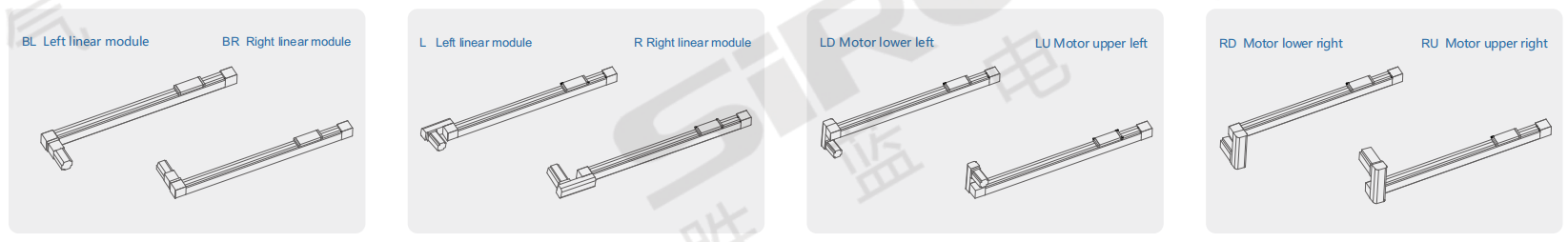

Installation method

企业微信截图_17748537078783

Suitable motor brand

Brand The motor mark Whether the brakes Motor capacity voltage Motor model voltage
Delta T No brakes (horizontal style) 750 220 ECMA-C20807RS ASD-B2-0721-B
With brake(vertical style) 750 220 ECMA-C20807SS ASD-B2-0721-B


Panasonic		 P No brakes(horizontal style) 750 220 MHMF082L1U2M  MCDLN35SG
With brake(vertical style) 750 220 MHMF082L1V2M  MCDLN35SG
Yaskawa Y No brakes (horizontal style) 750 220 SGM7J08AFC6S SGD7S5R5A00A002
With brake(vertical style) 750 220 SGM7J08AFC6E SGD7S5R5A00A0022

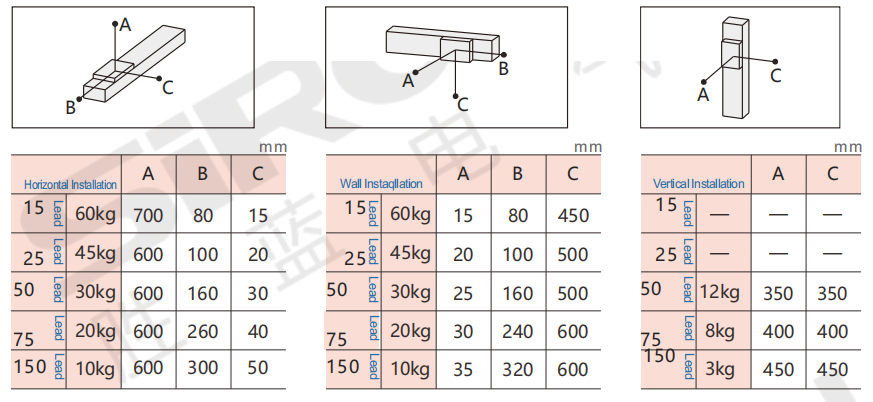

Allowable overhang

企业微信截图_17748538403589

Static loading moment

企业微信截图_17748538822025

MY 110
MP 110
MR 120

The data indicated by the torque represents the center of gravity.

Under standardized usage conditions, the product has a service life of 7,000 kilometers.

The standard specifications cannot be follow ed when using the inverted hoist. If you have any needs, please consult our sales staff.

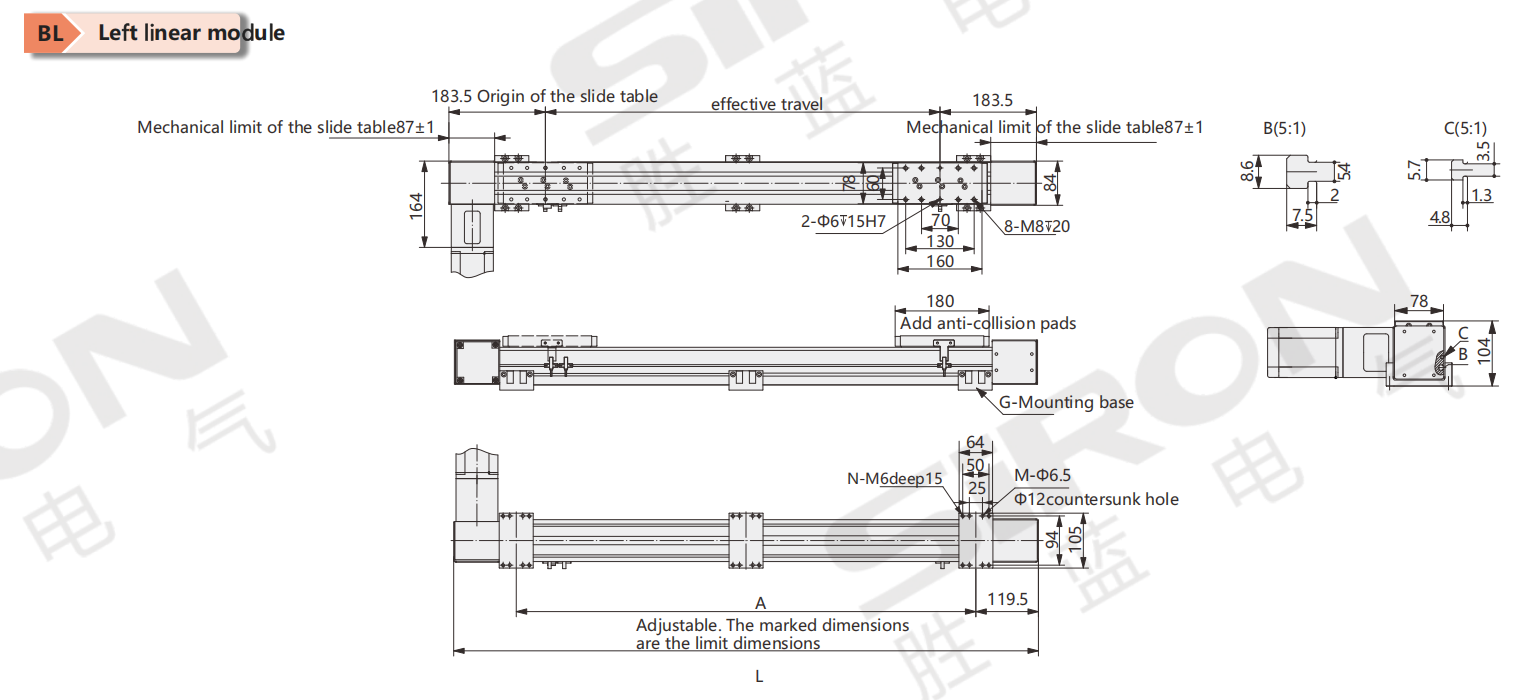

General dimension drawing

企业微信截图_17748542699846

Stroke 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 1550 1600 1650 1700 1750 1800 850 1900 1950 2000
L 867 917 967 1017 1067 1117 1167 1217 1267 1317 1367 1417 1467 1517 1567 1617 1667 1717 1767 1817 1867 1917 1967 2017 2067 2117 2167 2217 2267 2317 2367
A 628 678 728 778 828 878 928 978 1028 1078 1128 1178 1228 1278 1328 1378 1428 1478 1528 1578 1628 1678 1728 1778 1828 1878 1928 1978 2028 2078 2128
M 8 8 8 8 8 8 8 8 8 8 12 12 12 12 12 12 12 12 12 12 16 16 16 16 16 16 16 16 16 16 20
N 8 8 8 8 8 8 8 8 8 8 12 12 12 12 12 12 12 12 12 12 16 16 16 16 16 16 16 16 16 16 20
N 2 2 2 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 3 4 4 4 4 4 4 4 4 4 4 5
Weight(kg) 12.6 13 13.4 13.8 14.2 14.6 15 15.4 15.8 16.2 16.9 17.3 17.7 18.1 18.5 18.9 19.3 19.7 20.1 20.5 21.2 21.4 21.6 21.8 22 22.2 22.4 22.6 22.8 23 23.7
































Stroke 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600 2650 2700 2750 2800 2850 2900 2950 3000 3050 3100 3150 3200 3250 3300 3350 3400 3450 3500 3550
L 2417 2467 2517 2567 2617 2667 2717 2767 2817 2867 2917 2967 3017 3067 3117 3167 3217 3267 3317 3367 3417 3467 3517 3567 3617 3667 3717 3767 3817 3867 3917
A 2178 2228 2278 2328 2378 2428 2478 2528 2578 2628 2678 2728 2778 2828 2878 2928 2978 3028 3078 3128 3178 3228 3278 3328 3378 3428 3478 3528 3578 3628 3678
M 20 20 20 20 20 20 20 20 20 24 24 24 24 24 24 24 24 24 24 28 28 28 28 28 28 28 28 28 28 32 32
N 20 20 20 20 20 20 20 20 20 24 24 24 24 24 24 24 24 24 24 28 28 28 28 28 28 28 28 28 28 32 32
N 5 5 5 5 5 5 5 5 5 6 6 6 6 6 6 6 6 6 6 7 7 7 7 7 7 7 7 7 7 8 8
Weight(kg) 24.1 24.5 24.9 25.3 25.7 26.1 26.5 26.9 27.3 28 28.4 28.8 29.2 29.6 30 30.4 30.8 31.2 31.6 32.3 32.7 33.1 33.5 33.9 34.3 34.7 35.1 35.5 35.9 36.6 40

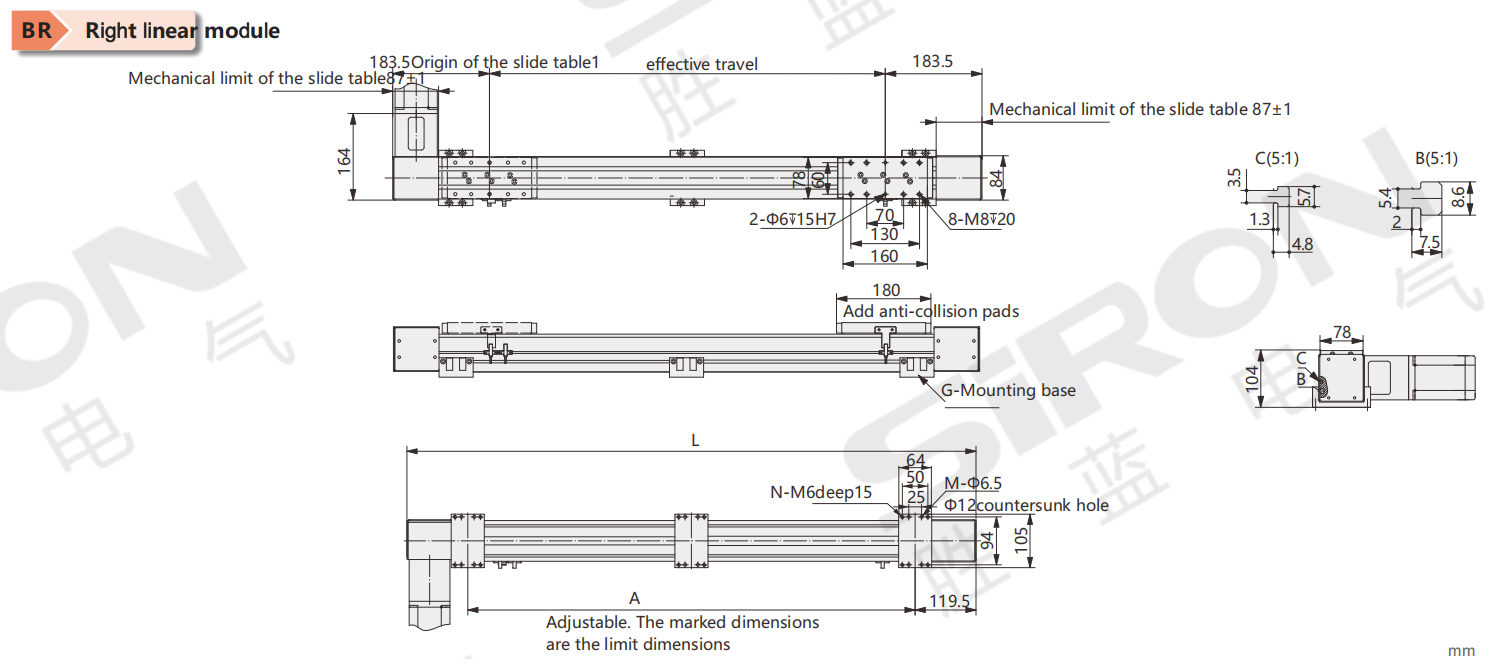

企业微信截图_17748540891430

Stroke 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 350 1400 1450 500 550 1600 1650 1700 1750 1800 850 900 1950 2000
L 867 917 967 1017 1067 1117 1167 1217 1267 1317 1367 1417 1467 1517 1567 1617 1667 1717 1767 1817 1867 1917 1967 2017 2067 2117 2167 2217 2267 2317 2367
A 628 678 728 778 828 878 928 978 1028 1078 1128 1178 1228 1278 1328 1378 1428 1478 1528 1578 1628 1678 1728 1778 1828 1878 1928 1978 2028 2078 2128
M 8 8 8 8 8 8 8 8 8 8 12 12 12 12 12 12 12 12 12 12 16 16 16 16 16 16 16 16 16 16 20
N 8 8 8 8 8 8 8 8 8 8 12 12 12 12 12 12 12 12 12 12 16 16 16 16 16 16 16 16 16 16 20
N 2 2 2 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 3 4 4 4 4 4 4 4 4 4 4 5
Weight(kg) 12.6 13 13.4 13.8 14.2 14.6 15 15.4 15.8 16.2 16.9 17.3 17.7 18.1 18.5 18.9 19.3 19.7 20.1 20.5 21.2 21.4 21.6 21.8 22 22.2 22.4 22.6 22.8 23 23.7
































Stroke 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600 2650 2700 2750 2800 2850 2900 2950 3000 3050 3100 3150 3200 3250 3300 3350 3400 3450 3500 3550
L 2417 2467 2517 2567 2617 2667 2717 2767 2817 2867 2917 2967 3017 3067 3117 3167 3217 3267 3317 3367 3417 3467 3517 3567 3617 3667 3717 3767 3817 3867 3917
A 2178 2228 2278 2328 2378 2428 2478 2528 2578 2628 2678 2728 2778 2828 2878 2928 2978 3028 3078 3128 3178 3228 3278 3328 3378 3428 3478 3528 3578 3628 3678
M 20 20 20 20 20 20 20 20 20 24 24 24 24 24 24 24 24 24 24 28 28 28 28 28 28 28 28 28 28 32 32
N 20 20 20 20 20 20 20 20 20 24 24 24 24 24 24 24 24 24 24 28 28 28 28 28 28 28 28 28 28 32 32
N 5 5 5 5 5 5 5 5 5 6 6 6 6 6 6 6 6 6 6 7 7 7 7 7 7 7 7 7 7 8 8
Weight(kg) 24.1 24.5 24.9 25.3 25.7 26.1 26.5 26.9 27.3 28 28.4 28.8 29.2 29.6 30 30.4 30.8 31.2 31.6 32.3 32.7 33.1 33.5 33.9 34.3 34.7 35.1 35.5 35.9 36.6 40

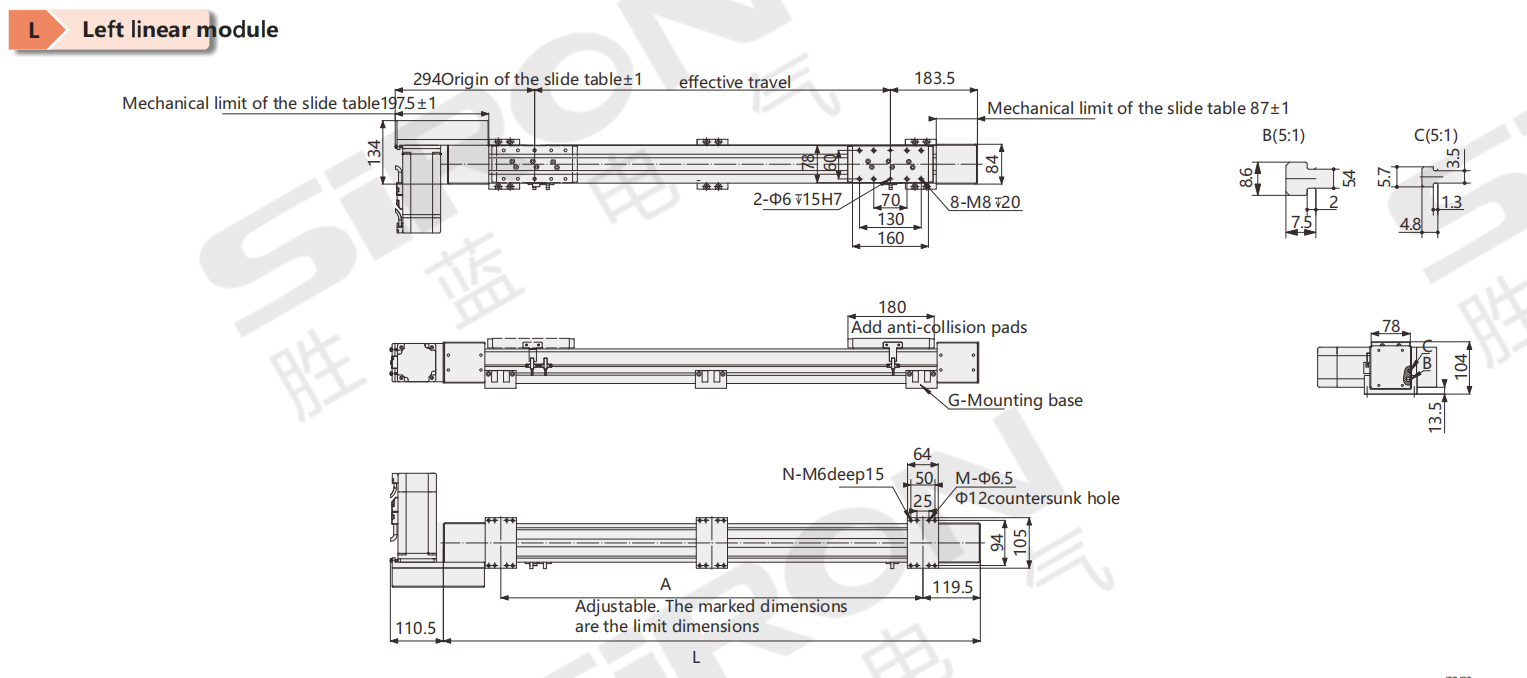

企业微信截图_17748543227475

Stroke 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 1550 1600 1650 1700 1750 1800 1850 1900 1950 2000
L 867 917 967 1017 1067 1117 1167 1217 1267 1317 1367 1417 1467 1517 1567 1617 1667 1717 1767 1817 1867 1917 1967 2017 2067 2117 2167 2217 2267 2317 2367
A 628 678 728 778 828 878 928 978 1028 1078 1128 1178 1228 1278 1328 1378 1428 1478 1528 1578 1628 1678 1728 1778 1828 1878 1928 1978 2028 2078 2128
M 8 8 8 8 8 8 8 8 8 8 12 12 12 12 12 12 12 12 12 12 16 16 16 16 16 16 16 16 16 16 20
N 8 8 8 8 8 8 8 8 8 8 12 12 12 12 12 12 12 12 12 12 16 16 16 16 16 16 16 16 16 16 20
N 2 2 2 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 3 4 4 4 4 4 4 4 4 4 4 5
Weight(kg) 12.6 13 13.4 13.8 14.2 14.6 15 15.4 15.8 16.2 16.9 17.3 17.7 18.1 18.5 18.9 19.3 19.7 20.1 20.5 21.2 21.4 21.6 21.8 22 22.2 22.4 22.6 22.8 23 23.7
































Stroke 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600 2650 2700 2750 2800 2850 2900 2950 3000 3050 3100 3150 3200 3250 3300 3350 3400 3450 3500 3550
L 2417 2467 2517 2567 2617 2667 2717 2767 2817 2867 2917 2967 3017 3067 3117 3167 3217 3267 3317 3367 3417 3467 3517 3567 3617 3667 3717 3767 3817 3867 3917
A 2178 2228 2278 2328 2378 2428 2478 2528 2578 2628 2678 2728 2778 2828 2878 2928 2978 3028 3078 3128 3178 3228 3278 3328 3378 3428 3478 3528 3578 3628 3678
M 20 20 20 20 20 20 20 20 20 24 24 24 24 24 24 24 24 24 24 28 28 28 28 28 28 28 28 28 28 32 32
N 20 20 20 20 20 20 20 20 20 24 24 24 24 24 24 24 24 24 24 28 28 28 28 28 28 28 28 28 28 32 32
N 5 5 5 5 5 5 5 5 5 6 6 6 6 6 6 6 6 6 6 7 7 7 7 7 7 7 7 7 7 8 8
Weight(kg) 24.1 24.5 24.9 25.3 25.7 26.1 26.5 26.9 27.3 28 28.4 28.8 29.2 29.6 30 30.4 30.8 31.2 31.6 32.3 32.7 33.1 33.5 33.9 34.3 34.7 35.1 35.5 35.9 36.6 40

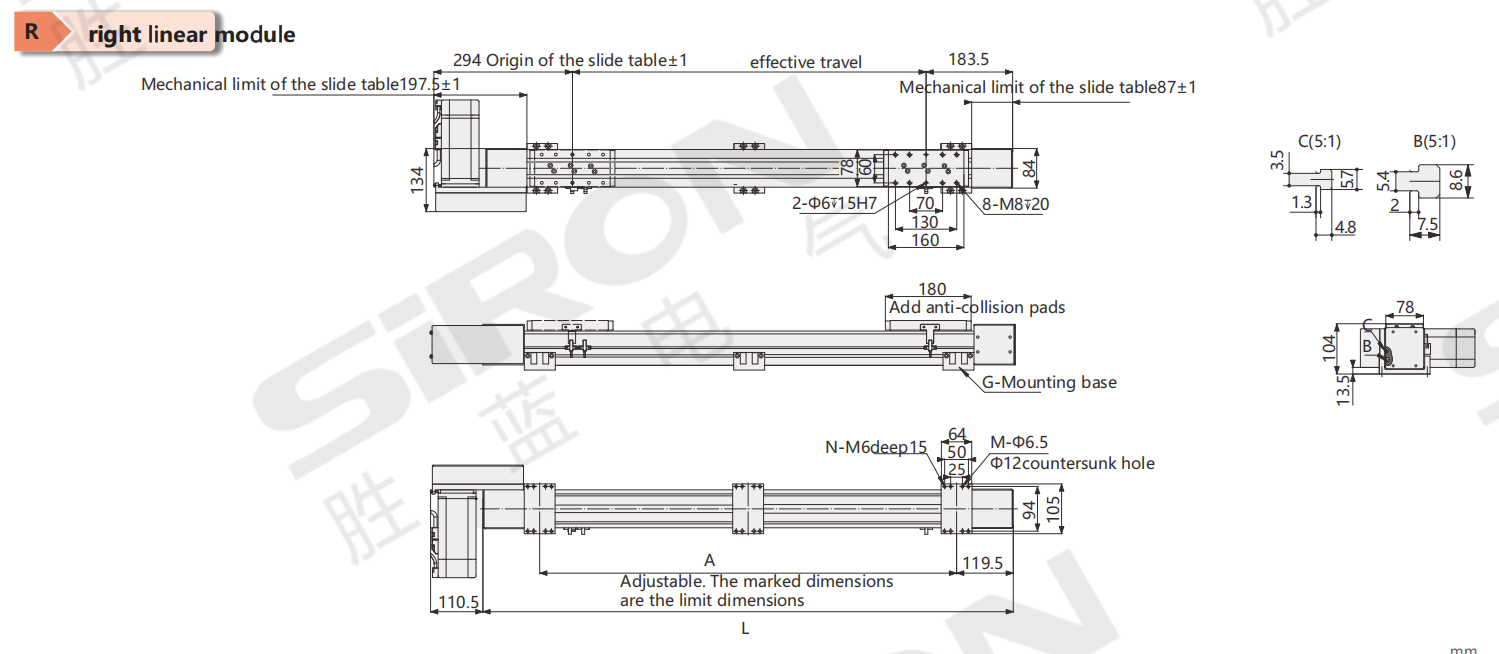

企业微信截图_17748544063741


Stroke 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 1550 1600 1650 1700 1750 1800 1850 1900 1950 2000
L 867 917 967 1017 1067 1117 1167 1217 1267 1317 1367 1417 1467 1517 1567 1617 1667 1717 1767 1817 1867 1917 1967 2017 2067 2117 2167 2217 2267 2317 2367
A 628 678 728 778 828 878 928 978 1028 1078 1128 1178 1228 1278 1328 1378 1428 1478 1528 1578 1628 1678 1728 1778 1828 1878 1928 1978 2028 2078 2128
M 8 8 8 8 8 8 8 8 8 8 12 12 12 12 12 12 12 12 12 12 16 16 16 16 16 16 16 16 16 16 20
N 8 8 8 8 8 8 8 8 8 8 12 12 12 12 12 12 12 12 12 12 16 16 16 16 16 16 16 16 16 16 20
N 2 2 2 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 3 4 4 4 4 4 4 4 4 4 4 5
Weight(kg) 12.6 13 13.4 13.8 14.2 14.6 15 15.4 15.8 16.2 16.9 17.3 17.7 18.1 18.5 18.9 19.3 19.7 20.1 20.5 21.2 21.4 21.6 21.8 22 22.2 22.4 22.6 22.8 23 23.7
































Stroke 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600 2650 2700 2750 2800 2850 2900 2950 3000 3050 3100 3150 3200 3250 3300 3350 3400 3450 3500 3550
L 2417 2467 2517 2567 2617 2667 2717 2767 2817 2867 2917 2967 3017 3067 3117 3167 3217 3267 3317 3367 3417 3467 3517 3567 3617 3667 3717 3767 3817 3867 3917
A 2178 2228 2278 2328 2378 2428 2478 2528 2578 2628 2678 2728 2778 2828 2878 2928 2978 3028 3078 3128 3178 3228 3278 3328 3378 3428 3478 3528 3578 3628 3678
M 20 20 20 20 20 20 20 20 20 24 24 24 24 24 24 24 24 24 24 28 28 28 28 28 28 28 28 28 28 32 32
N 20 20 20 20 20 20 20 20 20 24 24 24 24 24 24 24 24 24 24 28 28 28 28 28 28 28 28 28 28 32 32
N 5 5 5 5 5 5 5 5 5 6 6 6 6 6 6 6 6 6 6 7 7 7 7 7 7 7 7 7 7 8 8
Weight(kg) 24.1 24.5 24.9 25.3 25.7 26.1 26.5 26.9 27.3 28 28.4 28.8 29.2 29.6 30 30.4 30.8 31.2 31.6 32.3 32.7 33.1 33.5 33.9 34.3 34.7 35.1 35.5 35.9 36.6 40

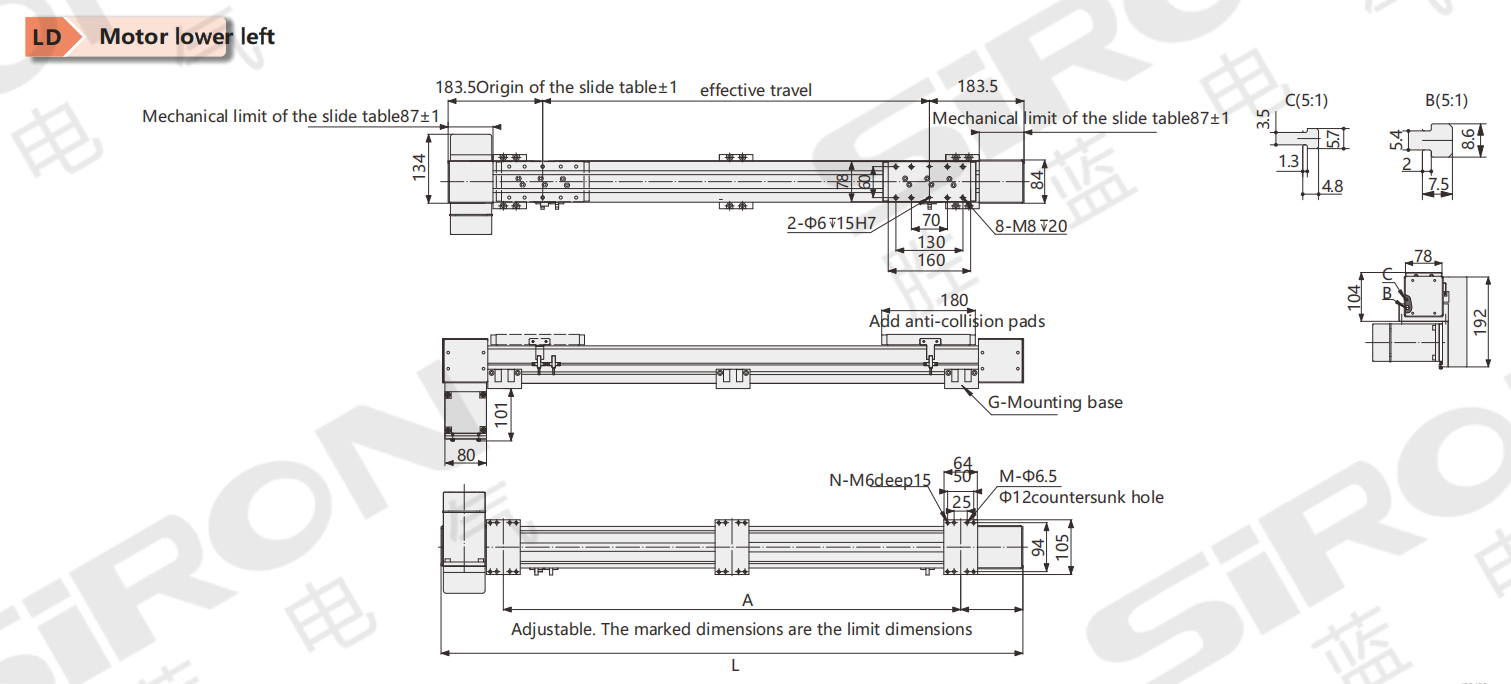

企业微信截图_17748544946758


Stroke 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 500 1550 1600 1650 700 1750 1800 1850 1900 1950 2000
L 867 917 967 1017 1067 1117 1167 1217 1267 1317 1367 1417 1467 1517 1567 1617 1667 1717 1767 1817 1867 1917 1967 2017 2067 2117 2167 2217 2267 2317 2367
A 628 678 728 778 828 878 928 978 1028 1078 1128 1178 1228 1278 1328 1378 1428 1478 1528 1578 1628 1678 1728 1778 1828 1878 1928 1978 2028 2078 2128
M 8 8 8 8 8 8 8 8 8 8 12 12 12 12 12 12 12 12 12 12 16 16 16 16 16 16 16 16 16 16 20
N 8 8 8 8 8 8 8 8 8 8 12 12 12 12 12 12 12 12 12 12 16 16 16 16 16 16 16 16 16 16 20
N 2 2 2 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 3 4 4 4 4 4 4 4 4 4 4 5
Weight(kg) 12.6 13 13.4 13.8 14.2 14.6 15 15.4 15.8 16.2 16.9 17.3 17.7 18.1 18.5 18.9 19.3 19.7 20.1 20.5 21.2 21.4 21.6 21.8 22 22.2 22.4 22.6 22.8 23 23.7
































Stroke 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600 2650 2700 2750 2800 2850 2900 2950 3000 3050 3100 3150 3200 3250 3300 3350 3400 3450 3500 3550
L 2417 2467 2517 2567 2617 2667 2717 2767 2817 2867 2917 2967 3017 3067 3117 3167 3217 3267 3317 3367 3417 3467 3517 3567 3617 3667 3717 3767 3817 3867 3917
A 2178 2228 2278 2328 2378 2428 2478 2528 2578 2628 2678 2728 2778 2828 2878 2928 2978 3028 3078 3128 3178 3228 3278 3328 3378 3428 3478 3528 3578 3628 3678
M 20 20 20 20 20 20 20 20 20 24 24 24 24 24 24 24 24 24 24 28 28 28 28 28 28 28 28 28 28 32 32
N 20 20 20 20 20 20 20 20 20 24 24 24 24 24 24 24 24 24 24 28 28 28 28 28 28 28 28 28 28 32 32
N 5 5 5 5 5 5 5 5 5 6 6 6 6 6 6 6 6 6 6 7 7 7 7 7 7 7 7 7 7 8 8
Weight(kg) 24.1 24.5 24.9 25.3 25.7 26.1 26.5 26.9 27.3 28 28.4 28.8 29.2 29.6 30 30.4 30.8 31.2 31.6 32.3 32.7 33.1 33.5 33.9 34.3 34.7 35.1 35.5 35.9 36.6 40

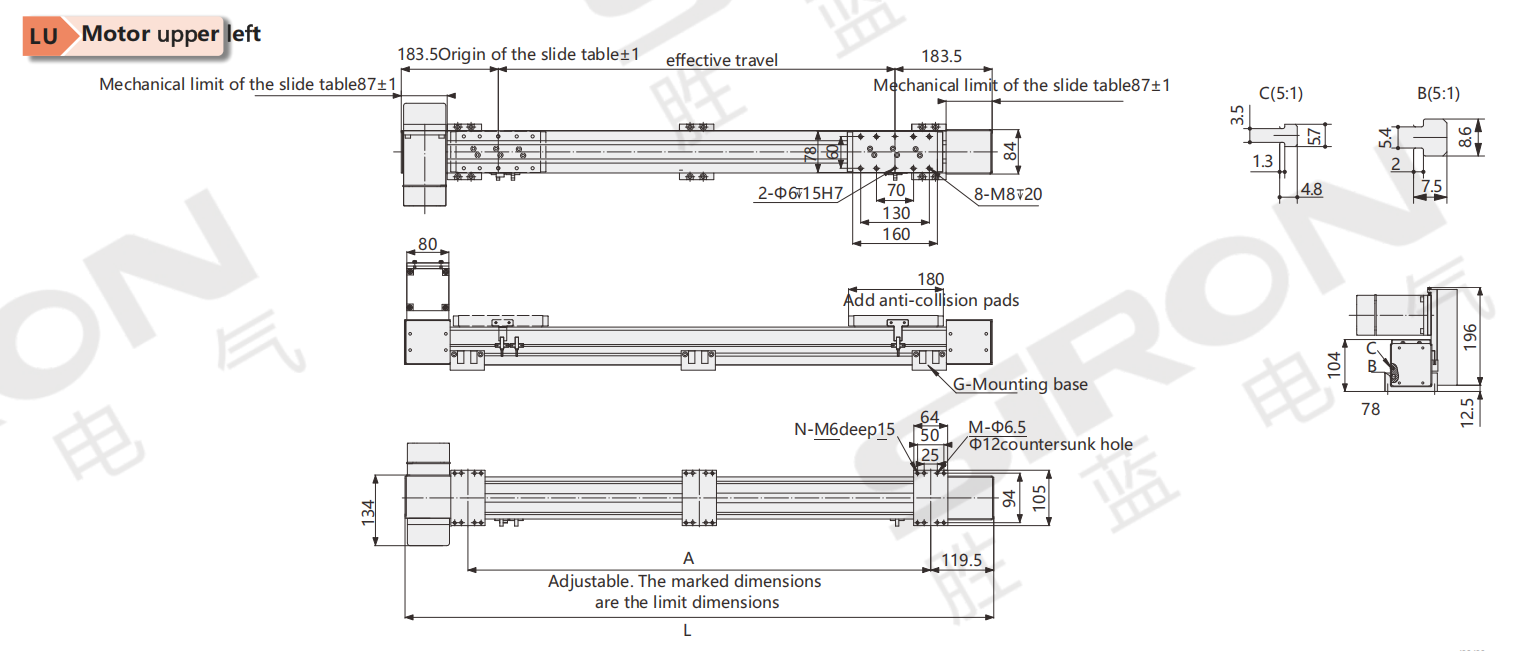

企业微信截图_17748545952823


Stroke 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 1550 1600 1650 1700 1750 1800 1850 1900 1950 2000
L 867 917 967 1017 1067 1117 1167 1217 1267 1317 1367 1417 1467 1517 1567 1617 1667 1717 1767 1817 1867 1917 1967 2017 2067 2117 2167 2217 2267 2317 2367
A 628 678 728 778 828 878 928 978 1028 1078 1128 1178 1228 1278 1328 1378 1428 1478 1528 1578 1628 1678 1728 1778 1828 1878 1928 1978 2028 2078 2128
M 8 8 8 8 8 8 8 8 8 8 12 12 12 12 12 12 12 12 12 12 16 16 16 16 16 16 16 16 16 16 20
N 8 8 8 8 8 8 8 8 8 8 12 12 12 12 12 12 12 12 12 12 16 16 16 16 16 16 16 16 16 16 20
N 2 2 2 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 3 4 4 4 4 4 4 4 4 4 4 5
Weight(kg) 12.6 13 13.4 13.8 14.2 14.6 15 15.4 15.8 16.2 16.9 17.3 17.7 18.1 18.5 18.9 19.3 19.7 20.1 20.5 21.2 21.4 21.6 21.8 22 22.2 22.4 22.6 22.8 23 23.7
































Stroke 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600 2650 2700 2750 2800 2850 2900 2950 3000 3050 3100 3150 3200 3250 3300 3350 3400 3450 3500 3550
L 2417 2467 2517 2567 2617 2667 2717 2767 2817 2867 2917 2967 3017 3067 3117 3167 3217 3267 3317 3367 3417 3467 3517 3567 3617 3667 3717 3767 3817 3867 3917
A 2178 2228 2278 2328 2378 2428 2478 2528 2578 2628 2678 2728 2778 2828 2878 2928 2978 3028 3078 3128 3178 3228 3278 3328 3378 3428 3478 3528 3578 3628 3678
M 20 20 20 20 20 20 20 20 20 24 24 24 24 24 24 24 24 24 24 28 28 28 28 28 28 28 28 28 28 32 32
N 20 20 20 20 20 20 20 20 20 24 24 24 24 24 24 24 24 24 24 28 28 28 28 28 28 28 28 28 28 32 32
N 5 5 5 5 5 5 5 5 5 6 6 6 6 6 6 6 6 6 6 7 7 7 7 7 7 7 7 7 7 8 8
Weight(kg) 24.1 24.5 24.9 25.3 25.7 26.1 26.5 26.9 27.3 28 28.4 28.8 29.2 29.6 30 30.4 30.8 31.2 31.6 32.3 32.7 33.1 33.5 33.9 34.3 34.7 35.1 35.5 35.9 36.6 40

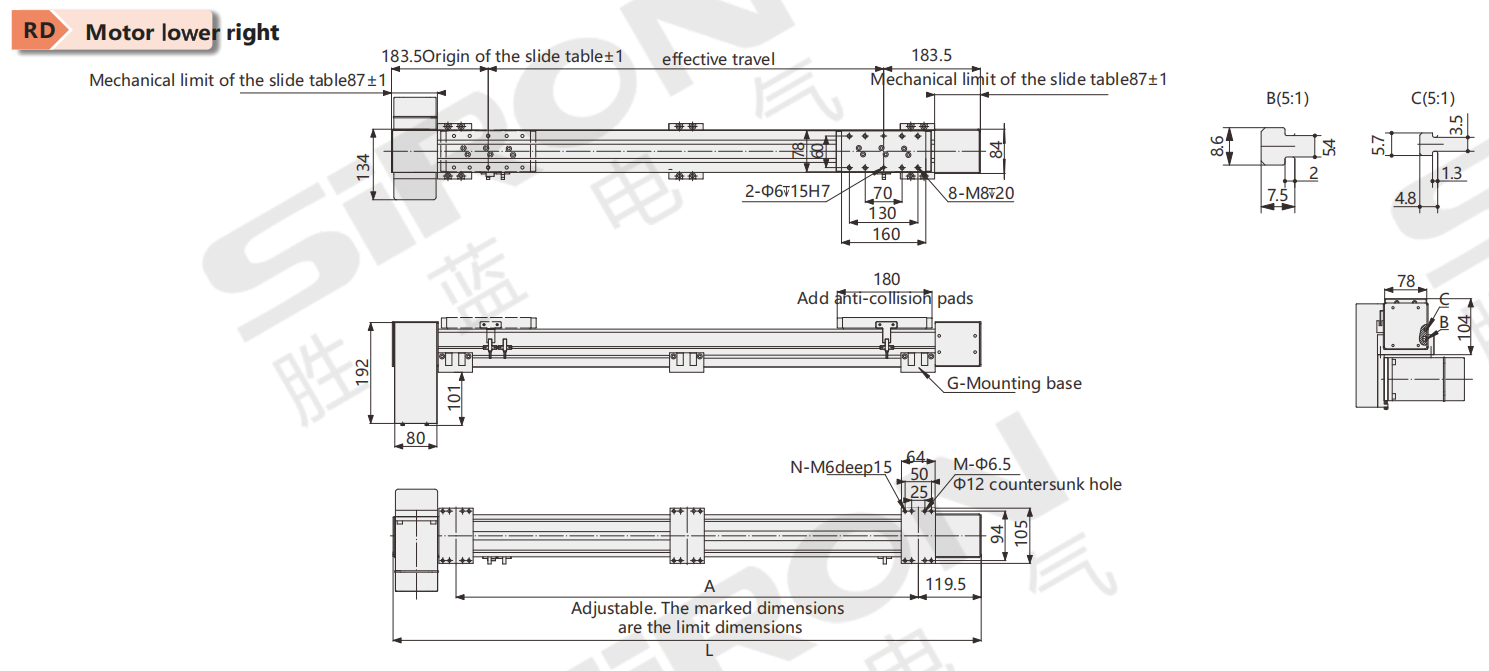

企业微信截图_17748547006766


Stroke 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 1550 1600 1650 1700 1750 1800 1850 1900 1950 2000
L 867 917 967 1017 1067 1117 1167 1217 1267 1317 1367 1417 1467 1517 1567 1617 1667 1717 1767 1817 1867 1917 1967 2017 2067 2117 2167 2217 2267 2317 2367
A 628 678 728 778 828 878 928 978 1028 1078 1128 1178 1228 1278 1328 1378 1428 1478 1528 1578 1628 1678 1728 1778 1828 1878 1928 1978 2028 2078 2128
M 8 8 8 8 8 8 8 8 8 8 12 12 12 12 12 12 12 12 12 12 16 16 16 16 16 16 16 16 16 16 20
N 8 8 8 8 8 8 8 8 8 8 12 12 12 12 12 12 12 12 12 12 16 16 16 16 16 16 16 16 16 16 20
N 2 2 2 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 3 4 4 4 4 4 4 4 4 4 4 5
Weight(kg) 12.6 13 13.4 13.8 14.2 14.6 15 15.4 15.8 16.2 16.9 17.3 17.7 18.1 18.5 18.9 19.3 19.7 20.1 20.5 21.2 21.4 21.6 21.8 22 22.2 22.4 22.6 22.8 23 23.7
































Stroke 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600 2650 2700 2750 2800 2850 2900 2950 3000 3050 3100 3150 3200 3250 3300 3350 3400 3450 3500 3550
L 2417 2467 2517 2567 2617 2667 2717 2767 2817 2867 2917 2967 3017 3067 3117 3167 3217 3267 3317 3367 3417 3467 3517 3567 3617 3667 3717 3767 3817 3867 3917
A 2178 2228 2278 2328 2378 2428 2478 2528 2578 2628 2678 2728 2778 2828 2878 2928 2978 3028 3078 3128 3178 3228 3278 3328 3378 3428 3478 3528 3578 3628 3678
M 20 20 20 20 20 20 20 20 20 24 24 24 24 24 24 24 24 24 24 28 28 28 28 28 28 28 28 28 28 32 32
N 20 20 20 20 20 20 20 20 20 24 24 24 24 24 24 24 24 24 24 28 28 28 28 28 28 28 28 28 28 32 32
N 5 5 5 5 5 5 5 5 5 6 6 6 6 6 6 6 6 6 6 7 7 7 7 7 7 7 7 7 7 8 8
Weight(kg) 24.1 24.5 24.9 25.3 25.7 26.1 26.5 26.9 27.3 28 28.4 28.8 29.2 29.6 30 30.4 30.8 31.2 31.6 32.3 32.7 33.1 33.5 33.9 34.3 34.7 35.1 35.5 35.9 36.6 40

企业微信截图_17748547006766


Stroke 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 1550 1600 1650 1700 1750 1800 1850 1900 1950 2000
L 867 917 967 1017 1067 1117 1167 1217 1267 1317 1367 1417 1467 1517 1567 1617 1667 1717 1767 1817 1867 1917 1967 2017 2067 2117 2167 2217 2267 2317 2367
A 628 678 728 778 828 878 928 978 1028 1078 1128 1178 1228 1278 1328 1378 1428 1478 1528 1578 1628 1678 1728 1778 1828 1878 1928 1978 2028 2078 2128
M 8 8 8 8 8 8 8 8 8 8 12 12 12 12 12 12 12 12 12 12 16 16 16 16 16 16 16 16 16 16 20
N 8 8 8 8 8 8 8 8 8 8 12 12 12 12 12 12 12 12 12 12 16 16 16 16 16 16 16 16 16 16 20
N 2 2 2 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 3 4 4 4 4 4 4 4 4 4 4 5
Weight(kg) 12.6 13 13.4 13.8 14.2 14.6 15 15.4 15.8 16.2 16.9 17.3 17.7 18.1 18.5 18.9 19.3 19.7 20.1 20.5 21.2 21.4 21.6 21.8 22 22.2 22.4 22.6 22.8 23 23.7
































Stroke 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600 2650 2700 2750 2800 2850 2900 2950 3000 3050 3100 3150 3200 3250 3300 3350 3400 3450 3500 3550
L 2417 2467 2517 2567 2617 2667 2717 2767 2817 2867 2917 2967 3017 3067 3117 3167 3217 3267 3317 3367 3417 3467 3517 3567 3617 3667 3717 3767 3817 3867 3917
A 2178 2228 2278 2328 2378 2428 2478 2528 2578 2628 2678 2728 2778 2828 2878 2928 2978 3028 3078 3128 3178 3228 3278 3328 3378 3428 3478 3528 3578 3628 3678
M 20 20 20 20 20 20 20 20 20 24 24 24 24 24 24 24 24 24 24 28 28 28 28 28 28 28 28 28 28 32 32
N 20 20 20 20 20 20 20 20 20 24 24 24 24 24 24 24 24 24 24 28 28 28 28 28 28 28 28 28 28 32 32
N 5 5 5 5 5 5 5 5 5 6 6 6 6 6 6 6 6 6 6 7 7 7 7 7 7 7 7 7 7 8 8
Weight(kg) 24.1 24.5 24.9 25.3 25.7 26.1 26.5 26.9 27.3 28 28.4 28.8 29.2 29.6 30 30.4 30.8 31.2 31.6 32.3 32.7 33.1 33.5 33.9 34.3 34.7 35.1 35.5 35.9 36.6 40
