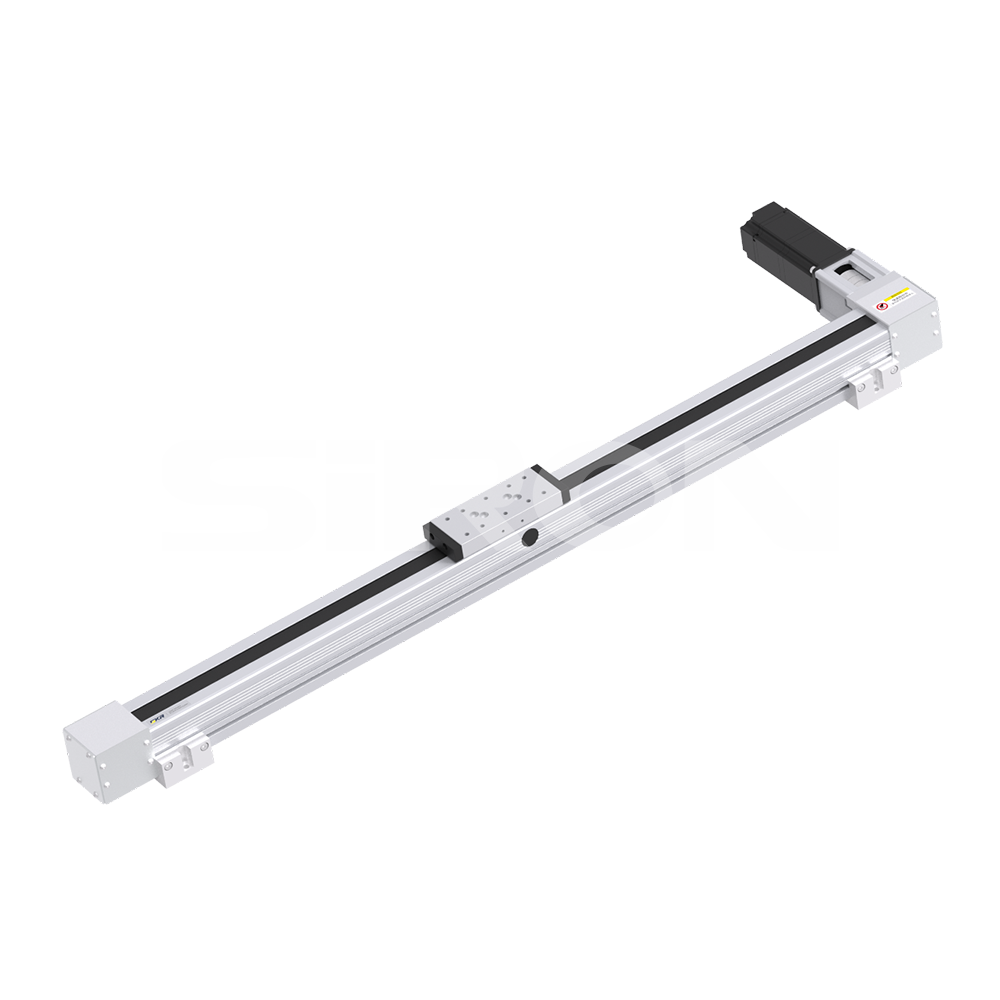

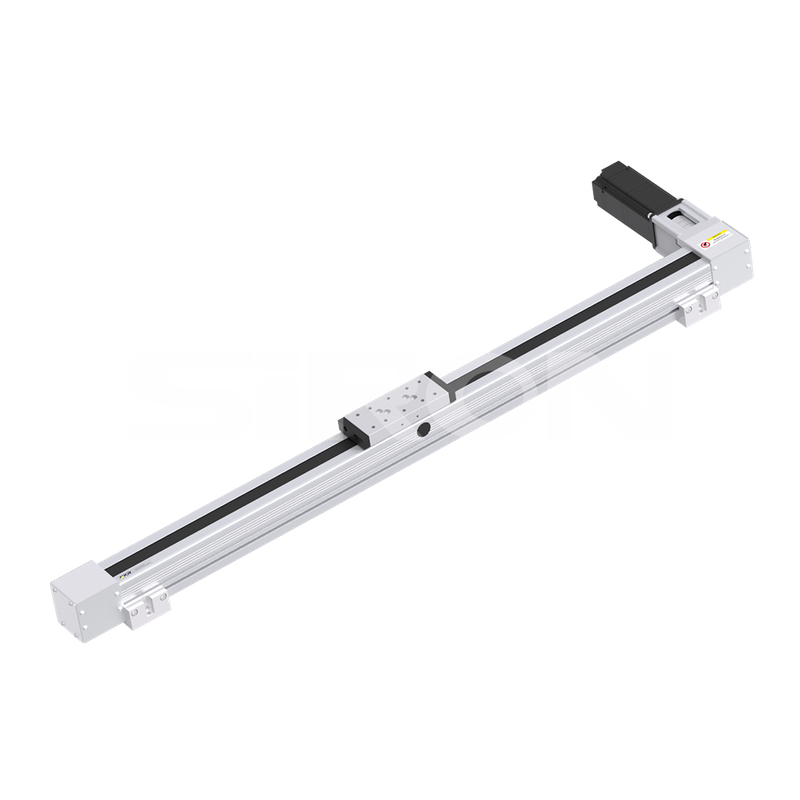

SiRON M364(C)-60 European Compact Economical Module

Features:
The body is made of new aviation aluminum material, which has higher rigidity, lighter quality, simple structure, small occupation space,
and is more suitable for all kinds of installation and collocation.The fastest can reach 5000mm/s.
Long stroke, the longest can achieve 5mm stroke, high repeat positioning accuracy, heavy positioning accuracy can be ±0.01MM
different linear module positioning accuracy to meet different needs,High straightness of operation, the fluctuation value per meter of
straightness processing is less than 0.01MM to ensure smooth and smooth running of the sliding platform, smooth and stable running
of the platform with silver linear sliding rail,The use of P-class linear guide rail and imported NSK bearing, to ensure the linear module
sliding smooth stability, long service life, precision control, impact resistance, cost-effective.
Availability:
Quantity:
Inquire Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • M364(C)-60

  • SiRON

  • 9001909090

3000mm Maximum stroke 2160mm/s Maximum speed 20mm belt width
Product Description

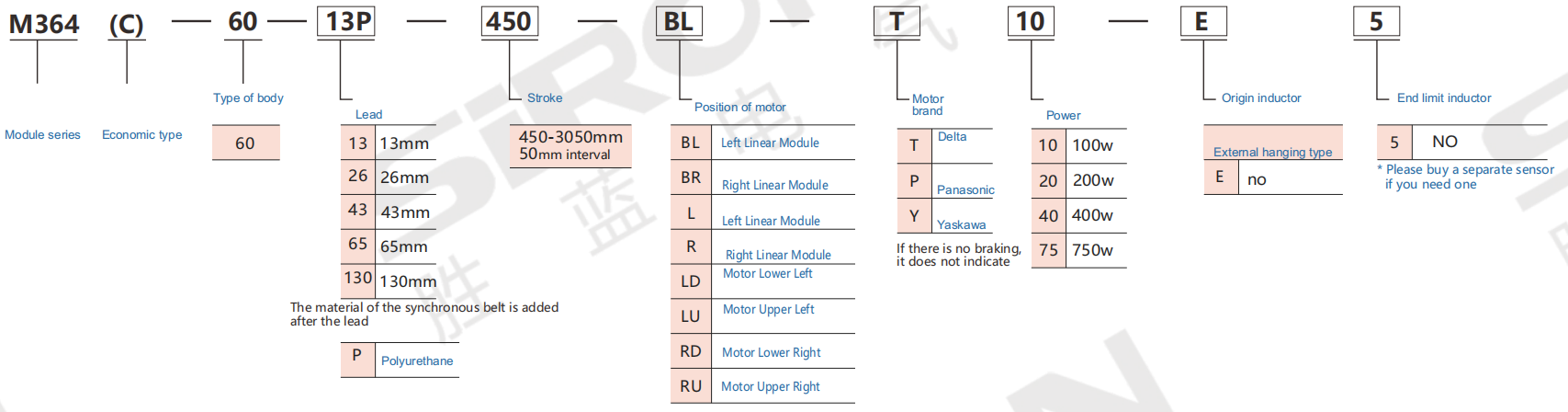

About selection

企业微信截图_17573266968882

Model selection example: M364(C)-60-13P-450-BL-T10-E5 is M364(C) series, body code 60, the lead is 13mm Synchronous belt material:polyurethane, the stroke is 450, the left linear module, Delta motor, the power is 100W, No point sensor, no end sensor, no end sensor

Product specification

Project Specification
Specifications Repeatability(mm) ±0.05
Lead(mm) 13 26 43 65 130
Maximum speed(mm/s) 650 1300 2160 2000 2000
Maximum payload(kg) Horizontal 32 14 10 8 5
Vertical 一 一 5 4 2
Reduction Ratio 1/10 1/5 1/3 1/2 1/1
Rated thrust(n) 600 300 180 120 60
Stroke pitch(mm) 450~3000mm/50mm           interval
Sarts AC servo motor capacity (W) 400
Linear Guide(mm) W15×H12.5
Home sensor Outside EE-SX672(NPN)EE-SX672P(PNP)

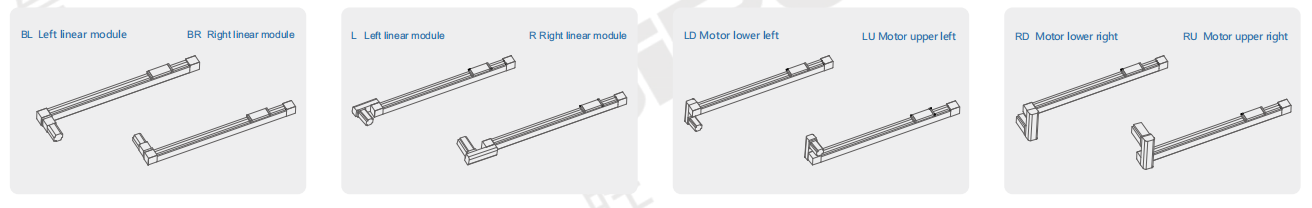

Installation method

企业微信截图_17748521298818

Suitable motor brand

Brand The motor mark Whether the brakes Motor capacity voltage Motor model voltage
Delta T No brakes (horizontal style) 400 220 ECMA-C20604RS  ASD-B2-0421-B
With brake (vertical style) 400 220 ECMA-C20604SS  ASD-B2-0421-B

Panasonic		 P No brakes (horizontal style) 400 220 MHMF042L1U2M  MBDLN25SG
With brake(vertical style) 400 220 MHMF042L1V2M  MBDLN25SG
Yaskawa Y No brakes (horizontal style) 400 220 SGM7J04AFC6S SGD7S2R8A00A002
With brake (vertical style) 400 220 SGM7J04AFC6E SGD7S2R8A00A002

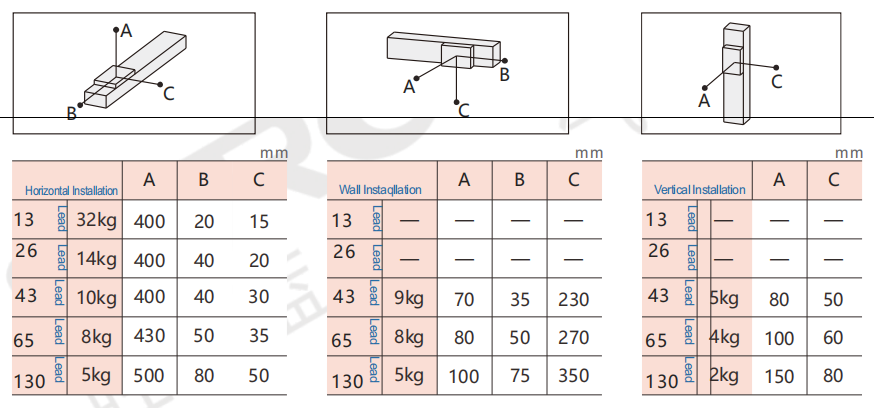

Allowable overhang

企业微信截图_17748526276047

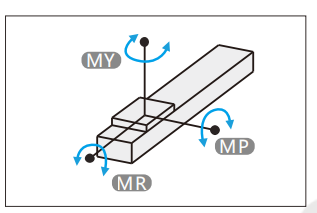

Static loading moment

企业微信截图_17748526778929

MY 280
MP 280
MR 60

The data indicated by the torque represents the center of gravity. Under standardized usage conditions, the product has a service life of 7,000  kilometers.

The standard specifications cannot be followed when using the inverted hoist. If y ou have any needs, please consult our sales staff

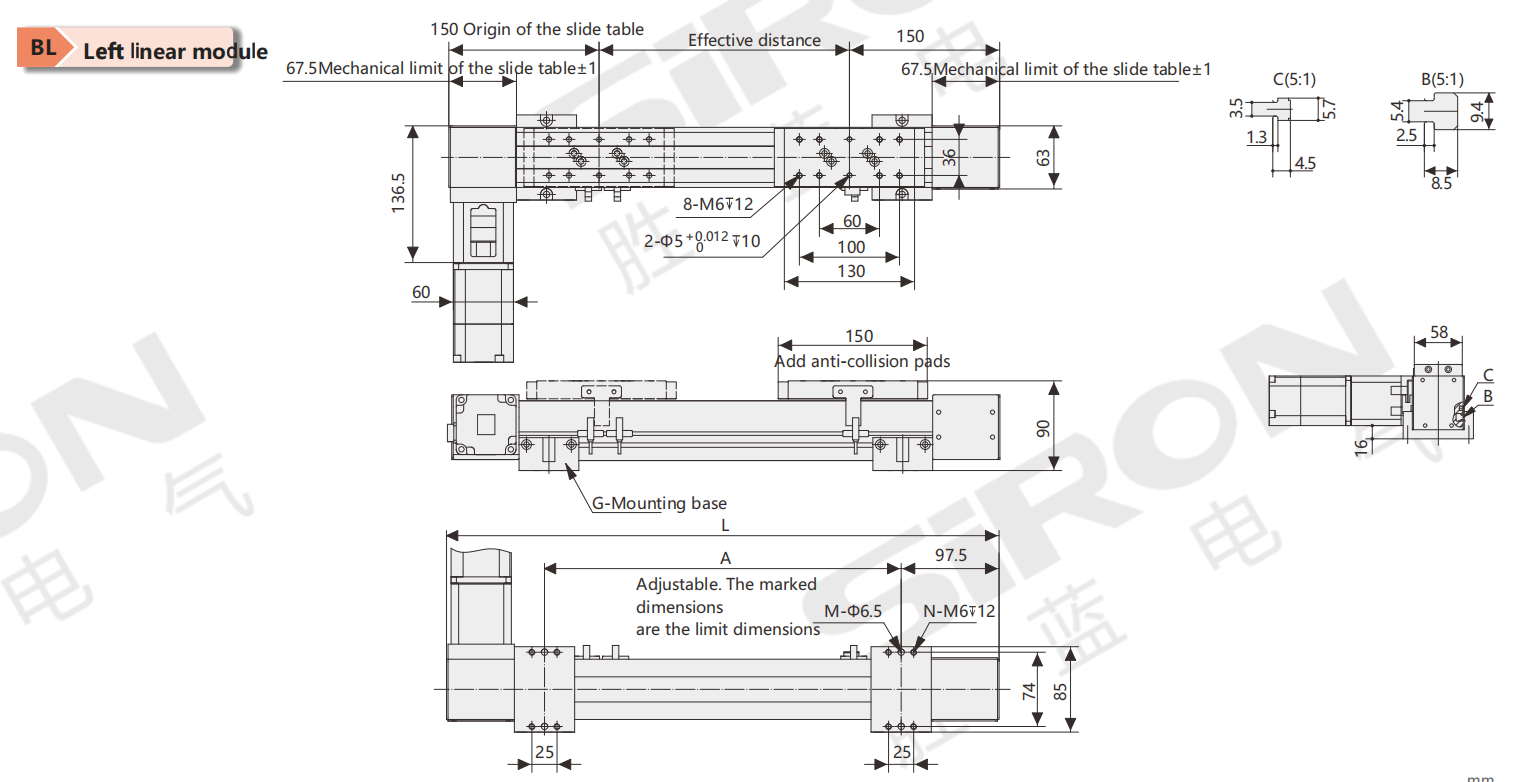

General dimension drawing

企业微信截图_17748528016321

Stroke 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 1550 1600 1650 1700
L 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 1550 1600 1650 1700 1750 1800 1850 1900 1950 2000
A 555 605 655 705 755 805 855 905 955 1005 1055 1105 1155 1205 1255 1305 1355 1405 1455 1505 1555 1605 1655 1705 1755 1805
M 4 4 4 4 4 4 4 4 4 4 4 6 6 6 6 6 6 6 6 6 6 8 8 8 8 8
N 8 8 8 8 8 8 8 8 8 8 8 12 12 12 12 12 12 12 12 12 12 16 16 16 16 16
P 2 2 2 2 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 3 4 4 4 4 4
Weight(kg) 6.85 7.1 7.35 7.6 7.85 8.1 8.35 8.6 8.85 9.1 9.35 9.6 9.85 10.1 10.4 10.6 10.9 11.1 11.4 11.6 11.9 12.1 12.4 12.6 12.9 13.1



























Stroke 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600 2650 2700 2750 2800 2850 2900 2950 3000
L 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600 2650 2700 2750 2800 2850 2900 2950 3000 3050 3100 3150 3200 3250 3300
A 1855 1905 1955 2005 2055 2105 2155 2205 2255 2305 2355 2405 2455 2505 2555 2605 2655 2705 2755 2805 2855 2905 2955 3005 3055 3105
M 8 8 8 8 8 10 10 10 10 10 10 10 10 10 10 12 12 12 12 12 12 12 12 12 12 12
N 16 16 16 16 16 20 20 20 20 20 20 20 20 20 20 24 24 24 24 24 24 24 24 24 24 24
P 4 4 4 4 4 5 5 5 5 5 5 5 5 5 5 6 6 6 6 6 6 6 6 6 6 6
Weight(kg) 13.4 13.6 13.9 14.1 14.4 14.6 14.9 15.1 15.4 15.6 15.9 16.1 16.4 16.6 16.9 17.1 17.4 17.6 17.9 18.1 18.4 18.6 18.9 19.1 19.4 19.6

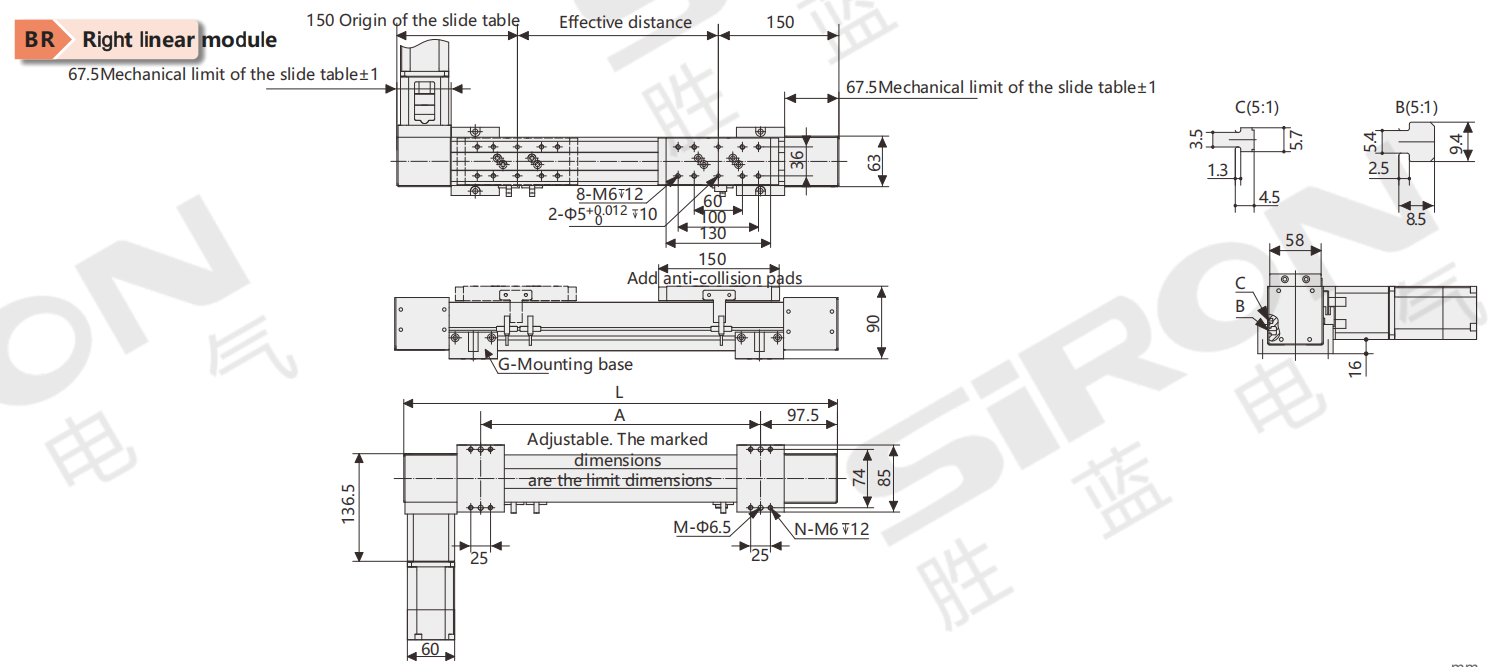

企业微信截图_17748529053907


Stroke 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 1550 1600 1650 1700
L 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 1550 1600 1650 1700 1750 1800 1850 1900 1950 2000
A 555 605 655 705 755 805 855 905 955 1005 1055 1105 1155 1205 1255 1305 1355 1405 1455 1505 1555 1605 1655 1705 1755 1805
M 4 4 4 4 4 4 4 4 4 4 4 6 6 6 6 6 6 6 6 6 6 8 8 8 8 8
N 8 8 8 8 8 8 8 8 8 8 8 12 12 12 12 12 12 12 12 12 12 16 16 16 16 16
P 2 2 2 2 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 3 4 4 4 4 4
Weight(kg) 6.85 7.1 7.35 7.6 7.85 8.1 8.35 8.6 8.85 9.1 9.35 9.6 9.85 10.1 10.4 10.6 10.9 11.1 11.4 11.6 11.9 12.1 12.4 12.6 12.9 13.1



























Stroke 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600 2650 2700 2750 2800 2850 2900 2950 3000
L 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600 2650 2700 2750 2800 2850 2900 2950 3000 3050 3100 3150 3200 3250 3300
A 1855 1905 1955 2005 2055 2105 2155 2205 2255 2305 2355 2405 2455 2505 2555 2605 2655 2705 2755 2805 2855 2905 2955 3005 3055 3105
M 8 8 8 8 8 10 10 10 10 10 10 10 10 10 10 12 12 12 12 12 12 12 12 12 12 12
N 16 16 16 16 16 20 20 20 20 20 20 20 20 20 20 24 24 24 24 24 24 24 24 24 24 24
P 4 4 4 4 4 5 5 5 5 5 5 5 5 5 5 6 6 6 6 6 6 6 6 6 6 6
Weight(kg) 13.4 13.6 13.9 14.1 14.4 14.6 14.9 15.1 15.4 15.6 15.9 16.1 16.4 16.6 16.9 17.1 17.4 17.6 17.9 18.1 18.4 18.6 18.9 19.1 19.4 19.6

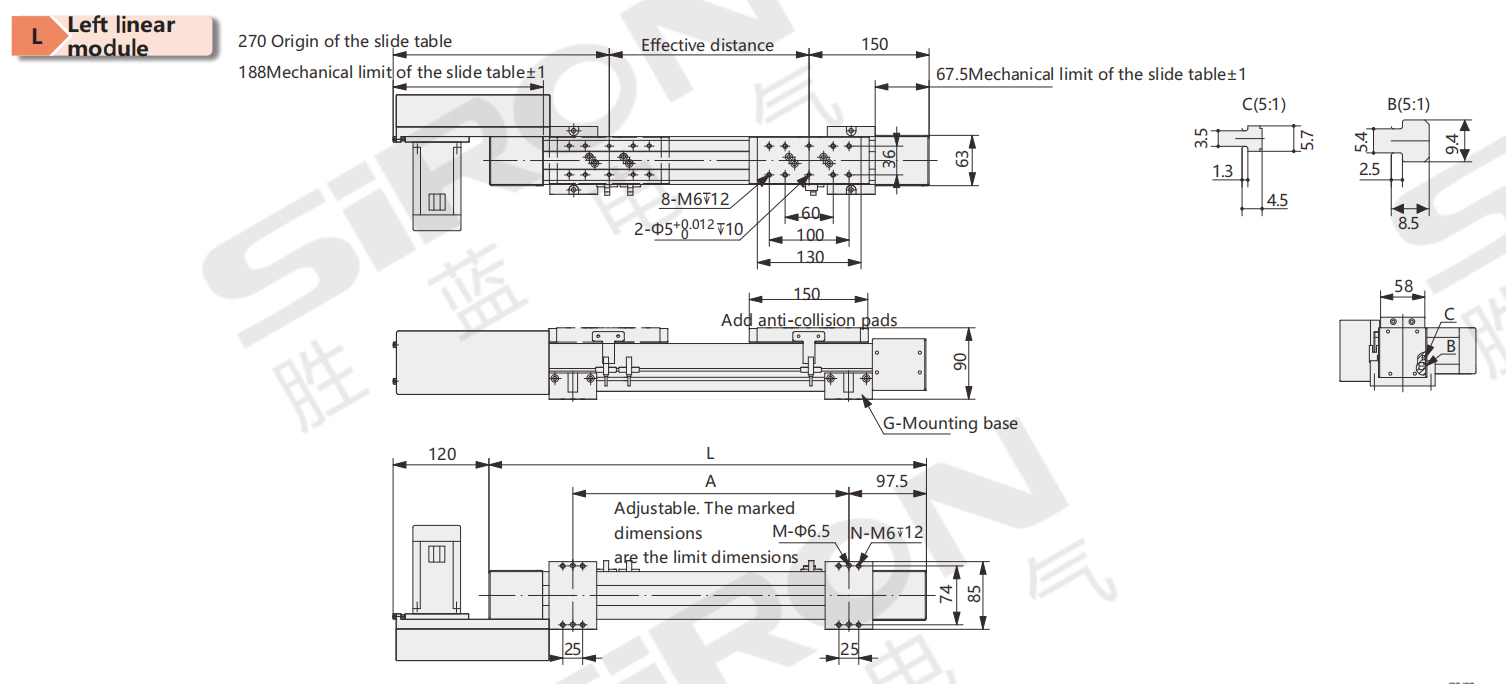

企业微信截图_17748529992457


Stroke 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 1550 1600 1650 1700
L 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 1550 1600 1650 1700 1750 1800 1850 1900 1950 2000
A 547 597 647 697 747 797 847 897 947 997 1047 1097 1147 1197 1247 1297 1347 1397 1447 1497 1547 1597 1647 1697 1747 1797
M 4 4 4 4 4 4 4 4 4 4 4 6 6 6 6 6 6 6 6 6 6 8 8 8 8 8
N 8 8 8 8 8 8 8 8 8 8 8 12 12 12 12 12 12 12 12 12 12 16 16 16 16 16
P 2 2 2 2 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 3 4 4 4 4 4
Weight(kg) 7.1 7.35 7.6 7.85 8.1 8.35 8.6 8.85 9.1 9.35 9.6 9.85 10.1 10.35 10.6 10.85 11.1 11.35 11.6 11.85 12.1 12.35 12.6 12.85 13.1 13.35



























Stroke 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600 2650 2700 2750 2800 2850 2900 2950 3000
L 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600 2650 2700 2750 2800 2850 2900 2950 3000 3050 3100 3150 3200 3250 3300
A 1847 1897 1947 1997 2047 2097 2147 2197 2247 2297 2347 2397 2447 2497 2547 2597 2647 2697 2747 2797 2847 2897 2947 2997 3047 3097
M 8 8 8 8 8 10 10 10 10 10 10 10 10 10 10 12 12 12 12 12 12 12 12 12 12 12
N 16 16 16 16 16 20 20 20 20 20 20 20 20 20 20 24 24 24 24 24 24 24 24 24 24 24
P 4 4 4 4 4 5 5 5 5 5 5 5 5 5 5 6 6 6 6 6 6 6 6 6 6 6
Weight(kg) 13.6 13.85 14.1 14.35 14.6 14.85 15.1 15.35 15.6 15.85 16.1 16.35 16.6 16.85 17.1 17.35 17.6 17.85 18.1 18.35 18.6 18.85 19.1 19.35 19.6 19.85

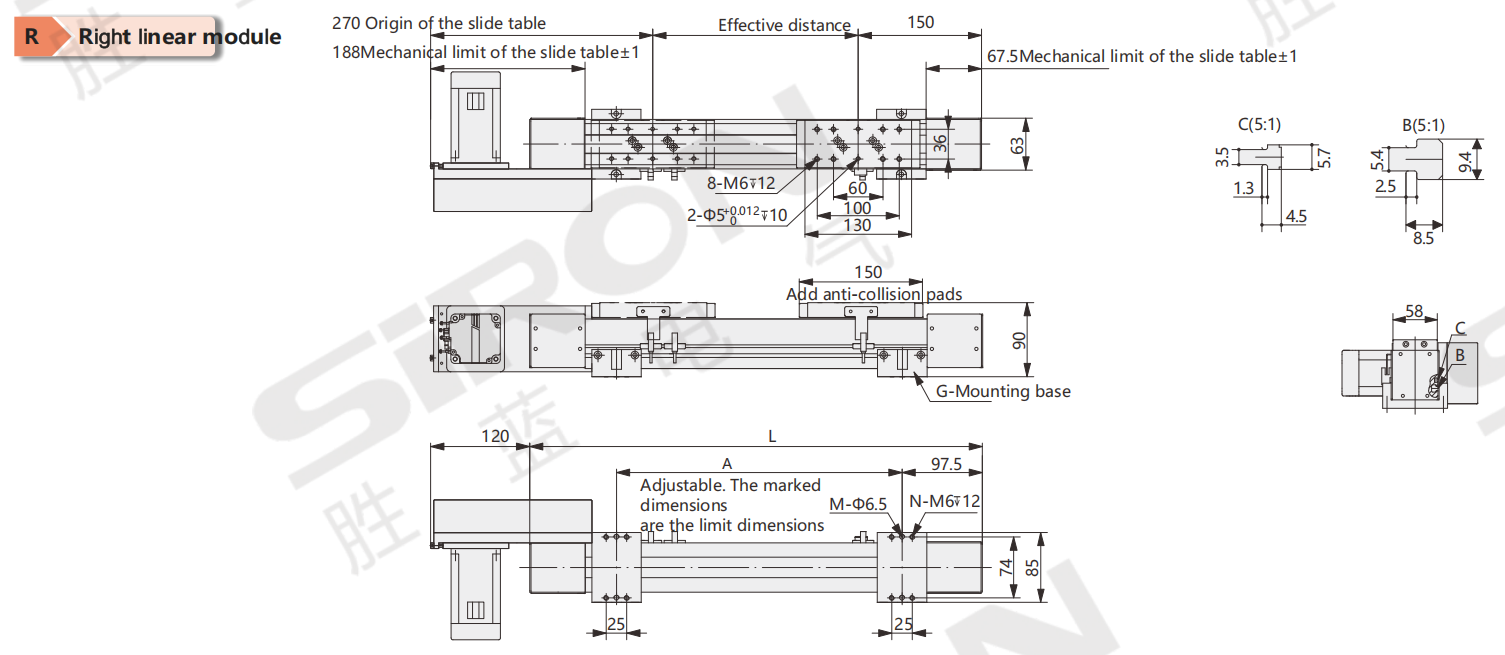

企业微信截图_17748531161394


Stroke 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 1550 1600 1650 1700
L 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 1550 1600 1650 1700 1750 1800 1850 1900 1950 2000
A 547 597 647 697 747 797 847 897 947 997 1047 1097 1147 1197 1247 1297 1347 1397 1447 1497 1547 1597 1647 1697 1747 1797
M 4 4 4 4 4 4 4 4 4 4 4 6 6 6 6 6 6 6 6 6 6 8 8 8 8 8
N 8 8 8 8 8 8 8 8 8 8 8 12 12 12 12 12 12 12 12 12 12 16 16 16 16 16
P 2 2 2 2 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 3 4 4 4 4 4
Weight(kg) 7.1 7.35 7.6 7.85 8.1 8.35 8.6 8.85 9.1 9.35 9.6 9.85 10.1 10.35 10.6 10.85 11.1 11.35 11.6 11.85 12.1 12.35 12.6 12.85 13.1 13.35



























Stroke 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600 2650 2700 2750 2800 2850 2900 2950 3000
L 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600 2650 2700 2750 2800 2850 2900 2950 3000 3050 3100 3150 3200 3250 3300
A 1847 1897 1947 1997 2047 2097 2147 2197 2247 2297 2347 2397 2447 2497 2547 2597 2647 2697 2747 2797 2847 2897 2947 2997 3047 3097
M 8 8 8 8 8 10 10 10 10 10 10 10 10 10 10 12 12 12 12 12 12 12 12 12 12 12
N 16 16 16 16 16 20 20 20 20 20 20 20 20 20 20 24 24 24 24 24 24 24 24 24 24 24
P 4 4 4 4 4 5 5 5 5 5 5 5 5 5 5 6 6 6 6 6 6 6 6 6 6 6
Weight(kg) 13.6 13.85 14.1 14.35 14.6 14.85 15.1 15.35 15.6 15.85 16.1 16.35 16.6 16.85 17.1 17.35 17.6 17.85 18.1 18.35 18.6 18.85 19.1 19.35 19.6 19.85

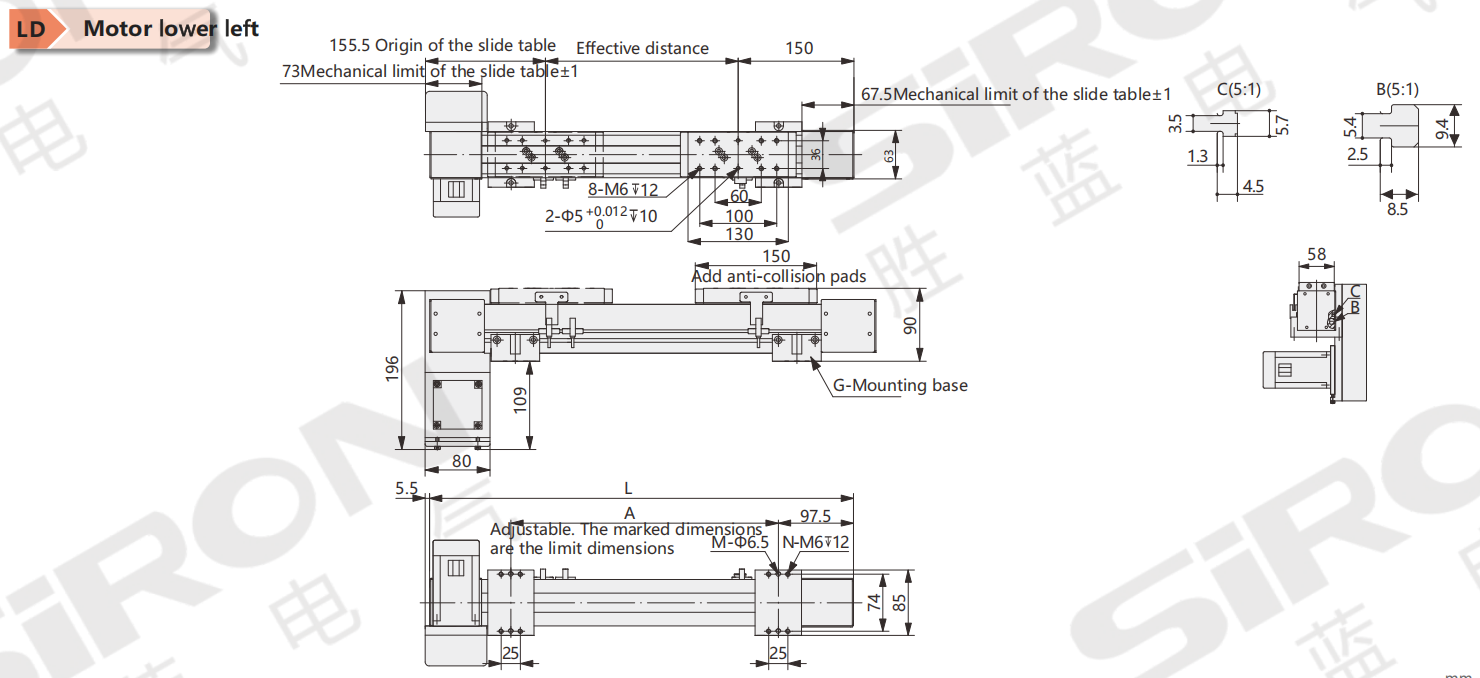

企业微信截图_17748532023423


Stroke 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 1550 1600 1650 1700
L 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 1550 1600 1650 1700 1750 1800 1850 1900 1950 2000
A 547 597 647 697 747 797 847 897 947 997 1047 1097 1147 1197 1247 1297 1347 1397 1447 1497 1547 1597 1647 1697 1747 1797
M 44 4 4 4 4 4 4 4 4 4 4 6 6 6 6 6 6 6 6 6 6 8 8 8 8 8
N 8 8 8 8 8 8 8 8 8 8 8 12 12 12 12 12 12 12 12 12 12 16 16 16 16 16
P 2 2 2 2 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 3 4 4 4 4 4
Weight(kg) 7.1 7.35 7.6 7.85 8.1 8.35 8.6 8.85 9.1 9.35 9.6 9.85 10.1 10.35 10.6 10.85 11.1 11.35 11.6 11.85 12.1 12.35 12.6 12.85 13.1 13.35



























Stroke 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600 2650 2700 2750 2800 2850 2900 2950 3000
L 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600 2650 2700 2750 2800 2850 2900 2950 3000 3050 3100 3150 3200 3250 3300
A 1847 1897 1947 1997 2047 2097 2147 2197 2247 2297 2347 2397 2447 2497 2547 2597 2647 2697 2747 2797 2847 2897 2947 2997 3047 3097
M 8 8 8 8 8 10 10 10 10 10 10 10 10 10 10 12 12 12 12 12 12 12 12 12 12 12
N 16 16 16 16 16 20 20 20 20 20 20 20 20 20 20 24 24 24 24 24 24 24 24 24 24 24
P 4 4 4 4 4 5 5 5 5 5 5 5 5 5 5 6 6 6 6 6 6 6 6 6 6 6
Weight(kg) 13.6 13.85 14.1 14.35 14.6 14.85 15.1 15.35 15.6 15.85 16.1 16.35 16.6 16.85 17.1 17.35 17.6 17.85 18.1 18.35 18.6 18.85 19.1 19.35 19.6 19.85

企业微信截图_17748532871960


Stroke 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 1550 1600 1650 1700
L 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 1550 1600 1650 1700 1750 1800 1850 1900 1950 2000
A 547 597 647 697 747 797 847 897 947 997 1047 1097 1147 1197 1247 1297 1347 1397 1447 1497 1547 1597 1647 1697 1747 1797
M 44 4 4 4 4 4 4 4 4 4 4 6 6 6 6 6 6 6 6 6 6 8 8 8 8 8
N 8 8 8 8 8 8 8 8 8 8 8 12 12 12 12 12 12 12 12 12 12 16 16 16 16 16
P 2 2 2 2 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 3 4 4 4 4 4
Weight(kg) 7.1 7.35 7.6 7.85 8.1 8.35 8.6 8.85 9.1 9.35 9.6 9.85 10.1 10.35 10.6 10.85 11.1 11.35 11.6 11.85 12.1 12.35 12.6 12.85 13.1 13.35



























Stroke 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600 2650 2700 2750 2800 2850 2900 2950 3000
L 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600 2650 2700 2750 2800 2850 2900 2950 3000 3050 3100 3150 3200 3250 3300
A 1847 1897 1947 1997 2047 2097 2147 2197 2247 2297 2347 2397 2447 2497 2547 2597 2647 2697 2747 2797 2847 2897 2947 2997 3047 3097
M 8 8 8 8 8 10 10 10 10 10 10 10 10 10 10 12 12 12 12 12 12 12 12 12 12 12
N 16 16 16 16 16 20 20 20 20 20 20 20 20 20 20 24 24 24 24 24 24 24 24 24 24 24
P 4 4 4 4 4 5 5 5 5 5 5 5 5 5 5 6 6 6 6 6 6 6 6 6 6 6
Weight(kg) 13.6 13.85 14.1 14.35 14.6 14.85 15.1 15.35 15.6 15.85 16.1 16.35 16.6 16.85 17.1 17.35 17.6 17.85 18.1 18.35 18.6 18.85 19.1 19.35 19.6 19.85

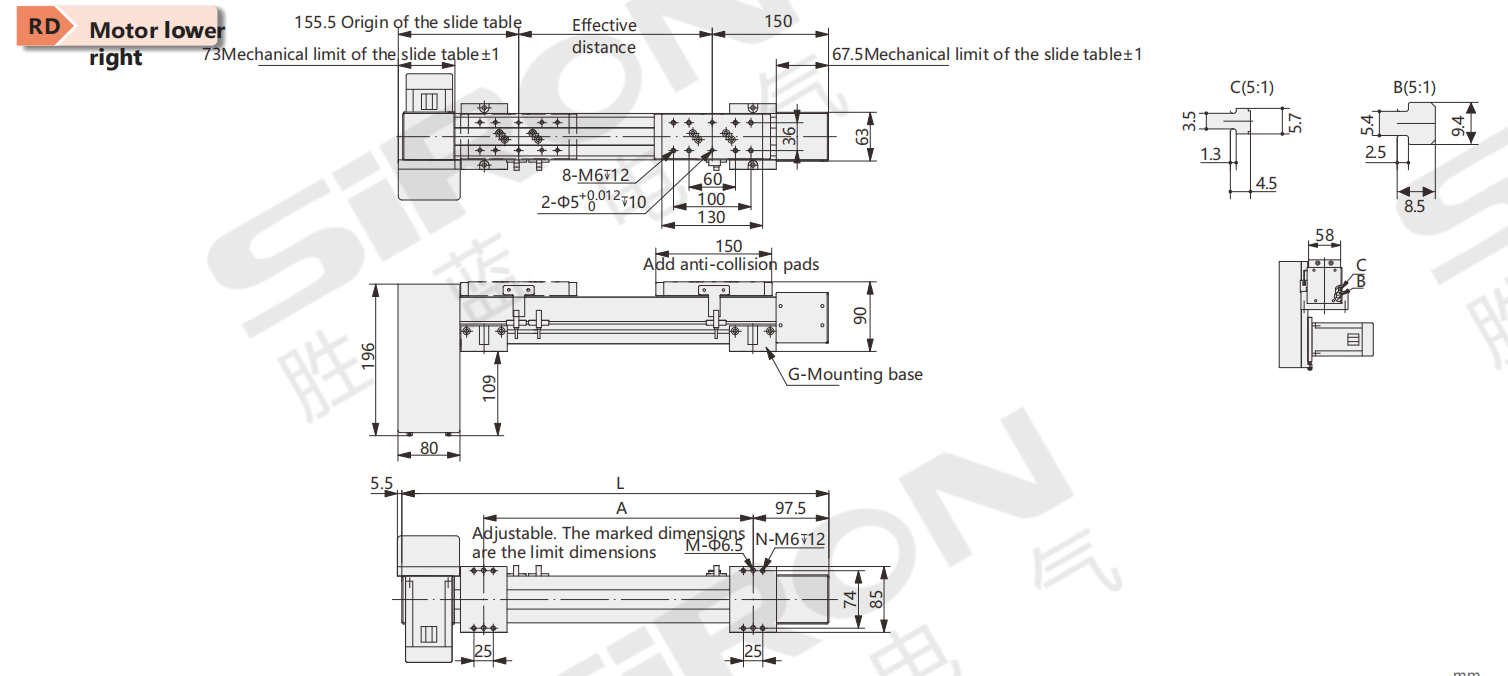

企业微信截图_17748533863400


Stroke 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 1550 1600 1650 1700
L 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 1550 1600 1650 1700 1750 1800 1850 1900 1950 2000
A 547 597 647 697 747 797 847 897 947 997 1047 1097 1147 1197 1247 1297 1347 1397 1447 1497 1547 1597 1647 1697 1747 1797
M 44 4 4 4 4 4 4 4 4 4 4 6 6 6 6 6 6 6 6 6 6 8 8 8 8 8
N 8 8 8 8 8 8 8 8 8 8 8 12 12 12 12 12 12 12 12 12 12 16 16 16 16 16
P 2 2 2 2 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 3 4 4 4 4 4
Weight(kg) 7.1 7.35 7.6 7.85 8.1 8.35 8.6 8.85 9.1 9.35 9.6 9.85 10.1 10.35 10.6 10.85 11.1 11.35 11.6 11.85 12.1 12.35 12.6 12.85 13.1 13.35



























Stroke 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600 2650 2700 2750 2800 2850 2900 2950 3000
L 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600 2650 2700 2750 2800 2850 2900 2950 3000 3050 3100 3150 3200 3250 3300
A 1847 1897 1947 1997 2047 2097 2147 2197 2247 2297 2347 2397 2447 2497 2547 2597 2647 2697 2747 2797 2847 2897 2947 2997 3047 3097
M 8 8 8 8 8 10 10 10 10 10 10 10 10 10 10 12 12 12 12 12 12 12 12 12 12 12
N 16 16 16 16 16 20 20 20 20 20 20 20 20 20 20 24 24 24 24 24 24 24 24 24 24 24
P 4 4 4 4 4 5 5 5 5 5 5 5 5 5 5 6 6 6 6 6 6 6 6 6 6 6
Weight(kg) 13.6 13.85 14.1 14.35 14.6 14.85 15.1 15.35 15.6 15.85 16.1 16.35 16.6 16.85 17.1 17.35 17.6 17.85 18.1 18.35 18.6 18.85 19.1 19.35 19.6 19.85

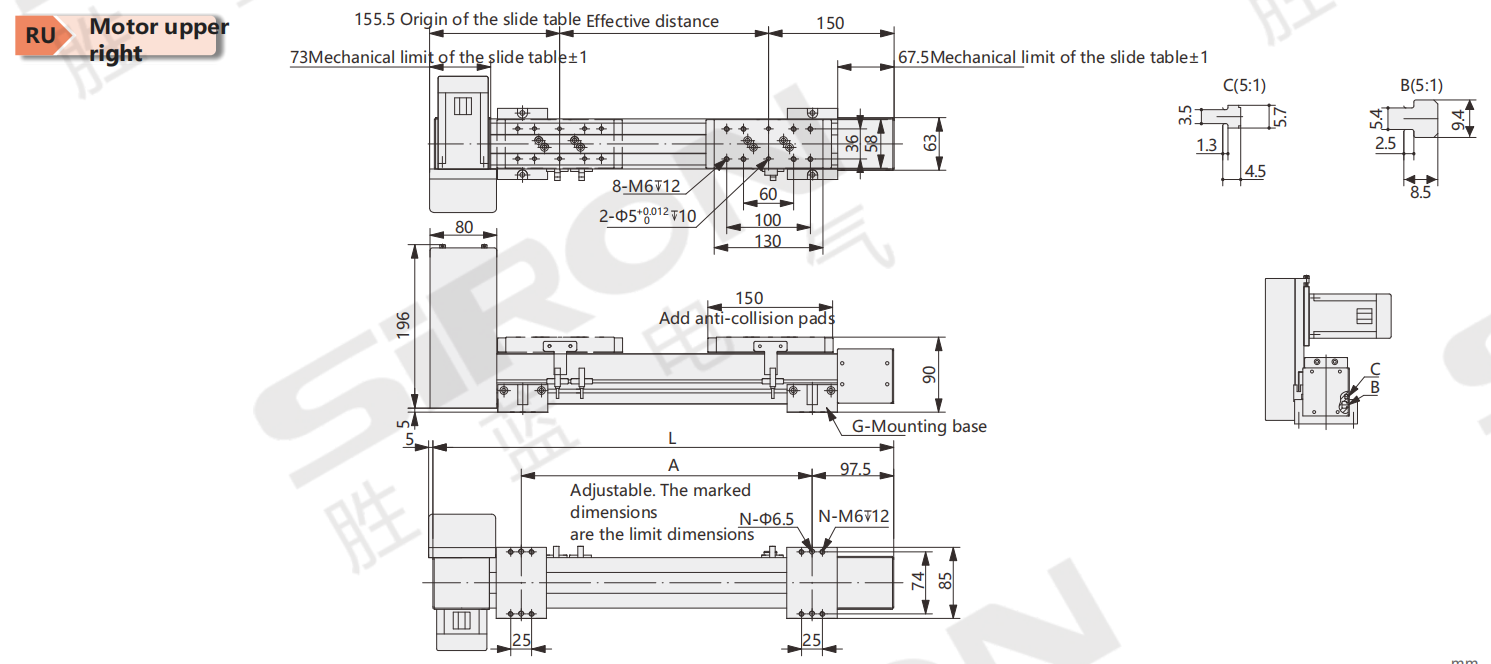

企业微信截图_17748534899025



Stroke 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 1550 1600 1650 1700
L 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 1550 1600 1650 1700 1750 1800 1850 1900 1950 2000
A 547 597 647 697 747 797 847 897 947 997 1047 1097 1147 1197 1247 1297 1347 1397 1447 1497 1547 1597 1647 1697 1747 1797
M 44 4 4 4 4 4 4 4 4 4 4 6 6 6 6 6 6 6 6 6 6 8 8 8 8 8
N 8 8 8 8 8 8 8 8 8 8 8 12 12 12 12 12 12 12 12 12 12 16 16 16 16 16
P 2 2 2 2 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 3 4 4 4 4 4
Weight(kg) 7.1 7.35 7.6 7.85 8.1 8.35 8.6 8.85 9.1 9.35 9.6 9.85 10.1 10.35 10.6 10.85 11.1 11.35 11.6 11.85 12.1 12.35 12.6 12.85 13.1 13.35



























Stroke 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600 2650 2700 2750 2800 2850 2900 2950 3000
L 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600 2650 2700 2750 2800 2850 2900 2950 3000 3050 3100 3150 3200 3250 3300
A 1847 1897 1947 1997 2047 2097 2147 2197 2247 2297 2347 2397 2447 2497 2547 2597 2647 2697 2747 2797 2847 2897 2947 2997 3047 3097
M 8 8 8 8 8 10 10 10 10 10 10 10 10 10 10 12 12 12 12 12 12 12 12 12 12 12
N 16 16 16 16 16 20 20 20 20 20 20 20 20 20 20 24 24 24 24 24 24 24 24 24 24 24
P 4 4 4 4 4 5 5 5 5 5 5 5 5 5 5 6 6 6 6 6 6 6 6 6 6 6
Weight(kg) 13.6 13.85 14.1 14.35 14.6 14.85 15.1 15.35 15.6 15.85 16.1 16.35 16.6 16.85 17.1 17.35 17.6 17.85 18.1 18.35 18.6 18.85 19.1 19.35 19.6 19.85
