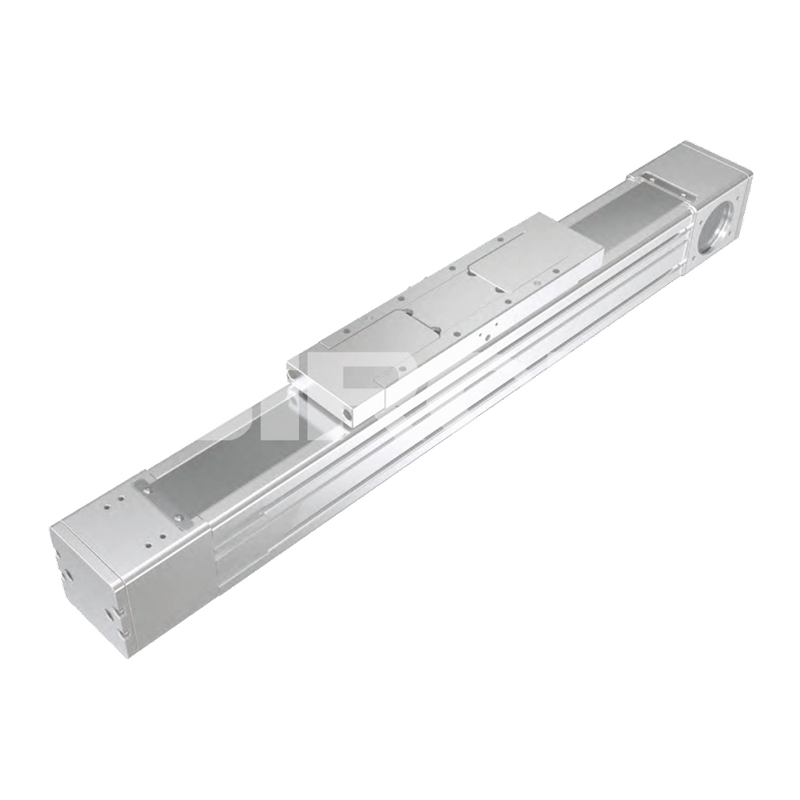

SiRON M364-65 Euro gauge belt module

Name: SiRON M364-65 Euro gauge belt module
Brand: SiRON
Rating: 5.0 (13 reviews)

Features:

The body is made of new aviation aluminum material, which has higher rigidity, lighter quality, simple structure, small occupation space,
and is more suitable for all kinds of installation and collocation.The fastest can reach 5000mm/s.
Long stroke, the longest can achieve 5mm stroke, high repeat positioning accuracy, heavy positioning accuracy can be ±0.01MM
different linear module positioning accuracy to meet different needs,High straightness of operation, the fluctuation value per meter of
straightness processing is less than 0.01MM to ensure smooth and smooth running of the sliding platform, smooth and stable running
of the platform with silver linear sliding rail,The use of P-class linear guide rail and imported NSK bearing, to ensure the linear module
sliding smooth stability, long service life, precision control, impact resistance, cost-effective.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M364-65
Brand:
SiRON
Code:
9001909090

5500mm Maximum stroke 5000mm/s Maximum speed 30mm belt width

Product Description

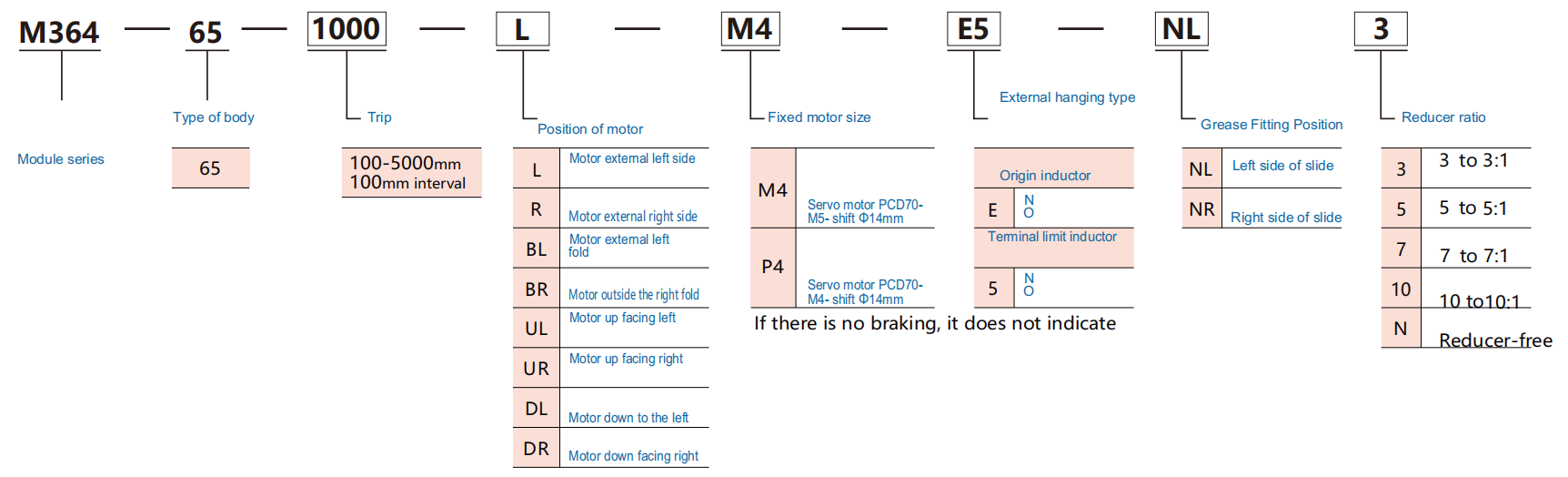

About selection

Selection example: M364-65-1000-L-M4-E5-NL3 is M364 series, body code 65, stroke 1000, motor external left, servo PCD70-M5- axis 14, no origin and end limit inductor, left side of slide seat, deceleration ratio 3:1.

Product specification

Project			Specification
Specifications	Repeatability(mm)		±0.1
	Ball screw lead(mm)		130
	Deceleration ratio		3:1	5:1	7:1	10:1
	Maximum speed(mm/s)		2166	1300	928	650
	Maximum payload(kg)	Horizontal	30	45	55	60
		Vertical	9	15	16	17
	Rated thrust(n)		220
	Stroke pitch(mm)		100-5500mm/100 interval
Sarts	AC servo motor capacity(W)		400
	Belt width(mm)		25
	High rigidity linear slide rail(mm)		W15×H13
	Home sensor	Outside	K017-A2(NPN)
