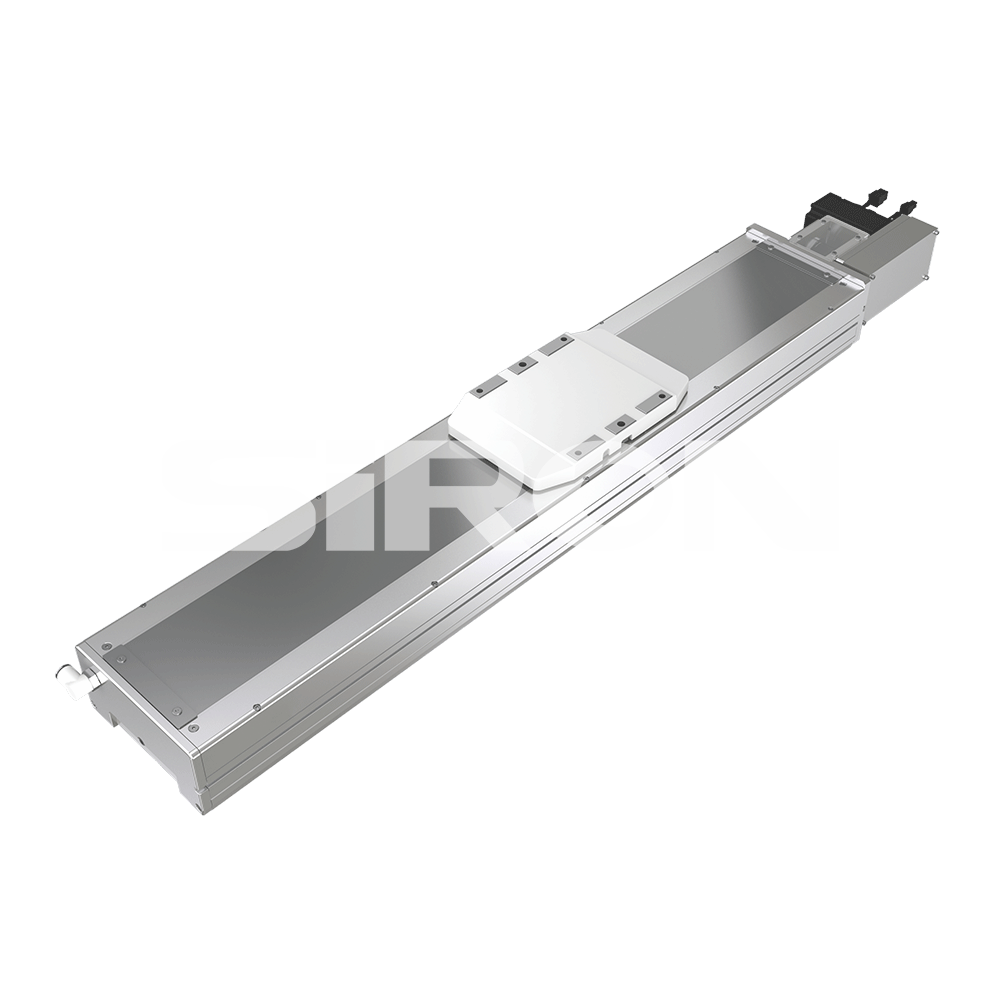

SiRON M363-17 Dust-free Belt Module

Name: SiRON M363-17 Dust-free Belt Module
Brand: SiRON
Rating: 5.0 (6 reviews)

Features:

*Track embedded screw sliding table, using track embedded, equal height straightness greatly improved, sliding table travel up to 1250mm, no removal of the cover, easy assembly,More rigid; Special steel belt structure design, can reduce dust, can be used in clean room environment;

* The width is reduced, so that the equipment installation space is smaller, the body and the slide seat one molding steel, improve the original aluminum slide seat stiﬀness;
* Do not need to remove the steel belt, can be ﬁxed from the top down or from the bottom up ﬁxed; Installation datum dock is added on the side of the body; The bottom of the body has a positioning PIN hole, convenient assembly time;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M363-17
Brand:
SiRON
Code:
9001909090

3050mm Maximum stroke 2000mm/s Maximum speed 30mm belt width

Product Description

About selection

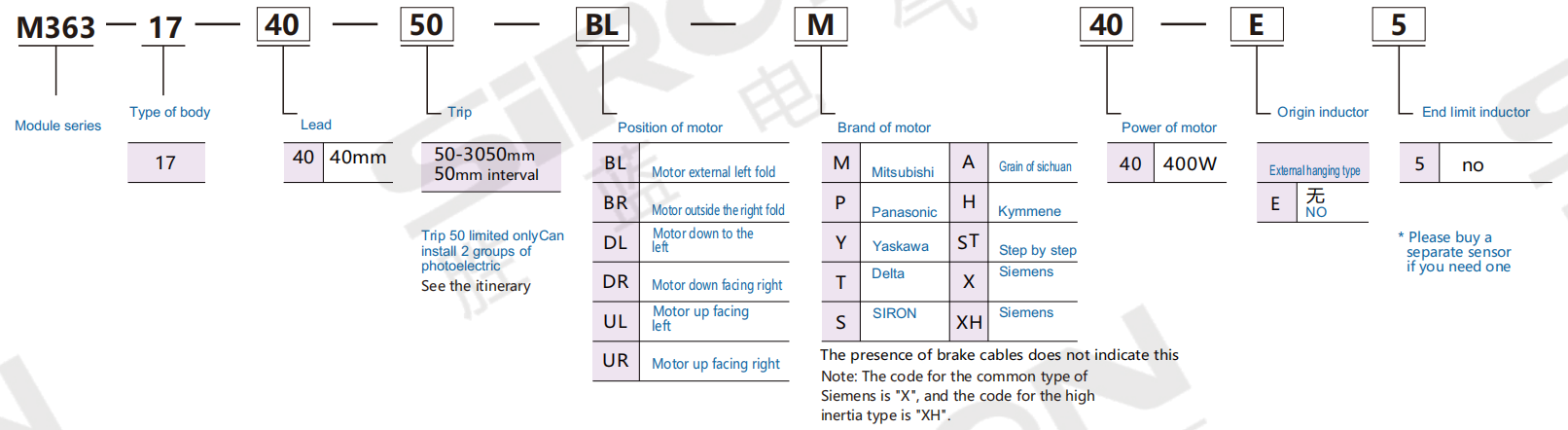

Model selection example: M363-17-40-50-BL-M40-E5 is M363 series, body code 17, lead 40mm, stroke 50, motor external left folding, Mitsubishi motor, power 400, no origin sensor, no end point limit sensor

Product specification

Project			Specification
Specifications	Repeatability(mm)		±0.04
	Ball screw lead(mm)		40
	Maximum speed(mm/s)		2000
	Maximum payload(kg)	Horizontal	45
		Vertical	/
	Rated thrust(n)		204
	Stroke pitch(mm)		50-3050mm/50 interval
Sarts	AC servo motor capacity (W)		400
	Belt width(mm)		30
	High rigidity linear slide rail(mm)		W20×H15
	Home sensor	Outside	K017-A2(NPN)
