SiRON M361(C)-17 General Belt Economical Module

Name: SiRON M361(C)-17 General Belt Economical Module
Brand: SiRON
Rating: 5.0 (54 reviews)

Features:

● Inline belt module is a highly integrated linear motion unit, aluminum body and guide rail integrated design, slider and slide seat for
integration, linear module sliding tableCompact and lightweight products achieve space saving and high load. Optional
self-lubricating parts, 30000km maintenance-free;
● U type high strength aluminum alloy, embedded stainless steel guide rail and base integrated grinding molding, guide groove adopts
two columns 45° contact Angle Gothic structure design, provide fourWith equal load capacity in all directions, high precision and high
rigidity can be achieved by proper ball preload. In addition, the product adopts full seal design, low dust operationQuantity, the whole
can reach the dust-free grade requirements;
● M33 series adopts synchronous belt drive, with high speed, the servo motor can reach 4200mm/s, the repetition accuracy: ±0.04, the synchronous belt module is especially suitable forHigh speed movement demand;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M361(C)-17
Brand:
SiRON
Code:
9001909090

3050mm Maximum stroke 2000mm/s Maximum speed 35mm bell width

Product Description

About selection

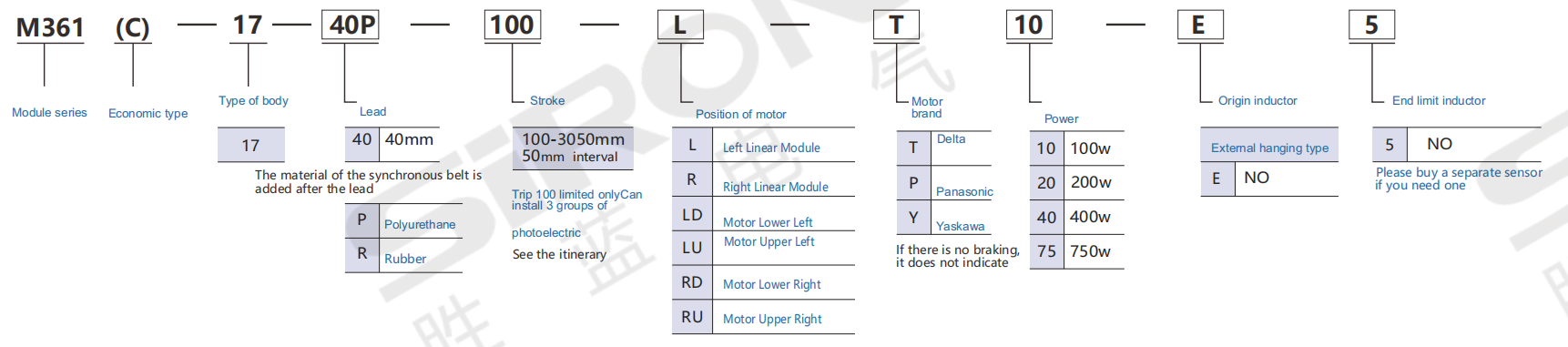

Model selection example: M361(C)-17-40P-100-L-T10-E5 is M361(C) series, body code 17, the lead is 40mm Synchronous belt material:polyurethane, the stroke is 100, the left linear module, Delta motor, the power is 100W, No point sensor, no end sensor, no end sensor

Product specification

Project			Specification
Specifications	Repeatability(mm)		±0.04
	Lead range(mm)		40
	Maximum speed(mm/s)		2000
	Horizontal Maximum payload(kg)		65
		Vertical	/
	Rated thrust(n)		368
	Stroke pitch(mm)		100-3050mm/50 interval
	AC Servo motor output(w)		750
	Ball screw(mm)		35
	Home sensor	Outside	EE-SX672(NPN) EE-SX672P(PNP)
