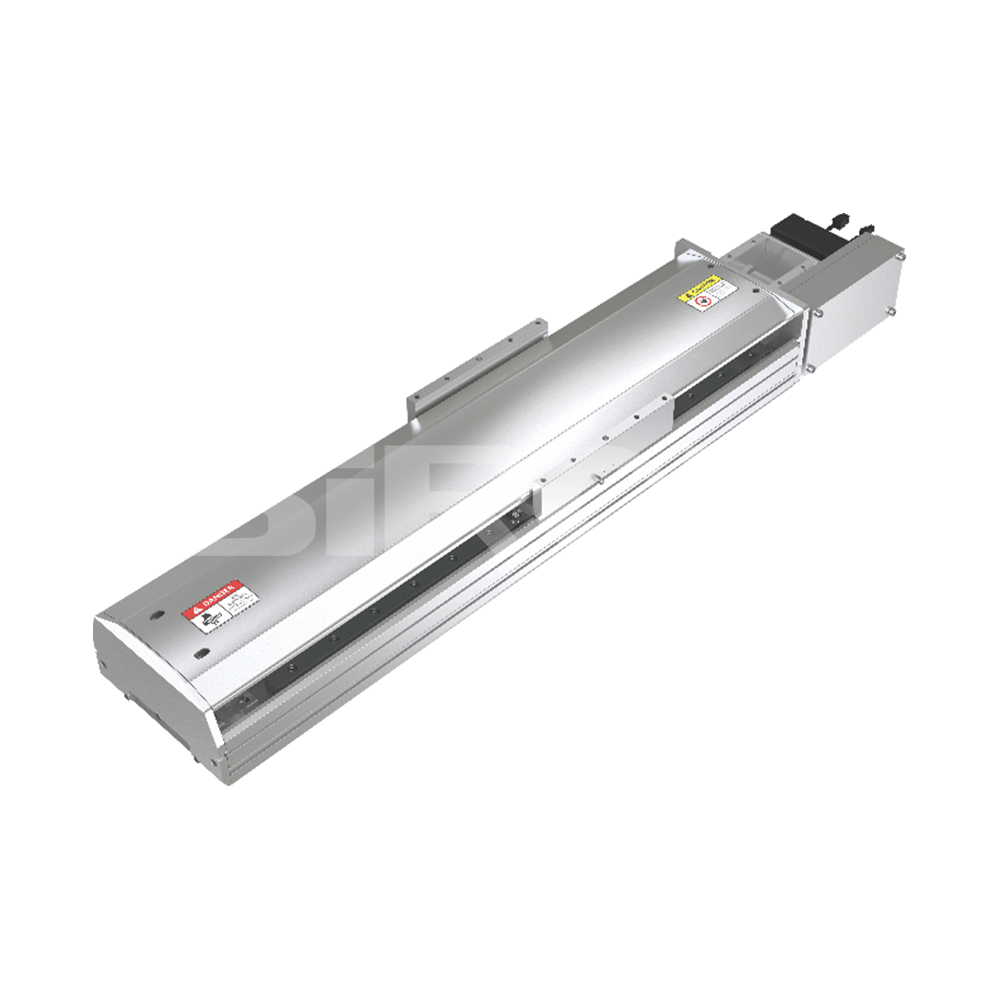

SiRON M361-22 General Belt Module

Name: SiRON M361-22 General Belt Module
Brand: SiRON
Rating: 5.0 (75 reviews)

Features:

● Inline belt module is a highly integrated linear motion unit, aluminum body and guide rail integrated design, slider and slide seat for
integration, linear module sliding tableCompact and lightweight products achieve space saving and high load. Optional
self-lubricating parts, 30000km maintenance-free;
● U type high strength aluminum alloy, embedded stainless steel guide rail and base integrated grinding molding, guide groove adopts
two columns 45° contact Angle Gothic structure design, provide fourWith equal load capacity in all directions, high precision and high
rigidity can be achieved by proper ball preload. In addition, the product adopts full seal design, low dust operationQuantity, the whole
can reach the dust-free grade requirements;
● M33 series adopts synchronous belt drive, with high speed, the servo motor can reach 4200mm/s, the repetition accuracy: ±0.04, the synchronous belt module is especially suitable forHigh speed movement demand;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M361-22
Brand:
SiRON
Code:
9001909090

3400mm Maximum stroke 2000mm/s Maximum speed 750W motor capacity 50mm bell width

Product Description

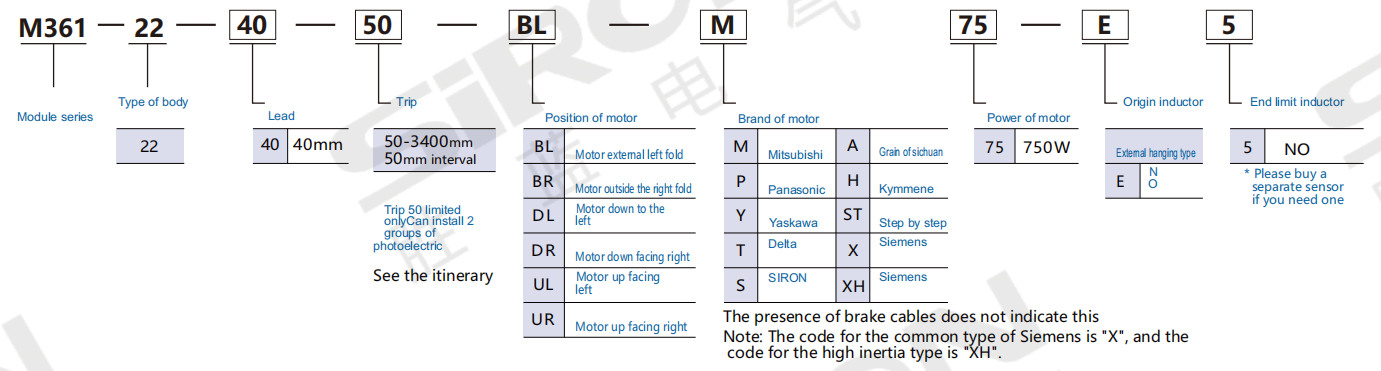

About selection

Model selection example: M361-17-40-50-LB-M40-E5 is M361 series, body code 22, lead 40mm, stroke 50, motor external left folding, Mitsubishi motor, power 750, no origin sensor, no end point limit sensor

Product specification

Project			Specification
Specifications	Repeatability(mm)		±0.04
	Lead range(mm)		40
	Maximum speed(mm/s)		2000
	Horizontal Maximum payload(kg)		85
		Vertical	/
	Rated thrust(n)		367
	Stroke pitch(mm)		50-3400mm/50 interval
	AC Servo motor output(w)		750
	Ball screw(mm)		50
	Home sensor	Outside	K017-A2(NPN)
