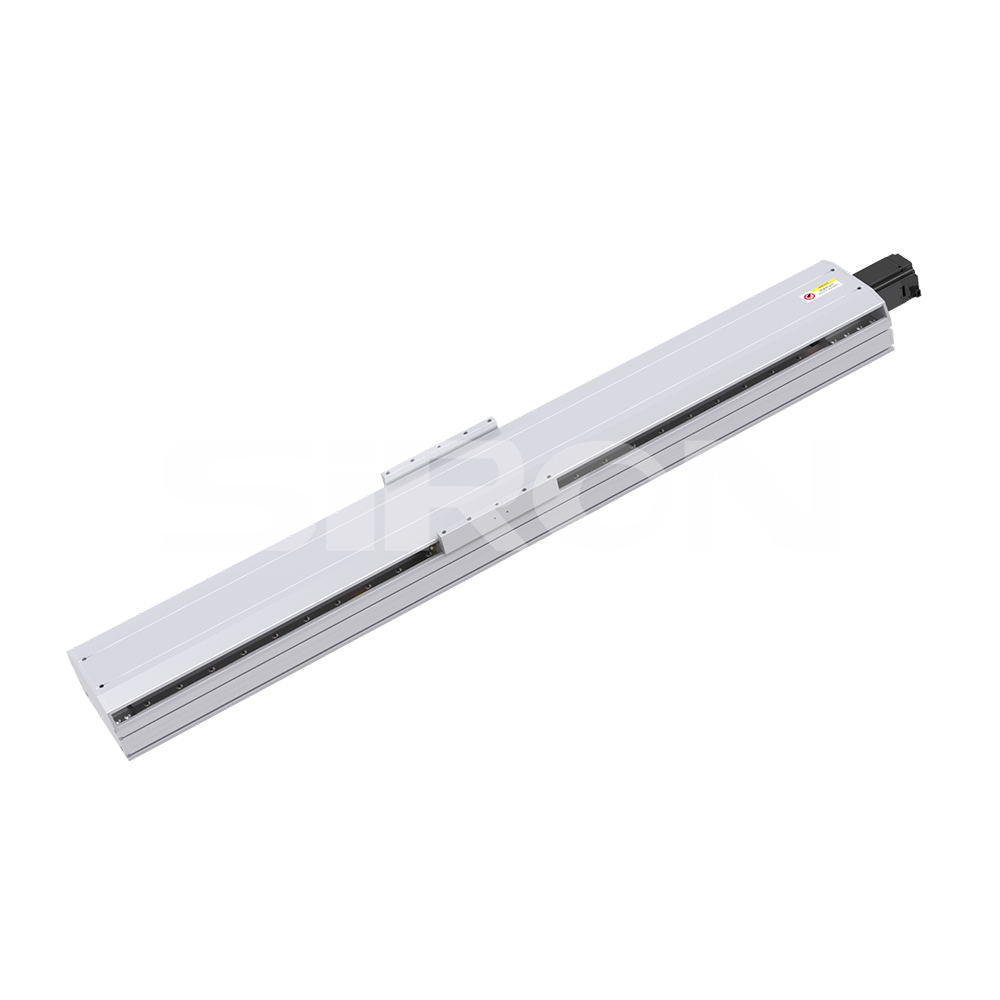

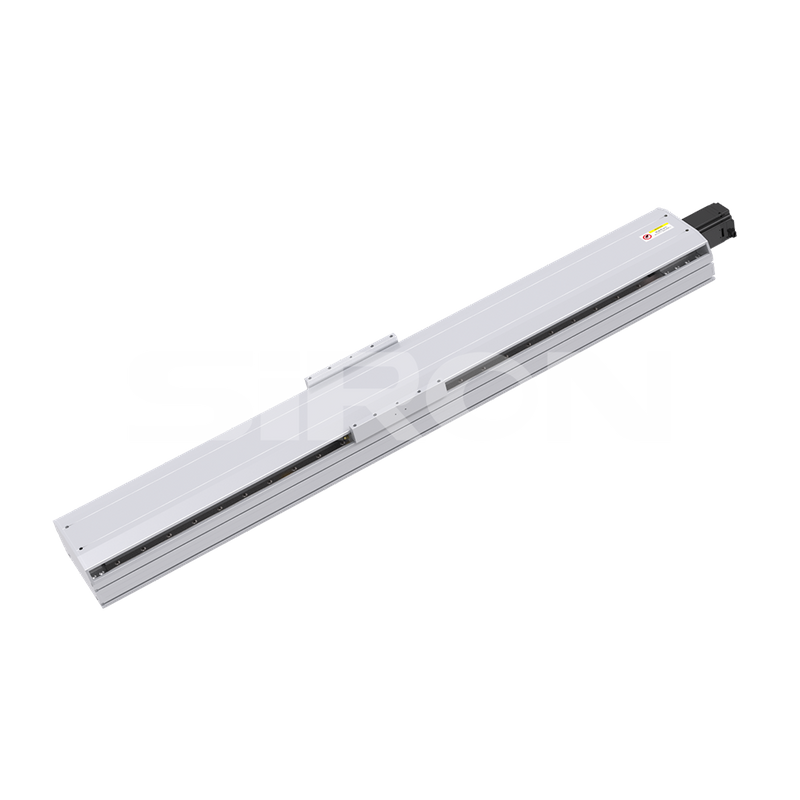

SiRON M360(C)-22 General Lead Screw Economical Module

Name: SiRON M360(C)-22 General Lead Screw Economical Module
Brand: SiRON
Rating: 5.0 (25 reviews)

Features:

The semi-enclosed linear sliding table module is mainly composed of aluminum body, diagonal bearing fixing seat, cover plate, sliding seat and other components. The linear module adopts corrosion resistance and high strengthAluminum alloy material for the base, the base is installed in the high precision linear guide pair, aluminum alloy moving seat is installed on the slider, the middle of the moving seat and the ball screwThe nut is connected, and the motor drives the sliding seat to move reciprocally through the lead screw. The diagonal bearing fixing seat can ensure the repeating accuracy and positioning accuracy of the moving seatThe cover plate provides overall protection above the moving seat.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M360(C)-22
Brand:
SiRON
Code:
9001909090

1500mm Maximum stroke 2500mm/s Maximum speed Φ25mm Ball screw

Product Description

About selection

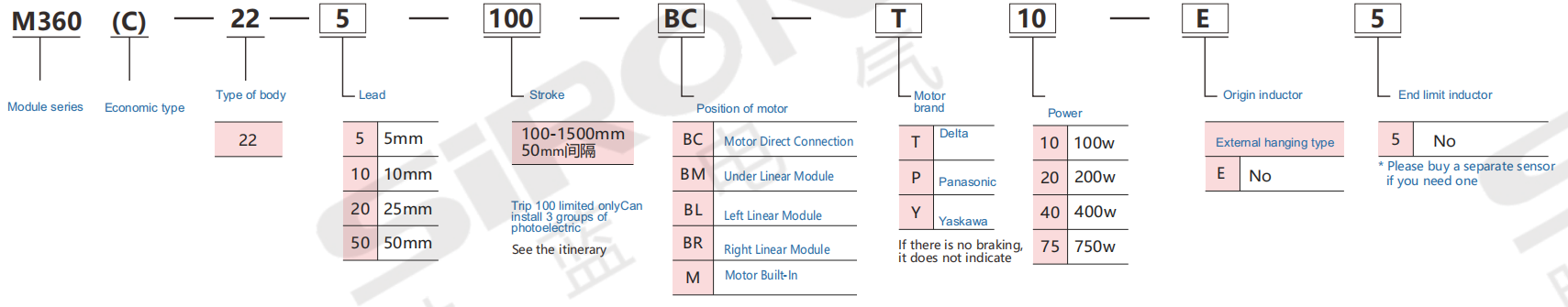

Model selection example: M360(C)-22-5-100-BC-T10-E5 is M360(C) series, the body mode is 22, the lead is 5mm, the stroke is 100, the motor direct connection, delta motor, the power is 100W, No point sensor, no end sensor, no end sensor

Product specification

Project			Specification
Specications	Repeatability(mm)		±0.01
	Ball Screw Lead(mm)		5	10	25	50
	Maximum speed(mms)		250	500	1250	2500
	Maximum payload(kg)	Horizontal	150	150	105	43
		Vertical	55	45	20	12
	Rated thrust(n)		2943	1471	588	294
	Stroke pitch(mm)		100~1500mm/50mm interval
Sarts	AC Servo motor output(w)		750
	Bal Screwo(mm)		C7φ25
	Linear Guide(mm)		W23×H18
	Coupling(mm)		17×19
	Home Sensor	Outside	EE-SX672(NPN )EE-SX672P(PNP)
