SiRON M360(C)-17 General Lead Screw Economical Module

Name: SiRON M360(C)-17 General Lead Screw Economical Module
Brand: SiRON
Rating: 5.0 (14 reviews)

Features:

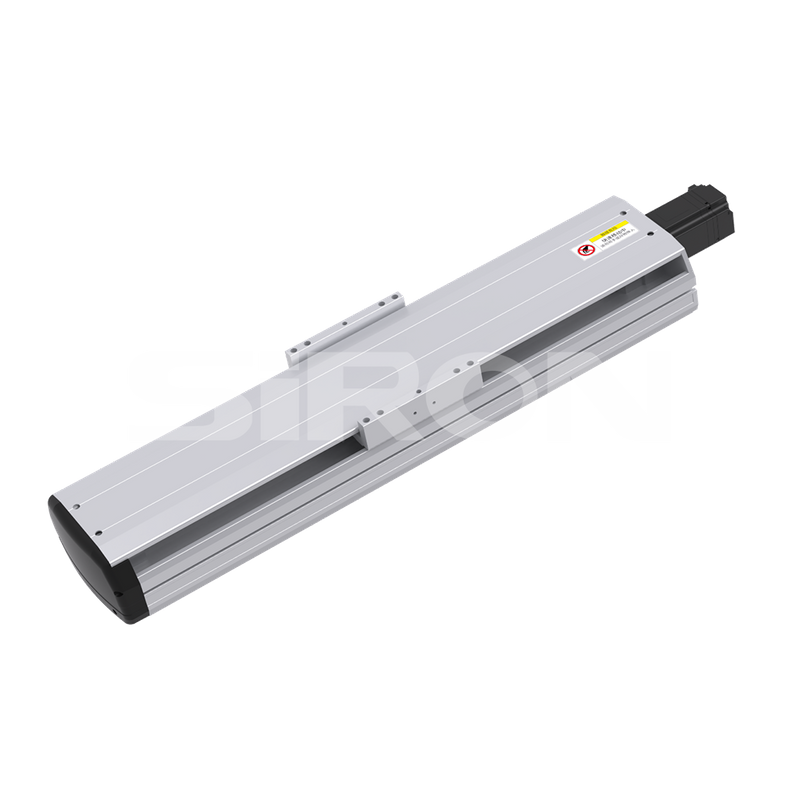

The semi-enclosed linear sliding table module is mainly composed of aluminum body, diagonal bearing fixing seat, cover plate, sliding seat and other components. The linear module adopts corrosion resistance and high strengthAluminum alloy material for the base, the base is installed in the high precision linear guide pair, aluminum alloy moving seat is installed on the slider, the middle of the moving seat and the ball screwThe nut is connected, and the motor drives the sliding seat to move reciprocally through the lead screw. The diagonal bearing fixing seat can ensure the repeating accuracy and positioning accuracy of the moving seatThe cover plate provides overall protection above the moving seat.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M360(C)-17
Brand:
SiRON
Code:
9001909090

1250mm Maximum stroke 2000mm/s Maximum speed Φ20mm Ball screw

Product Description

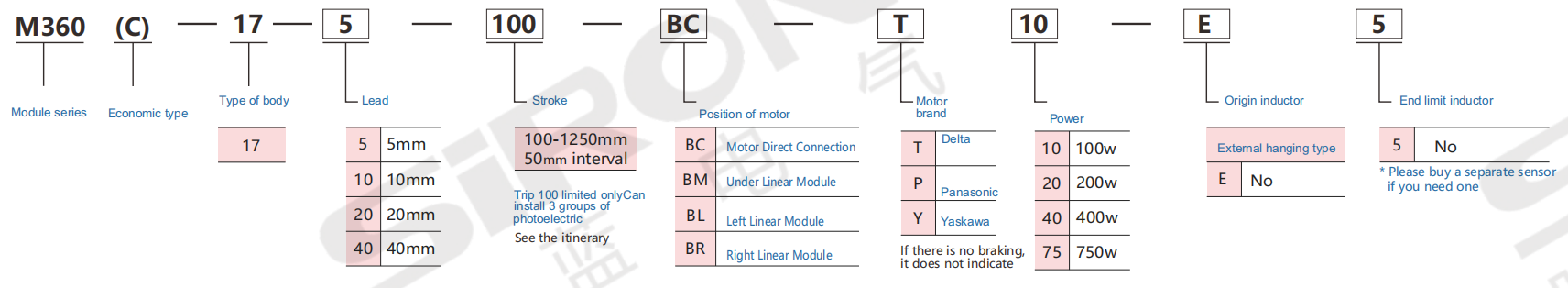

About selection

Model selection example: M360(C)-17-5-100-BC-T10-E5 is M360(C) series, the body mode is 17, the lead is 5mm, the stroke is 100, the motor direct connection, Delta motor, the power is 100W, No point sensor, no end sensor, no end sensor.

Product specification

Project			Specification
Specications	Repeatability(mm)		±0.01
	Ball Screw Lead(mm)		5	10	20	40
	Maximum speed(mms)		250	500	1000	2000
	Maximum payload(kg)	Horizontal	120	120	83	43
		Vertical	50	40	25	12
	Rated thrust(n)		2943	1471	735	367
	Stroke pitch(mm)		100~1050mm/50mm interval
Sarts	AC Servo motor output(w)		750
	Bal Screwo(mm)		C7φ20
	Linear Guide(mm)		W20×H15
	Coupling(mm)		12×19
	Home Sensor	Outside	EE-SX672(NPN) EE-SX672P(PNP)
