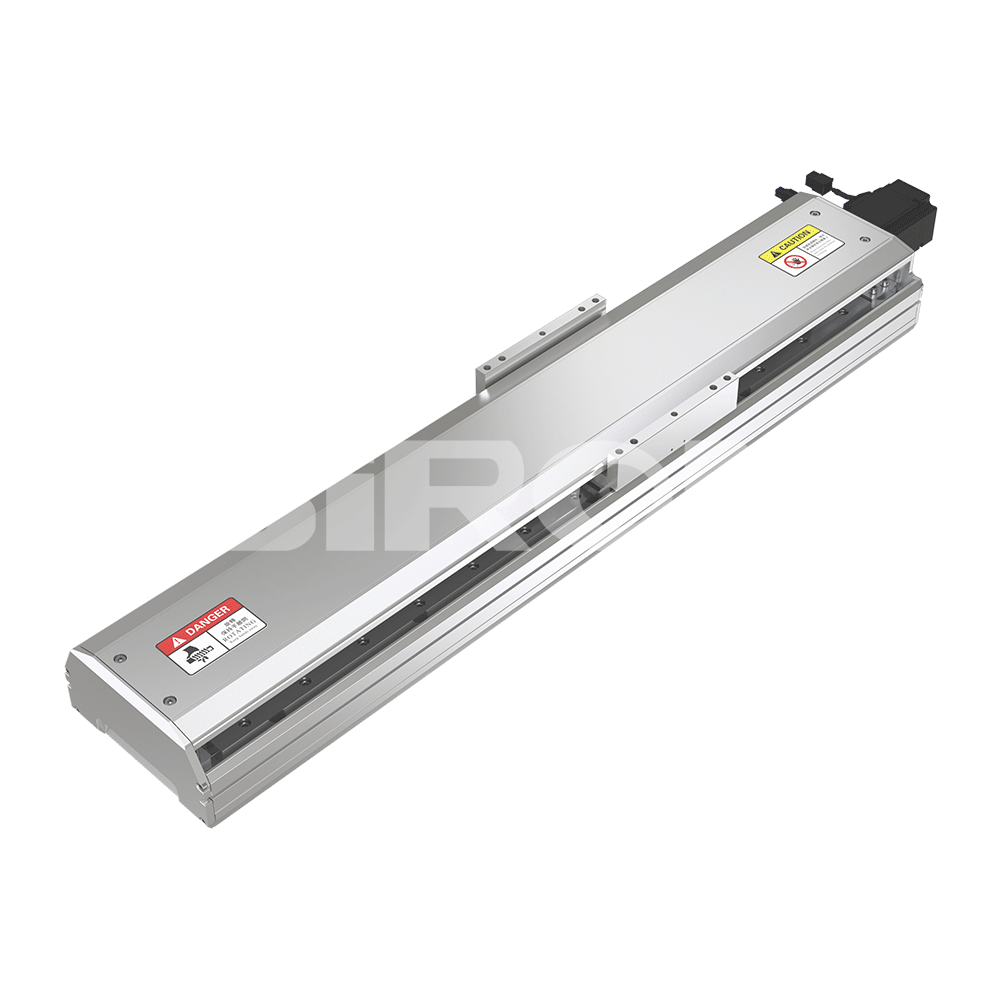

SiRON M360-17 General Lead Screw Module

Name: SiRON M360-17 General Lead Screw Module
Brand: SiRON
Rating: 5.0 (33 reviews)

Features:

The semi-enclosed linear sliding table module is mainly composed of aluminum body, diagonal bearing fixing seat, cover plate, sliding seat and other components. The linear module adopts corrosion resistance and high strengthAluminum alloy material for the base, the base is installed in the high precision linear guide pair, aluminum alloy moving seat is installed on the slider, the middle of the moving seat and the ball screwThe nut is connected, and the motor drives the sliding seat to move reciprocally through the lead screw. The diagonal bearing fixing seat can ensure the repeating accuracy and positioning accuracy of the moving seatThe cover plate provides overall protection above the moving seat.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M360-17
Brand:
SiRON
Code:
9001909090

1250mm Maximum stroke 2000mm/s Maximum speed Φ20mm Ball screw

Product Description

About selection

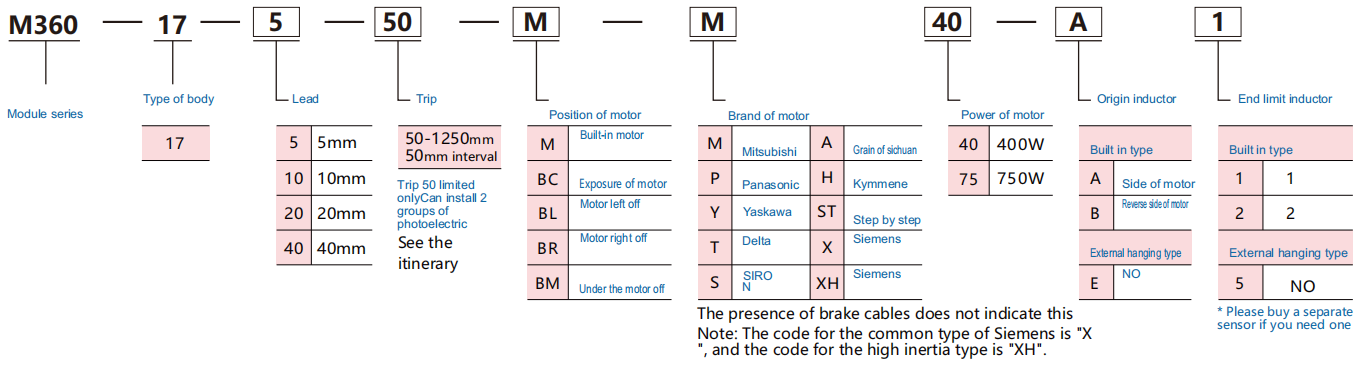

Model selection example: M360-17-5-50-M-M20-A1 is M360 series, the body model is 17, the lead is 5mm, the stroke is 50, the motor is built-in, Mitsubishi motor, the power is 400W, and the built-in motor side of the origin sensor is, A built-in limit sensor.

Product specification

Project			Specification
Specifications	Repeatability(mm)		±0.005
	Ball screw lead(mm)		5	10	20	40
	Maximumspeed(mm/s)		250	500	1000	2000
	Maximum payload(kg)	Horizontal	120/120	110/120	75/83	22/43
		Vertical	40/50	30/40	14/25	7/12
	Rated thrust(n)		1388/2563	694/1281	347/640	147/320
	Stroke pitch(mm)		50-1250mm/50 interval
Sarts	AC servo motor capacity		400/750
	Outer diameter of ball bearing screw(mm)		C7 φ20
	High rigid ity linear slide rail(mm)		W20×H15
	Coupling(mm)		12×14/12×19
	Home sensor	Outside	K017-A2(NPN)
		Built-in	EE-SX674(NPN)
