SiRON M360-14 General Lead Screw Module

Name: SiRON M360-14 General Lead Screw Module
Brand: SiRON
Rating: 5.0 (35 reviews)

Features:

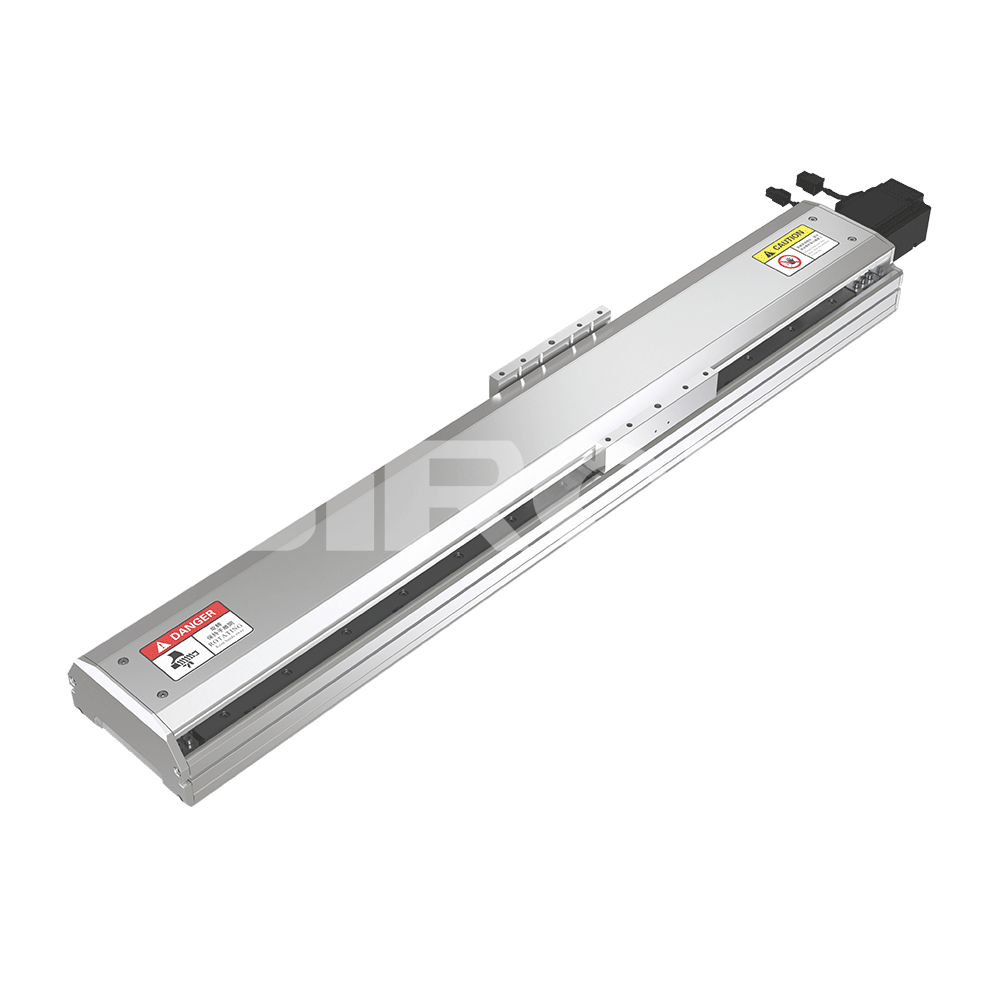

The semi-enclosed linear sliding table module is mainly composed of aluminum body, diagonal bearing fixing seat, cover plate, sliding seat and other components. The linear module adopts corrosion resistance and high strengthAluminum alloy material for the base, the base is installed in the high precision linear guide pair, aluminum alloy moving seat is installed on the slider, the middle of the moving seat and the ball screwThe nut is connected, and the motor drives the sliding seat to move reciprocally through the lead screw. The diagonal bearing fixing seat can ensure the repeating accuracy and positioning accuracy of the moving seatThe cover plate provides overall protection above the moving seat.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M360-14
Brand:
SiRON
Code:
9001909090

1050mm Maximum stroke 1600mm/s Maximum speed Φ16mm Ball screw

Product Description

About selection

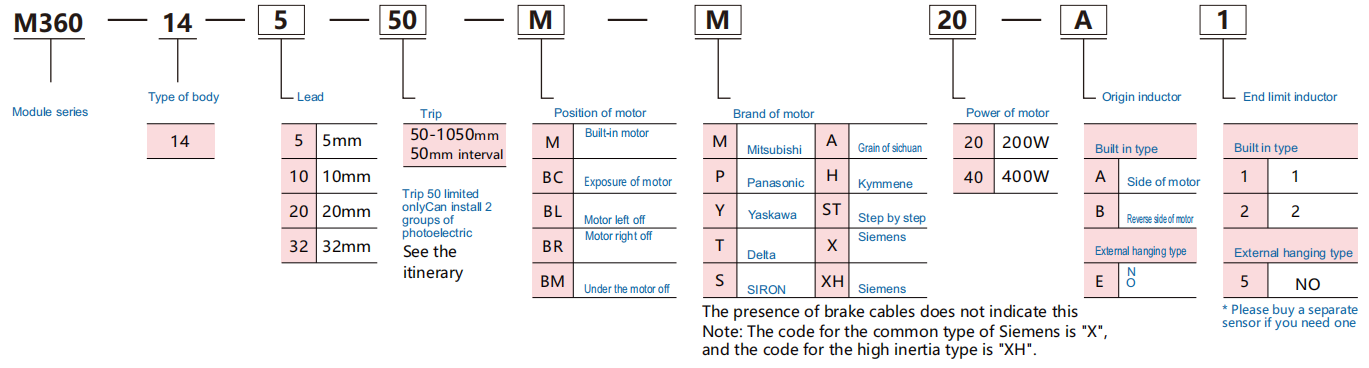

Model selection example: M360-14-5-50-M-M20-A1 is M360 series, the body model is 14, the lead is 5mm, the stroke is 50, the motor is built-in, Mitsubishi motor, the power is 200W, and the built-in motor side of the origin sensor is, A built-in limit sensor.

Product specification

Project			Specification
Specifications	Repeatability(mm)		±0.005
	Ball screw lead(mm)		5	10	20	32
	Maximumspeed(mm/s)		250	500	1000	1600
	Maximum payload(kg)	Horizontal	95/110	75/88	35/40	15/30
		Vertical	27/33	18/22	7/10	00/8
	Rated thrust(n)		683/1388	341/694	174/347	107/218
	Stroke pitch(mm)		50-1050mm/50 interval
Sarts	AC servo motor capacity		200/400
	Outer diameter of ball bearing screw(mm)		C7 φ16
	High rigid ity linear slide rail(mm)		W15×H12.5
	Coupling(mm)		10×14(11)/10×14
	Home sensor	Outside	K017-A2(NPN)
		Built-in	EE-SX674(NPN)
