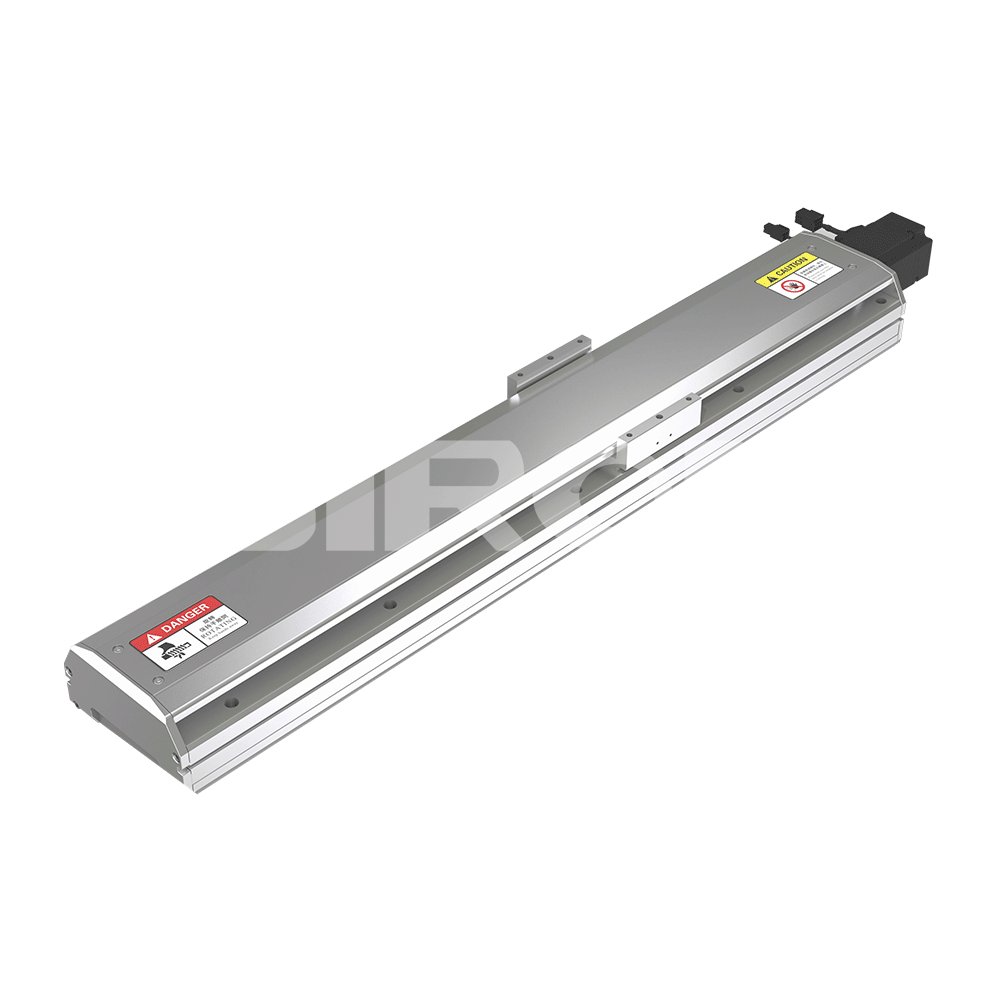

SiRON M360-13 General Lead Screw Module

Name: SiRON M360-13 General Lead Screw Module
Brand: SiRON
Rating: 5.0 (4 reviews)

Features:

The semi-enclosed linear sliding table module is mainly composed of aluminum body, diagonal bearing fixing seat, cover plate, sliding seat and other components. The linear module adopts corrosion resistance and high strengthAluminum alloy material for the base, the base is installed in the high precision linear guide pair, aluminum alloy moving seat is installed on the slider, the middle of the moving seat and the ball screwThe nut is connected, and the motor drives the sliding seat to move reciprocally through the lead screw. The diagonal bearing fixing seat can ensure the repeating accuracy and positioning accuracy of the moving seatThe cover plate provides overall protection above the moving seat.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M360-13
Brand:
SiRON
Code:
9001909090

1050mm Maximum stroke 1600mm/s Maximum speed Φ16mm Ball screw

Product Description

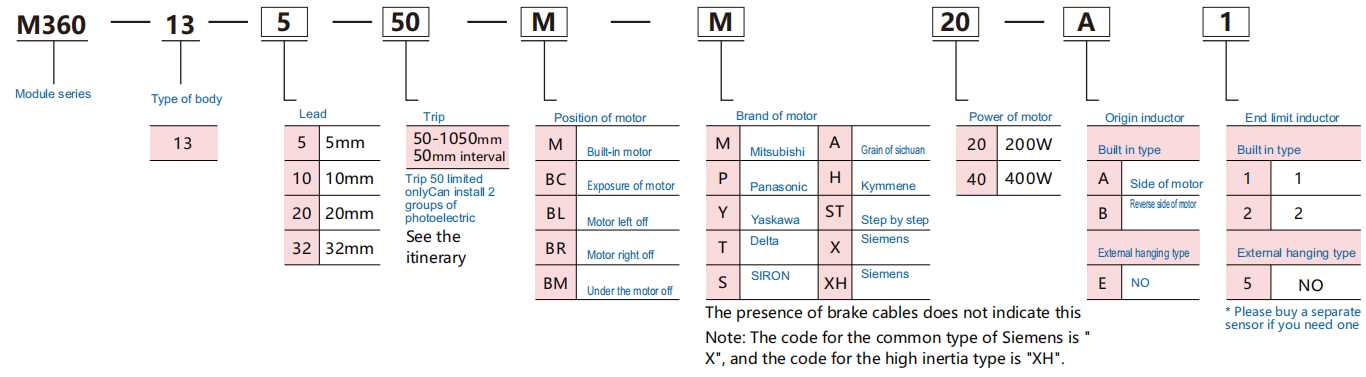

About selection

Model selection example: M360-13-5-50-M-M20-A1 is M360 series, the body model is 13, the lead is 5mm, the stroke is 50, the motor is built-in, Mitsubishi motor, the power is 200W, and the built-in motor side of the origin sensor is, A built-in limit sensor.

Product specification

Project			Specification
Specications	Repeatability(mm)		±0.005
	Ball Screw Lead(mm)		5	10	20	32
	Maximum speed(mms)		250	500	1000	1600
	Maximum payload(kg)	Horizontal	70	47	24	13
		Vertical	17	12	6	一
	Rated thrust(n)		683/1388	341/694	174/433	107/347
	Stroke pitch(mm)		50~1050mm/50mm interval
Sarts	AC Servo motor output(w)		200/400
	Bal Screwo(mm)		C7φ16
	Linear Guide(mm)		W15×H12.5
	Coupling(mm)		10×14/11
	Home Sensor	Outside	K017-A2(NPN)
