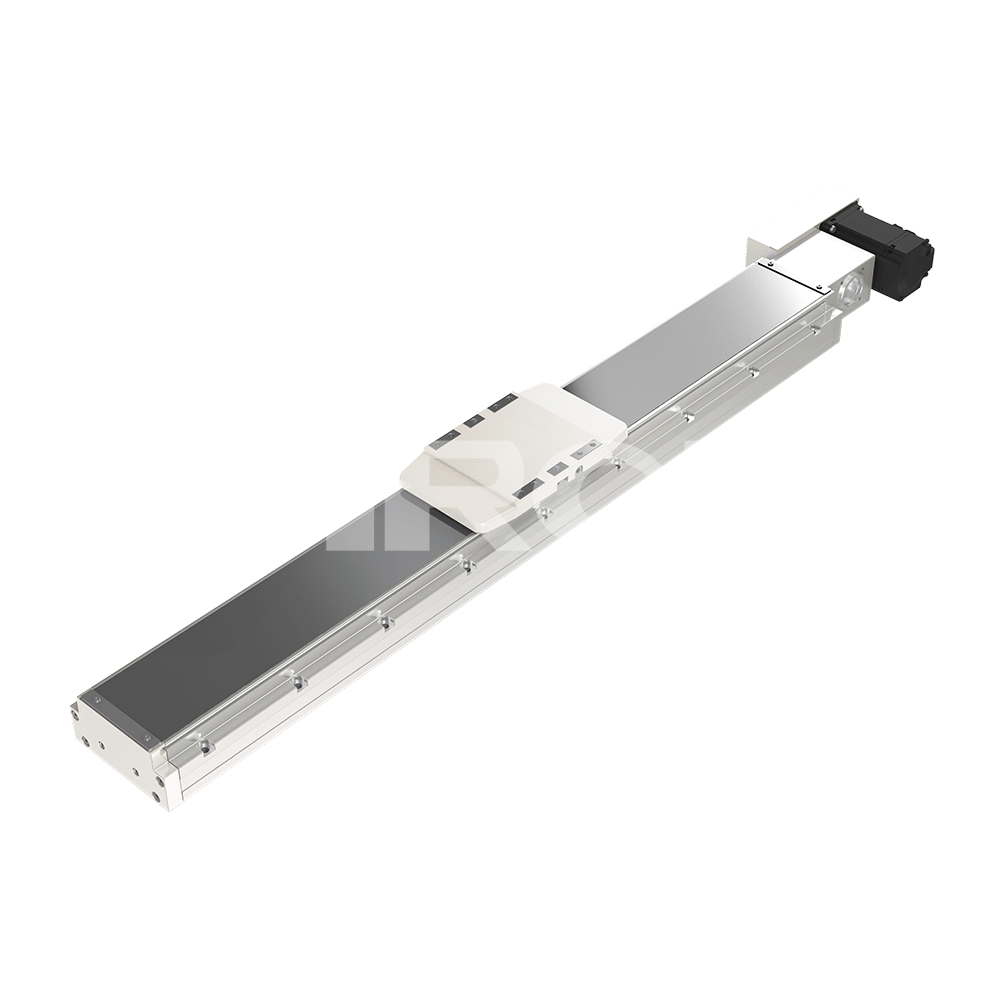

SiRON M330-12 Inline Belt Module

Name: SiRON M330-12 Inline Belt Module
Brand: SiRON
Rating: 5.0 (12 reviews)

Features:

● Inline belt module is a highly integrated linear motion unit, aluminum body and guide rail integrated design, slider and slide seat for
integration, linear module sliding tableCompact and lightweight products achieve space saving and high load. Optional
self-lubricating parts, 30000km maintenance-free;
● U type high strength aluminum alloy, embedded stainless steel guide rail and base integrated grinding molding, guide groove adopts
two columns 45° contact Angle Gothic structure design, provide fourWith equal load capacity in all directions, high precision and high
rigidity can be achieved by proper ball preload. In addition, the product adopts full seal design, low dust operationQuantity, the whole
can reach the dust-free grade requirements;
● M33 series adopts synchronous belt drive, with high speed, the servo motor can reach 4200mm/s, the repetition accuracy: ±0.04, the
synchronous belt module is especially suitable forHigh speed movement demand;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M330-12
Brand:
SiRON
Code:
9001909090

1750mm Maximum stroke 3600mm/s Maximum speed 200W motor capacity 30mm bell width

Product Description

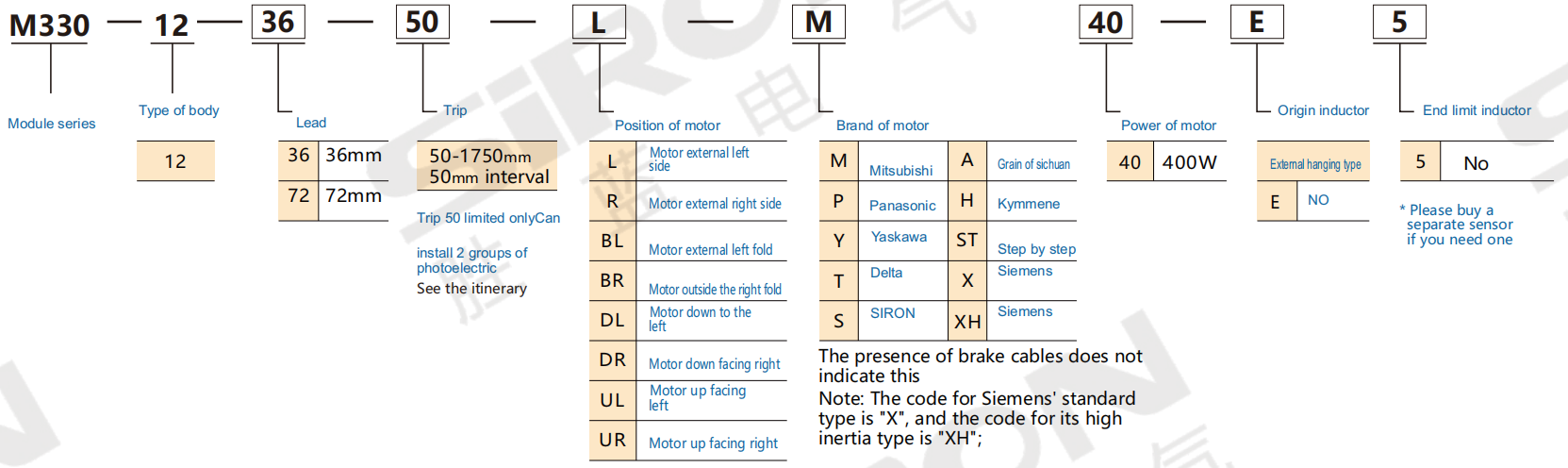

About selection

Selection example: M330-12-36-50-L-M40B-E5 is M330-12 series, lead range 36mm, stroke 50, motor external left side, Mitsubishi 400W with brake, no origin sensor, no limit sensor.

Note: If you need other styles, please consult our sales staff.

Guide: Guide 36mm optional motor position BL/BR/DL/DR/UL/UR; Lead 72mm Optional motor position L/R. Origin sensor: the limitation of selection stroke 50: (1) Origin type limit should be placed on different sides, (2) induction plates should be installed on both sides of the slide seat.

Product specification

Project			Specification
Specifications	Repeatability(mm)		±0.04
	Lead range(mm)		36/72
	Maximum speed(mm/s)		1800/3600
	Horizontal Maximum payload(kg)		25
		Vertical	/
	Rated thrust(n)		100
	Stroke pitch(mm)		50-1750mm/50 interval
	AC Servo motor output(w)		400
	Ball screw(mm)		30
	Home sensor	Outside	K017-A6-P(Optional)
