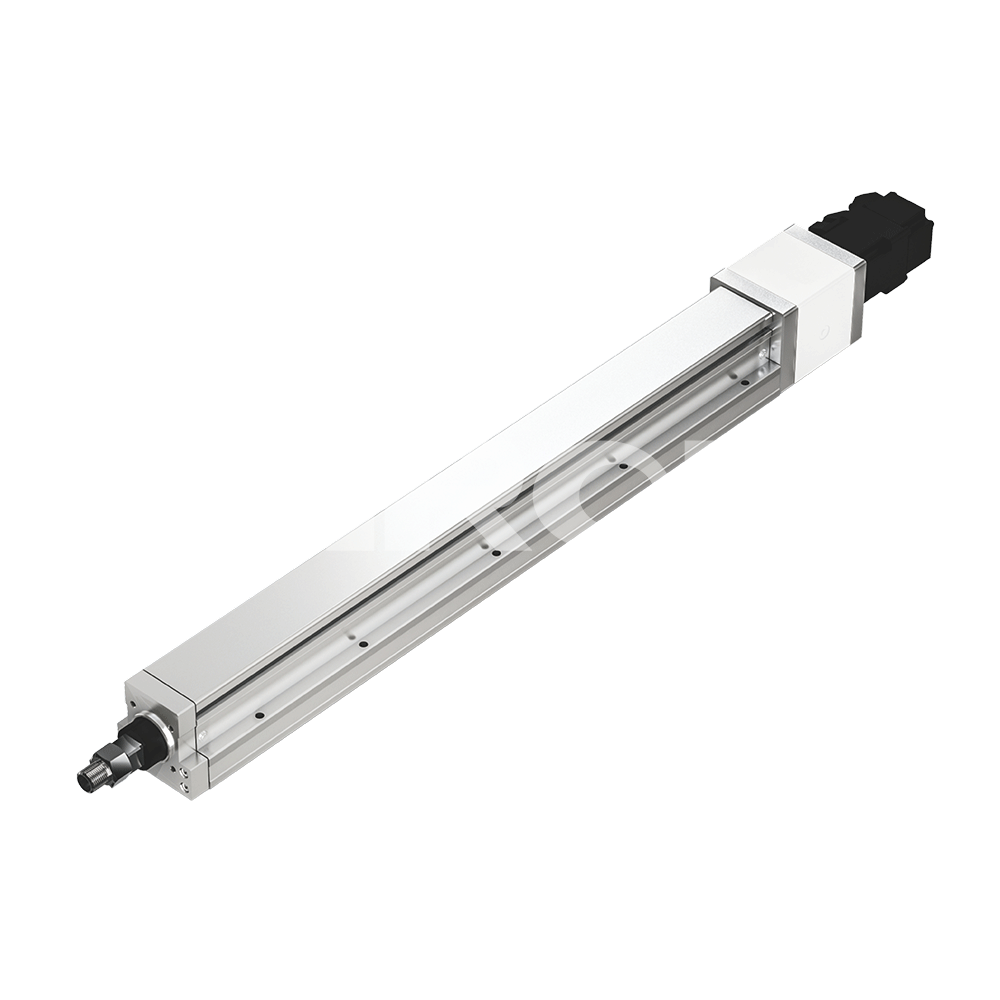

SiRON M320 Embedded Push Rod Module

Name: SiRON M320 Embedded Push Rod Module
Brand: SiRON
Rating: 5.0 (22 reviews)

Features:

*Track embedded screw sliding table, using track embedded, equal height straightness greatly improved, sliding table travel up to 1250mm, no removal of the cover, easy assembly,More rigid; Special steel belt structure design, can reduce dust, can be used in clean room environment;

* The width is reduced, so that the equipment installation space is smaller, the body and the slide seat one molding steel, improve the original aluminum slide seat stiﬀness;
* Do not need to remove the steel belt, can be ﬁxed from the top down or from the bottom up ﬁxed; Installation datum dock is added on the side of the body; The bottom of the body has a positioning PIN hole, convenient assembly time;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M320
Brand:
SiRON
Code:
9001909090

600mm Maximum stroke 1000mm/s Maximum speed Φ12mm Ball bearing screw

Product Description

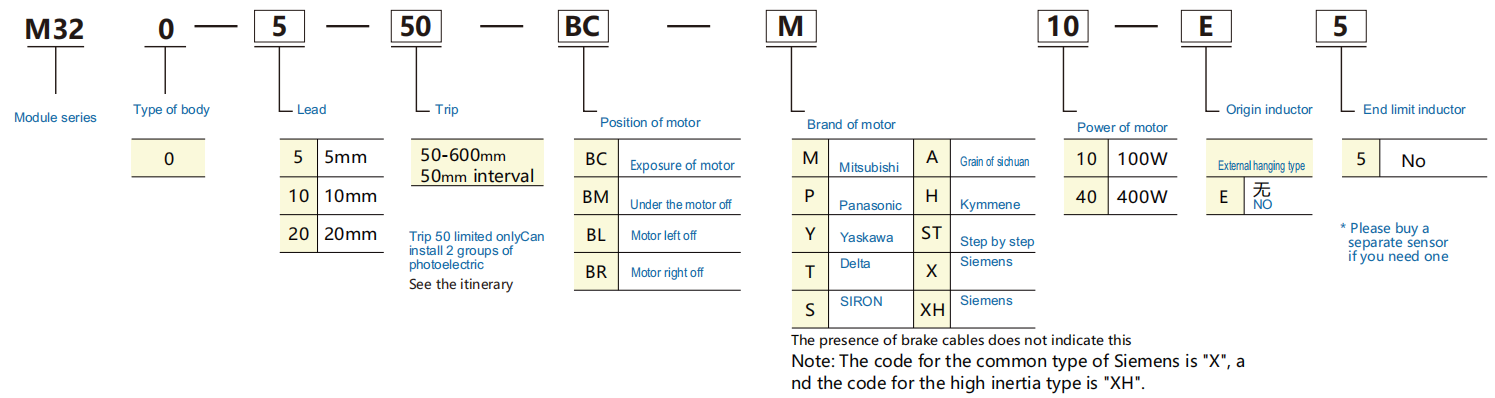

About selection

Selection example: M320-5-50-BC-M10B-E5 is M320 series, guide 5mm, stroke 50, motor exposed, Mitsubishi 100W with brake, no origin sensor, no limit sensor;

Note: If you need other styles, please consult our sales staﬀ.Origin sensor: the limit of selection stroke 50mm: (1) Origin type limit should be placed on diﬀerent sides, (2) induction plates should be installed on both sides of the slide seat;

Product specification

Project			Specification
Spcifications	Repeatability(mm)		±0.01
	Ball ScrewLead(mm)		5	10	20
	Maximum speed(mm/s)		250	500	1000
	Maximum payload(kg)	Horizontal	30	15	10
		Vertical	10	15	2.5
	Rated thrust(n)		341	170	85
	Stroke pitch(mm)		50~600mm/50mm interval
Sarts	AC Servo motor output(w)		100
	Ball Screw o(mm)		C7φ12
	Coupling(mm)		7×8
	Home Sensor	Outside	F6110(optional)
