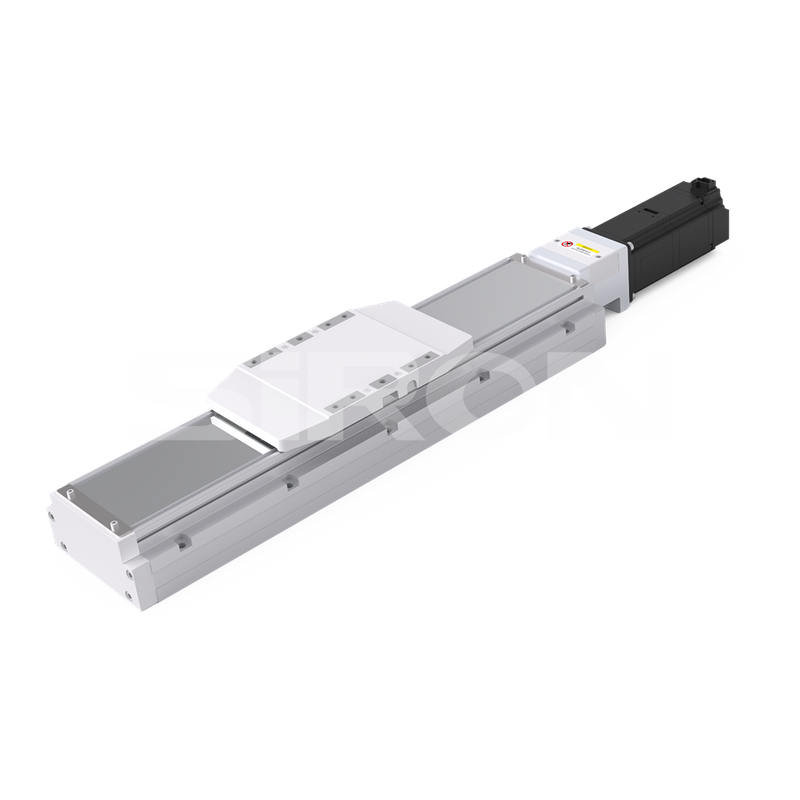

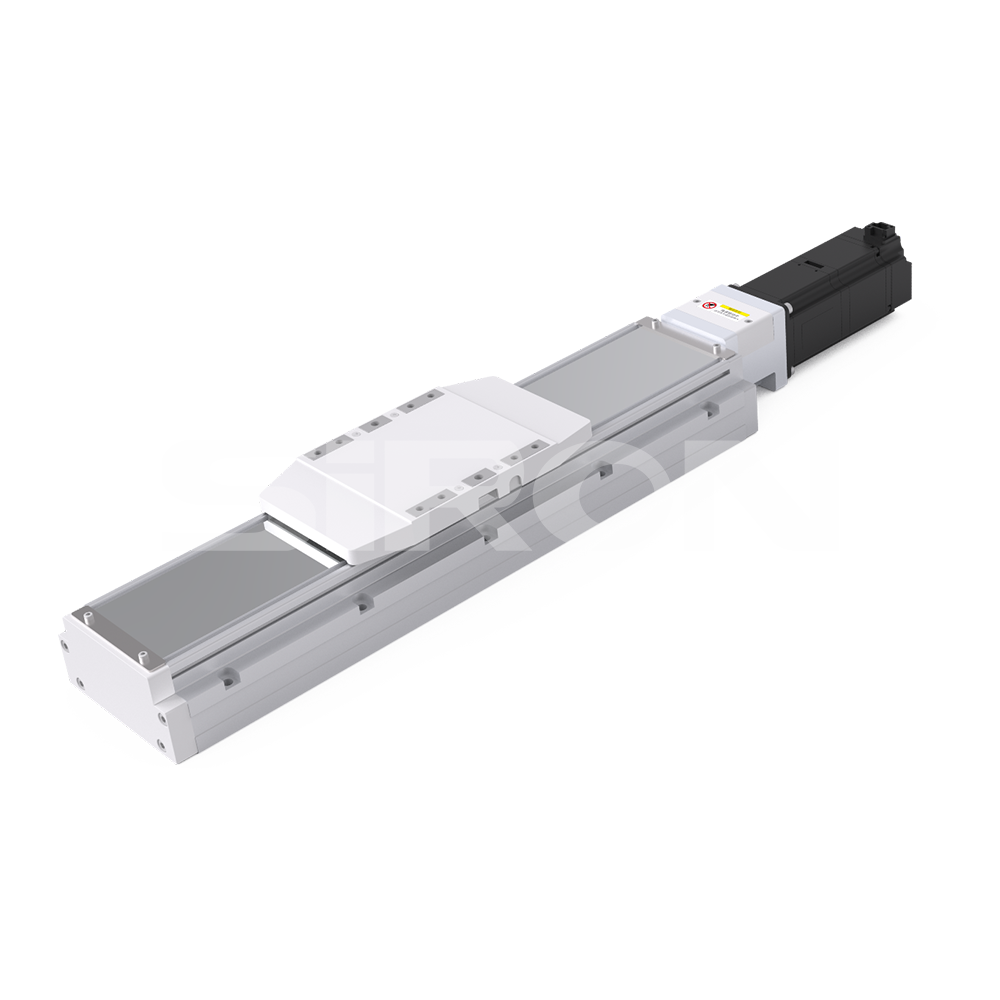

SiRON M304(C) Embedded Ball Screw Economical Module

Name: SiRON M304(C) Embedded Ball Screw Economical Module
Brand: SiRON
Rating: 5.0 (99 reviews)

Features:

*Track embedded screw sliding table, using track embedded, equal height straightness greatly improved, sliding table travel up to 1250mm, no removal of the cover, easy assembly,More rigid; Special steel belt structure design, can reduce dust, can be used in clean room environment;

* The width is reduced, so that the equipment installation space is smaller, the body and the slide seat one molding steel, improve the original aluminum slide seat stiﬀness;
* Do not need to remove the steel belt, can be ﬁxed from the top down or from the bottom up ﬁxed; Installation datum dock is added on the side of the body; The bottom of the body has a positioning PIN hole, convenient assembly time;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M304(C)
Brand:
SiRON
Code:
9001909090

1200mm Maximum stroke 1600mm/s Maximum speed Φ16mm Ball bearing screw

Product Description

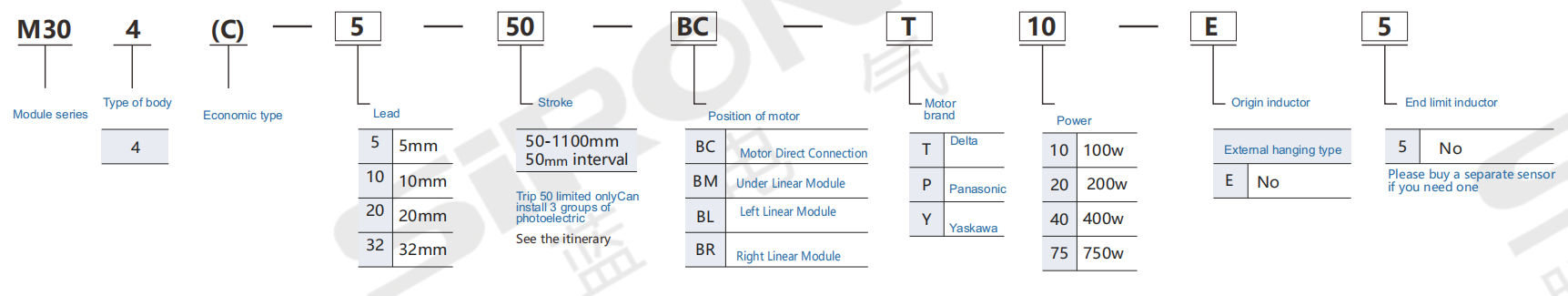

About selection

Selection example: M304(C)-5-50-BC-T10B-E5 is M304(C) series, lead range 5mm, stroke 50, motor direct connection, delta 100W with brakes, no origin sensor, no limit sensor；

Note: If you need other styles, please consult our sales staff. Origin sensor: the limit of selection stroke 50mm: (1) Origin type limit should be placed on different sides, (2) induction plates should be installed on both sides of the slide seat;

Product specification

Project			Specification
Specications	Repeatability(mm)		±0.01
	BallScrew Lead(mm)		5	10	20	32
	Maximum speed(mm/s)		250	500	1000	1600
	Maximum payload(kg)	Horizontal	110	88	40	30
		Vertical	33	22	10	8
	Rated thrust(n)		1388	694	374	218
	Stroke pitch(mm)		50~1200mm/50mm interval
Sarts	AC Servo motor output(w)		400
	Bal Screwo(mm)		C7中16
	Coupling(mm)		10×14
	Home Sensor	Outside	EE-SX674(NPN)EE-SX674P(PNP) PM-Y45(NPN)PM-Y45P(PNP)

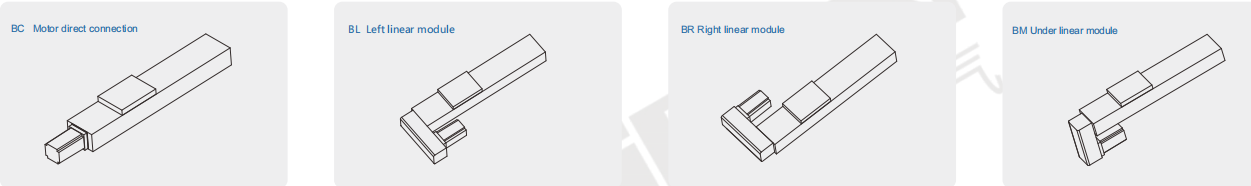

Installation method

企业微信截图_17744301274505

Suitable motor brand

Brand	The motormark Whether the brakes	Motor capacity	voltage	Motor model	voltage
Delta	No brakes (horizontal style)	400	220	ECMA-C20604RS	ASD-B2-0421-B
Delta	T With brake (vertical style)	400	220	ECMA-C20604SS	ASD-B2-0421-B
Panasonic	No brakes (horizontalstyle)	400	220	MHMF042L1U2M	MBDLN25SG
Panasonic	P With brake (vertical style)	400	220	MHMF042L1V2M	MBDLN25SG
Yaskawa	Nobrakes (horizontal style)	400	220	SGM7J04AFC6S	SGD7S2R8A00A002
Yaskawa	Y With brake (vertical style)	400	220	SGM7J04AFC6E	SGD7S2R8A00A002

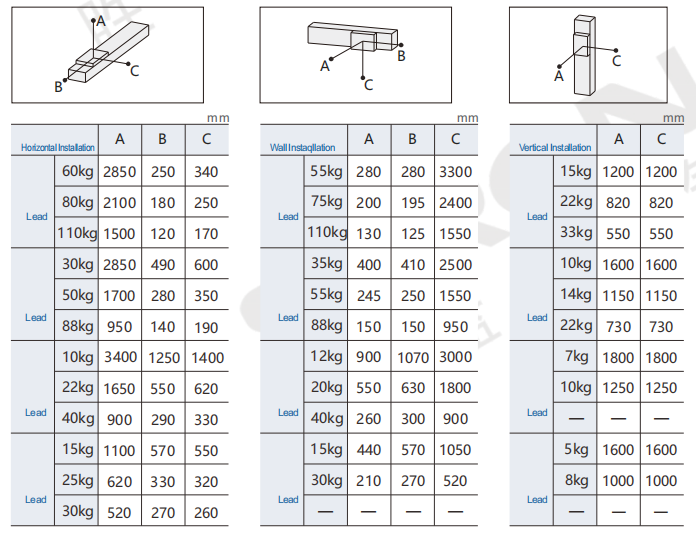

Allowable overhang

Static loading moment

MY	606
MP	606
MR	1168

The data indicated by the torque represents the center of gravity.

Under standardized usage conditions, the product has a service life of 10,000 kilometers.

The standard specifications cannot be followed when using the inverted hoist.

If you have any needs, please consult our sales staff

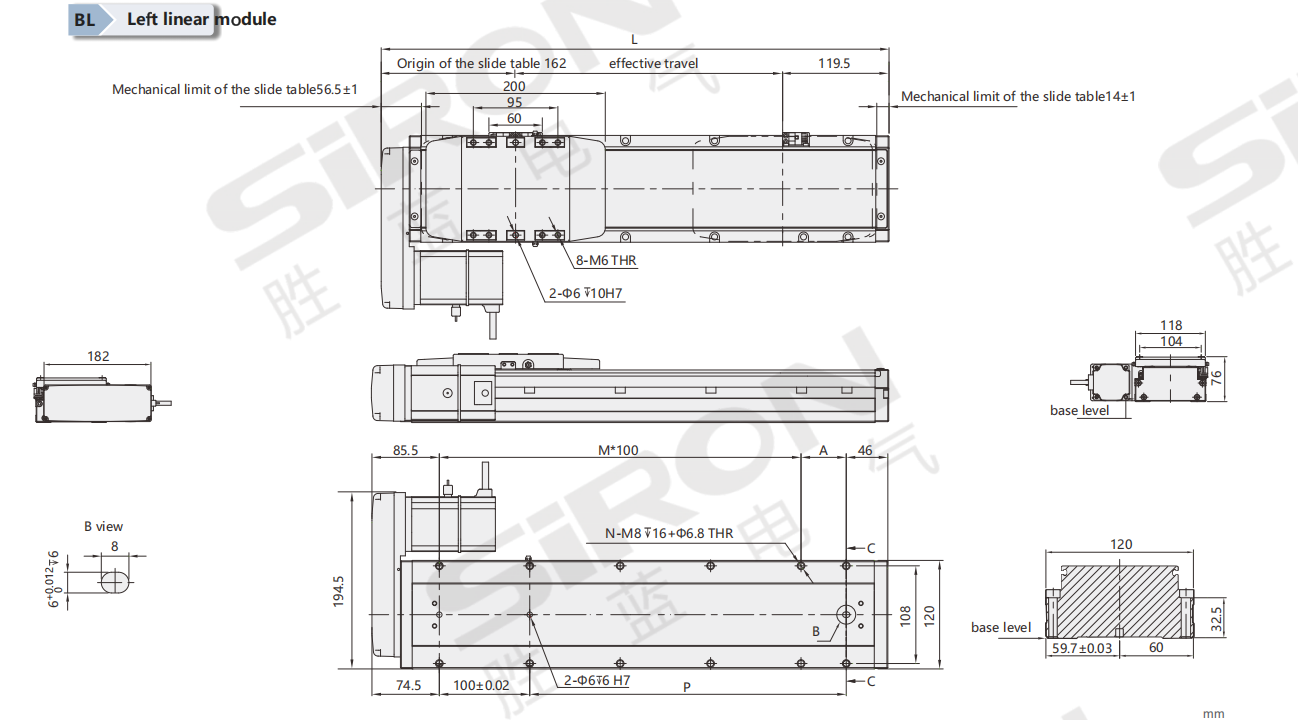

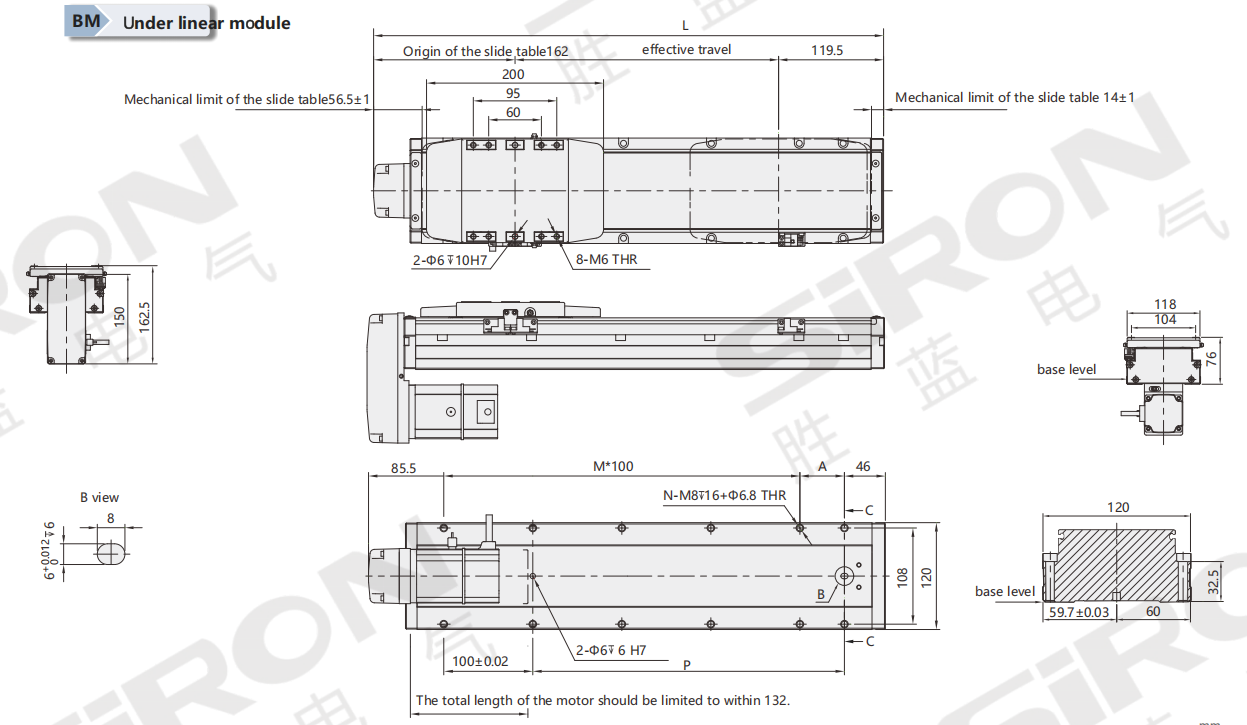

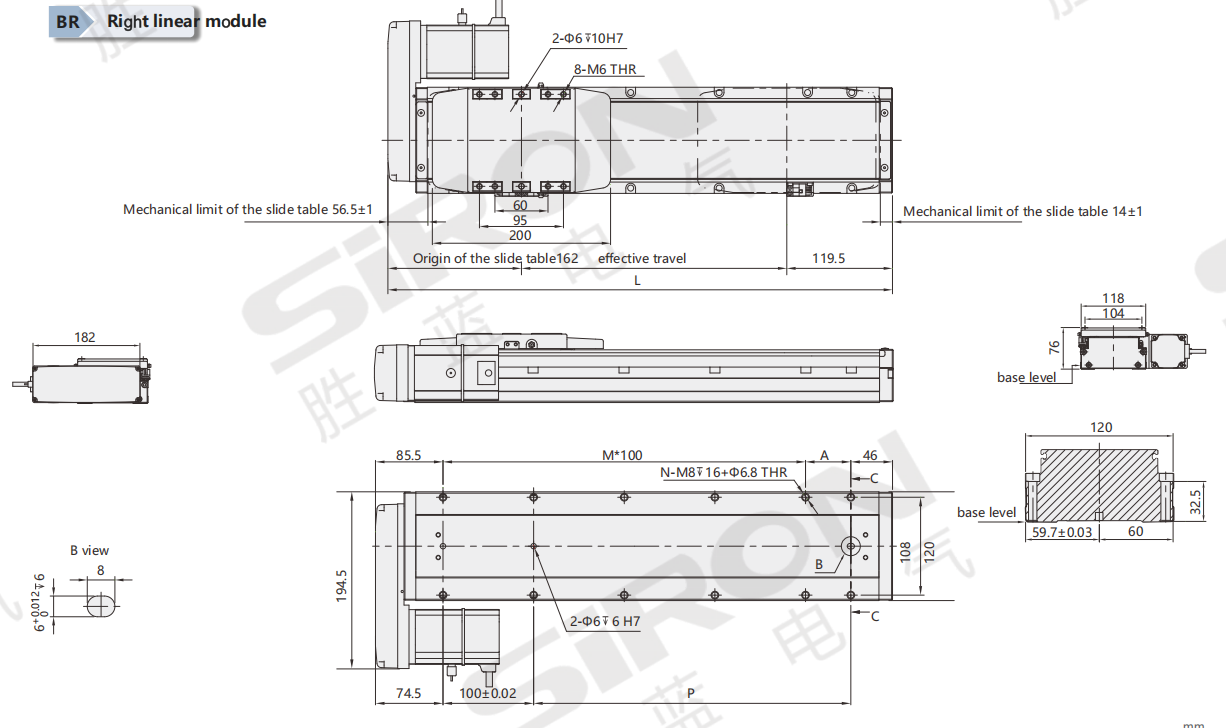

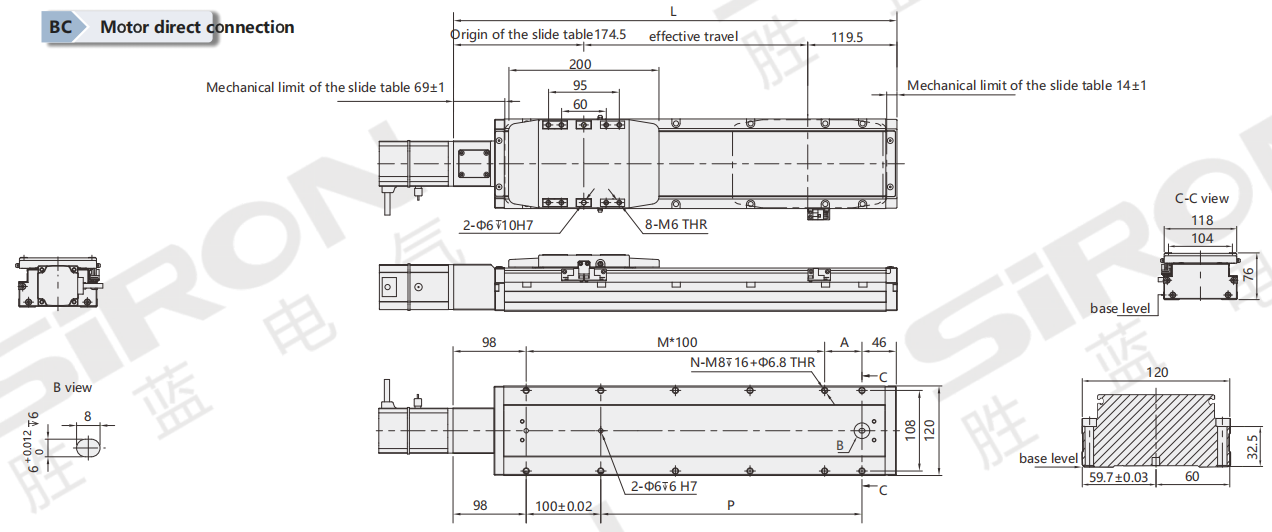

General dimension drawing

企业微信截图_17744304206802

Stroke	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100	1150	1200
L	344	394	444	494	544	594	644	694	744	794	844	894	944	994	1044	1094	1144	1194	1244	1294	1344	1394	1444	1494
A	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50
M	1	2	2	3	3	4	4	5	5	6	6	7	7	8	8	9	9	10	10	11	11	12	12	13
N	6	8	8	10	10	12	12	14	14	16	16	18	18	20	20	22	22	24	24	26	26	28	28	30
P	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250
weight(kg)	5.05	5.4	5.75	6.1	6.45	6.8	7.15	7.5	7.85	8.2	8.55	8.9	9.25	9.6	9.95	10.3	10.65	11	11.35	11.7	12.05	12.4	12.75	13.1

企业微信截图_17744306154936

Stroke	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100	1150	1200
L	331.5	381.5	431.5	481.5	531.5	581.5	631.5	681.5	731.5	781.5	831.5	881.5	931.5	981.5	1031.5	1081.5	1131.5	1181.5	231.5	1281.5	1331.5	1381.5	1431.5	1481.5
A	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50
M	1	2	2	3	3	4	4	5	5	6	6	7	7	8	8	9	9	10	10	11	11	12	12	13
N	6	8	8	10	10	12	12	14	14	16	16	18	18	20	20	22	22	24	24	26	26	28	28	30
P	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250
weight(kg)	5.25	5.6	5.95	6.3	6.65	7	7.35	7.7	8.05	8.4	8.75		9.45	9.8	10.15	10.5	10.85	11.2	11.55	11.9	12.25	12.6	12.95	13.3

企业微信截图_17744307248185

Stroke	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100	1150	1200
L	331.5	381.5	431.5	481.5	531.5	581.5	631.5	681.5	731.5	781.5	831.5	881.5	931.5	981.5	031.5	1081.5	1131.5	1181.5	231.5	1281.5	1331.5	1381.5	431.5	1481.5
A	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50
M	1	2	2	3	3	4	4	5	5	6	6	7	7	8	8	9	9	10	10	11	11	12	12	13
N	6	8	8	10	10	12	12	14	14	16	16	18	18	20	20	22	22	24	24	26	26	28	28	30
P	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250
weight(kg)	5.25	5.6	5.95	6.3	6.65	7	7.35	7.7	8.05	8.4	8.75	9.1	9.45	9.8	10.15	10.5	10.85	11.2	11.55	11.9	12.25	12.6	12.95	13.3

企业微信截图_17744308007852

Stroke	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100	1150	1200
L	331.5	381.5	431.5	481.5	531.5	581.5	631.5	681.5	731.5	781.5	831.5	881.5	931.5	981.5	1031.5	081.5	1131.5	1181.5	231.5	1281.5	331.5	381.5	1431.5	481.5
A	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50
M	1	2	2	3	3	4	4	5	5	6	6	7	7	8	8	9	9	10	10	11	11	12	12	13
N	6	8	8	10	10	12	12	14	14	16	16	18	18	20	20	22	22	24	24	26	26	28	28	30
P	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250
weight(kg)	5.25	5.6	5.95	6.3	6.65	7	7.35	7.7	8.05	8.4	8.75	9.1	9.45	9.8	10.15	10.5	10.85	11.2	11.55	11.9	12.25	12.6	12.95	13.3
