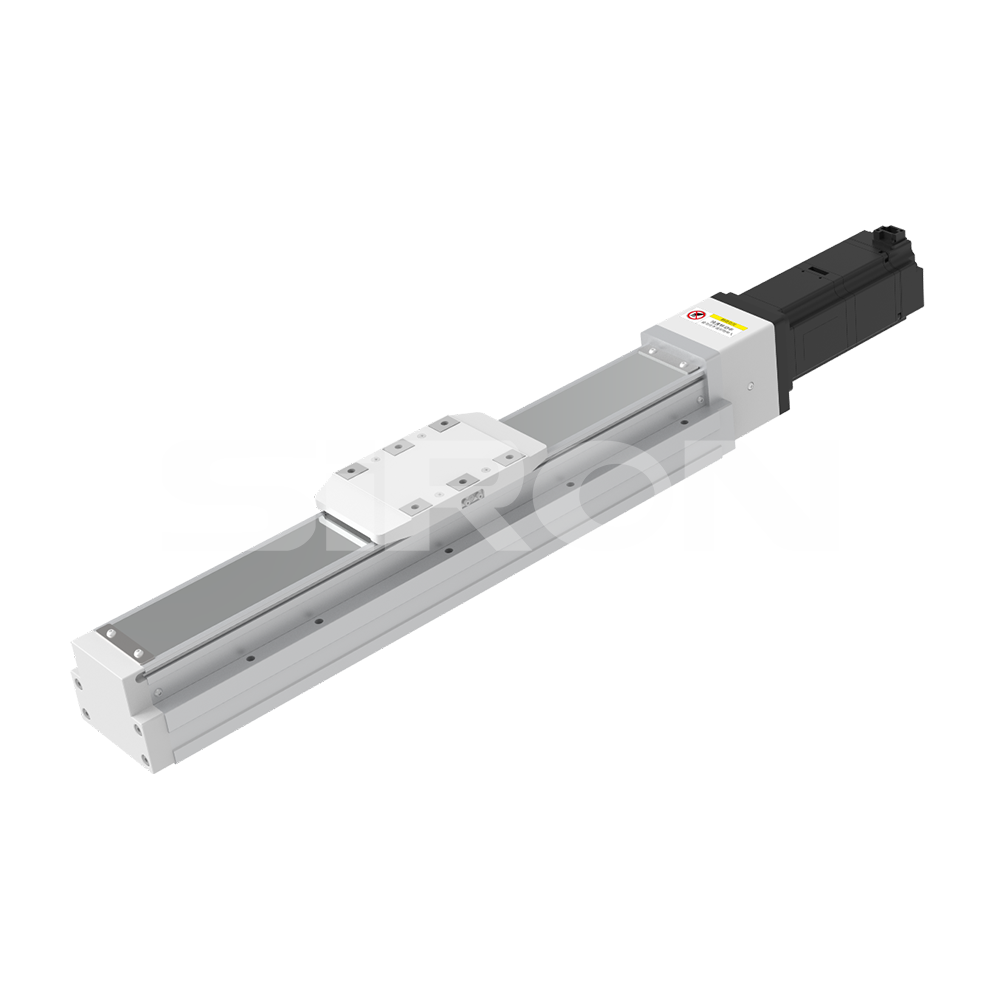

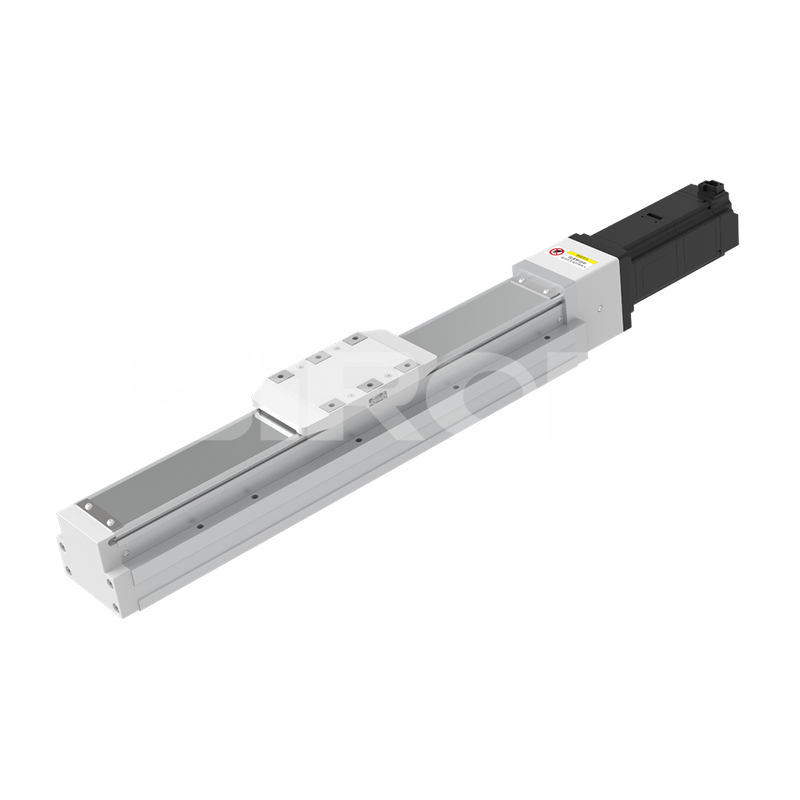

SiRON M303(C) Embedded Ball Screw Economical Module

Name: SiRON M303(C) Embedded Ball Screw Economical Module
Brand: SiRON
Rating: 5.0 (82 reviews)

Features:

*Track embedded screw sliding table, using track embedded, equal height straightness greatly improved, sliding table travel up to 1250mm, no removal of the cover, easy assembly,More rigid; Special steel belt structure design, can reduce dust, can be used in clean room environment;

* The width is reduced, so that the equipment installation space is smaller, the body and the slide seat one molding steel, improve the original aluminum slide seat stiﬀness;
* Do not need to remove the steel belt, can be ﬁxed from the top down or from the bottom up ﬁxed; Installation datum dock is added on the side of the body; The bottom of the body has a positioning PIN hole, convenient assembly time;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M303(C)
Brand:
SiRON
Code:
9001909090

1100mm Maximum stroke 1000mm/s Maximum speed Φ16mm Ball bearing screw

Product Description

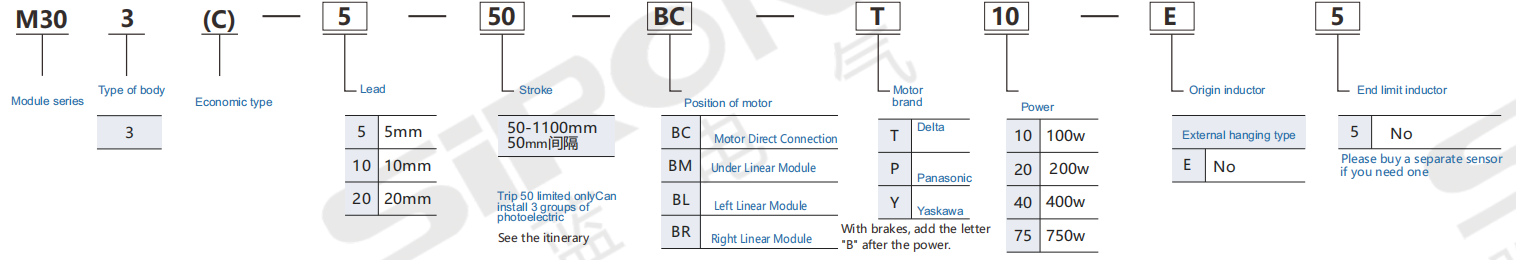

About selection

Selection example: M303(C)-5-50-BC-T10B-E5 is M303(C) series, lead range 5mm, stroke 50, motor direct connection,delta 100W with brakes, no origin sensor, no limit sensor；

Note: If you need other styles, please consult our sales staff. Origin sensor: the limit of selection stroke 50mm: (1) Origin type limit should be placed on different sides, (2) induction plates should be installed on both sides of the slide seat;

Product specification

Project			Specification
Spcifications	Repeatability(mm)		±0.01
	Ball ScrewLead(mm)		5	10	20
	Maximum speed(mm/s)		250	500	1000
	Maximum payload(kg)	Horizontal	50	30	10
		Vertical	15	10	2.5
	Rated thrust(n)		683	341	174
	Stroke pitch(mm)		50~1100mm/50mm interval
Sarts	AC Servo motor output(w)		200
	Ball Screw o(mm)		C7φ16
	Coupling(mm)		10×14 (11)
	Home Sensor	Outside	EE-SX674(NPN)EE-SX674P(PNP) PM-Y45(NPN)PM-Y45P(PNP)

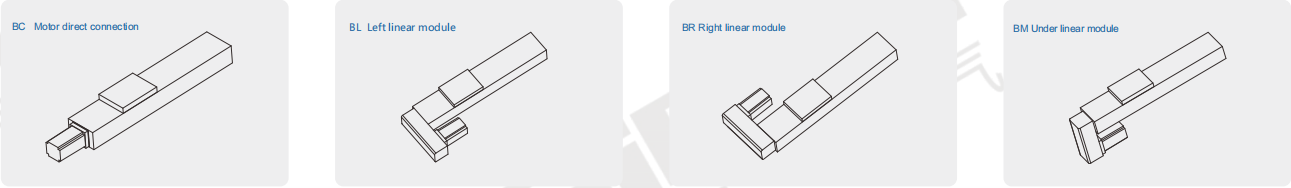

Installation method

企业微信截图_17744288863761

Suitable motor brand

Brand	The motormark	Whether the brakes	Motor capaity	voltage	Motormodel	voltage
Delta	T	No brakes (horizontalstyle)	200	220	ECMA-C20602RS	ASD-B2-0221-B
Delta	T	With brake (vertical style)	200	220	ECMA-C20602SS	ASD-B2-0221-B
Panasonic	P	No brakes (horizontlstyle)	200	220	MHMF022L1U2M	MADLN15SG
Panasonic	P	With brake (verticalstyle)	200	220	MHMF022L1V2M	MADLN15SG
Yaskawa	Y	No brakes(horizontal style)	200	220	SGM7J02AFC6S	SGD7S1R6A00A002
Yaskawa	Y	With brake (verticalstyle)	200	220	SGM7J02AFC6E	SGD7S1R6A00A002

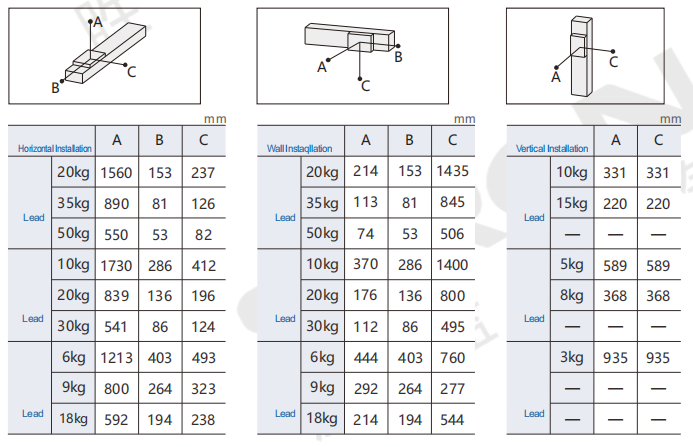

Allowable overhang

企业微信截图_17744291812882

Static loading moment

企业微信截图_17744292574511

MY	318
MP	318
MR	626

The data indicated by the torque represents the center of gravity.

Under standardized usage conditions, the product has a service life of 10,000 kilometers.

The standard specifications cannot be followed when using the inverted hoist.

If you have any needs, please consult our sales staff.

General dimension drawing

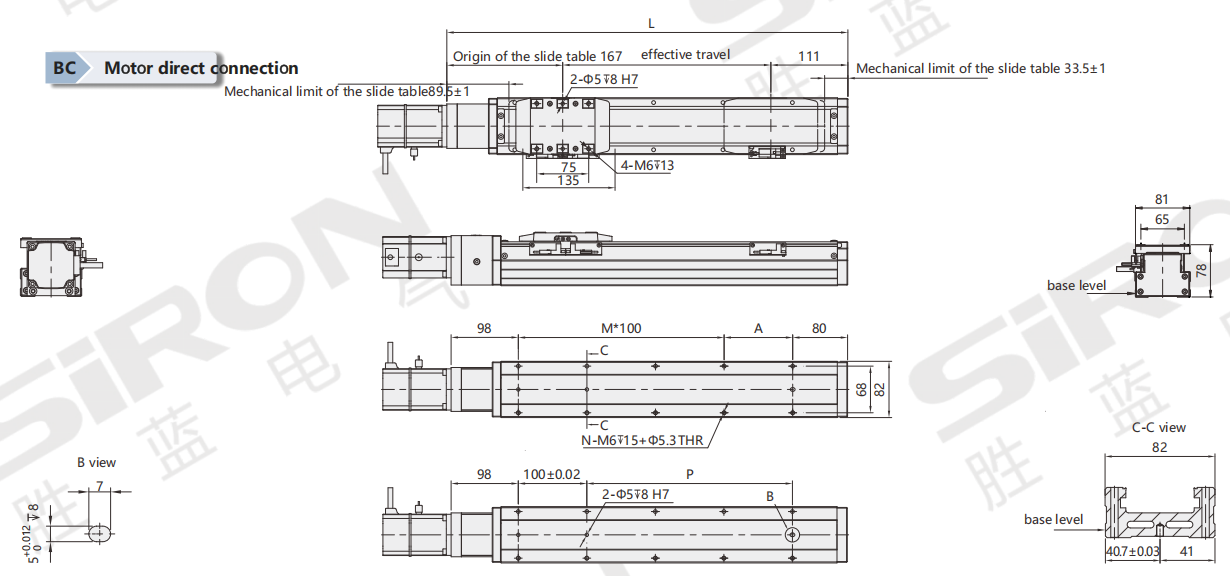

企业微信截图_17744295943794

Stroke	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100
L	328	378	428	478	528	578	628	678	728	778	828	878	928	978	1028	1078	1128	1178	1228	1278	1328	1378
A	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100
M	1	1	2	2	3	3	4	4	5	5	6	6	7	7	8	8	9	9	10	10	11	11
N	6	6	8	8	10	10	12	12	14	14	16	16	18	18	20	20	22	22	24	24	26	26
P	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100
weight(kg)	3.91	4.29	4.70	5.00	5.35	5.68	6.00	6.35	6.64	6.97	7.41	7.71	8.12	8.41	8.65	8.96	9.37	9.62	10.01	10.28	10.70	11.12

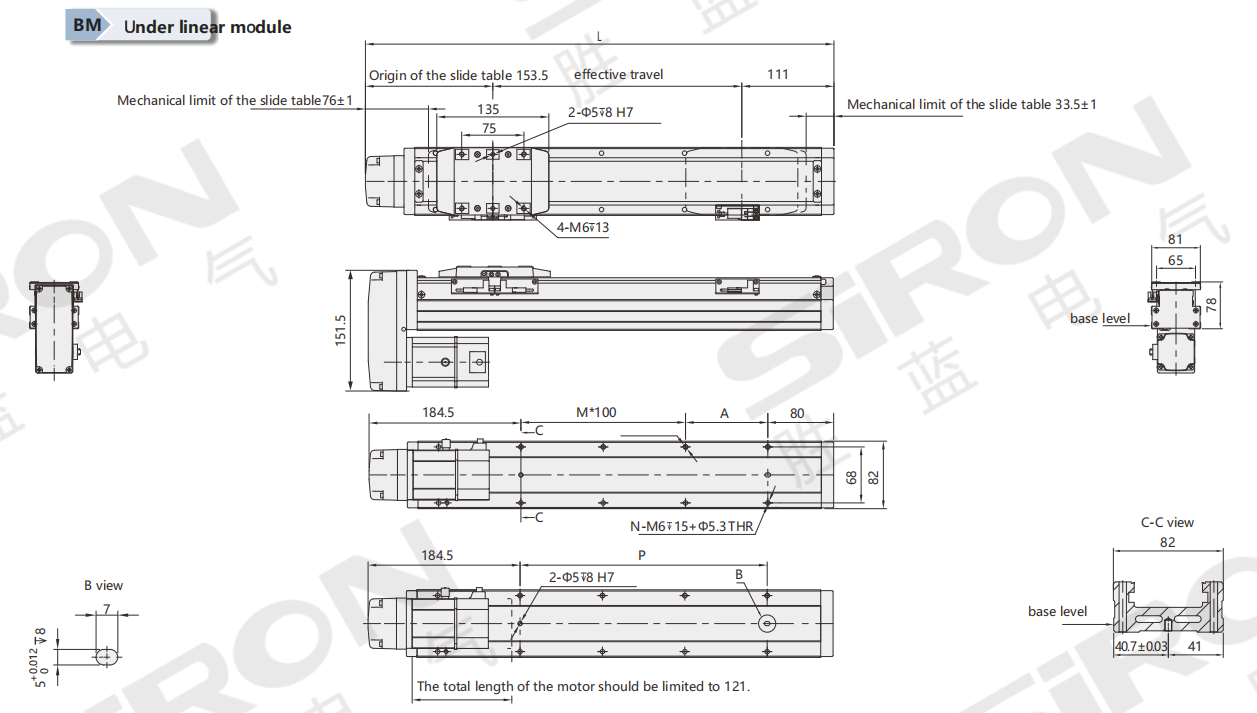

企业微信截图_17744296874658

Stroke	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100
L	314.5	364.5	414.5	464.5	514.5	564.5	614.5	664.5	714.5	764.5	814.5	864.5	914.5	964.5	1014.5	1064.5	1114.5	1164.5	1214.5	1264.5	1314.5	1364.5
A	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100
M	0	0	1	1	2	2	3	3	4	4	5	5	6	6	7	7	8	8	9	9	10	10
N	4	4	6	6	8	8	10	10	12	12	14	14	16	16	18	18	20	20	22	22	24	24
P	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100
weight(kg)	3.95	4.33	4.74	5.09	5.39	5.72	6.04	6.39	6.68	7.01	7.45	7.75	8.16	8.45	8.69	9.00	9.41	9.66	10.08	10.32	10.74	11.16

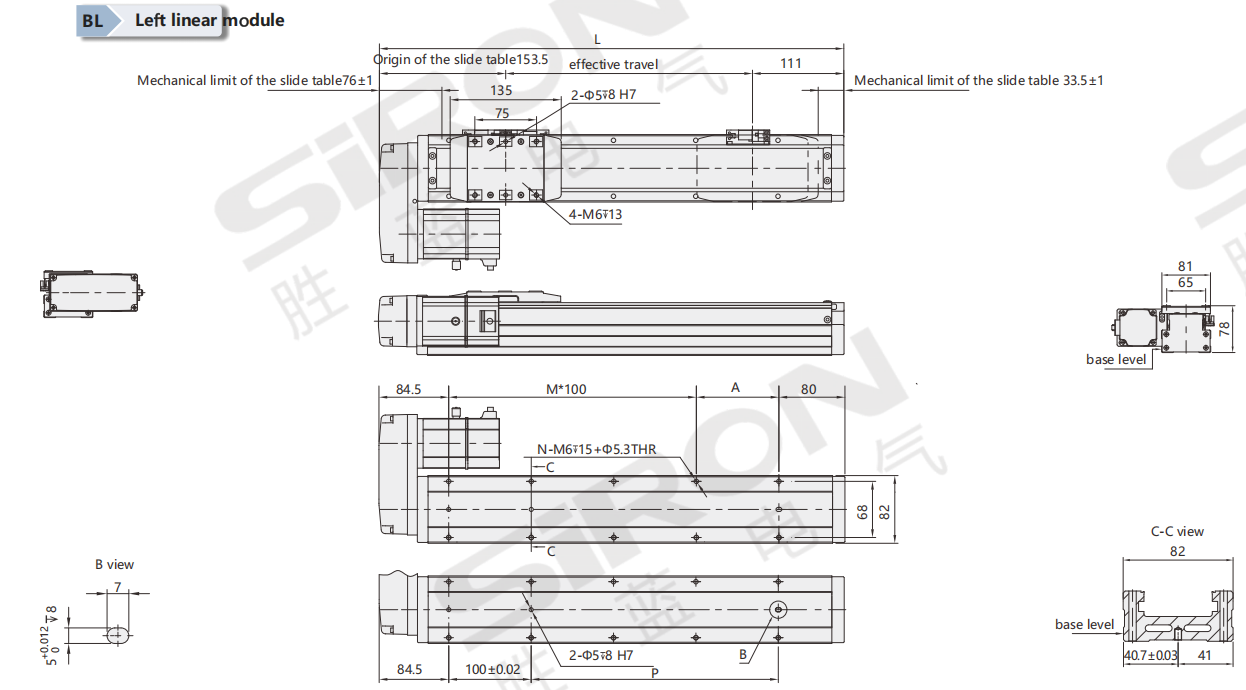

企业微信截图_17744298801957

Stroke	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100
L	314.5	364.5	414.5	464.5	514.5	564.5	614.5	664.5	714.5	764.5	814.5	864.5	914.5	964.5	1014.5	1064.5	1114.5	1164.5	1214.5	1264.5	1314.5	1364.5
A	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100
M	1	1	2	2	3	3	4	4	5	5	6	6	7	7	8	8	9	9	10	10	11	11
N	6	6	8	8	10	10	12	12	14	14	16	16	18	18	20	20	22	22	24	24	26	26
P	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100
weight(kg)	3.95	4.33	4.74	5.09	5.39	5.72	6.04	6.39	6.68	7.01	7.45	7.75	8.16	8.45	8.69	9.00	9.41	9.66	10.08	10.32	10.74	11.16

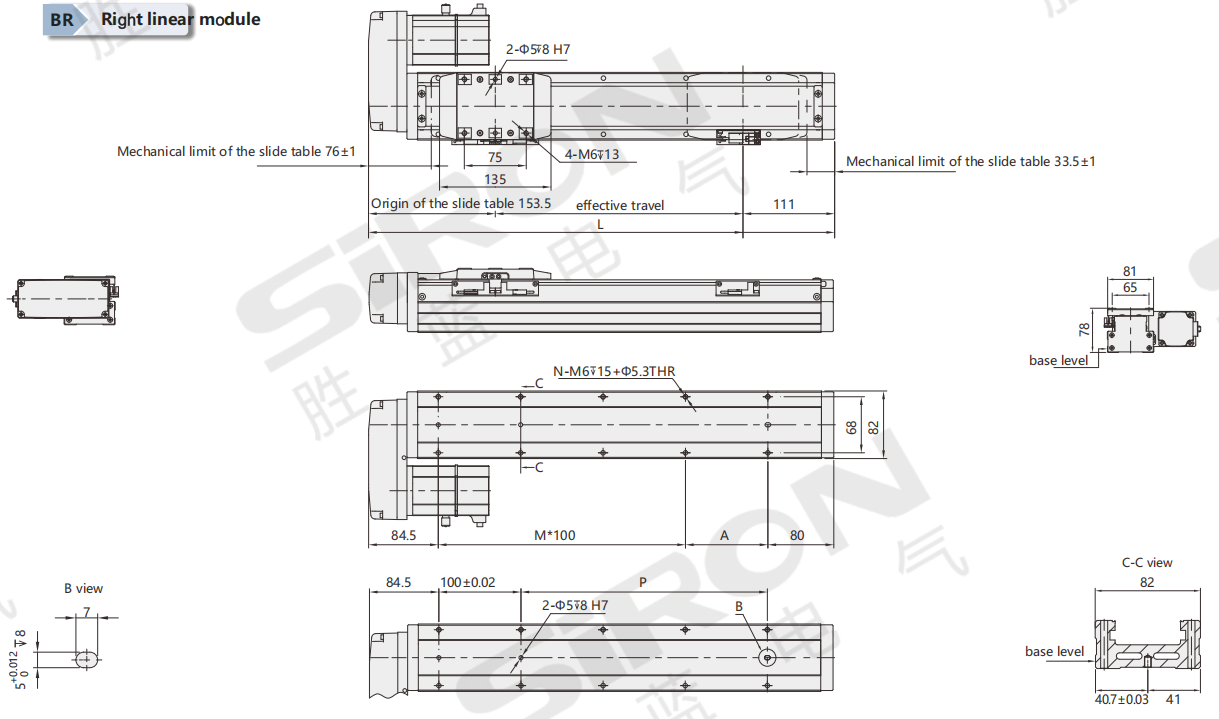

企业微信截图_17744300014519

Stroke	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100
L	314.5	364.5	414.5	464.5	514.5	564.5	614.5	664.5	714.5	764.5	814.5	864.5	914.5	964.5	1014.5	1064.5	1114.5	1164.5	1214.5	1264.5	1314.5	1364.5
A	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100
M	1	1	2	2	3	3	4	4	5	5	6	6	7	7	8	8	9	9	10	10	11	11
N	6	6	8	8	10	10	12	12	14	14	16	16	18	18	20	20	22	22	24	24	26	26
P	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100
weight(kg)	3.95	4.33	4.74	5.09	5.39	5.72	6.04	6.39	6.68	7.01	7.45	7.75	8.16	8.45	8.69	9.00	9.41	9.66	10.08	10.32	10.74	11.16
