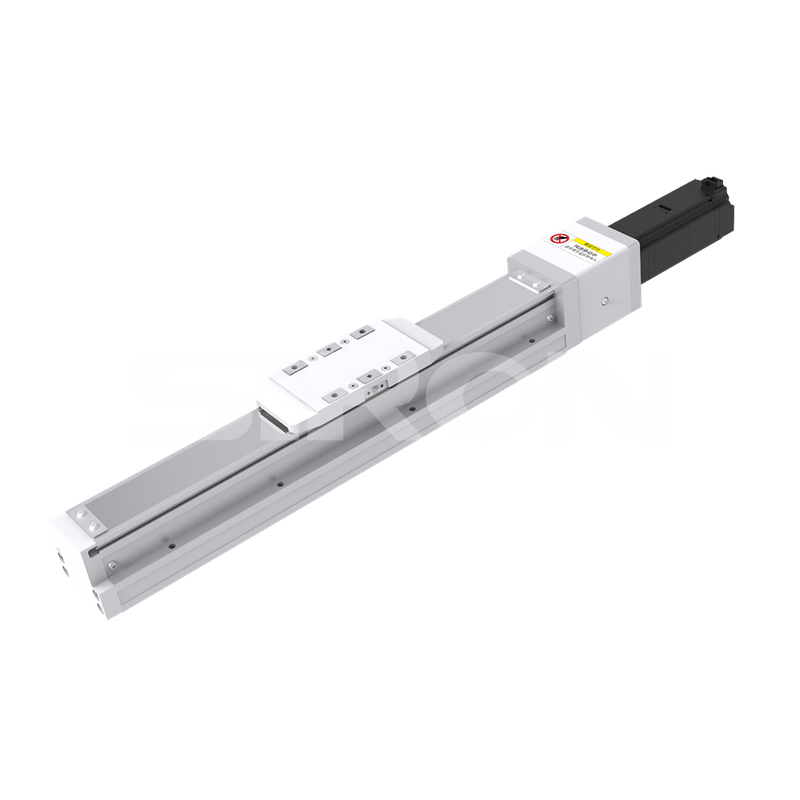

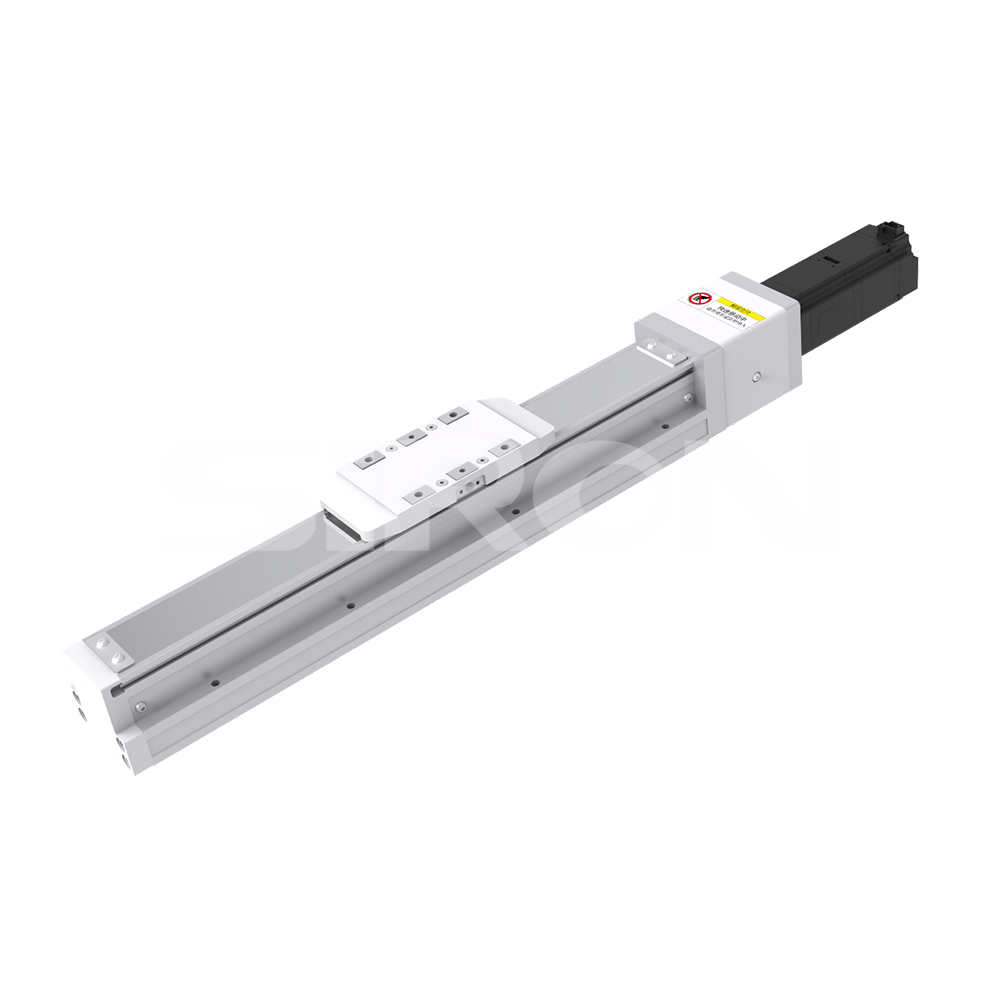

SiRON M302(C) Embedded Ball Screw Economical Module

Name: SiRON M302(C) Embedded Ball Screw Economical Module
Brand: SiRON
Rating: 5.0 (34 reviews)

Features:

*Track embedded screw sliding table, using track embedded, equal height straightness greatly improved, sliding table travel up to 1250mm, no removal of the cover, easy assembly,More rigid; Special steel belt structure design, can reduce dust, can be used in clean room environment;

* The width is reduced, so that the equipment installation space is smaller, the body and the slide seat one molding steel, improve the original aluminum slide seat stiﬀness;
* Do not need to remove the steel belt, can be ﬁxed from the top down or from the bottom up ﬁxed; Installation datum dock is added on the side of the body; The bottom of the body has a positioning PIN hole, convenient assembly time;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M302(C)
Brand:
SiRON
Code:
9001909090

800mm Maximum stroke 1000mm/s Maximum speed Φ12mm Ball bearing screw

Product Description

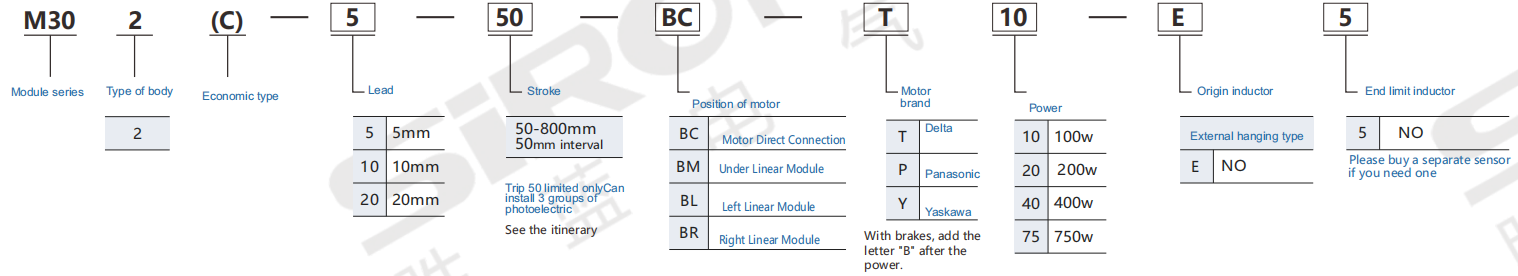

About selection

Selection example: M302(C)-5-50-BC-T10B-E5 is M302(2) series, lead range 5mm, stroke 50, motor direct connection, delta 100W with brakes, no origin sensor, no limit senso；

Note: If you need other styles, please consult our sales staff. Origin sensor: the limit of selection stroke 50mm: (1) Origin type limit should be placed on different sides, (2) induction plates should be installed on both sides of the slide seat;

Product specification

Project			Specification
Spcifications	Repeatability(mm)		±0.01
	Ball ScrewLead(mm)		5	10	20
	Maximum speed(mm/s)		250	500	1000
	Maximum payload(kg)	Horizontal	30	15	10
		Vertical	10	5	2.5
	Rated thrust(n)		341	170	85
	Stroke pitch(mm)		50~800mm/50mm interval
Sarts	AC Servo motor output(w)		100
	Ball Screw o(mm)		C7φ12
	Coupling(mm)		7×8
	Home Sensor	Outside	EE-SX674(NPN)EE-SX674P(PNP) PM-Y45(NPN)PM-Y45P(PNP)

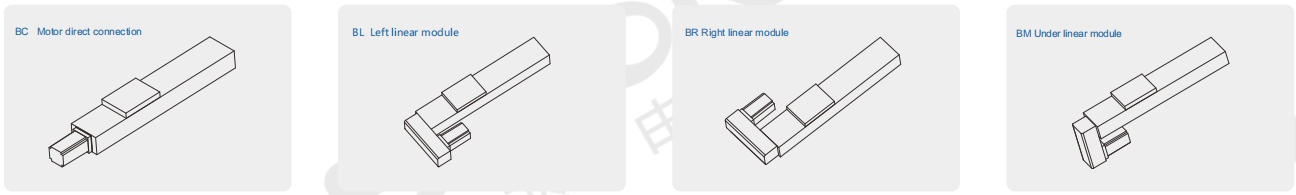

Installation method

企业微信截图_17744262973764

Suitable motor brand

Brand	The motormark	Whether the brakes	Motor capacity	voltage	Motormodel	voltage
Dalta	T	No brakes(horizontalstyle)	100	220	ECMA-C20101ES	ASD-B2-0121-B
Dalta	T	With brake (vertical style)	100	220	ECMA-C20101SS	ASD-B2-0121-B
Panasonic	P	No brakes(horizontalstyle)	100	220	MSMF012L1U2M	MADLN05SG
Panasonic	P	With brake (vertical style)	100	220	MSMF012L1V2M	MADLN05SG
Yaskawa	Y	No brakes(horizontal style)	100	220	SGM7J01AFC6S	SGD7SR90A00A002
Yaskawa	Y	With brake (vertical style)	100	220	SGM7J01AFC6E	SGD7SR90A00A002

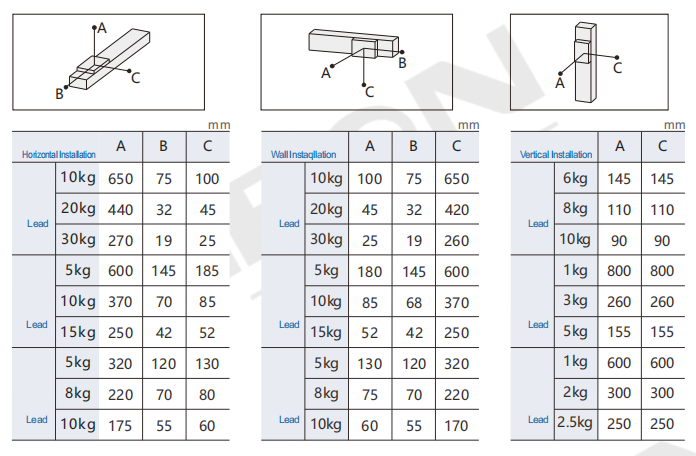

Allowable overhang

企业微信截图_17744264452832

Static loading moment

企业微信截图_17744265021424

MY	103
MP	103
MR	144

The data indicated by the torque represents the center of gravity.Under standardized usage conditions, the product has a service life of 10,0 00 kilometers. The standard specifications cannot be followe d when using the inverted hoist. If you have any needs, please consult our sales staff.

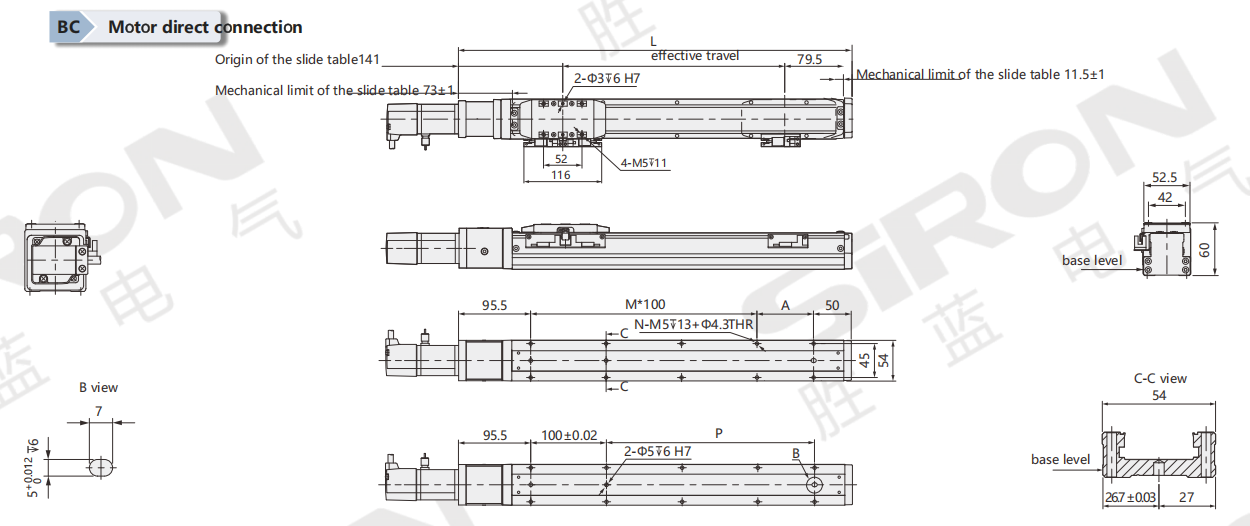

General dimension drawing

企业微信截图_17744275217275

Stroke	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800
L	270.5	320.5	370.5	420.5	470.5	520.5	570.5	620.5	670.5	720.5	770.5	820.5	870.5	920.5	970.5	1020.5
A	25	75	25	75	25	75	25	75	25	75	25	75	25	75	25	75
M	7	1	2	2	3	3	4	4	5	5	6	6	7	7	8	8
N	6	6	8	8	10	10	12	12	14	14	16	16	18	18	20	20
P	25	75	125	175	225	275	325	375	425	475	525	575	625	675	725	775
weight(kg)	1.65	1.79	1.92	2.11	2.39	2.50	2.52	2.75	2.86	2.95	3.15	3.28	3.44	3.58	3.71	4.09

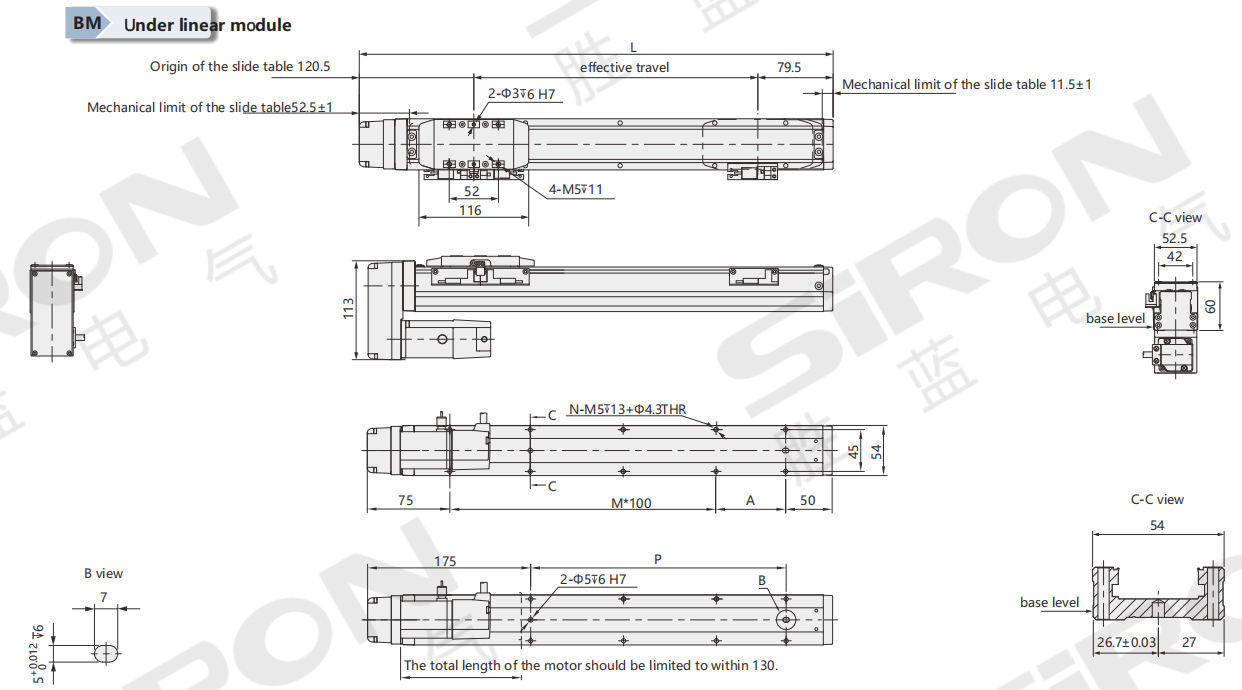

企业微信截图_1774427606874

Stroke	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800
L	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000
A	25	75	25	75	25	75	25	75	25	75	25	75	25	75	25	75
M	1	1	2	2	3	3	4	4	5	5	6	6	7	7	8	8
N	6	6	8	8	10	10	12	12	14	14	16	16	18	18	20	20
P	25	75	125	175	225	275	325	375	425	475	525	575	625	675	725	775
weight(kg)	1.68	1.80	2.03	2.14	2.42	2.53	2.58	2.78	2.89	2.98	3.18	3.31	3.47	3.60	3.74	4.12

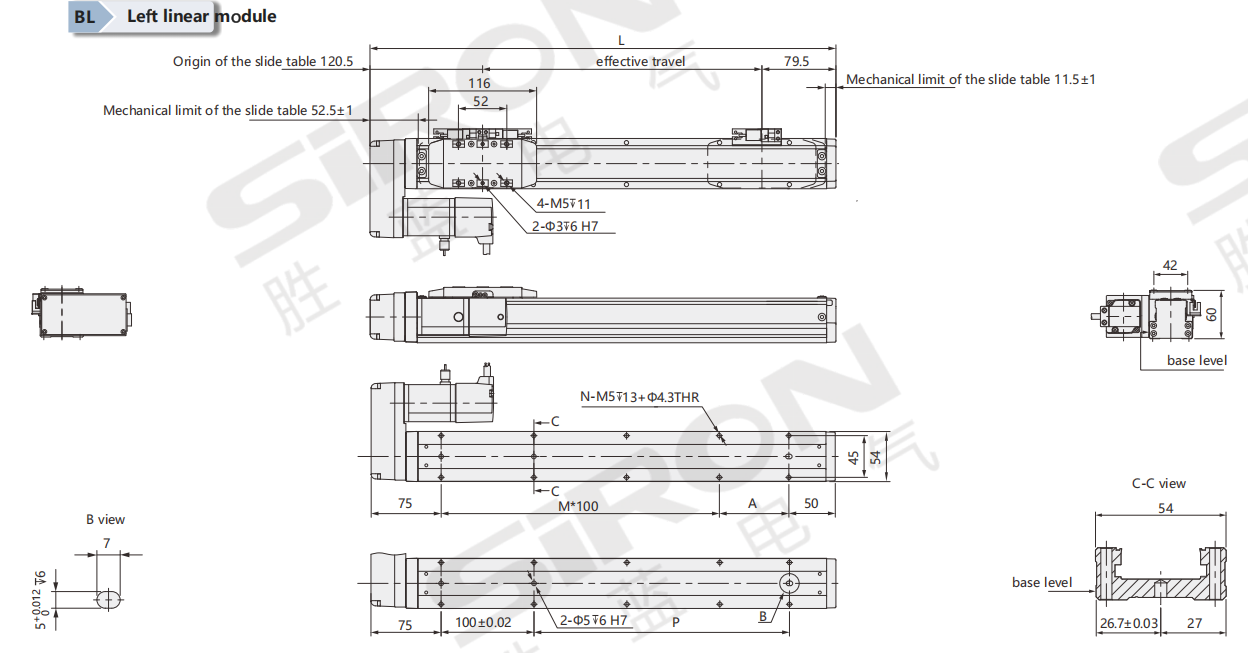

企业微信截图_17744277127355

Sroke	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800
L	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000
A	25	75	25	75	25	75	25	75	25	75	25	75	25	75	25	75
M	1	1	2	2	3	3	4	4	5	5	6	6	7	7	8	8
N	6	6	8	8	10	10	12	12	14	14	16	16	18	18	20	20
P	25	75	125	175	225	275	325	375	425	475	525	575	625	675	725	775
weight(kg)	1.68	1.80	2.03	2.14	2.42	2.53	2.58	2.78	2.89	2.98	3.18	3.31	3.47	3.60	3.74	4.12

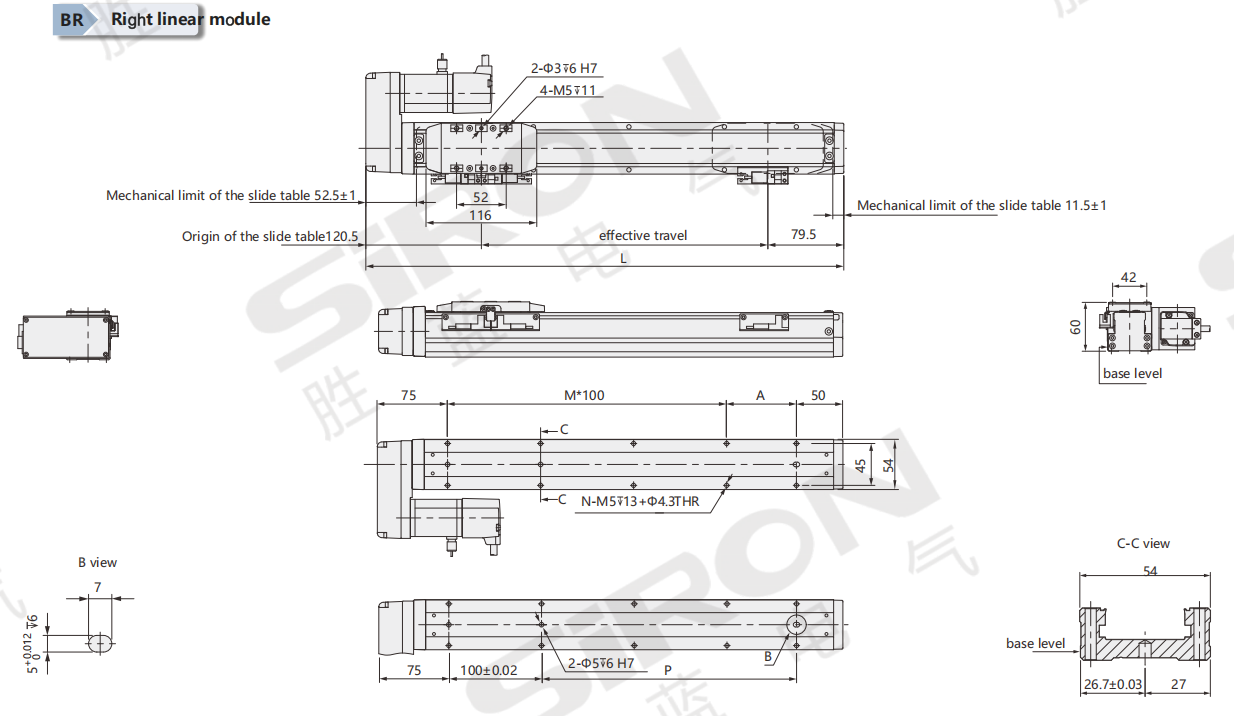

企业微信截图_17744286814768

Sroke	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800
L	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000
A	25	75	25	75	25	75	25	75	25	75	25	75	25	75	25	75
M	1	1	2	2	3	3	4	4	5	5	6	6	7	7	8	8
N	6	6	8	8	10	10	12	12	14	14	16	16	18	18	20	20
P	25	75	125	175	225	275	325	375	425	475	525	575	625	675	725	775
weight(kg)	1.68	1.80	2.03	2.14	2.42	2.53	2.58	2.78	2.89	2.98	3.18	3.31	3.47	3.60	3.74	4.12
