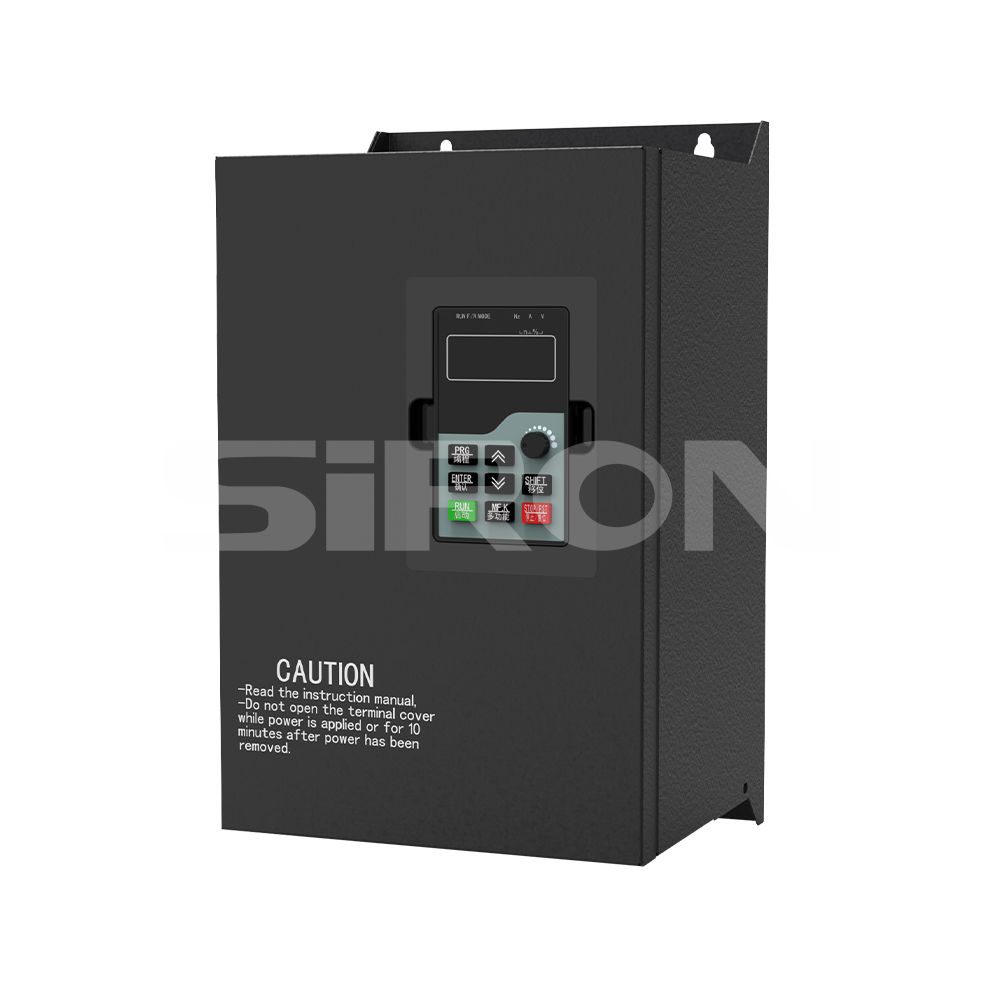

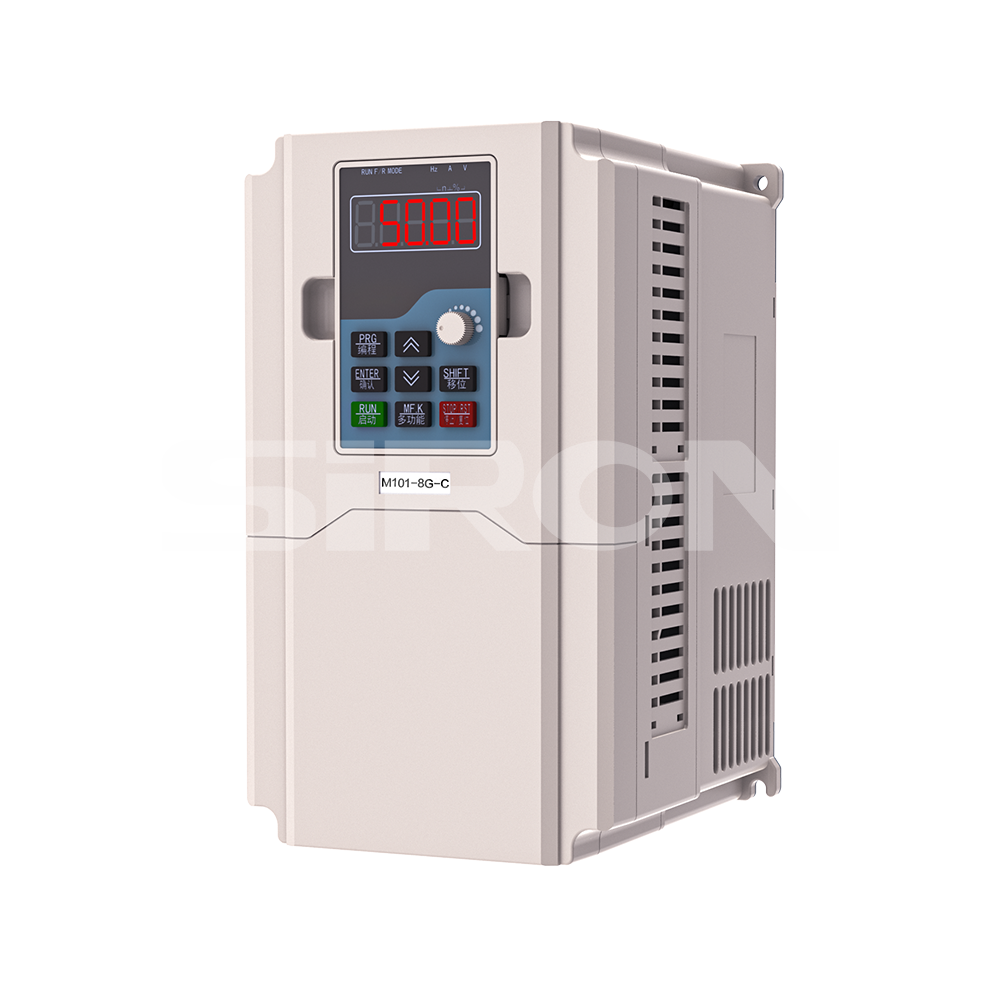

SiRON M100/M101-C Series CE Three-phase Single-phase 220v 380v Converter

Name: SiRON M100/M101-C Series CE Three-phase Single-phase 220v 380v Converter
Brand: SiRON
Rating: 5.0 (49 reviews)

Feature

* Support a variety of motor/load types, can drive ordinary three-phase asynchronous motors, frequency conversion motors,AC servo motors, permanent magnet synchronous motors, high-speed synchronous motors
* Supports a wide range of motor/load types;
* New motor-to-ground short-circuit detection, inverter power on immediately after the ground-breaking short-circuit protection detection;* Wide-voltage design, the permissible fluctuation range of input voltage is ±15% of the standard rated voltage;
* Overexcitation braking function to achieve fast braking and improve the ease of use of the product;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M100/M101-C
Brand:
SiRON
Code:
8467299000

CE Converter Three-phase 380v Converter Single-phase 220v Converter

Product Description

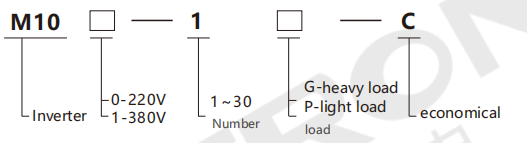

About selection

企业微信截图_17550774309135

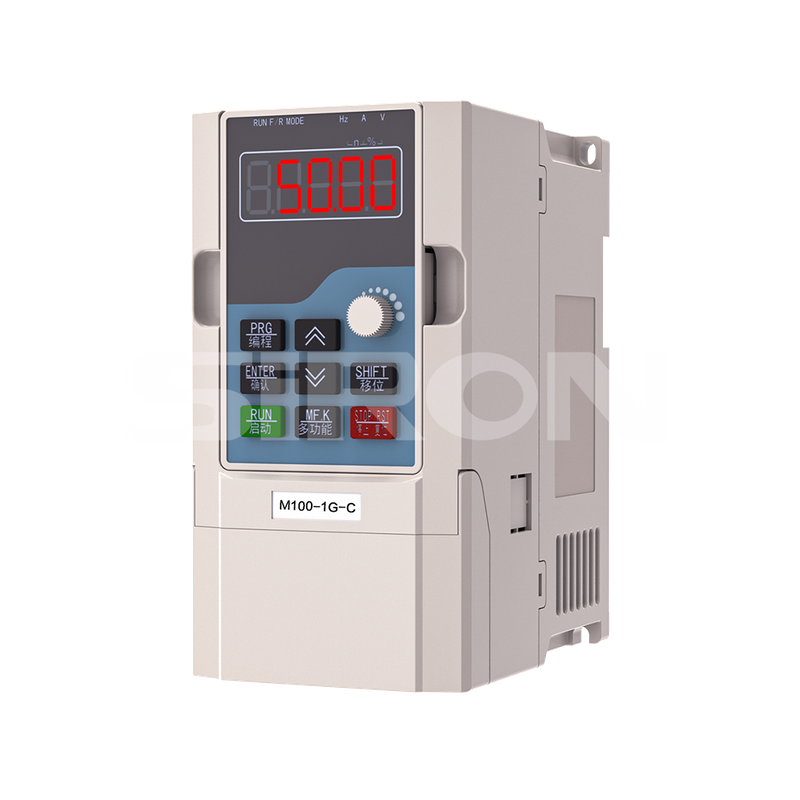

Selection example: M100-1G represents the M10 series frequency converter, 220V, 1 serial number, heavy load.

Specification

Project		Speaificafions
output	Ratedoutput voltage	0~Rated input voltage
	Rated output aurrent	It depends on the model
	Output frequengy	0.00~1000.00Hz
	Maximum overoad capacily	150%1 minute;180%2 seconds
power supply	Ratedinput voltage	Three-phase/single-phase 220V Three-phase 380V±10%50 to 60Hz±5%
Control and operation	Self adjusfing output volage	The voltage stabilization throughout the processis effective,but itis ineffective only during deceleration
	way to contol	Open-loop vector control (SVC),V/F control
	Speed range	1:100
	Ouput frequency resolufion	Digital setting:0.01Hz Simulation setting:Maximum frequency value x0.1%
	Voltage fequaney characteristics	Two fixed V/F curves are available for selection,and one custom V/F curve can be adjusted arbitrarily
	Torque boost	Automatic torque boost is available,and the low-frequency torque boost can also be manually set
	Acceleration and deceleration characteristics	0.1 seconds to 3600 seconds
	Frequency settfing input	Keyboard,computer,0～10V,0～20mA
	Input command signal	Operation,forward/reverse rotation,point movement,multi-speed,multi-aceleration and deceleration time,free stop,step control,reset, voltage/current signal input switching
	Standard function	Automatic fault retry,automatic torque boost,DC braking.restart after instantaneous power failure,upper and lower imit frequency bias,frequency gain,carier frequencyadjustment,adjustable acceleration and deceleration mode,frequency meter and current,Table output,mult-speed range,PID control,RS-485 interface
	Protecfive function	Overvoltage,undervoltage,phase loss,overcurrent,curent limiting,overheating,electronic thermal overload relay,overvoltage stall,data protect
	External output signal	Fault relay number,0-10V,0-20mA voltage and current signals
Display	keyboard	parameter setting	Functional codes,data,status,etc
		Running Display
		Fault Display
Conditions ofUse	Instala fion site	Indoors,at an altitude of less than 1,000 meters,there is no dust,no corrosive gas and no direct sunlight
	Applicable environment	-10°C～+40°C(40°~50°C+Cplease send amount used),20%～90%RH(no lon)
	Vibrafion	Less than 5.9m/S2(0.6g)
	Storage method	-25℃~+65°C
	Instalafion method	wall-mounted
Protection level		Below 11kW,it is IP20;above 15kW,it is IP10
Cooling method		forced air cooling
