SiRON M030-3 Industrial touch panels

Name: SiRON M030-3 Industrial touch panels
Brand: SiRON
Rating: 5.0 (2 reviews)

Features

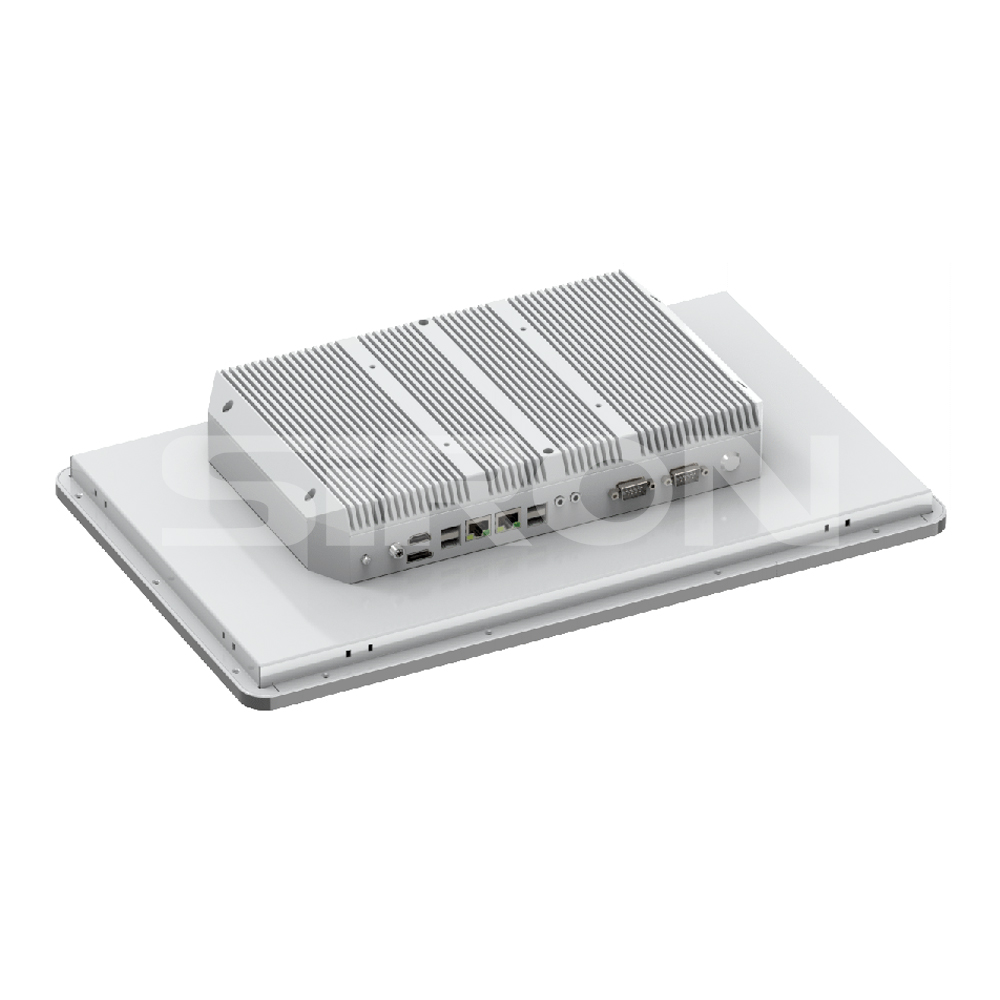

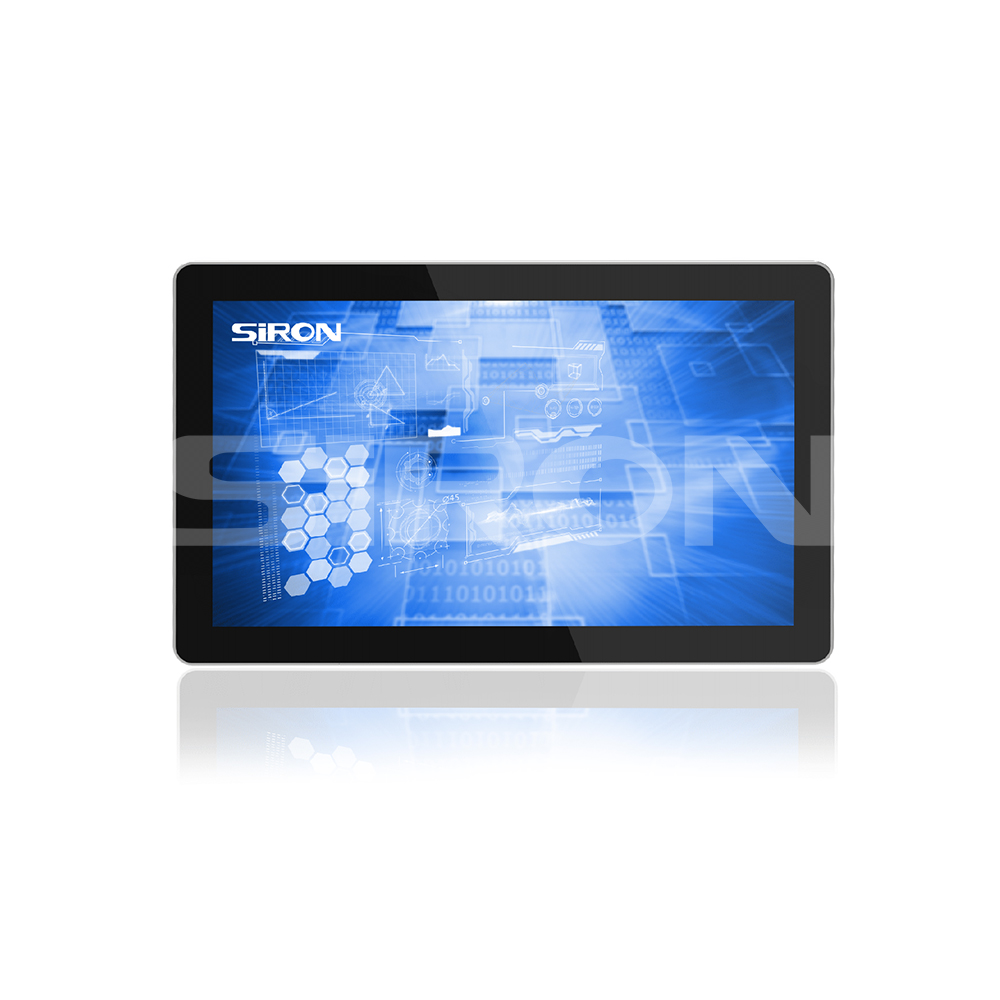

* M030-3 series is an embedded industrial capacitive touch panel PC with fanless silent design, combining industrial display
and touch screen technology，The product composition is compact, easy to install, easy to operate, is a high-efficiency,
highly reliable industrial computer system, the whole machine uses a resolution of 1920x1080 high-definition LCD screen,
rich and delicate colors, wide viewing angles, 12~24V wide voltage DC power supply, and equipped with a locking screw
round DC power connector, which can prevent accidental drop-off, touch using projected capacitive screen and support 10
points of touch at the same time, the host department is based on Intel ElkhartLake processing platform CPU, Using J6412
processor, equipped with large-capacity solid-state SSD, DDR4 memory supports 1x16G capacity, 4xUSB3.0, dual intel
gigabit network cards, COM1 port supports RS232/422/485, COM2 port supports RS232/485, 1 internal M.2 expansion slot for 4G expansion, another M.2 for WIFI expansion, 1 HDMI and 1 DP interface for multi-display mode.
* M030-3 series supports a variety of installation methods: hook type embedded installation, VESA-based wall mount and
cantilever mounting, to prevent water droplets from entering due to on-site splashing when installed in the control cabinet, high-strength all-steel sealed box structure, with anti-shock and vibration protection functions, especially the special EMC
design makes the whole machine have excellent anti-interference ability, can adapt to the harsh working environment of
industrial sites, and is widely used in factory automation and machinery manufacturing , numerical control equipment,
textile equipment, communication networks and power automation and other strong interference workers karma occasions.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M030-3
Brand:
SiRON
Code:
8471419000

USB port Industrial touch panels DC24V Industrial touch panels capacitive touch screen

Product Description

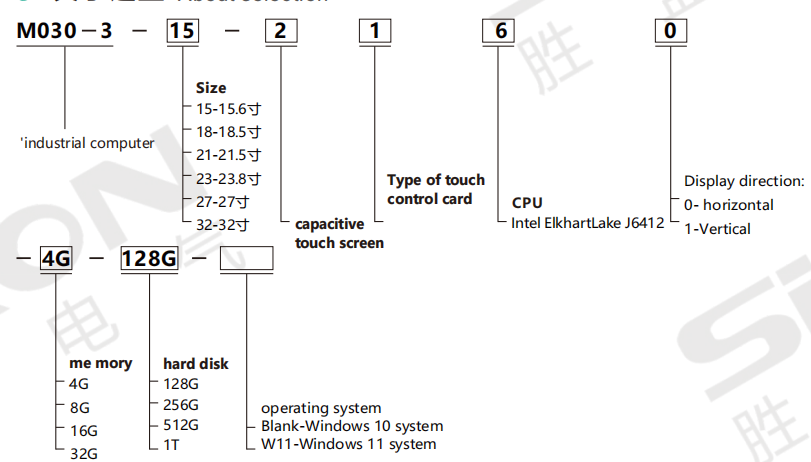

About selection

企业微信截图_17549118931658

Selection example :M030-3-15-2160-4G-128G indicates the M030-3 series, featuring a 15.6-inch capacitive touch screen. T he CPU type is IntelElkhartLakeJ6412, the display orientation is horizontal, the memory is 4G, and the hard drive is 128G. An industrial tablet computer with the operating system of Windows10.

Specification

System parameters	CPU	Supports Intel Core11th Gen i3/i5/i7
	Frequency	Dual core 3.0GHz/Quad core 2.4GHz/Quad core 2.8GHz
	Cache	6MB/8MB/12MB
	Chipset	Integrated PCH-LP
	Memory	1xDDR4-3200MHz,Max32GB
	Storage	M.2 Key-M 2280(SATA SSD)
I/O interlace	Intemet	2xlntel 1000Mbps RJ-45 Ethernet interface
	Video	1xHDMI,1×LVDS(inside)
	Audio	1xHP_OUT
	USB	6xUSB3.0
	Serial	2xCOM port (Surge protection):COM1(Optional RS232/422/485 automatic flow control)COM2(RS232)
	Expansion slots	1X Mini-CLE (supports 4G)1X M.2(supports WIFI)
Power	Input voltage	DC12V~24V
	Maimum powerconsumption	50W	56W	56W	65W	75W	95W

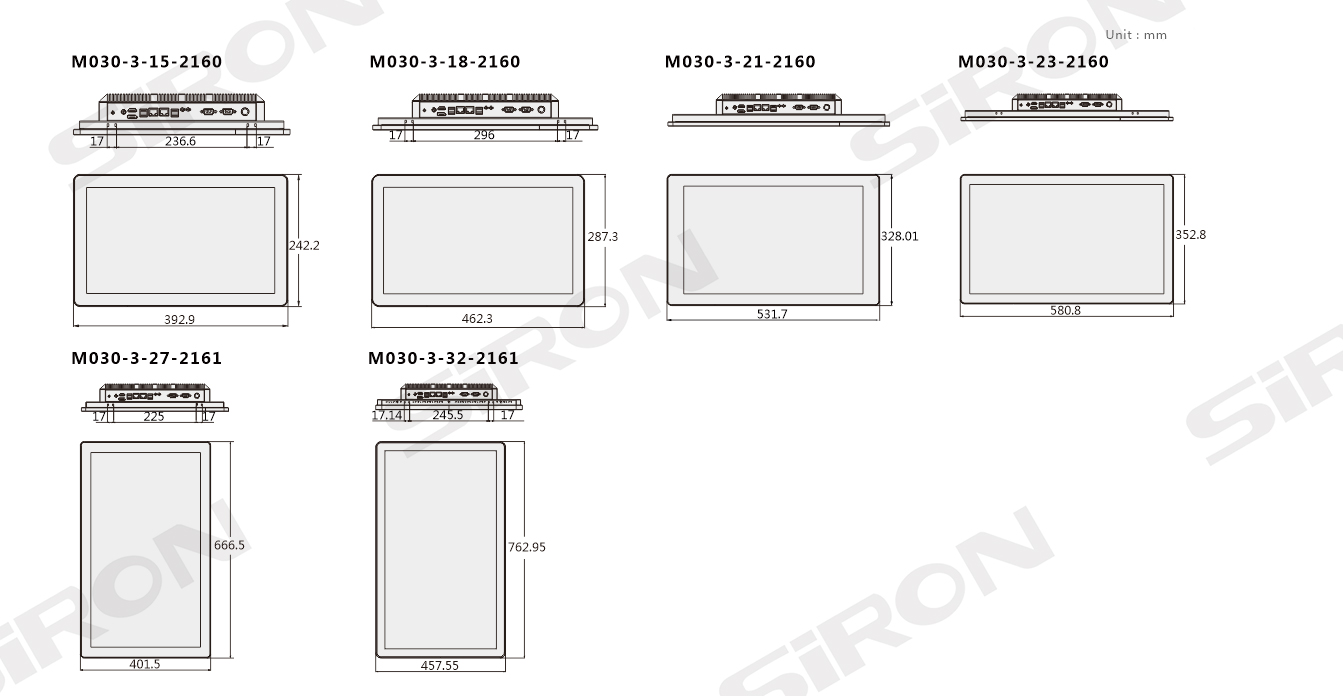

Phsical characterisics	Dimensions (WxHxD)	392.90×242.20x50.40mm	462.3×287.3×70.8mm	531.7×328.01×73.9mm	580.8×352.8×73.9mm	401.5×666.5×71.4mm	457.55×762.95×77.4mm

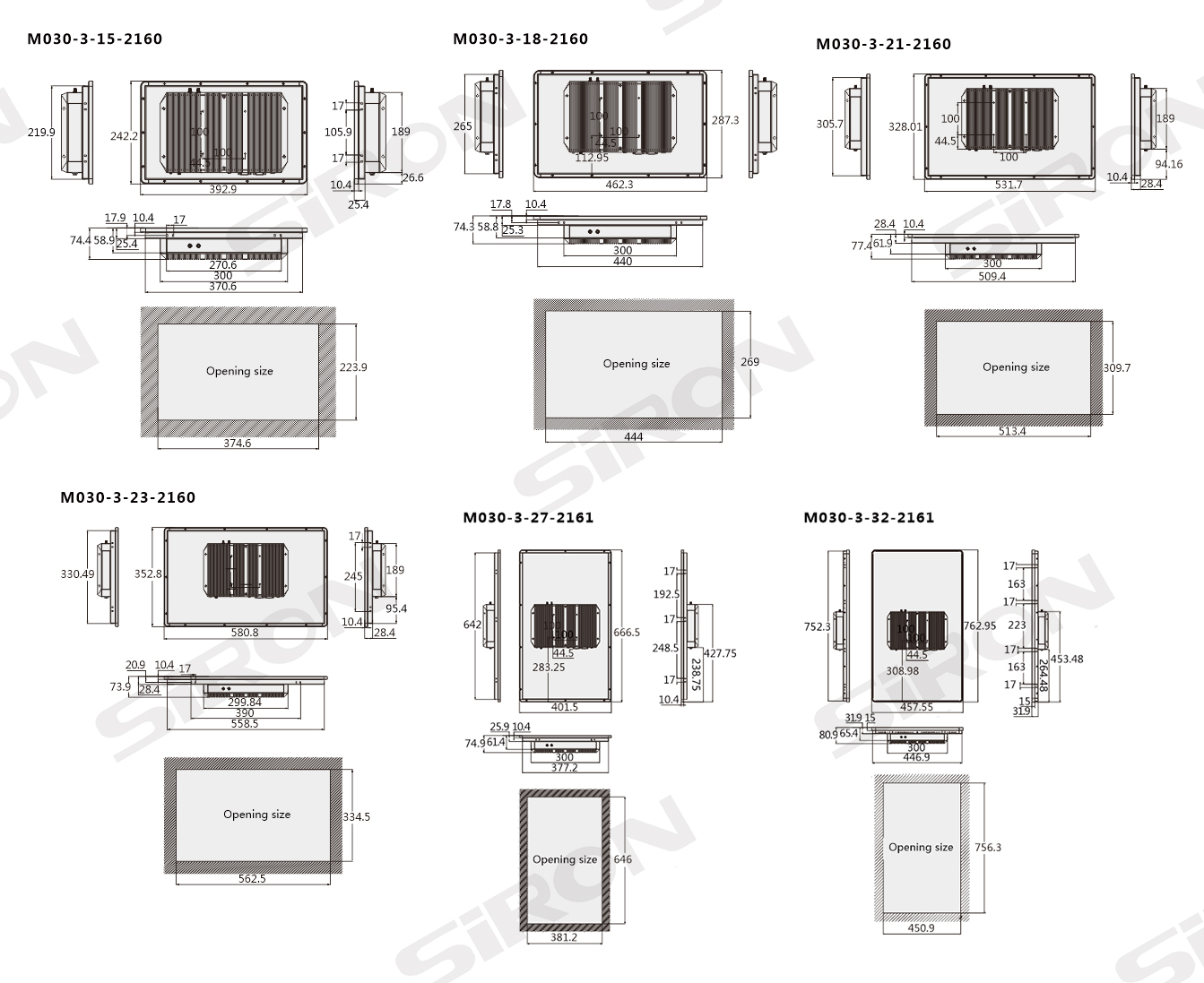

	Cut-out size (WxH)	374.60×223.90mm	444×269mm	513.4×309.7mm	562.5×334.5mm	381.2×646mm	450.9×756.3mm
	Netweight	5.5kg	6.8kg	7.5kg	10.2kg	11.4kg	16kg
	Installation method	Embedded installation and VESA installation
Eviranmentalparameters	Working temperature	0~50℃
	Storage temperature	-10~60℃
	Relative Humidity	10%-95%RH at 40℃,no condensation
	Vibratian at work	IEC 600682-2-64:1.5Grms/5~500Hz/random,1hr/axis
	Shock while working	IEC 600682-2-2710G(11ms),continuous peak acceleration 10m/s⊃2;
Operating system		Windows/Linux

System parameers	CPU	support Intel ElkhartLakeJ6412
	Frequency	Quad core 2.6GHz
	Cache	1.5MB
	Chipset	Integrated PCH-LP
	Memory	1xDDR4-3200MHz,Max16GB
	Storage	M.2 Key-M 2280(SATA SSD)
I/O interface	Internet	2xlntel 1000Mbps RJ-45 Ethernet interface
	Video	1×HDMI,1×DP
	Audio	1×LINE-OUT,1×MIC-IN
	USB	4xUSB3.0
	Serial	2×COM port (Surge protection):COM1(Optional RS232/422/485 automatic flow control)COM2(RS232/485)
	Expansion slots	1×M.2(support 4G)1×M.2(support WIFI)
Power	hput volage	DC12V~24V
	Maximum powerconsumption	45W	45W	55W	65W	70W	90W
Physicalcharacteristics	Dimensions(WxHxD)	392.9x242.2x74.4mm	462.3×287.3×74.3mm	531.7×328.01×77.4mm	580.8×352.8×73.9mm	401.5×666.5×74.9mm	457.55×762.95×80.9mm
	Cut-out size(WXH)	374.6x223.9mm	444×269mm	513.4×309.7mm	562.5×334.5mm	381.2×646mm	450.9×756.3mm
	Net weight	5.5kg	6.8kg	7.5kg	10.2kg	11.4kg	16kg
	Installation method	Embedded installation and VESA installation
Environmental parameters	Working temperature	0~50℃
	Storage temperature	-10~60℃
	Relative Humidity	10%-95%RH at 40℃,no condensation
	Vibration at work	IEC 600682-2-64:1.5Grms/5~500Hz/random,1hr/axis
	Shock while working	IEC 600682-2-2710G(11ms),continuous peak acceleration 10m/s⊃2;
Operaing system		Windows/Linux
