SiRON M020-1-A Programmable Logic Controller, Analog Expansion Module

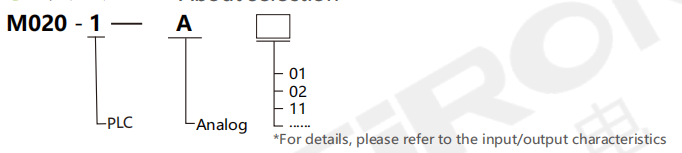

About selection

Specification

Analog input module

Model		M020-1-A01	M020-1-A02
Appearance
Input/Output Module Type		Analog input module
Weight		147g	186g
Power Consumption		1.5W(no-load)	2.0W(no-load)
Current Consumption(sm Bus)		80mA
Current consumption (24VDC		40mA(no-load)	70mA(no-load)
Simulationlnput	Input Point	4	8
	Type	Voltage or current(differential):Two can be selected as a group
	Range	±10V,±5V,±2.5V,or 0~20mA
	Full range d scale(Data Word)	-27,648~27,648
	Overshoot/Undershoot Range (Data  Word)	voltage:27,649~32,511/-27,649~-32,512 current:27,649~32,511/-4,864~0
	Ovrflow/Underflow Data Word)	voltage:32,512~32,767/-32,513~-32,768 current:32,512~32,767/-4,865~-32,768
	Mresolutionodel	Voltage mode:12 bits+sign bit,current mode:12 bits
	Maximum pressure/current resistance	±35V/±40mA
	Smooth	None,weak,medium or strong
	Noise Inhibition	400,60,50 or 10Hz
	solation (site and logic side)	无
	Precision (25℃/0~55℃)	Voltage mode: ±0.1%/±0.2% of full scale; Current mode: ±0.2%/±0.3% of full scale
	Coefficientof combination	40dB,DC 60Hz
	Working signal range	The signal plus common-mode voltage must be less than +12V and  greater than-12V
	Cable Length(maximum value)	100m,shielded twisted pair cable
Diagnosis	Overflow/Underflow	yes
	24V DC	yes

Analog output module

Model		M020-1-A11	M020-1-A12
Appearance
Input/Output Module Type		Analog   output   module
Weight		147.1g	170.5g
Power Consumption		1.5W(no-load)	2.1W(no-load)
Current Consumption(sm Bus)		60mA
Current consumption (24 VDC		50mA(no-load)	75mA(no-load)
AnalgOutput	Output Point	2	4
	Type	Voltage or current
	Range	±10V   or   0~20mA
	Resolution	Voltage   mode:11   bits+sign   bit,current   mode:11
	Full Range of scale(data word)	Voltage:-27,648~27,648
	Accuracy(25℃/0~55℃)	±0.5%/±1.0%of the full scale
	Output status in STOP modelsolate cument (fieldside and logic side) Cable length (maximum)	Previous value or replacement value(default value i
		no
		100m,shielded twisted pair cable
Diagnosis	Overflow/Underflow	yes
	24V DC	yes
	Short Road (only voltage mode)	no
	Breakthrough (only mode)	no

Analog input/output module

Model		M020-1-A21	M020-1-A22
Appearance
Input/Output Module Type		Analog input/output module
Weight		172g	173.4g
Power Consumption		1.1W(no-load)	2.0W(no-load)
Currert Consumption(sm Bus)		60mA	80mA
Current consumption 24 VDQ		30mA(no-load)	60mA(no-load)
SimulationInput	Input Point	2	4
	Type	Voltage or current(differential): Two can be selected as a group
	Range	±10V,±5V,±2.5V,or0~20mA
	Fulrarge df scae(Data Wbrd)	-27,648~27,648
	889%/ndeshod Range	Voltage:27,649~32,511/-27.649~-32,512 current:27,649~32,511/-4,864~0
	sgu/Lhdefbu (Data	Voltage:32512~32,767/-32.513~-32,768 current:32,512~32,767/-4,865~-32,768
	Mresolutionodel	Voltage mode:12 bits+sign bit,current mode:12 bits
	Masdmum pressure/curent 把sstane	±35V/±40mA
	Smooth/Noise Inhibition	None,weak,medium or strong/400,60,50 or 10Hz
	Preci sion 25℃/0-550	Voltage mode:±0.1%/±0.2%of full scale; Current mode:±02%/±0.3%of full scale
	Coefficient of combination	40dB,DC60Hz
	Working signal range	The signal plus common-mode voltage must be less than +12Vand greater than-12V
	Cabe Length(manum wabe)	100m,shielded twisted pair cable
AnalogOutput	Output Point	1	2
	Type/Range/Resolution	Voltage or current/±10V or 0~20mA Voltage mode:11 bits +sign bits
	Ful Range df scale(cdta word	Voltage:-27,648~27,648
	Accuracy{25℃/D-55℃	±0.5%/±1.0%of the full scale
	Ouput stts uncerSTCP mod	Previous value or replacement value (default value is 0)
	lsolation(site and logic side)	no
	abe Lergth(mamum vabe)	100m,shielded twisted pair cable
Diagnosis	Duafowndafaw/2V DCow vobage	yes
	Breakthrough (only mode)	no
	Short Road (only wolage model	no

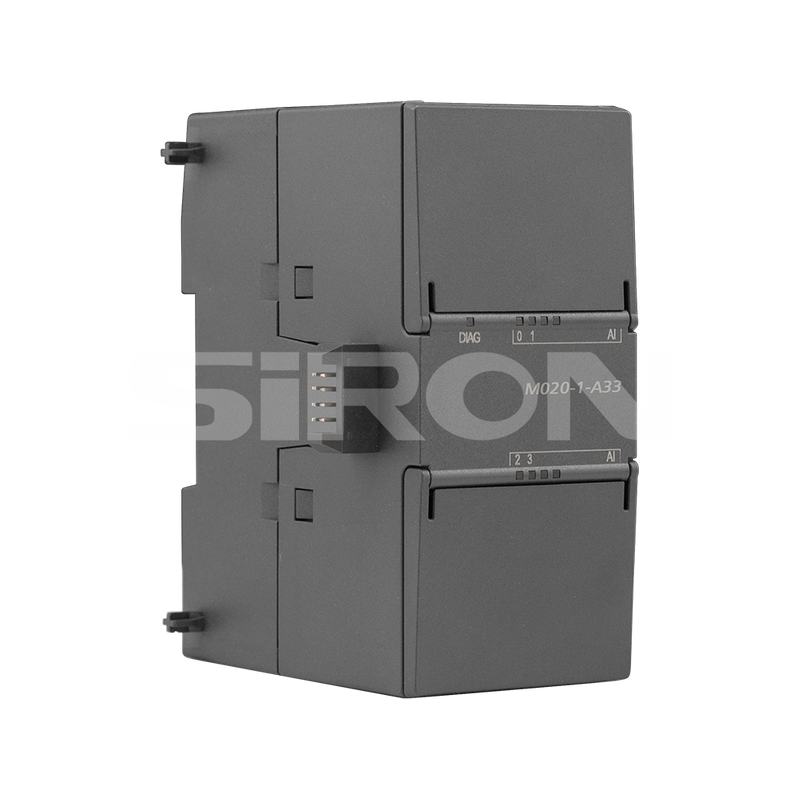

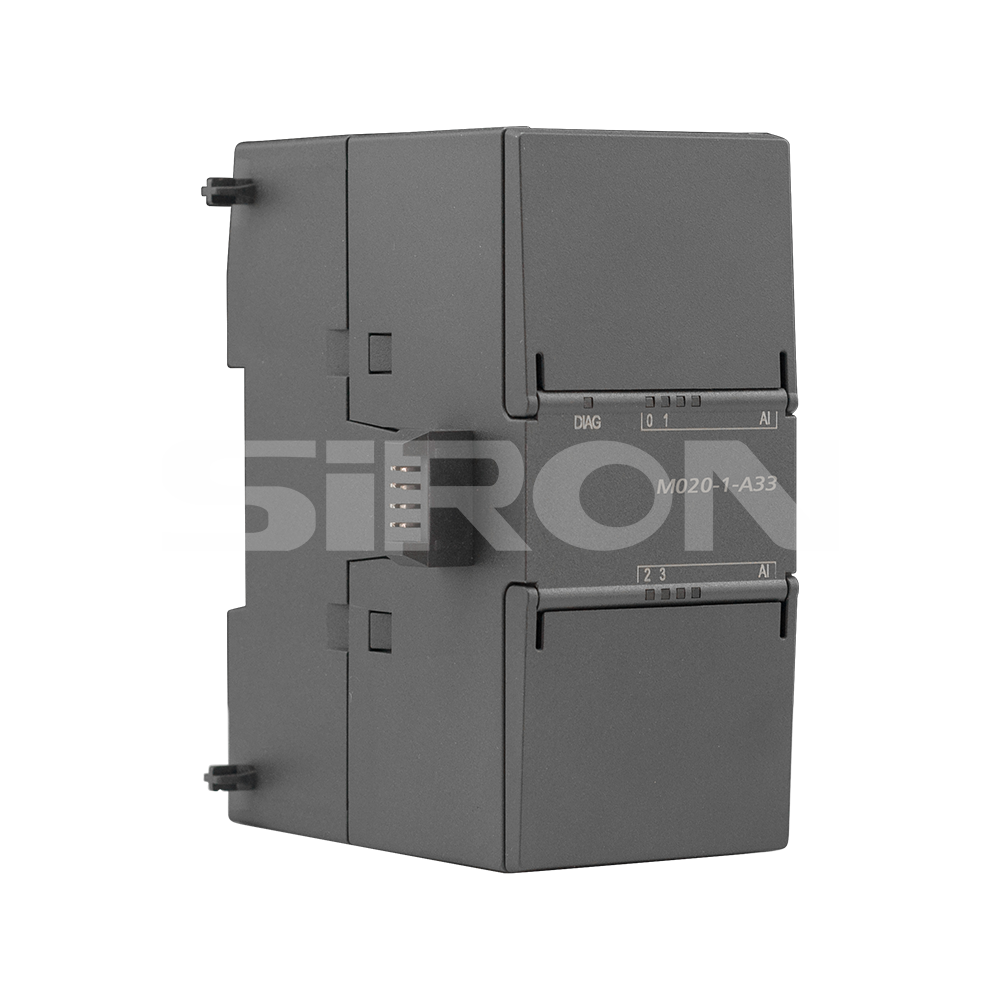

Thermal resistance input module, thermocouple input module

Model		M020-1-A31	M020-1-A32	M020-1-A33	M020-1-A34
Appearance
Input/Output Module Type		Thermal resistance input module		Thermal resistance input module
Weight		148.7g	150g	125g
Power Consumption		1.5W		1.5W
Current Consumption (SM bus)		80mA		80mA
Current consumption (24V DC)		40mA		40mA
Simulationnput	Input Road Number	2	4		8
	Type	The RTD and resistance values of the module reference ground
	Macimum/Pesolution,TemperaturePesistance	±35V/0.1℃/0.1 °F,15 bits+sign bits
SimulationInput	Noise inhibition	85dB,10Hz/50Hz/60Hz/400Hz		Set the selected filter(10Hz,50Hz,60Hz or 400Hz)to 85dB
	Coefficient of combination	>120dB		120V AC时，>120dB
	Impedance	≥10MΩ
