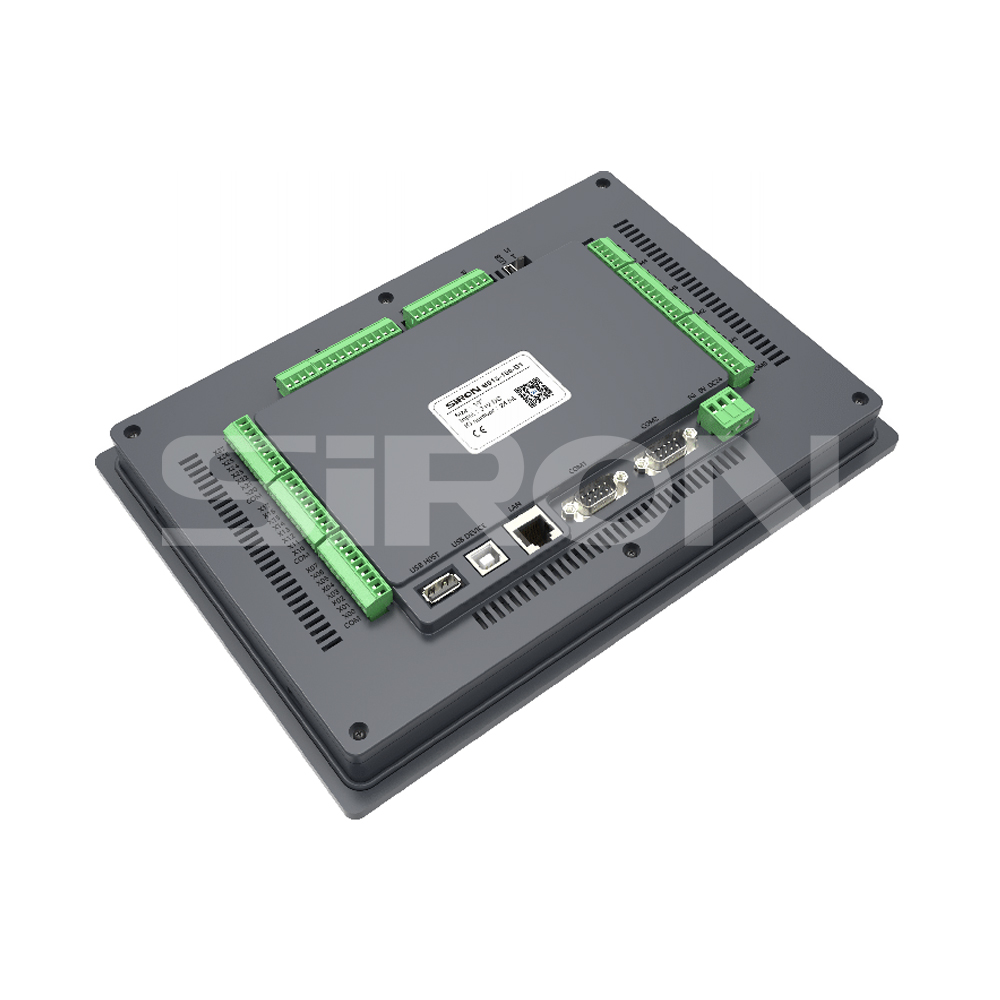

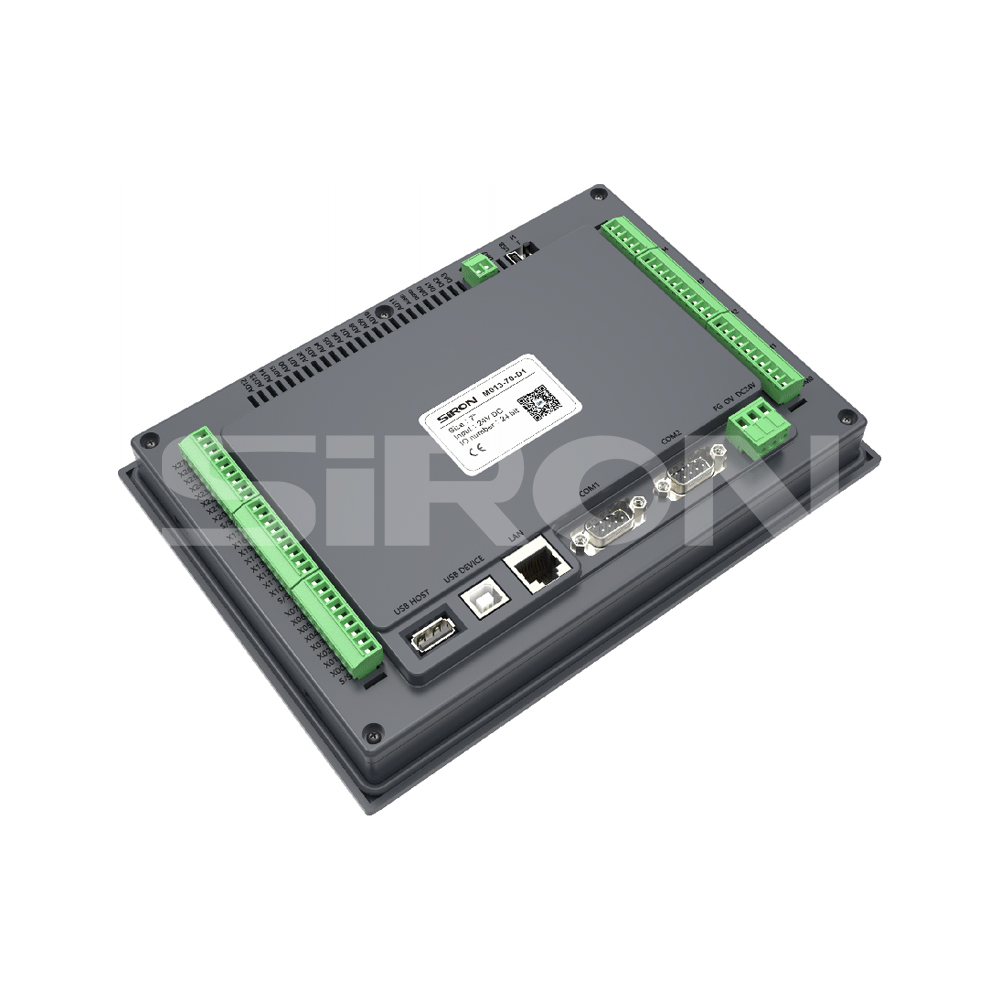

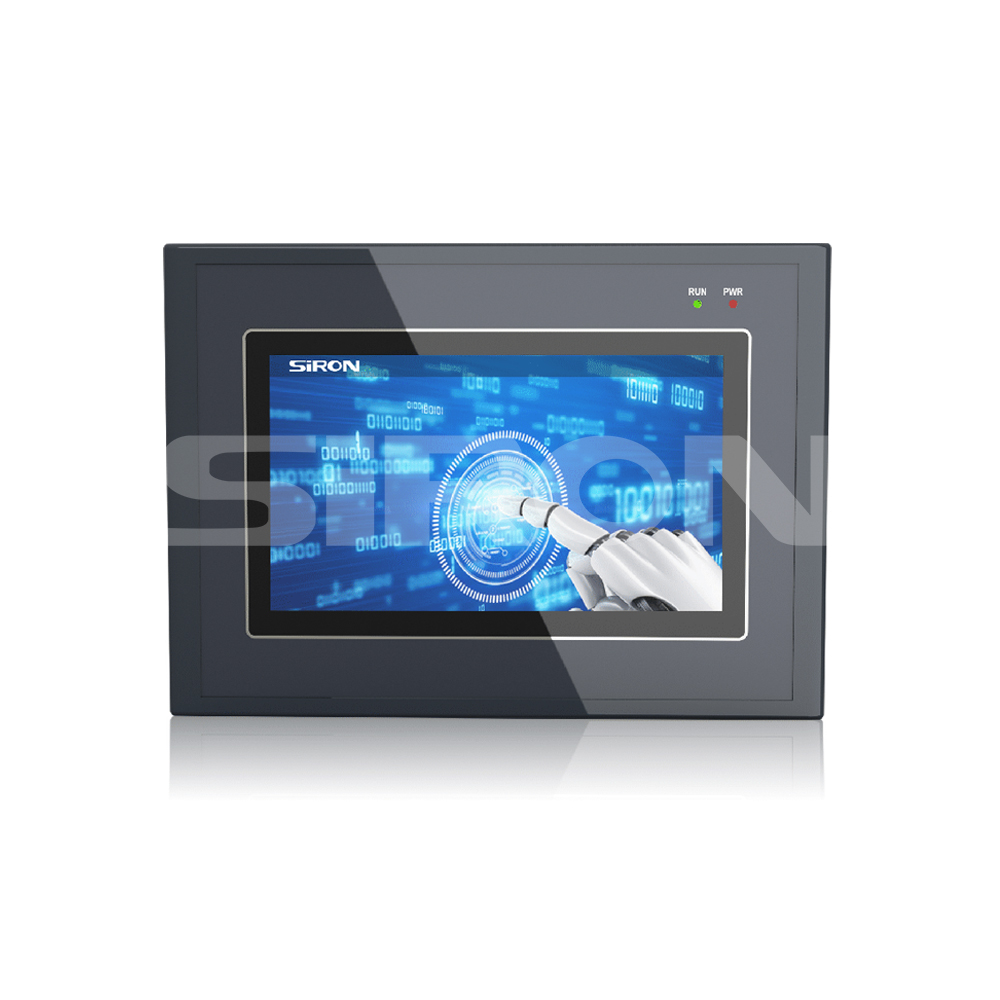

SiRON M013 Series PLC All-in-one Machine

Name: SiRON M013 Series PLC All-in-one Machine
Brand: SiRON
Rating: 5.0 (45 reviews)

Features

* Super functional. PLC compatible with FX3G/FX3U/FX3S series PLC, running fast;
* Highly integrated, switching quantity output optional transistor/relay/hybrid output;
* Support multi-channel high-speed counting and high-speed pulse. Independent acceleration and deceleration;
High speed count + high speed pulse total transmission shall not exceed 480KHz;
* 32K step program capacity, 32K power off hold register, support interrupt, straight arc interpolation, PID self-tuning;* Can be specially encrypted. The touch screen and PLC can be encrypted separately.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M013
Brand:
SiRON
Code:
8471609000

4.3 size PLC All-in-one Machine 7 size PLC All-in-one Machine 5 size PLC All-in-one Machine

Product Description

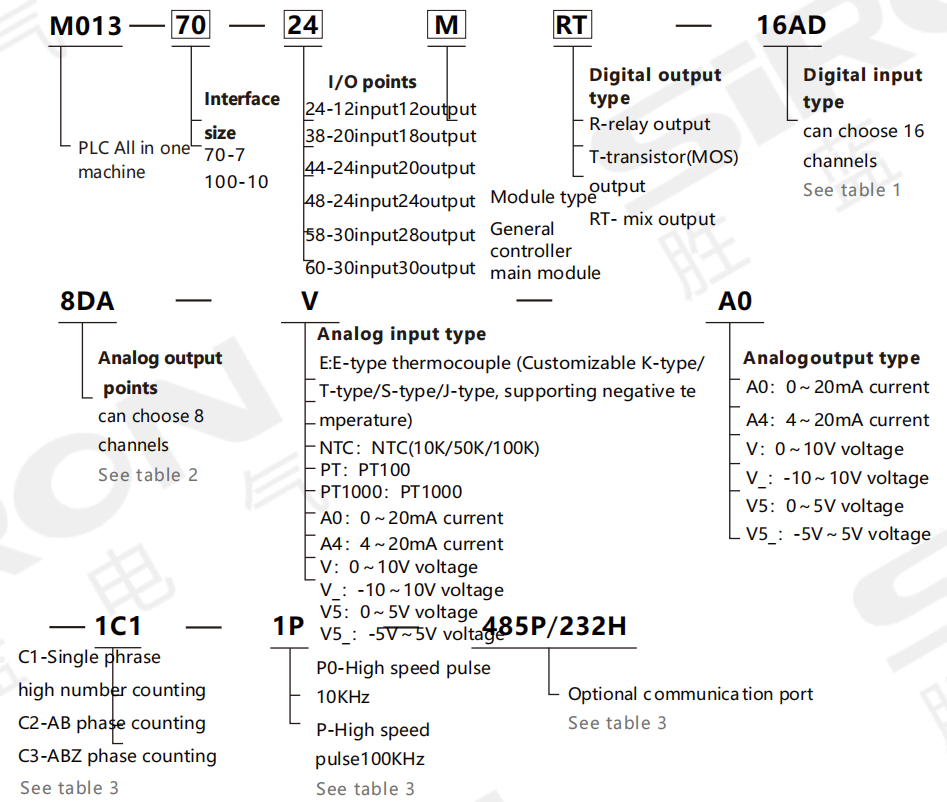

About selection

企业微信截图_17547283997061

Selection example: M013-70-24MRT-16AD8DA-V-A0-1C1-1P-485P represents the M013 series PLC all-in-one machine, with an interface size of 7 inches, 12 inputs and 12 outputs, a universal controller main module, mixed output, 16 analog inputs, 8 analog outputs, and analog input types: 0-10V voltage, analog output type: 0-20mA current, 1 single-phase high-speed counting channel, 1 high-speed pulse 10KHz channel, optional communication port 485P/232H.

Please contact our sales department for reconfirmation of the final configuration. We appreciate your understanding.

Table 1: Optional communication ports

Model	Digital		Analog		Communication port(optional)
Model	DI	DO	AD	DA	touch screen	PLC
M013-70/100-24MR	12	12	16	8	It comes with one RS232 port or one can be option ally installed RS485	One RS485 or two RS485 ports are available as opti onsAmong them,one 485 is the defaultlt was modif ied from port 232. The 7-inch model is optional with CAN/ network portWIFI(occupying the default 232 port
M013-70/100-38MR	20	18
M013-70/100-44MT	24	20
M013-70/100-48MR	24	24	5	2
M013-70/100-58MR	30	28
M013-70/100-60MT	30	30

Model	high-speed counting			high-speed pulse
	single phase	AB phase	ABZ phase	output
M013-70/100-24MR	Conventional Single-phase Route 6 60KHz	Conventional AB phase 2 channels at 30KHz+ Route 15KHz	Conventional ABZphase Route 230KHz	Conventional 8-channel: Y0 to Y3 is 100KHz;Y4 to Y7 are 10KHz Independent acceleration and deceleration; High-speed counting+high- speed pulseThe total amount sent must not exceed 480KHz
M013-70/100-38MR
M013-70/100-44MT
M013-70/100-48MR
M013-70/100-58MR
M013-70/100-60MT

Specification

Model number			M013-70	M013-100
Overalldimension			226×163×35.6mm	275×194×36mm
Hole size			217×154mm	262×180mm
Power consumption			6~7W	6～8W
Touch screen	Characteristic		60,000 true-color resistive touch screen,all sizes can be displayed in vertical formatt
	Display type		7.0"TFT	10.1"TFT
	Display size		154×87mm	222×125mm
	Resolution		800×480	1024×600
	Storage memory		NOR Flash 8MB
	Running memory		64MB(When HMI stores historical data,ferroelectricity needs to be installed as an option)
	CPU		32bit CPU 408MHz
	Programming port		Type-B(touchscreen download port),RS232
	Communication port		RS485 is optional
	Programming software		PTWorks touchscreen editing software
PLC	Switch number		A maximum of 30 inputs and 30 outputs There are 28 reay outputs,with Y22andY23 fxed astransistor outpus.
	Input/output level		Transistor (MOSFET)output:Low NPN,COM connected to negative.Relay output:nomally open dry contact;InpNPN,common terminal isolation
	Switching quantity output type		Relay output/Transistor output (Y0-Y3 are MOSFETS)/Hybrid output
	Switching quantity outp ut load	MOS tub
			e
		Transist	The maximum single channel is 0.5A per point,with a total of 26 points
			br COM:0.8A per point (the total of 4 points does not exceed 0.8A);1.6A per point (the total of 8 points does no exceed 1.6A)
		Relay	The maximum single-channel is 2A per point,with a total of 30 points
			COM:4A/point (the total of 4 points does not exceed 4A);5A per point (the total of 8 points does not exceed 5A);5A per point (the total of 12 points does not exceed 5A)
	Programming port		Mini USB,RS232(can be used as a general communication port)
High speed count inpu			Conventional 6-channel single-phase 60KHz or 2-channel AB(Z)phase 60KHz+1-channel AB phase 10KHz
High speed pulse output			Conventional 8-channel:Y0-Y315100 KHZ,and Y4Yis 10KHz.The total frequency ofhigh-speed counting and high-speed pulse transmissi ion must not exceed 480KHz
Operating temperature			0~50℃
Relative humidity			5~95%RH
Storage temperature			-20~70℃
Vibration frequency			10 to 57Hz,amplitude 0.035mm;57 to 150Hz,acceleration 4.9m/s2(10 times each in thex,Y,and Z directions,totaling 80minutes each)
