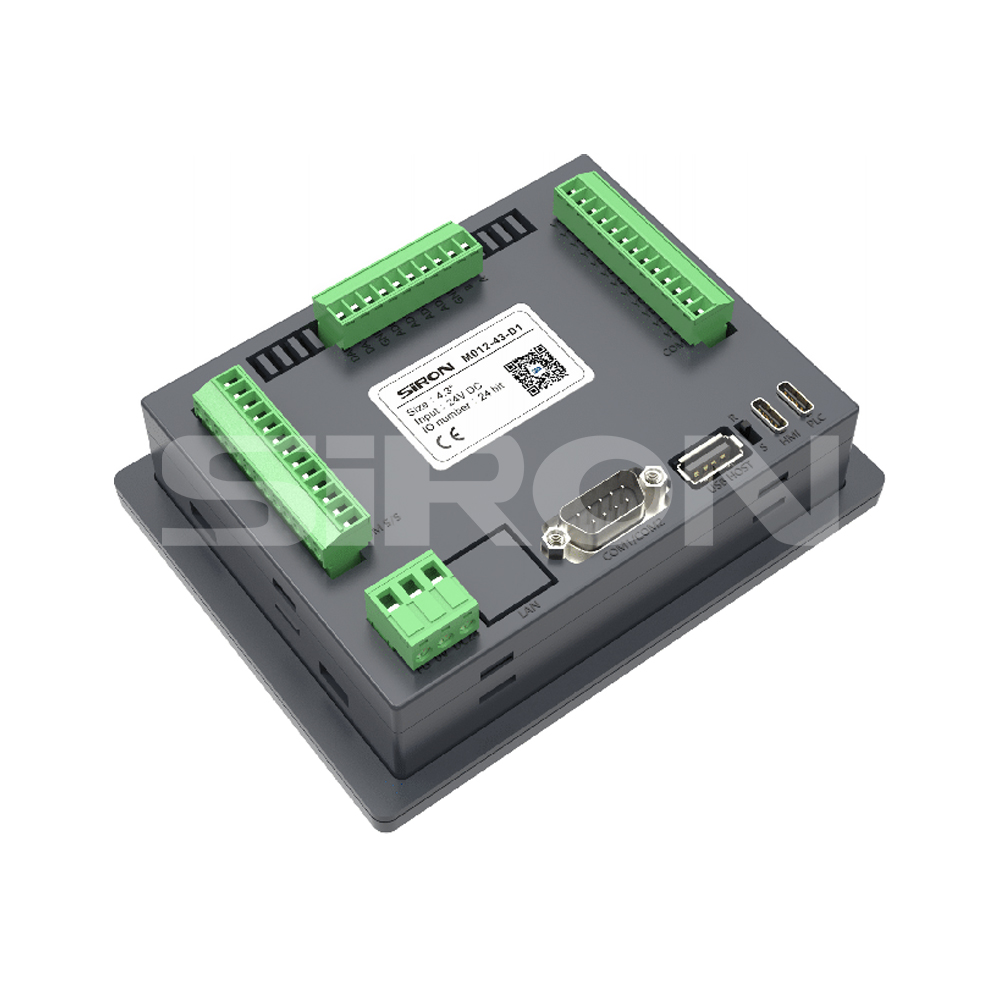

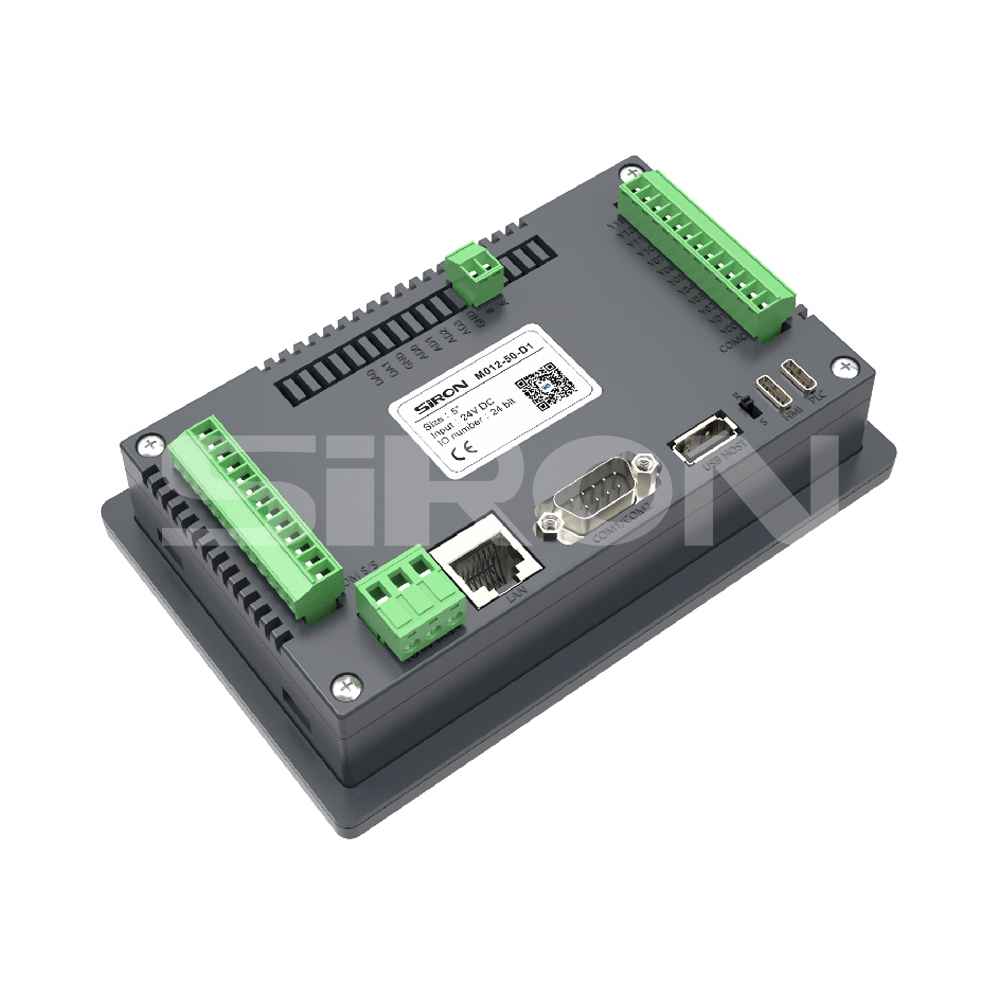

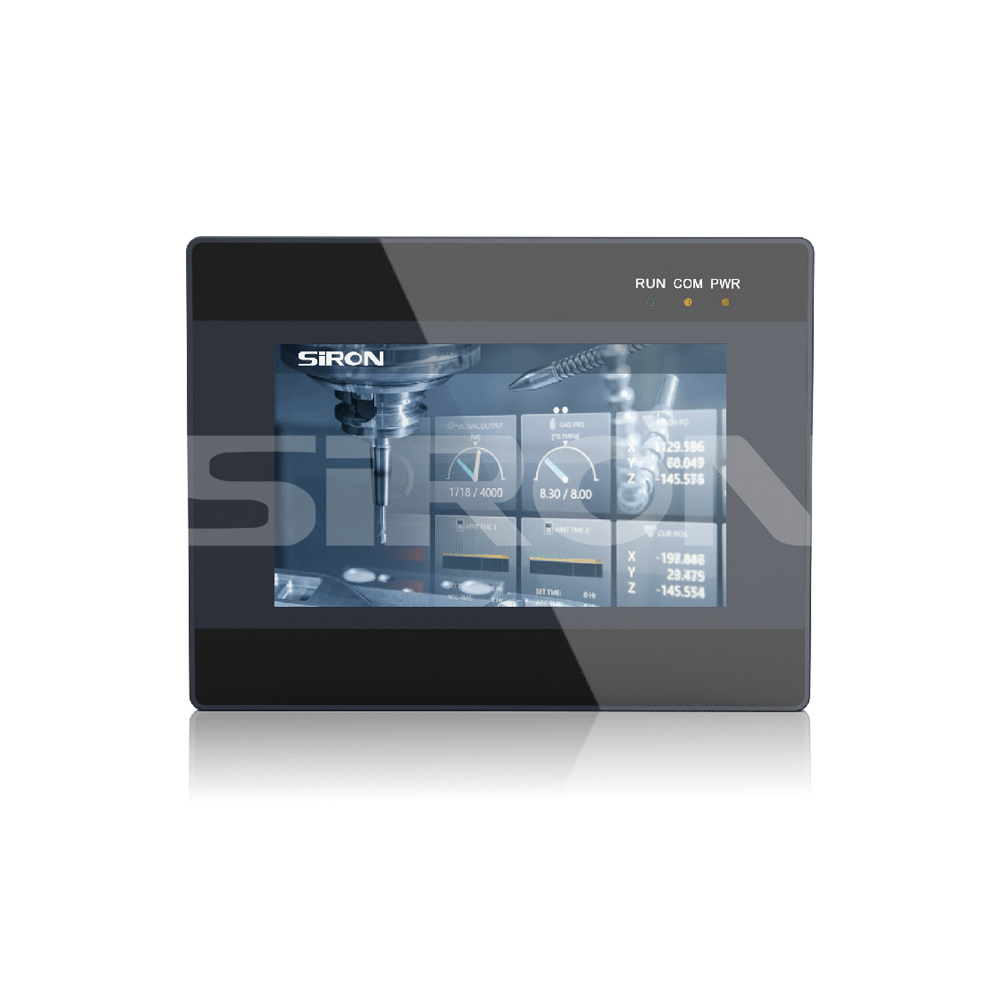

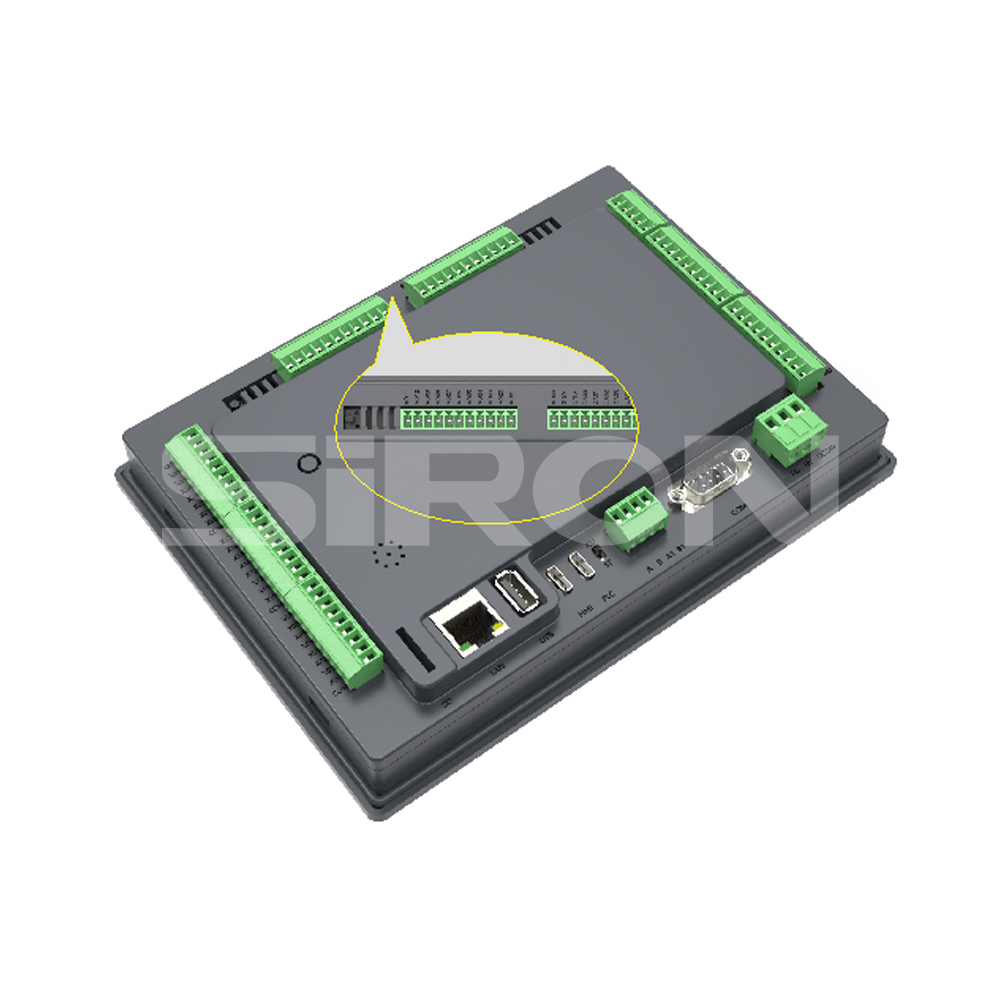

SiRON M012 Series PLC All-in-one Machine

Name: SiRON M012 Series PLC All-in-one Machine
Brand: SiRON
Rating: 5.0 (41 reviews)

Features

* Super functional. PLC compatible with FX3G/FX3U/FX3S series PLC, running fast;
* Highly integrated, switching quantity output optional transistor/relay/hybrid output;
* Support multi-channel high-speed counting and high-speed pulse. Independent acceleration and deceleration;
High speed count + high speed pulse total transmission shall not exceed 480KHz;
* 32K step program capacity, 32K power off hold register, support interrupt, straight arc interpolation, PID self-tuning;* Can be specially encrypted. The touch screen and PLC can be encrypted separately.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M012
Brand:
SiRON
Code:
8471609000

4.3 size PLC All-in-one Machine 7 size PLC All-in-one Machine 5 size PLC All-in-one Machine

Product Description

About selection

企业微信截图_17547234275149

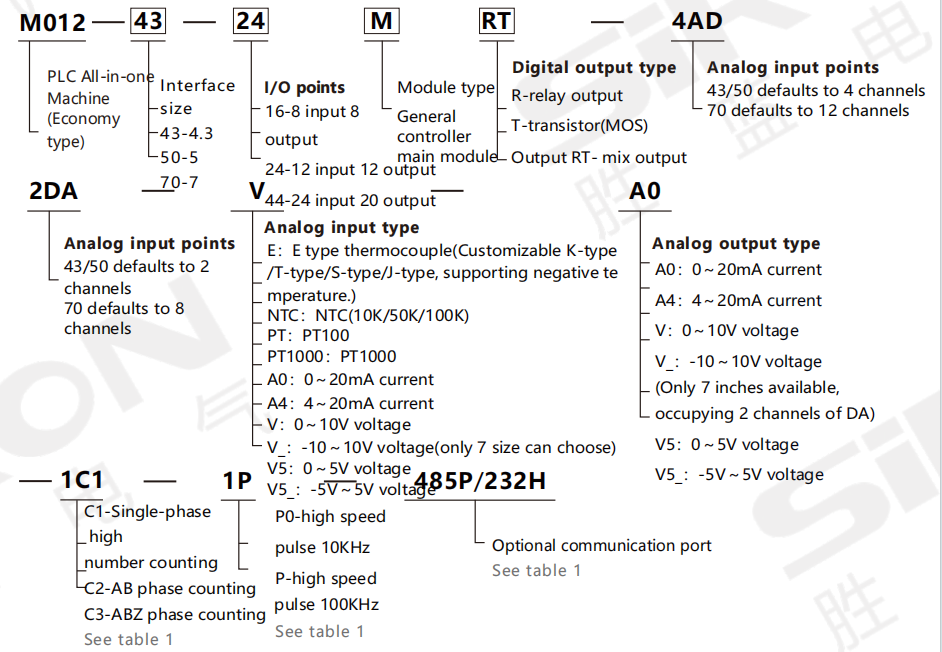

Selection example: M012-43-24MRT-4AD2DA-V-A0-1C1-1P-485P represents the M012 series PLC all-in-one machine, with an interface size of 4.3 inches, 12 inputs and 12 outputs, a universal controller main module, mixed output, 4 analog input channels, 2 analog output channels, and analog input types 0 to 10V voltageAnalog output type: 0 ~ 20mA current, 1 channel of single-phase high-speed counting, 1 channel of high-speed pulse 10KHz, optional communication port 485P/232H.

Please contact our sales department for reconfirmation of the final configuration. We appreciate your understanding.

Table 1: Optional communication ports

Module	Digital		Analog		communication port		High-speed counting			High-speed pulse
	DI	DO	AD	DA	touch screen	PLC	single phase	AB phase	ABZ phase	output
M011-43-22MRT/22MT	12	10	5	2	1 piece RS232	bring 1 piece RS485	2 chan nels 60KHz + 4 10KHz	1 chan 30kHz + 1 5KHz	1 chan nels 30KHz + 1 5KHz	Y2~Y3 is 10KHz	Conventional 4 channels Y0~Y1 is 100KHz
M011-70-32MT/32MRT	16	16	5	2	1 piece RS232 or customize 1 piece RS485					Y2~Y3 is 50KHz
M011-70-48MT/48MRT	24	24

Module	high-speed counting			high-speed pulse
	single phase	AB phase	ABZ phase	output
M012-43-16MR	Conventional Single-phase Route 6 60KHz	Conventional AB phase Route 2 30KHz + 1 5KHz	Conventional ABZ phase Route 2 30KHz	Conventional 8-channel: Y0 to Y3 are100KHz;Y4 to Y7 are10KH zIndependent acceleration and deceleration; High-speed counting + high speed pulseThe total amount sent must not exceed 480KHz
M012-43-24MT/R

M012-50-16MR

M012-50-24MT/R
M012-70-24MR

M012-70-44MT

Specification

Module number			M011-43	M011-70
Overall dimension			134×102×34mm	210×146×36mm
Hole size			120×94mm	192×138mm
Power consumption			4~6W	6~7W
Touchscreen	Characteristic		60,000true-color resistive touch screen,all sizes can be displayed in vertical format
	Display type		4.3"TFT	7.0"TFT
	Display size		97×56mm	154×87mm
	Resolution		480×272	800×480
	Shorage memory		NOR Flash 8MB	NOR Flash 16MB
	Bumming memory		64MB
	CPU		32bit CPU 408MHz
	Programming port		Type-C(Touchscreen download port)、RS232
	Programming software		PTWorks touchscreen editing software
PLC	Switch number		A maximum of 12 inputs and 10 outputs(Two transistors/eight relays)	A maximumof 24 inputs and 24 outputs (tweleve tansistors/eight relays)
	Input/output level		4.3-inch YO,Y1 and7-inch Y0-Y3fixed transistor outputs,and they are DC24V active NPN outputs. other transistor outputs:lowlevel NPN,COM negative connectiong Relay output normally open dry contact;Input PasiveNPN,common terminal isolation
	Switching quantity output type		Transistor/Hybrid output	Transistor/Hybrid output
			The first two channels YO-Y1 are fixed as transistors,with an output load of 0.1A per point;	The first 12 channels Y0-Y3 are fixed as transistors,with an output load of 0.1 A per point
	Swiching quantity output load	Transistor	The maximum single channel is 0.5A per point,with a total of 8 points.	The maximum single channel is 0.5A per point,with a total of 12 points
			COM:0.8A per point (the total of 4 points does not exceed 0.8A)	COM:0.8A per point (the total of 4 points does not exceed 0.8A) 1.6A per point (the total of 8 points does not exceed 1.6A)
		Relay	The maximum single-channel is 2A per point,with a total of 8 points.	The maximum single-channel is 2A per point,with a total of 12 points
			COM:4A/point (the total of4 points does notexceed 4A)	COM:4A/point (the totalof 4 points does not exceed 4A) 5A per point(the total of 8 points does not exceed 5A)
	High speed count input		Conventional 2-channel single-phase 60KHz+4-channel 10KHz or 1-channelAB(Z)phase 30K Hz+1-channel AB(Z)phase 5KHz
	High speed pulse output		The transistor output is conwentionaly 4 channels:YO-Y1 is 100 KHZ,and Y2-Y3 is 10KHzThe total frequency of high-speed counting and high-speed puse transmission must not exceed 300KHz	Conventional 4-channet YO-Y1 is 100KHz,andY2-Y3 is 50KHZThe total frequency of high-speed counting and high-speed pulse transmission must not exceed 300k Hz
	Analog quantity	input	It comes with 2 channels of voltage0~10V,2 channels of current 0~20mA,and 1 channel of NTC10K
		Output	It comes with 1 output channel for voltage ranging from 0 to 10V and 1output channel for current ranging from O to20mA	It comes with 2 currentoutput channels ranging from O to 20mA
		Count	Fiveinputs and two outputs
	Programming port		Type-C,RS232(can be used as a general communication port)
	Communication port		RS485
	Programming software		Compatible with PLC programming software GXDeveloper8.86Q andGXWorks2
Operating temperature			0~50℃
Relative humidity			5~95%RH
Storage temperature			-20~70℃
Vibration frequency			10 to 57Hz amplitude 0.035mm;57-150Hz,acceleration 4.9m/s⊃2;(10 times each in the X,Y,and Z directios,totaling 80 minutes each)
