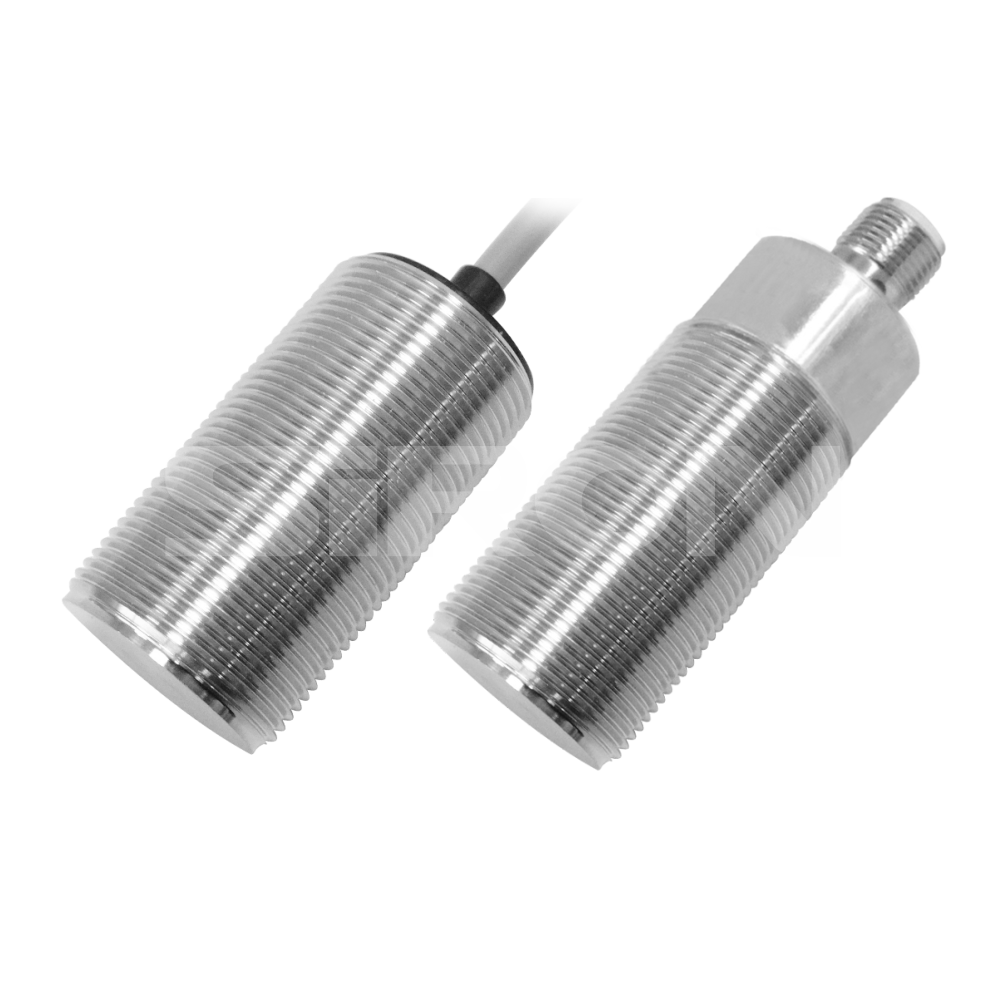

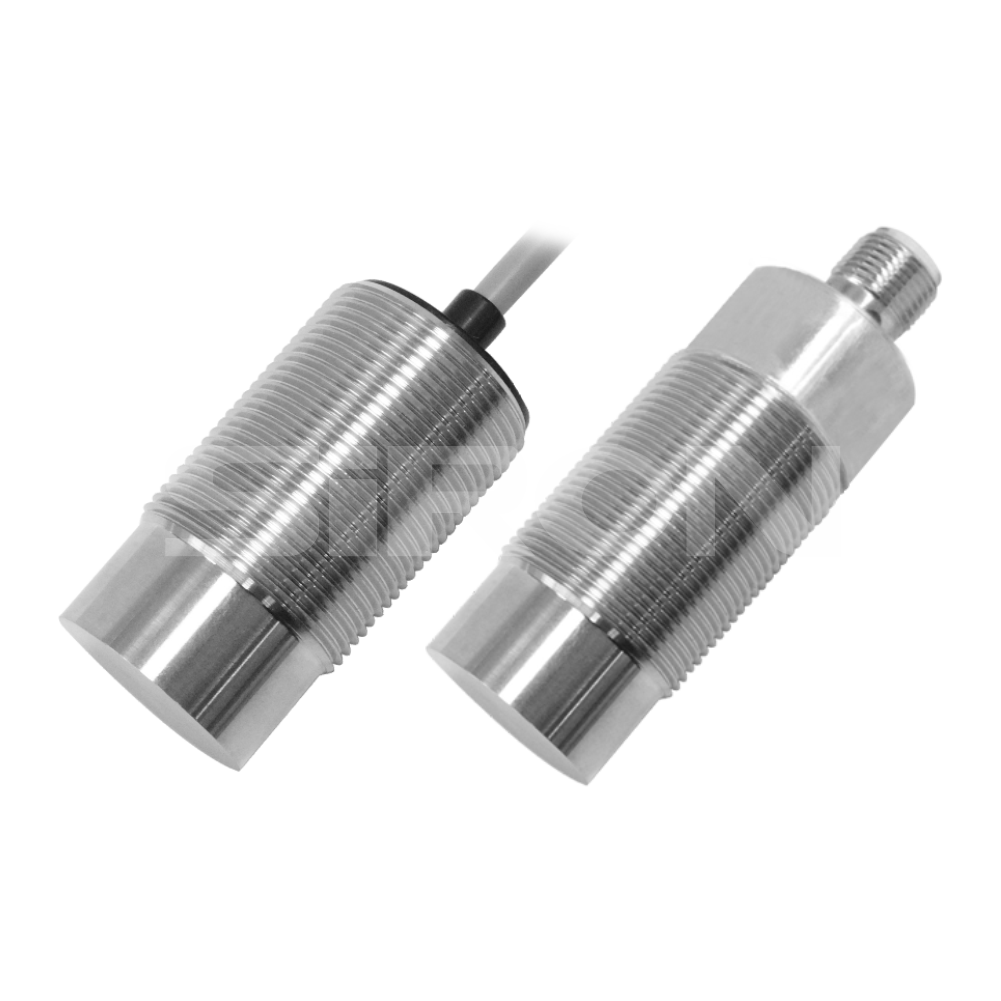

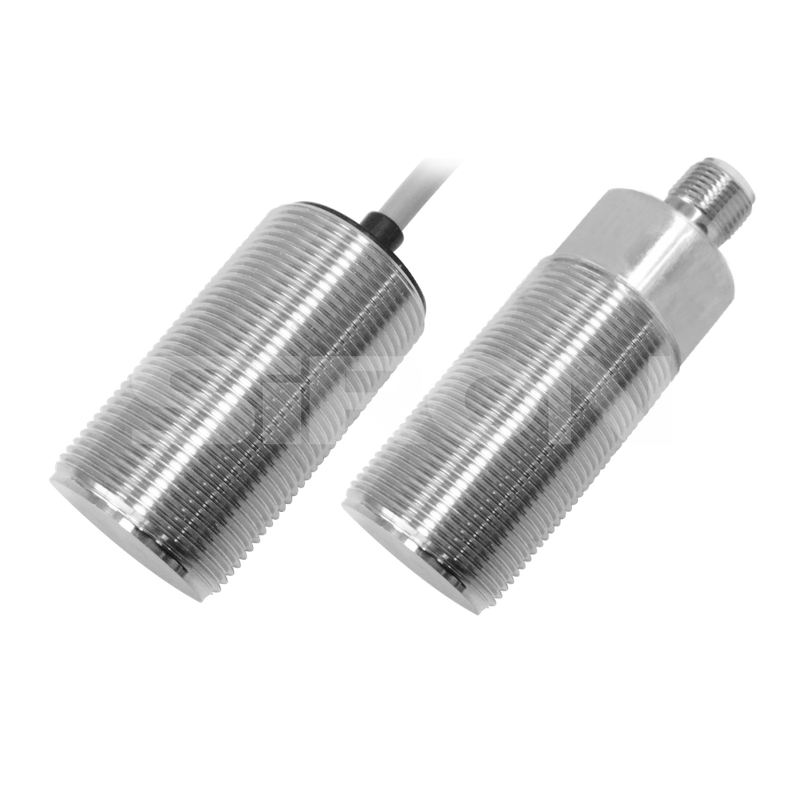

SiRON K042-8~K042-9 Series M30 Inductive Proximity Switch All Metal

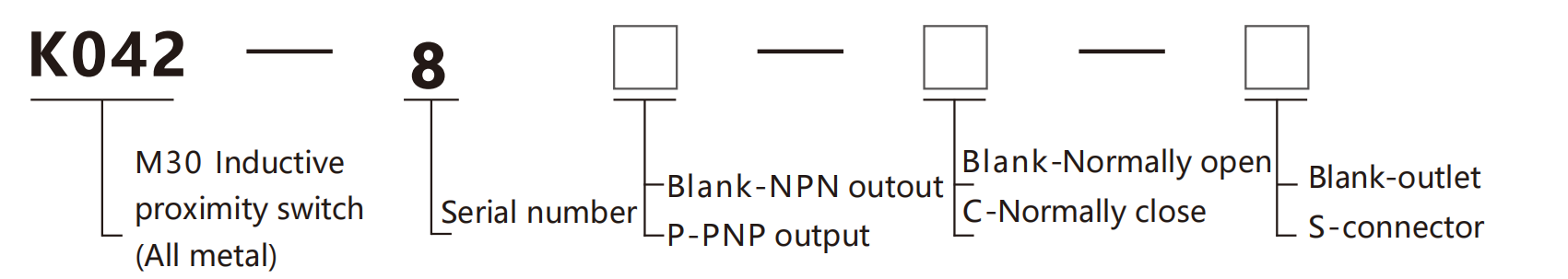

About selection

 Selection example:  K042-8 indicates the K042 series, serial number 8, with NPN output,Normally open,outlet;

                                          K042-8-S  indicates the K042 series, serial number 8, with NPN output,Normally open,connector.

Specifications

Name		M30 inductive proximity switch(all metal)
Model	NPN N.O	K042-8	K042-8-S	K042-9		K042-9-S
	NPN N.C	K042-8C	K042-8C-S	K042-9C		K042-9C-S
	PNP N.O	K042-8P	K042-8P-S	K042-9P		K042-9P-S
	PNP N.C	K042-8P-C	K042-8P-C-S	K042-9P-C		K042-9P-C-S
Wiring Form		Outlet	Connector	Outlet		Connector

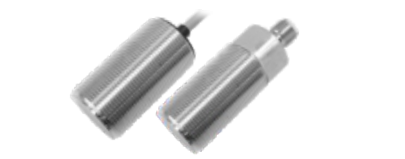

Appearance
Detection distance		10mm		15mm
Installation		Flush installation		Non-flush installation
Thread		M30×1.5mm
Operating Voltage		10~30V    DC
On-off level		2Hz
Pressure drop		≤2.0V
Load current		200mA
No-load current		≤10mA(24V)
Hysteresis		<15%(Sr)
Repeatability		<1.0%(Sr)
Ambient temperature		-25~70℃
Enclosure rating		IP67
Material		Sensing surface: Stainless steel; Shell: Stainless steel
Cable		Outgoing type: PVC cable; 3 x 0.35 was; Plug-in type: M12 connector
Cable length		2M

Example

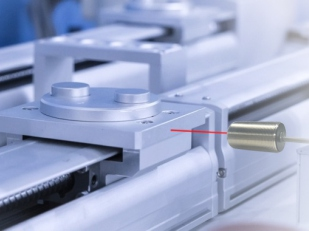

Detection of metal pallet positioning                                        Inspection of automotive parts installation

Dimension

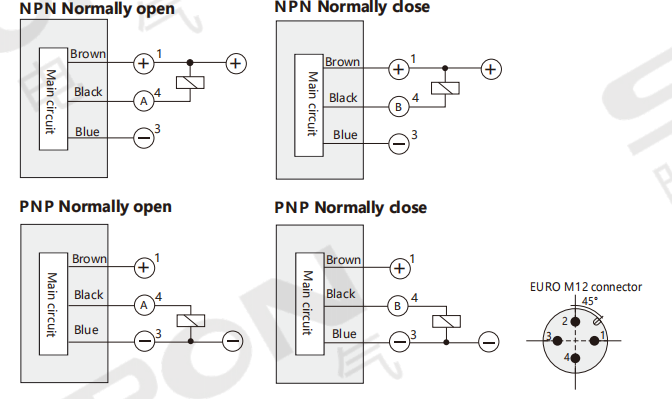

Wiring diagram
