SiRON K042-5~K042-7 Series M18 Inductive Proximity Switch All Metal

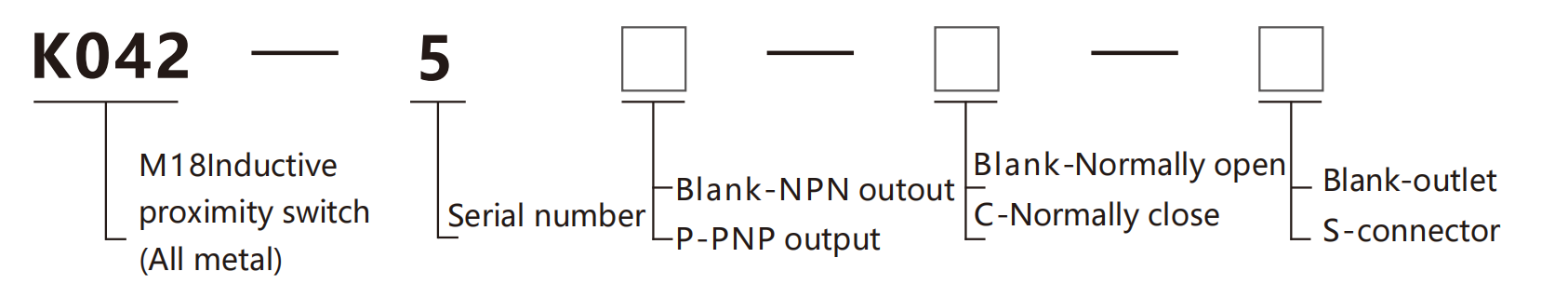

About selection

 Selection example:  K042-5 indicates the K042 series, serial number 5, with NPN output,Normally open,outlet;

                                          K042-5-S  indicates the K042 series, serial number 5, with NPN output,Normally open,connector.

Specifications

Name		M18  inductive  proximity  switch(all  metal)
Model	NPN   N.O	K042-5	K042-5-S	K042-6	K042-6-S	K042-7	K042-7-S
	NPN   N.C	K042-5C	K042-5C-S	K042-6C	K042-6C-S	K042-7C	K042-7C-S
	PNP   N.O	K042-5P	K042-5P-S	K042-6P	K042-6P-S	K042-7P	K042-7P-S
	PNP   N.C	K042-5P-C	K042-5P-C-S	K042-6P-C	K042-6P-C-S	K042-7P-C	K042-7P-C-S
Wiring Form		Outlet	Connector	Outlet	Connector	Outlet	Connector

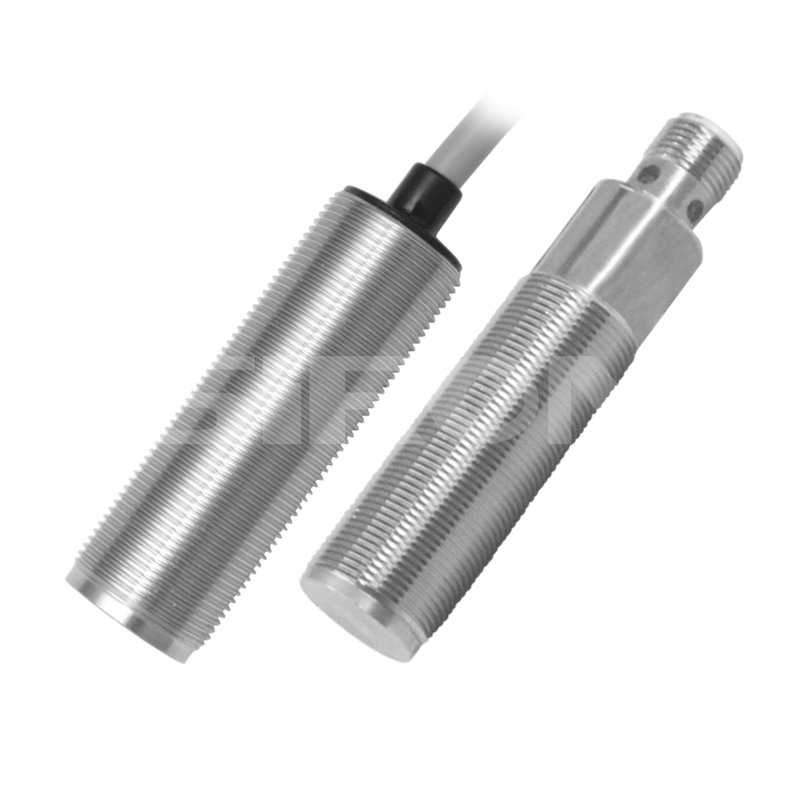

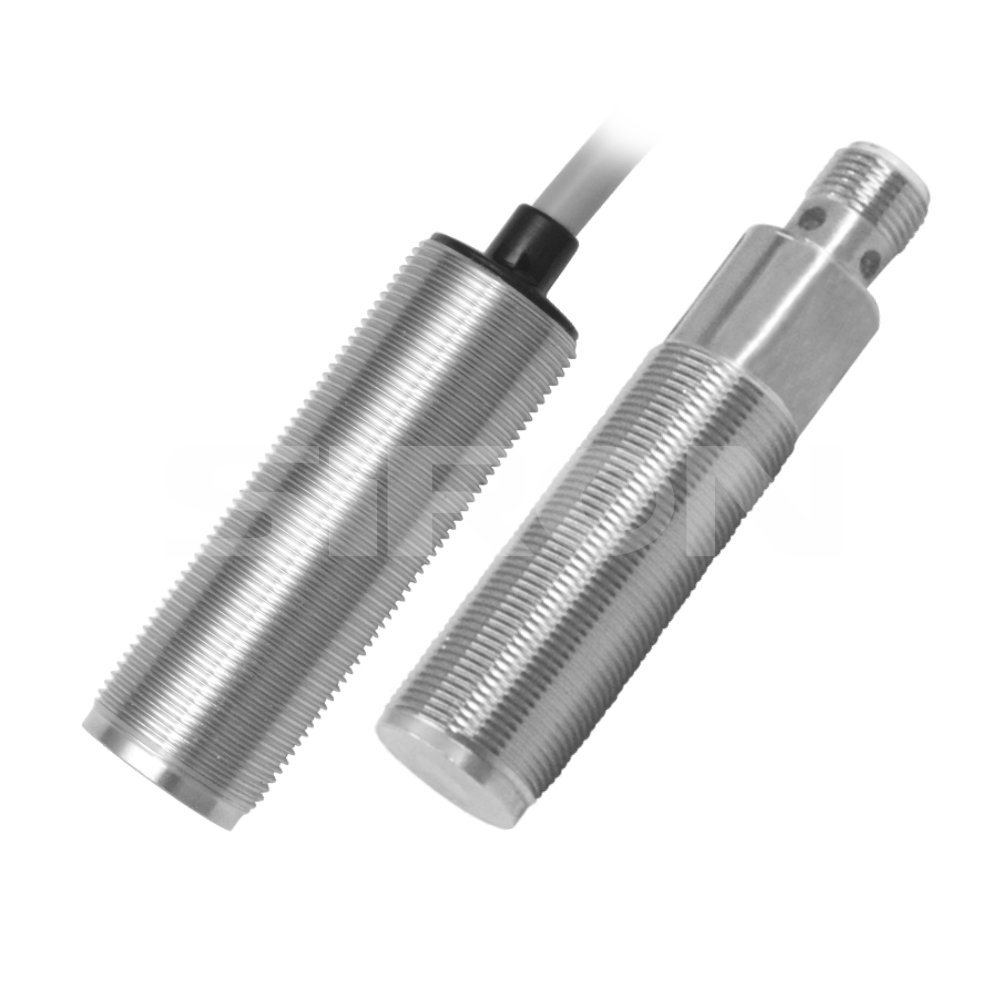

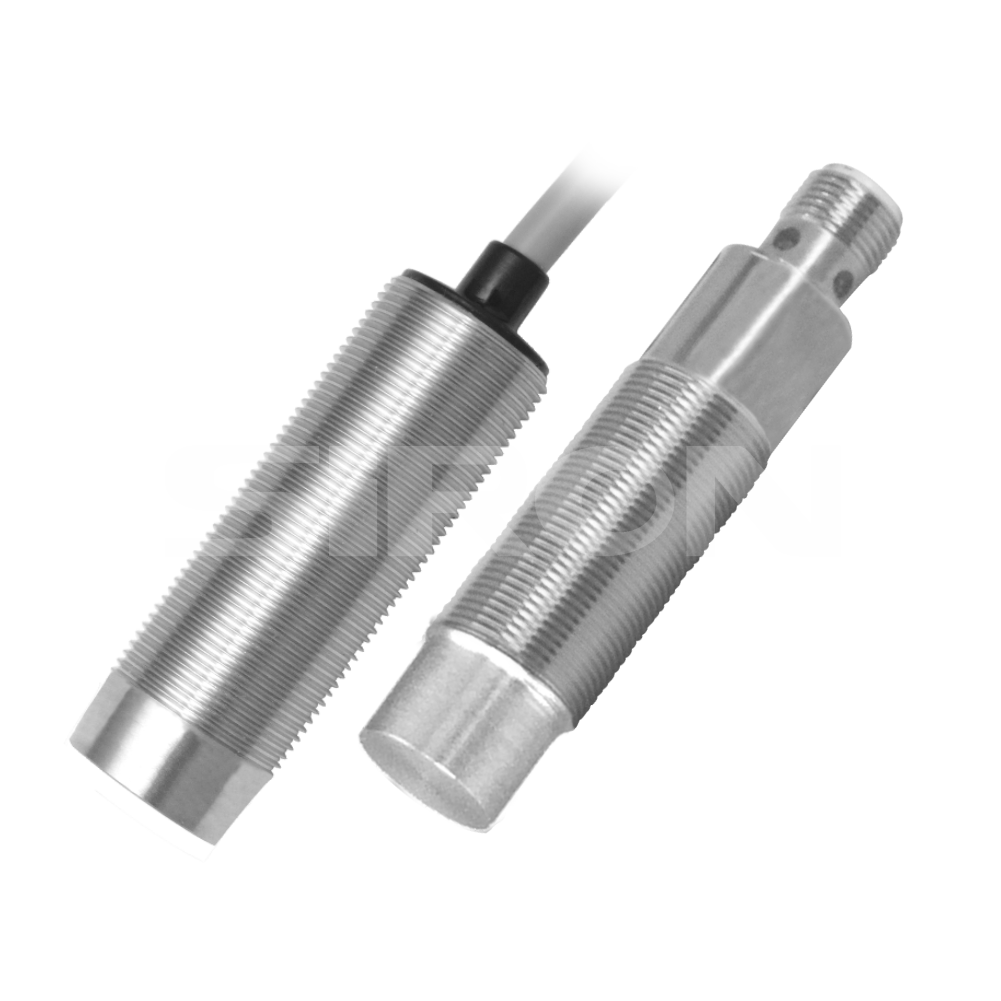

Appearance
Detection distance		5mm		8mm
installation		Flush installation				Non-flush installation
Thread		M18×1mm
Operating Voltage		10～30V    DC
On-off level		100Hz
Pressure drop		≤2.0V
Load current		200mA				100mA	200mA
No-load current		≤10mA(24V)
Hysteresis		<15%(Sr)
Repeatability		<1.0%(Sr)
Ambient temperature		-25～70℃
Enclosure rating		IP67
Material		Sensing surface: Stainless steel; Shell: Stainless steel
Cable		Outgoing type: PVC cable; 3×0 . 35mm²; Plug-in type: M12 connector
Cable length		2M

Example

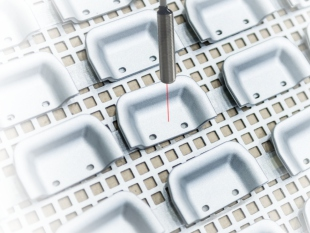

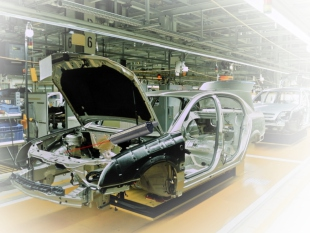

Detecting metals                                                                               Inspection of automotive parts installation

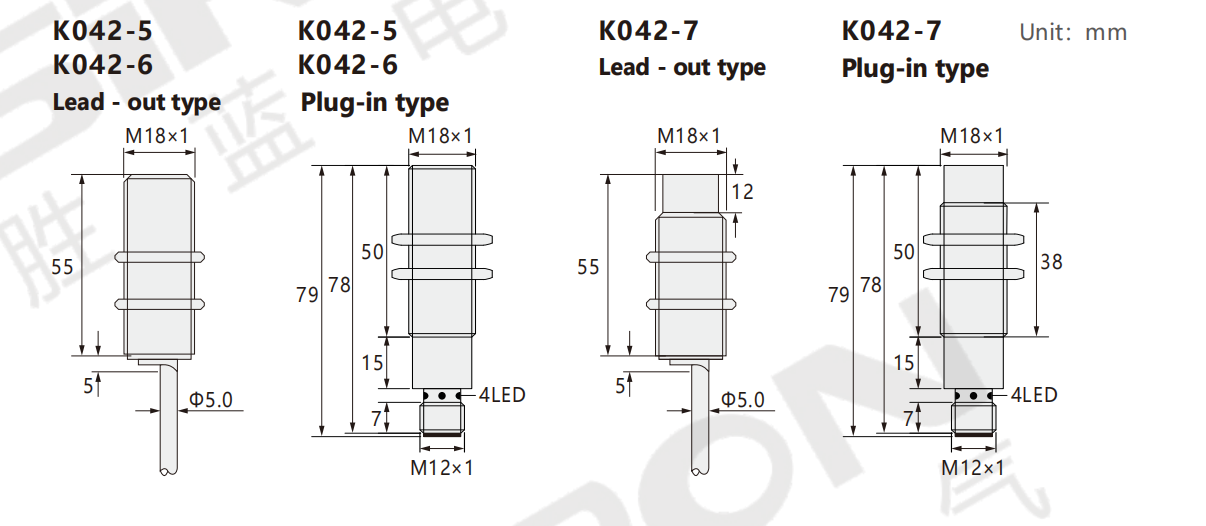

Dimension

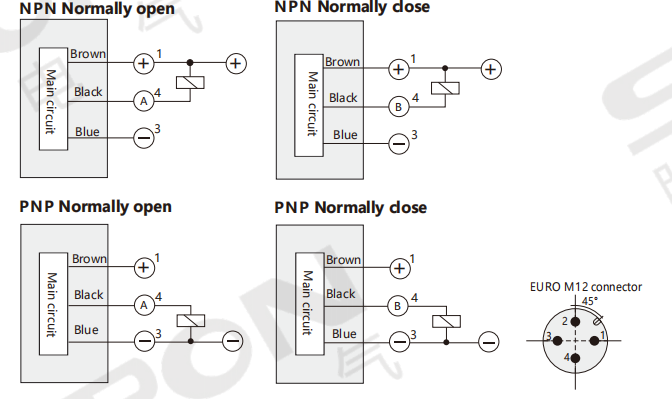

Wiring diagram
