SiRON K042-2~K042-4 Series M12 Inductive Proximity Switch All Metal

About selection

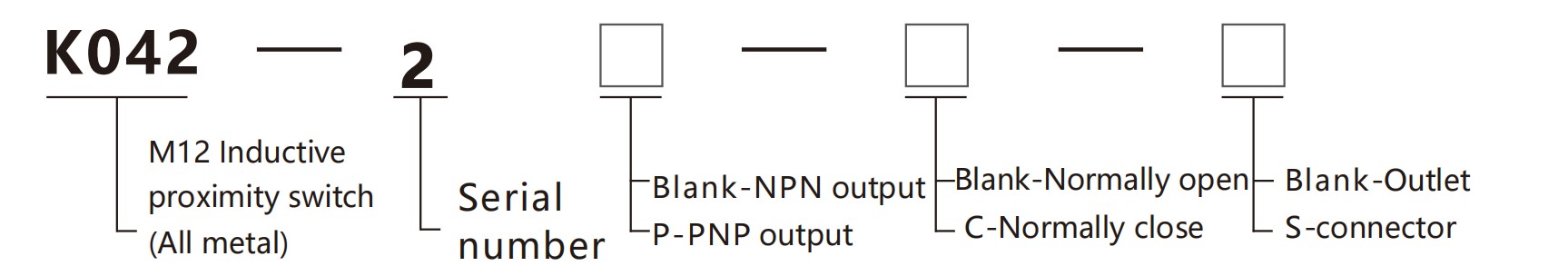

 Selection example:  K042-2 indicates the K042 series, serial number 2, with NPN output,Normally open,outlet;

                                          K042-2-S  indicates the K042 series, serial number 2, with NPN output,Normally open,connector.

Specifications

Name		M12inductive proximity switch (all metal)
Model	NPN  N.O	K042-2	K042-2-S	K042-3	K042-3-S	K042-4	K042-4-S
	NPN N.C	K042-2C	K042-2C-S	K042-3C	K042-3C-S	K042-4C	042-4C-S
	PNP  N.O	K042-2P	K042-2P-S	K042-3P	K042-3P-S	K042-4P	K042-4P-S
	PNP N.C	K042-2P-C	K042-2P-C-S	K042-3P-C	K042-3P-C-S	K042-4P-C	K042-4P-C-S
Wiring Form		Outlet	connector	Outlet	connector	Outlet	connector

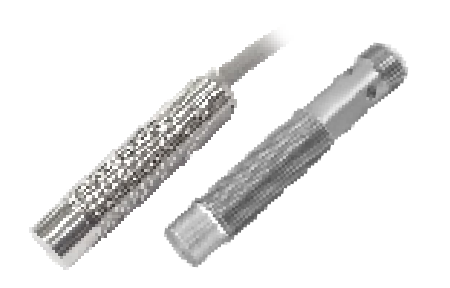

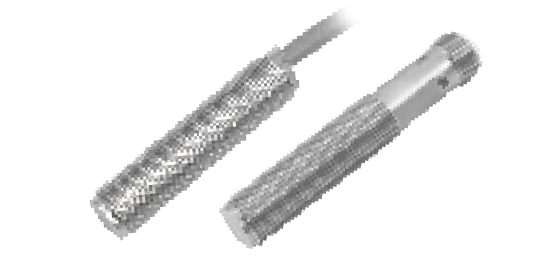

Appearance
Detection distance		2mm		4mm
Installation		Flush installation				Non-flush installation
Thread		M12×1mm
Operating Voltage		10～30V       DC
On-off level		100Hz
Pressure drop		≤2.0V
Load current		200mA
No-load current		≤10mA(24V)
Hysteresis		<15%(Sr)
Repeatability		<1.0%(Sr)
Ambient temperature		-25～70℃
Enclosurerating		IP67
Material		Sensing surface: Stainless steel; Shell: Stainless steel
Cable		Outgoing type: PVC cable; 3 x 0.35 was; Plug-in type: M12 connector 2M
Cablelength		2M

Example

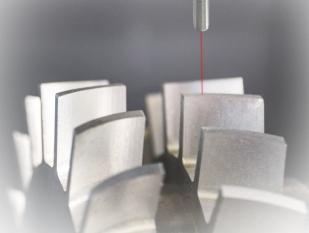

Detecting metals                                                                               Checking whether metal parts are installed

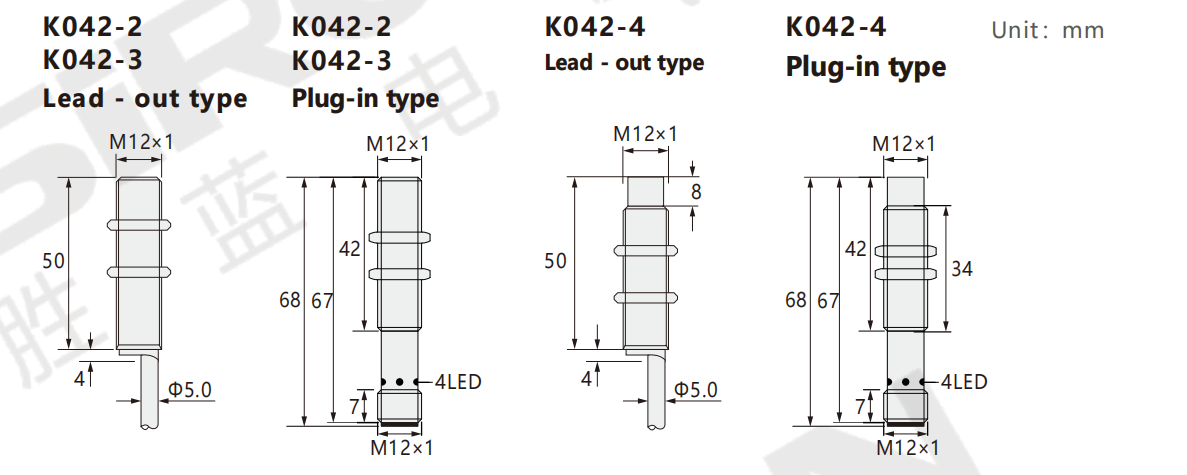

Dimension

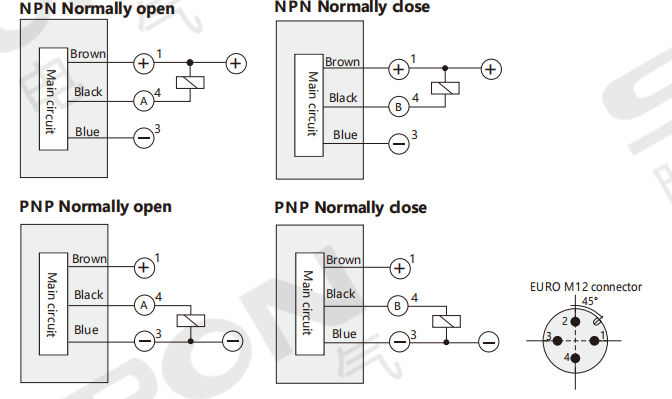

Wiring diagram
