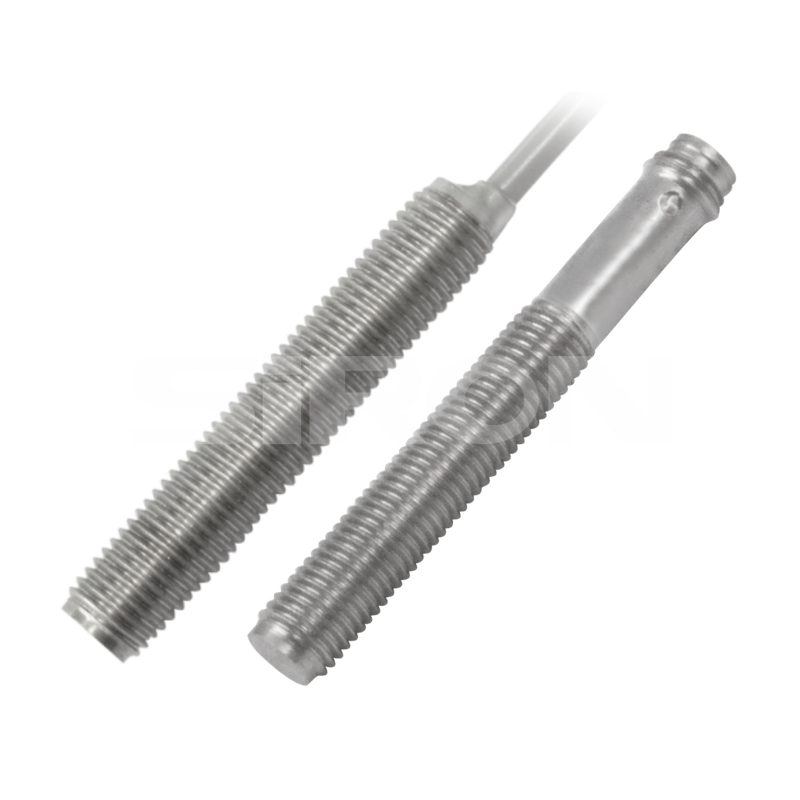

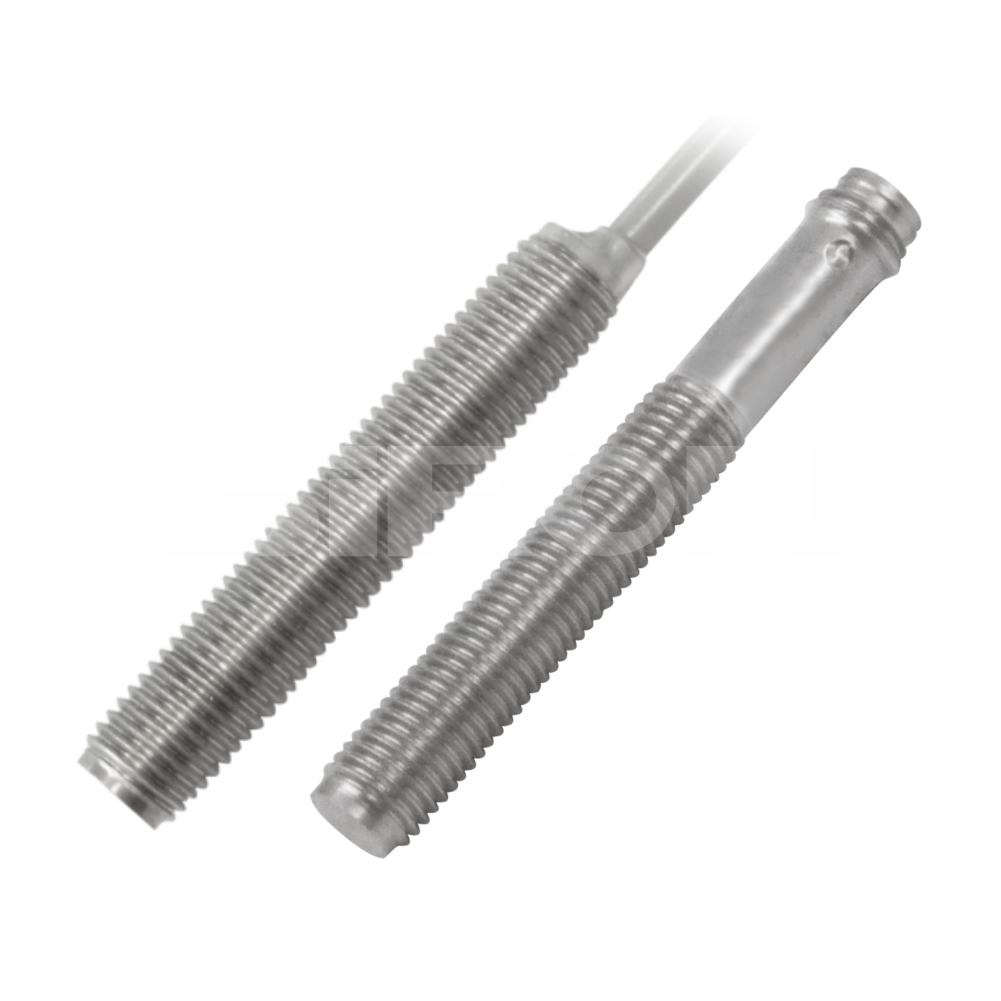

SiRON K042-1 Series M8 Inductive Proximity Switch All Metal

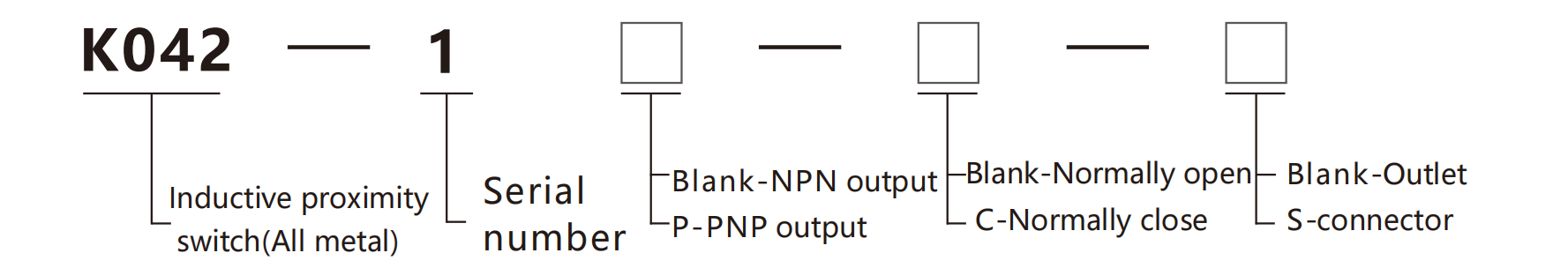

About selection

 Selection example:  K042-1 indicates the K042 series, serial number 1, with NPN output,Normally open,outlet;

                                          K042-1-S  indicates the K042 series, serial number 1, with NPN output,Normally open,connector.

Specifications

Name		M8inductive proximity switch(all metal)
Model	NPN   N.O	K042-1	K042-1-S
	NPN   N.C	K042-1C	K042-1C-S
	PNP   N.O	K042-1P	K042-1P-S
	PNP   N.C	K042-1P-C	K042-1P-C-S
Wiring Form		Outlet	connector

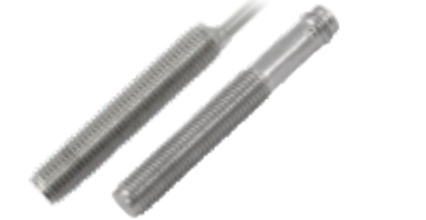

Appearance
Detection distance		2mm
Installation		Flush installation
Thread		M8×1mm
Operating Voltage		10～30V    DC
On-off level		100Hz
Pressure drop		≤2.0V
Load current		100mA
No-load current		≤10mA(24V)
Hysteresis		<15%(Sr)
Repeatability		<1.0%(Sr)
Ambienttemperature		-25～70℃
Enclosurerating		IP67
Material		Sensing surface: Stainless steel; Housing: Stainless steel
Cable		Outlet type: PVC cable; 3×0.18mm²; Plug type: M8 connector
Cable length		2M

Example

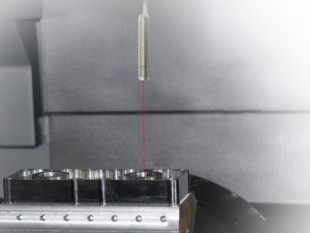

Detecting metals                                                                             Checking whether metal parts are installed

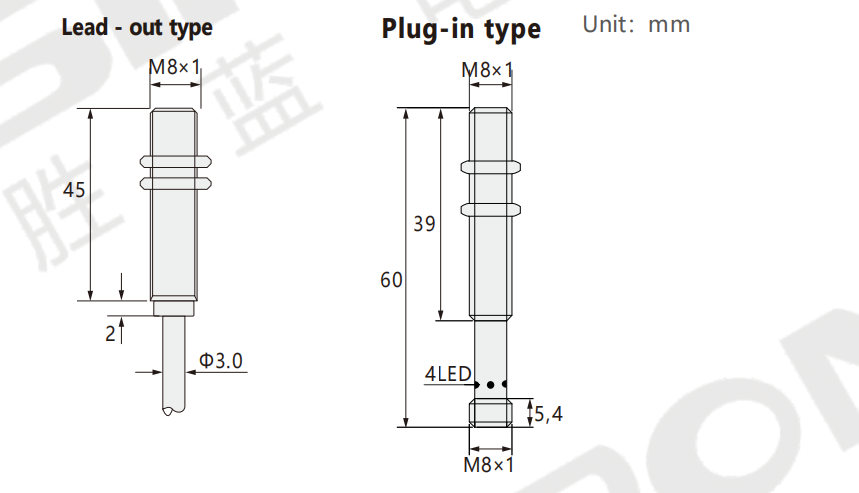

Dimension

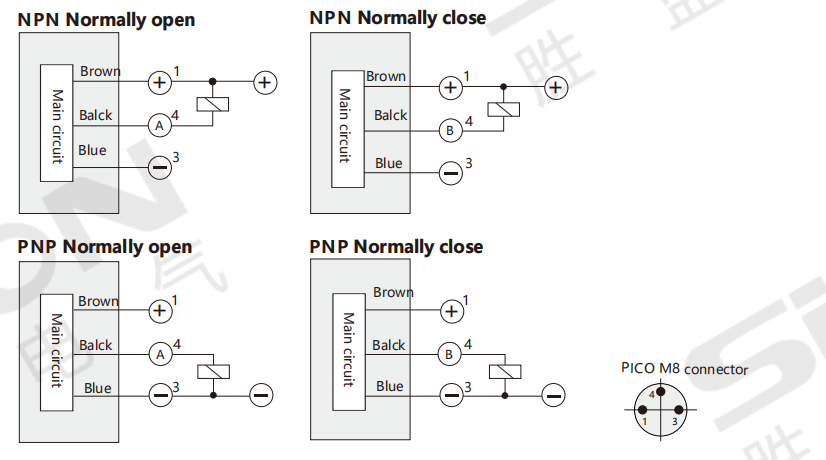

Wiring diagram
