SiRON K041-1~K041-2 Series M5 Inductive Proximity Switch Short Type

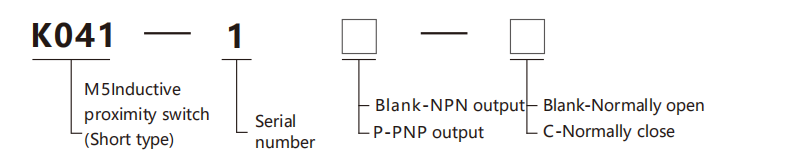

About selection

 Selection example:  K041-1 indicates the K041 series, serial number 1, with NPN output,Normally open;

                                          K041-1P-C  indicates the K041 series, serial number 1, with NPN output,Normally open.

Specifications

Name		M5inductive proximity switch (short type)
Model	NPN N.O	K041-1	K041-2
	NPN N.C	K041-1C	K041-2C
	PNP   NO	K041-1P	K041-2P
	PNP   NC	K041-1P-C	K041-2P-C

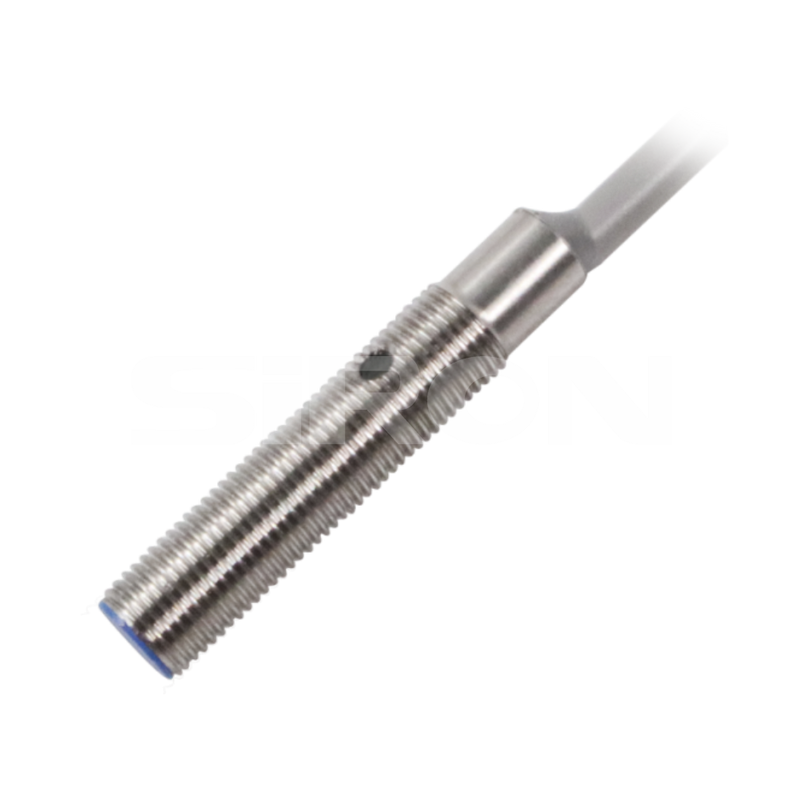

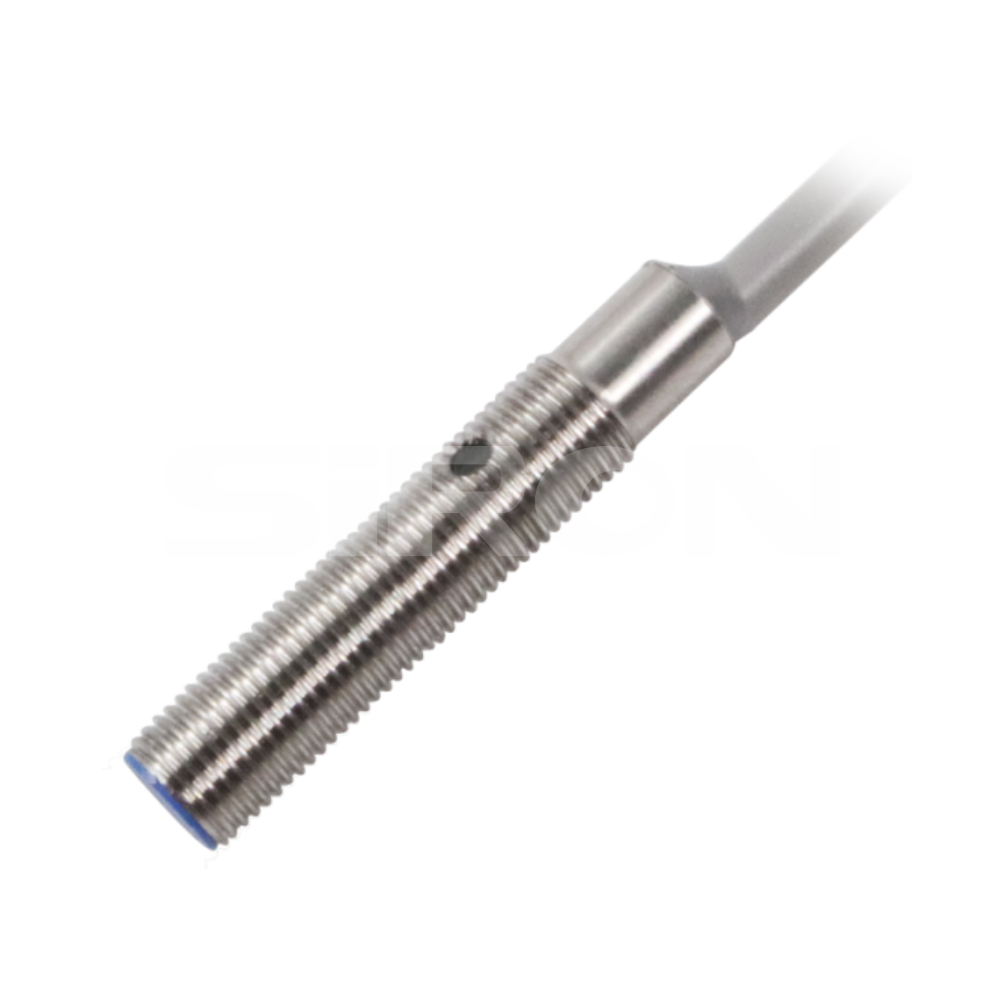

Appearance
Detecion distance		0.8mm	1.2mm
Installation		Flush installation
Thread		M5×0.5mm
Operating Voltage		10～30V   DC
On-offlevel		2000Hz
Pressure drop		≤2.0V
Load current		100mA
No-load current		≤10mA(24V)
Hysteresis		<15%(Sr)
Repeatabity		<1.0%(Sr)
Ambient temperature		-25~70℃
Enclosure rating		IP67
Material		Sensing surface: POM; Shell: Stainless steel
Cable		PVC cable；3×0.15mm²
Cable lenath		2M

Example

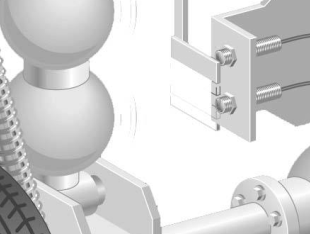

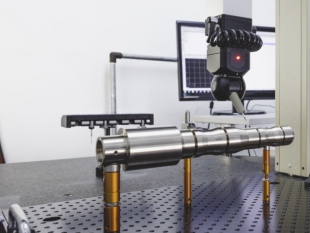

Inspection of auto parts                                                                 Inspection of metal workpieces

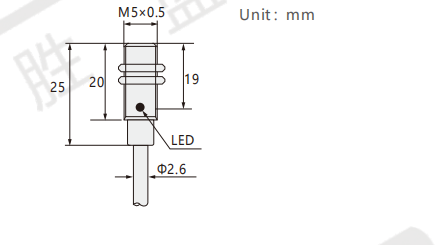

Dimension

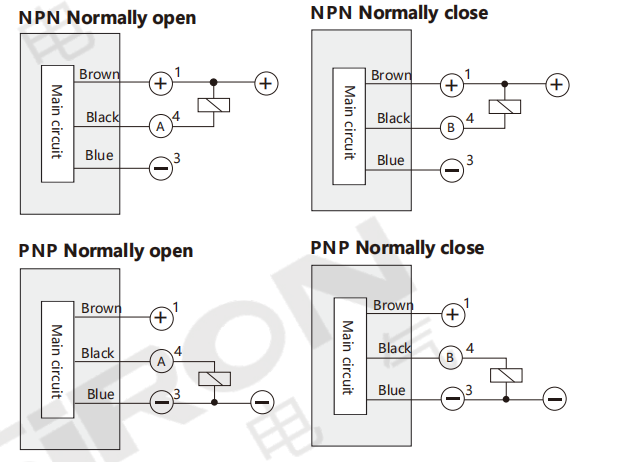

Wiring diagram
