SiRON K015-9 Series M8 Photoelectric Sensor IP66

About selection

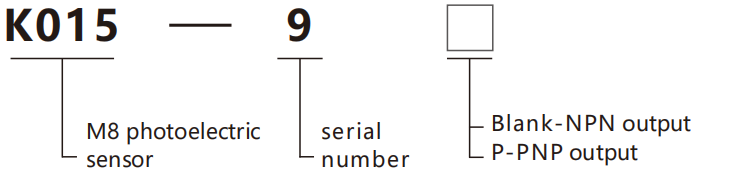

 Selection example: K015-9  indicates the K015 series, serial number 9, with NPN output;

                                      K015-9P indicates the K015 series, serial number 9, with PNP output.

Specifications

Name		M8 photoelectric sensor
Model	NPN	K015-9
	PNP	K015-9P
Type		Diffuse reflection type

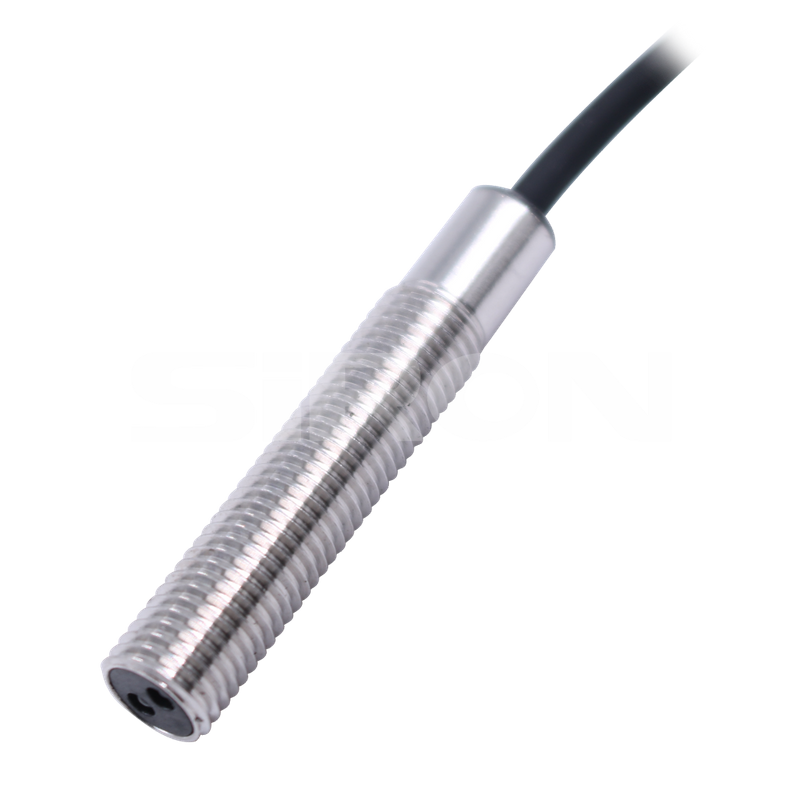

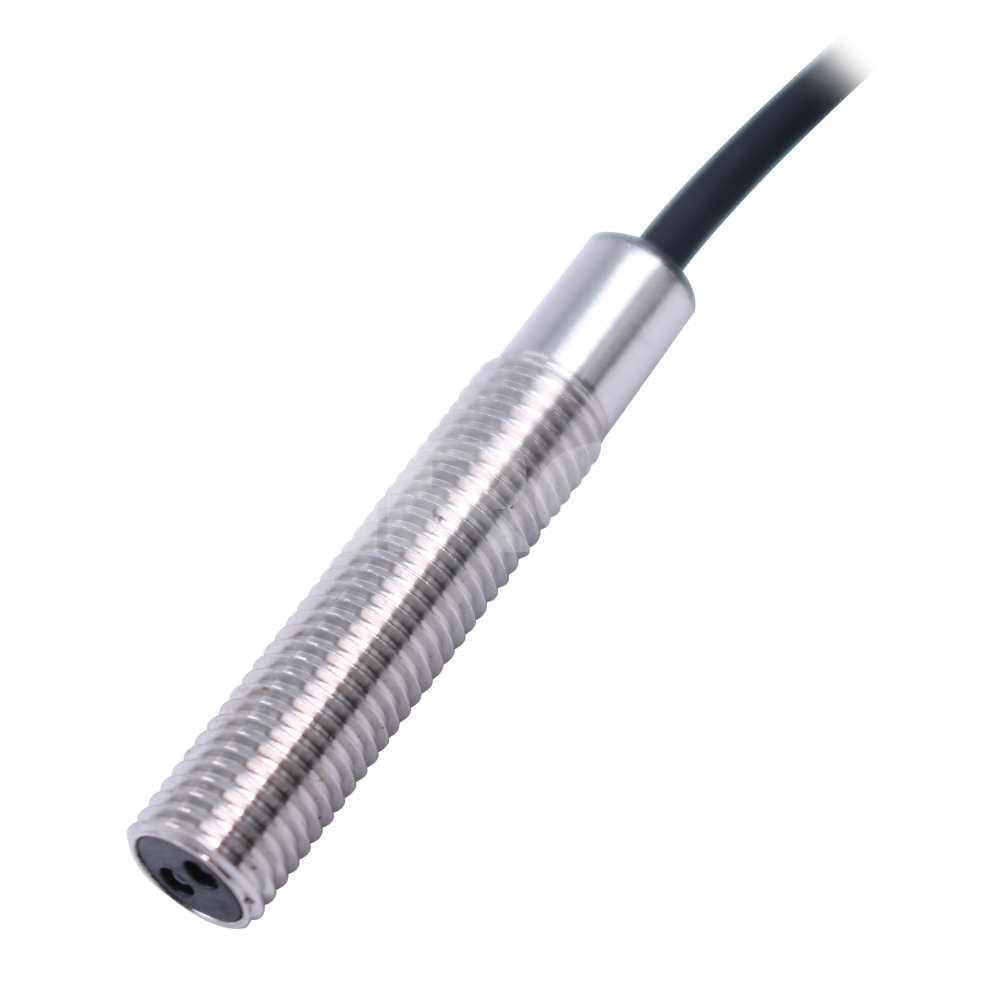

Appearance
Detection distance		35 mm (white paper  30 X 30 mm )	Ambient temperature	Operating temperature: -25 to +55℃, storage temperature: -30 to +70 ℃. No freezing or condensation.
Hysteresis		The detection distance is less than 20%	environment humidity	Operating temperature: 35-85%RH, storage temperature: 35-95%RH(no condensation)
Light source (emission wavelength)		infrared ray  940 nm	Insulation resistance	Above 20MΩ (DC500V megohmmeter)
voltage		DC12-24V±10%, pulsation (P-P) below 10%	Withstand voltage	AC500V     50/60Hz     1min
Current consumption		Below 30 mA	Anti-vibration (durable)	The amplitude is 1.5mm up and down at 10 to 55Hz for 2 hours in each of the X, Y and Z directions
Protection circuit		Reverse power connection protection, output short-circuit protection to prevent mutual interference	Impact(durable)	Three times in each of the X, Y and Z directions at 500m/s⊃2;
Response time		Action · Reset: each less than 3ms	Protection structure	IEC specification      IP66
illumination		Illuminance of the light-receiving surface: 3000lx for incandescent lamps, 10000lx for sunlight	Connection method	Lead-out type
Control output		The load power supply voltage is below DC24	Shell material	stainless steel
		Load current below 80mA (residual voltage below 1V)	Cable length	2M
		NPN / PNP stainless steel	Weight	About 8 0 g

Example

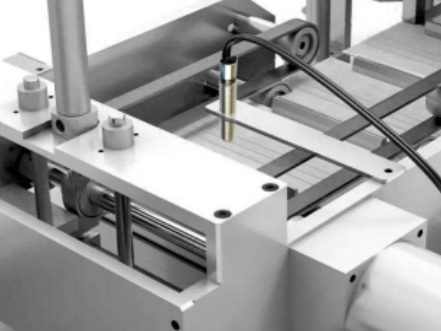

Applications in the textile industry                                         Applications in the textile industry

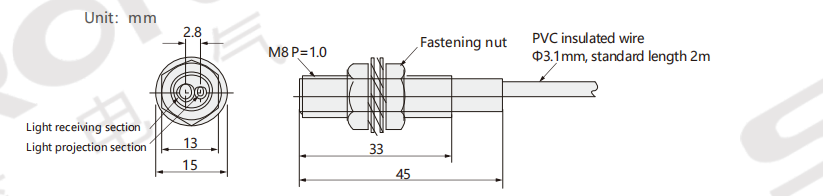

Dimension

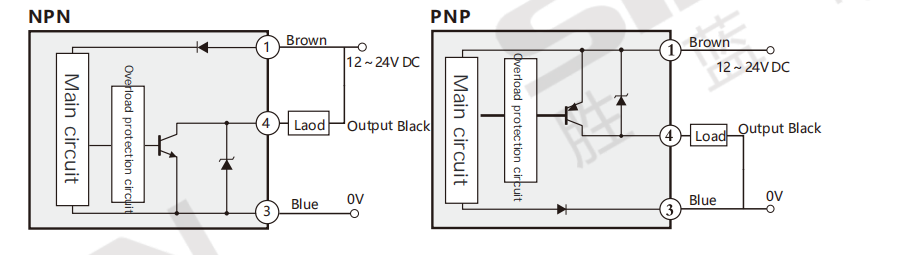

Wiring diagram
