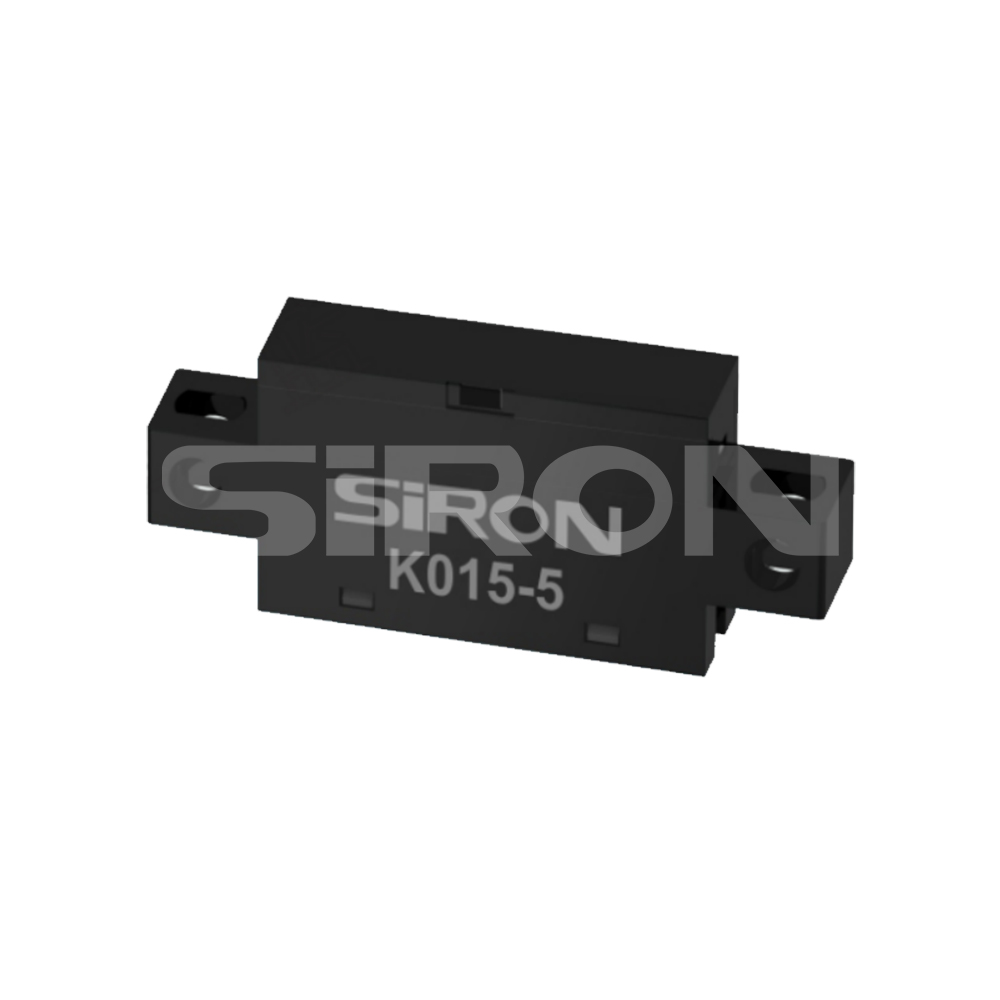

K015-5 Series
SiRON
8479909090

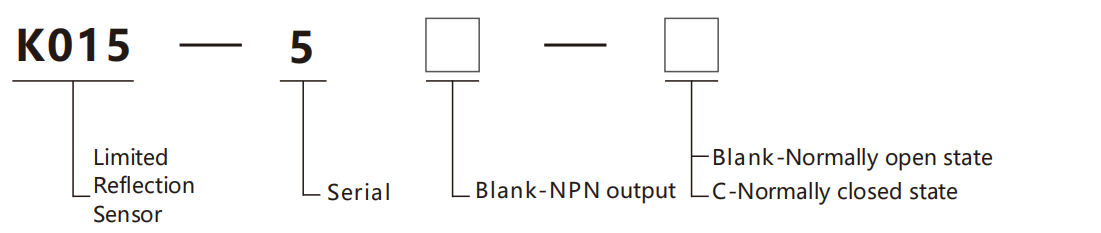

About selection
Selection example: K015-5 indicates the K015 series, serial number 5, with NPN normally open;
K015-5P indicates the K015 series, serial number 5, with PNP normally closed.
Specifications
Name | Photoelecric sensor | |
Model | K015-5 | K015-5-C |
Output mode | N P N always open (O N when light enters) | N P N is normally closed (O N when blocking light) |
Appearance |   | |
Types of | Reflection limit | |
Detection distance | 5 ~ 4 0 m m ( black paper) ; 5 ~ 5 0 m m ( transparency ) ; 5 ~ 6 0 m m ( white paper ) | |
Minimum detection object | φ0.15mm | |
Accept an assignment | below 2 0 % | |
Light source | Infrared light-emitting diode (850nm) | |
Supply woitage | DC 24V±10% pulsation (p-p) below 10% | |
Crrent consumption | ≤20mA(at DC26 .4V) | |

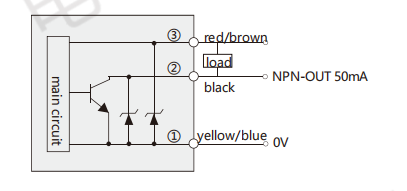

Control output | Load power supply voltage: DC 26.4V or less, load current: 50mA or less, residual voltage: 0.8V or less (at a load current of 50mA), residual voltage: 0.32V or less (at a load current of 10mA) Open collector output (NPN output | |
Response time | ction · Reset: Each ≤1ms | |
Ambient luminosity | The illuminance of the light-receiving surface of the incandescent lamp is ≤3000Lux. Sunlight ≤ 10,000 lux | |
Output residual voltage | Residual voltage below 1V (load current less than 10mA) Residual voltage below 2V (load current less than 10 to 100mA) | |
Ambient temperature | Operating temperature: -10 to +60° C; Storage temperature: -25 to +80 ° C (No freezing or condensation) | |
Vibration resistance | Operating temperature: -10 to +60° C; Storage temperature: -25 to +80 ° C (No freezing or condensation) | |
Impact resistance | 500m/S⊃2;, 3 times each in the X/Y/Z directions | |
Protection class | IEC standard IP50(except for the terminal part | |
Connection mode | Connect Type | |
| Weight | About 3.4g | |
| Materia | Shell: Polycarbonate (PC); Display Section: Acrylic resin (PMMA) Lens section: Polycarbonate (PC) | |
