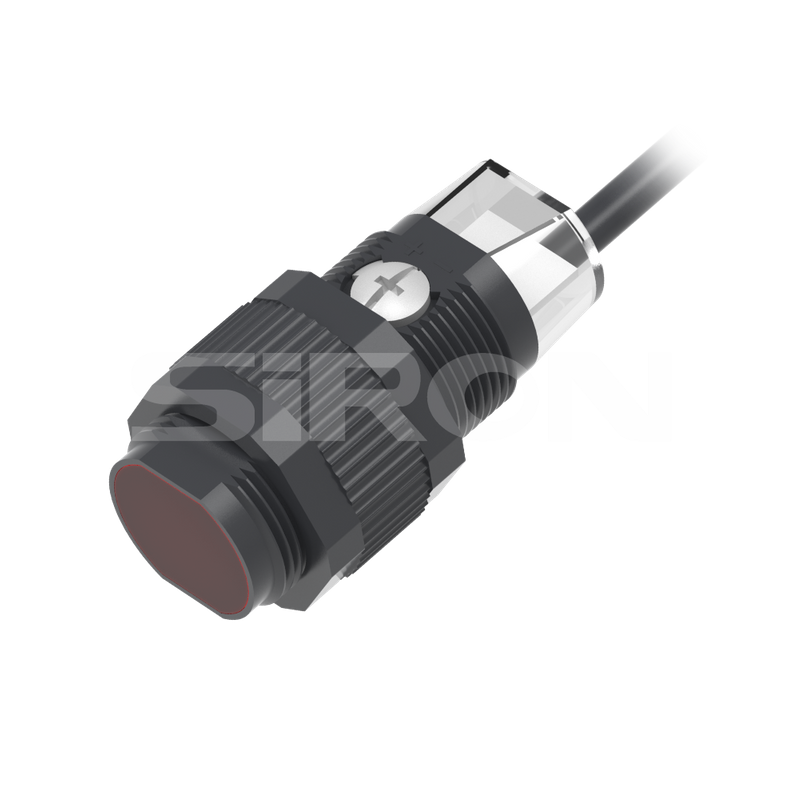

SiRON K015-41～K015-42 Series M18 Photoelectric Sensor

About selection

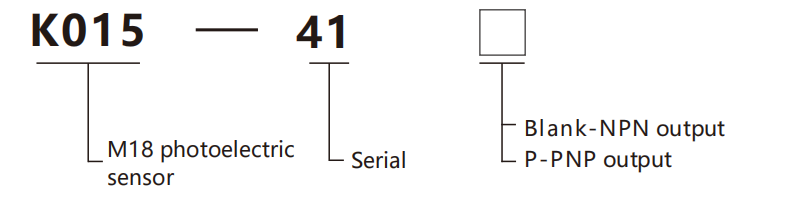

 Selection example: K015-41  indicates the K015 series, serial number 41, with NPN output;

                                      K015-41P indicates the K015 series, serial number 41, with PNP output.

Specifications

Name		M18 photoelectric sensor
Model	NPN	K015-41		K015-42
	PNP	K015-41P		K015-42P
Types of		Diffuse reflection

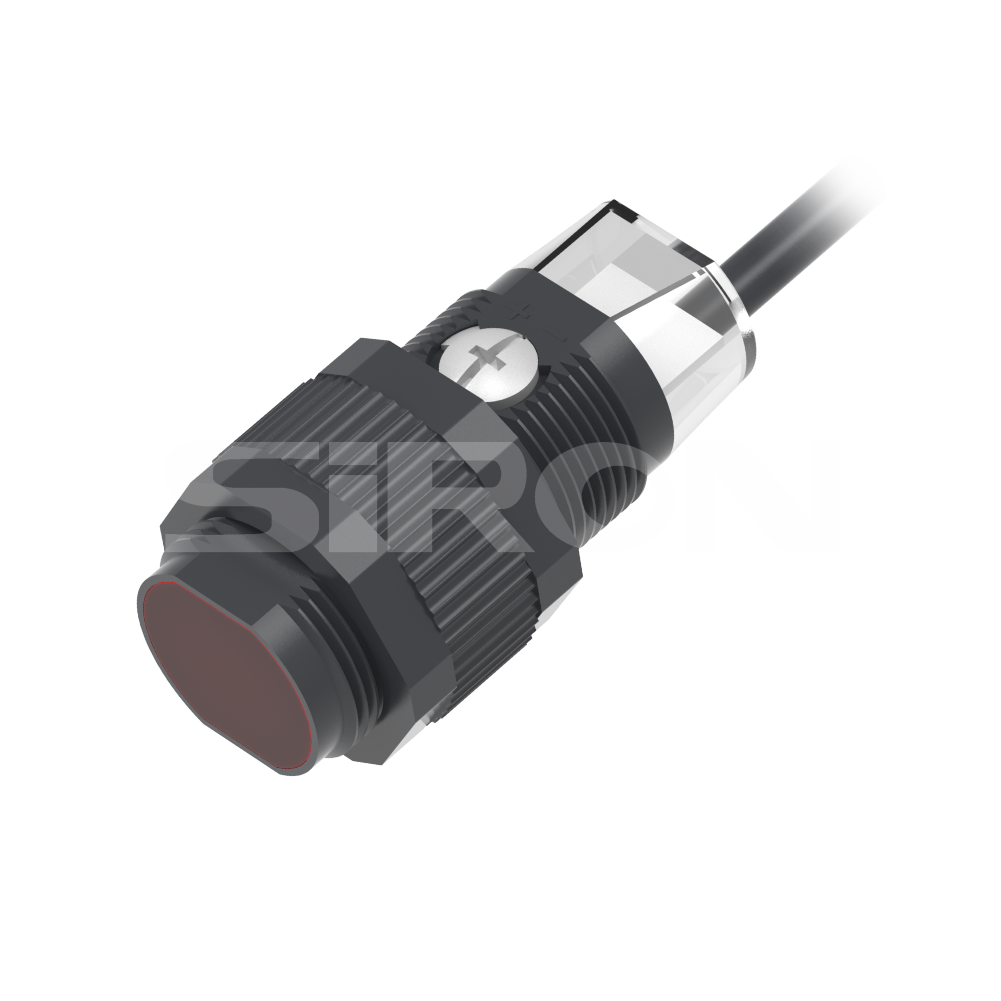

Appearance
Response frequency		/		250Hz
Light source		Red light L E D		infrared L E D
Response time		2ms		/
Ambient temperature		- 1 5 ~ + 5 5 ℃ , no freezing		- 25～+55℃,no freezing
Detection distance		10～40cm(adjustable)	Ambient humidity		3 5 % ～ 9 0 % R H ,No coagulation
Detecting object		Opaque objects over 7mm in diameter	Ambient luminosity		LED light：below 450Lux
Operating voltage		10～30V    DC	Insulation withstand voltage		±1000V    50/60Hz    60s
Residual voltage		<1.5V	Static electricity		±8000V
Consumption current		<25mA	Group pulse		±2000V        5KHz/100KHz
Load current		<120mA	Vibration resistance		10 to 50Hz,0.5mm amplitude, 2 hours each in the X, Y, and Z directions

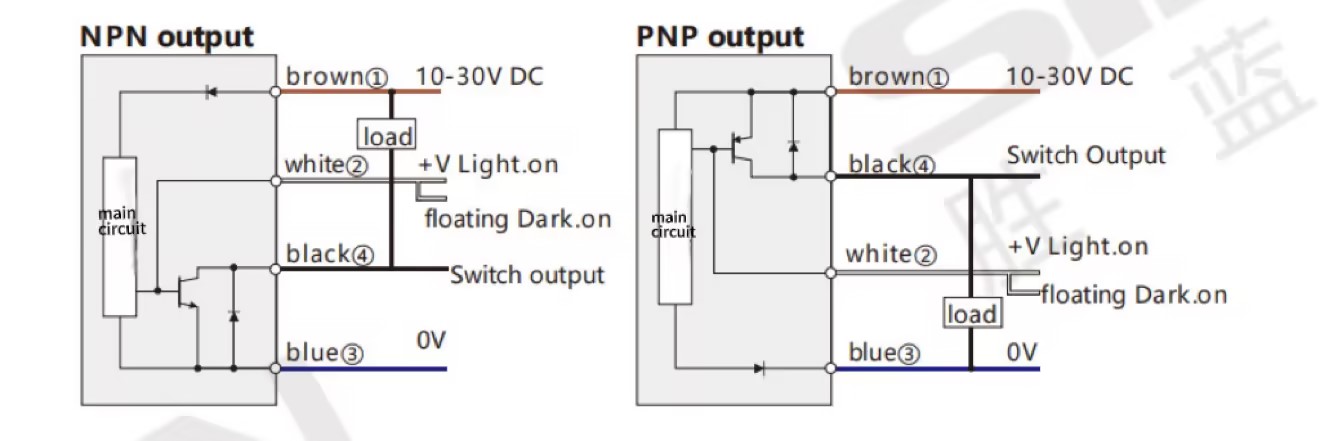

Output mode		NP N or PNP open collector	Protection class		IP67
Switching action		Lon(light-entering action)/D.on(light-blocking action) are optional	Material		PC
Indicator light		Power indicator light: Green; Action indicator light: Red	Cable		4-core cable
Protection circuit		Reverse polarity protection/short-circuit protection	Cable length		2M
