SiRON K015-3～K015-4 Series Photoelectric Sensor Rectangular

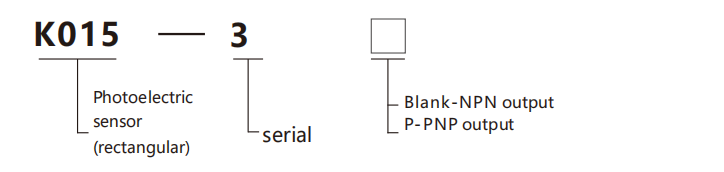

About selection

 Selection example: K015-3  indicates the K015 series, serial number 3, with NPN output;

                                      K015-3P indicates the K015 series, serial number 3, with PNP output.

Specifications

Name		Photoelectric sensor (rectangular)

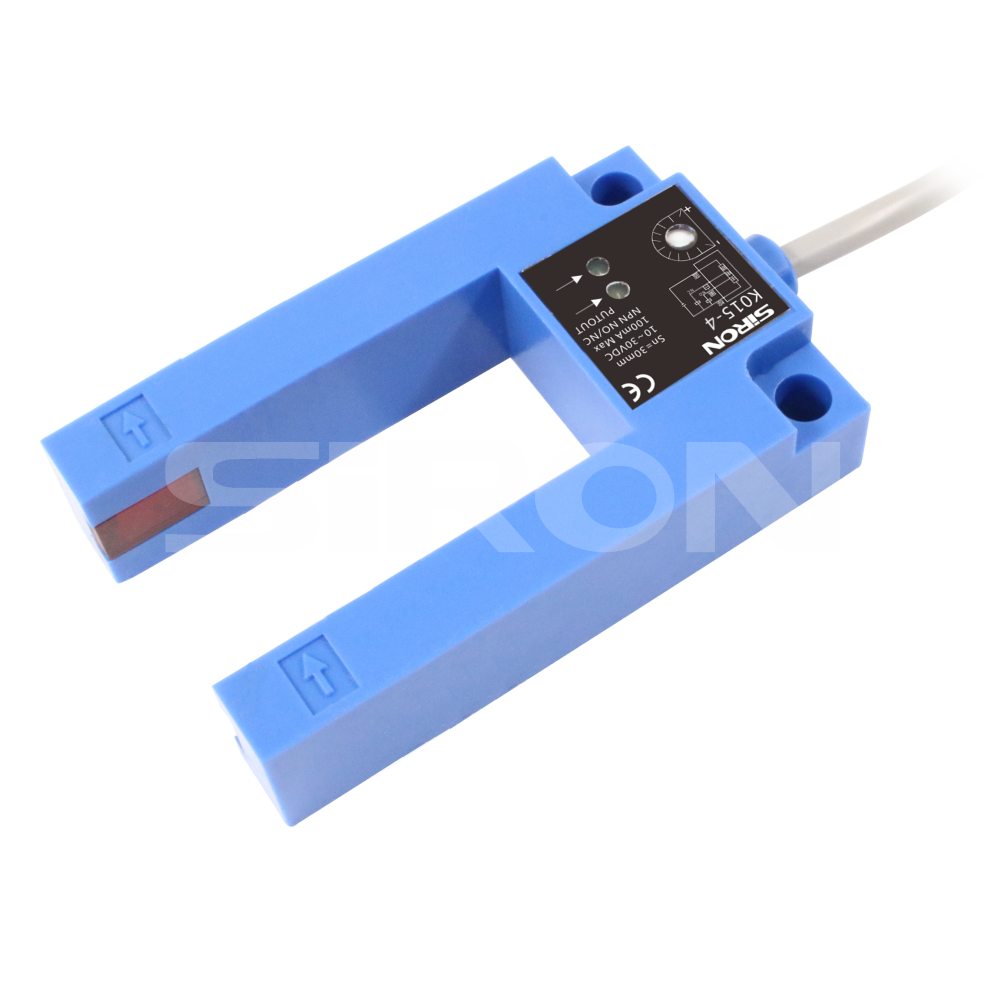

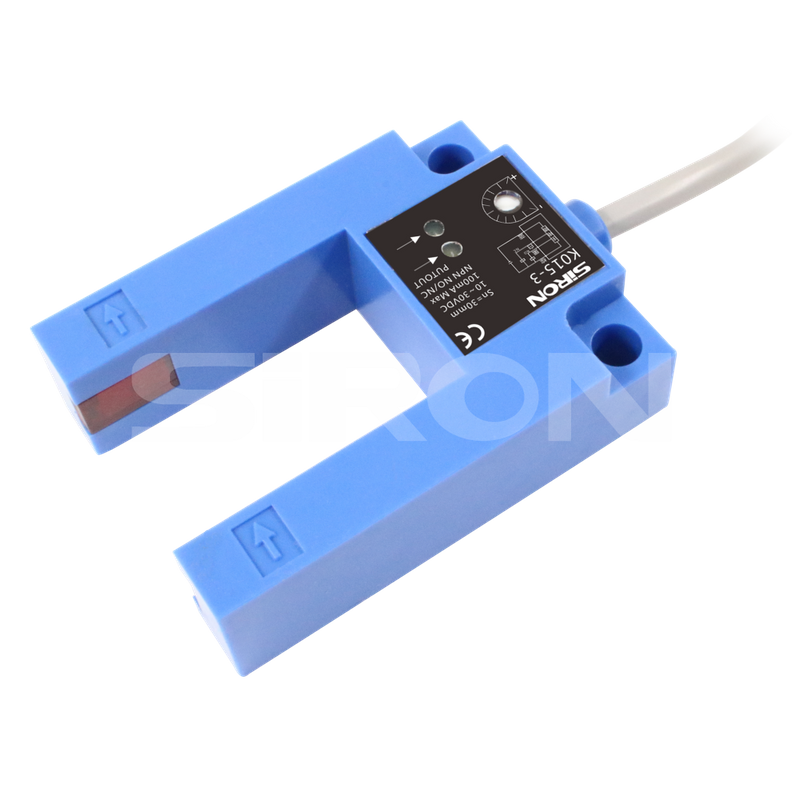

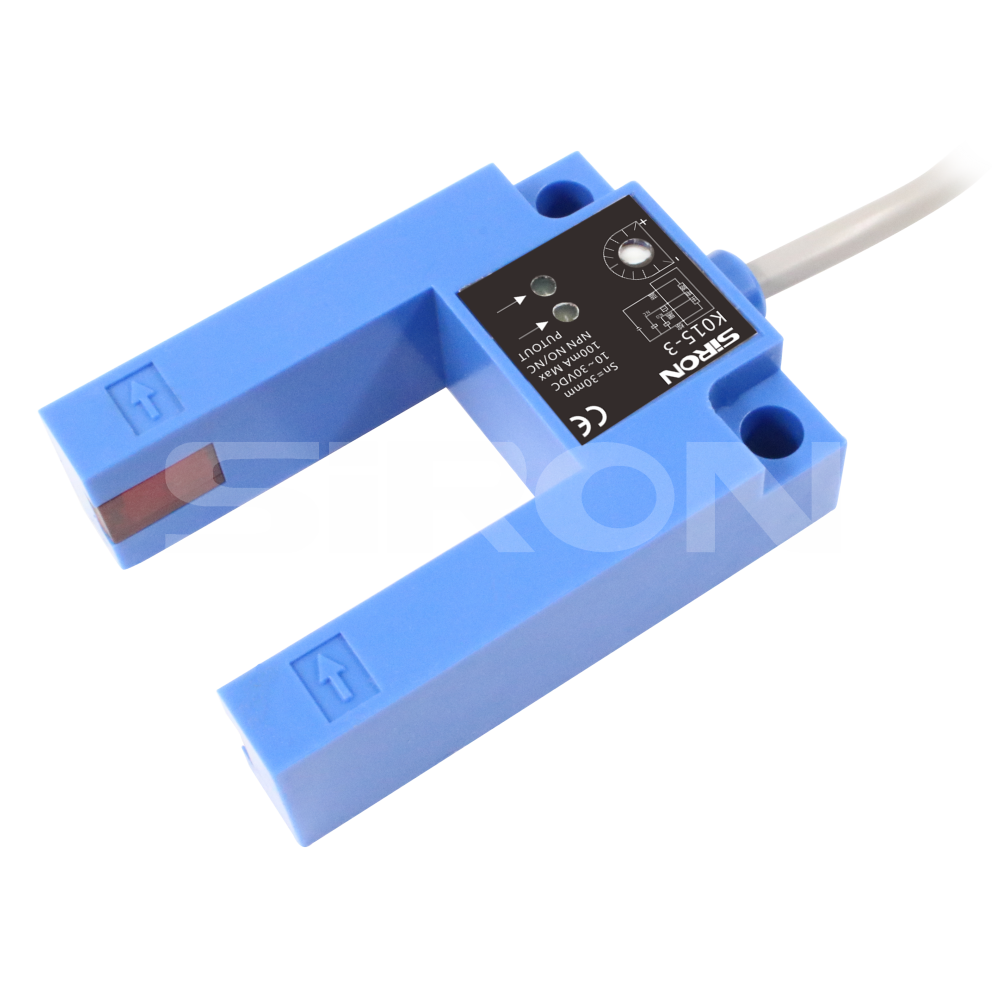

Model	NPN	K015-3	K015-4(long type)
	PNP	K015-3P	K015-4P(long type)
Appearance
Detection distance		30mm
Operating Voltage		10～30VDC
On-off levei		500Hz
Type of light		Infrared 880 nm
Reaction time		<2ms
Load current		100mA
Power-on delay		<300ms
Sensitive regulation		Single-turn potentiometer
Anti-light interference		<5000Lux
Ambient temperature		-25～55℃
Environment humidity		35~85%
Shell material		ABS
Lens material		PMMA
LED indication		Output: Yellow; Power supply: Green
Cable		PVC cable；4×0 . 25mm²
Cable length		2M
