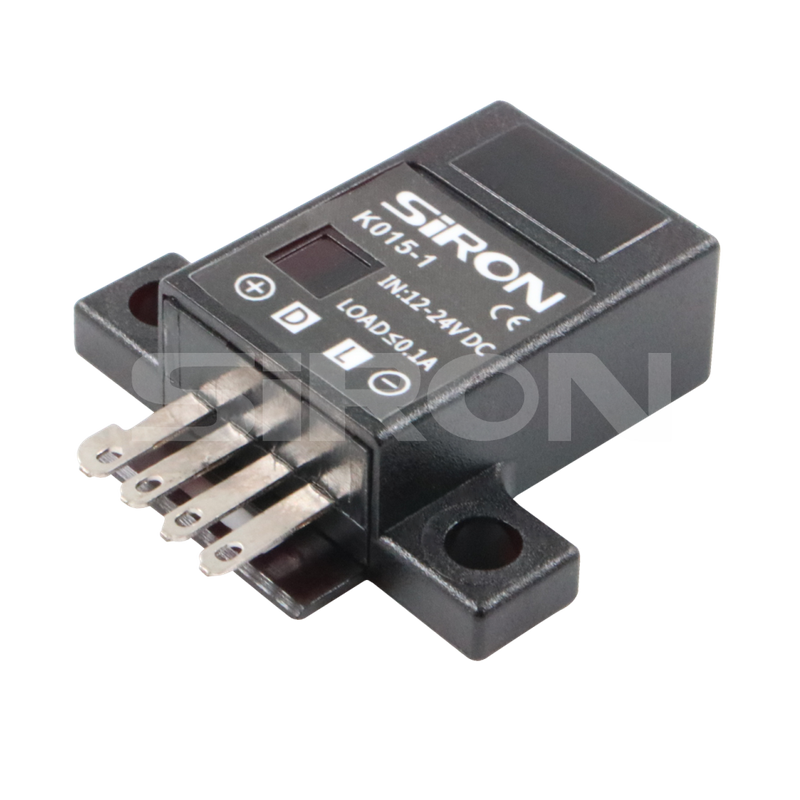

SiRON K015-1～K015-2 Series Photoelectric Sensor (flat Type) Diffuse Reflection

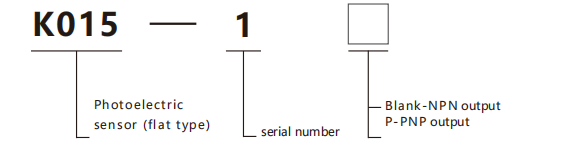

About selection

 Selection example: K015  indicates the K015 series, serial number 1, with NPN output;

                                      K015-P indicates the K015 series, serial number 1, with PNP output.

Specifications

Name		Photoelectric sensor (flat type)

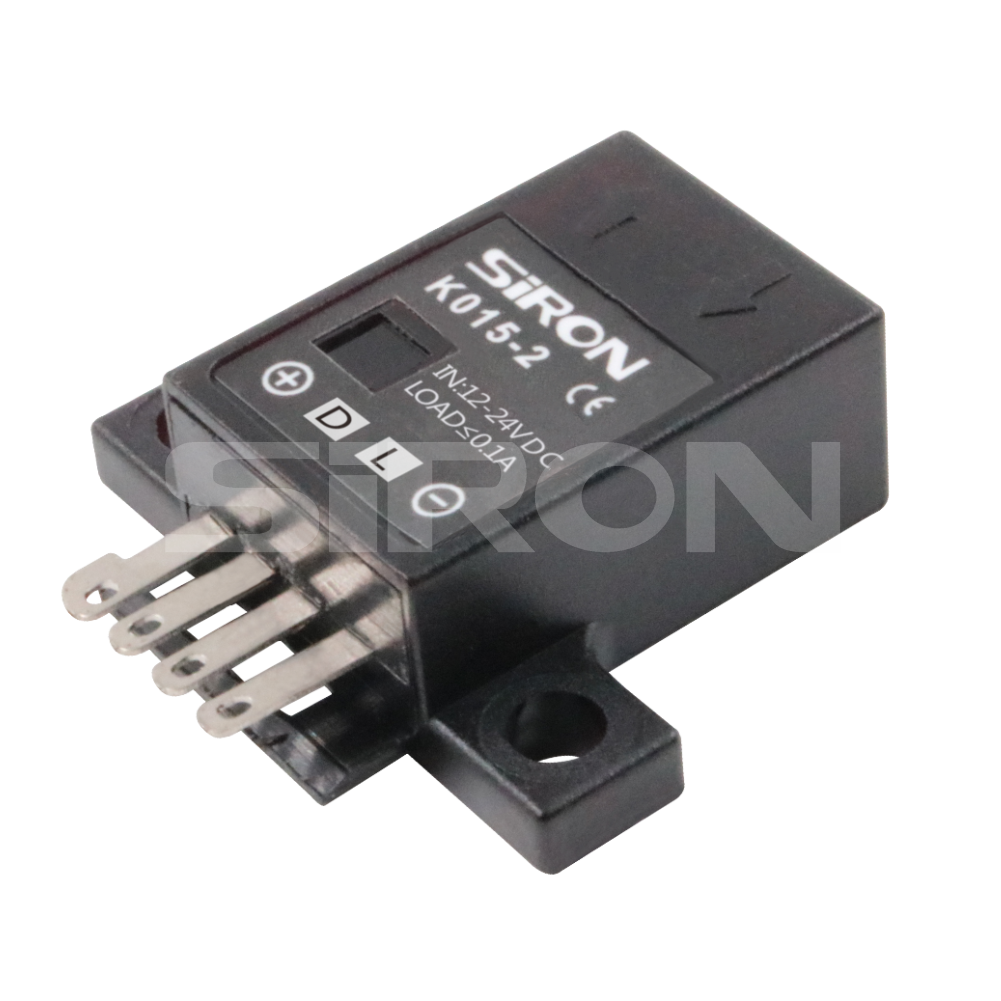

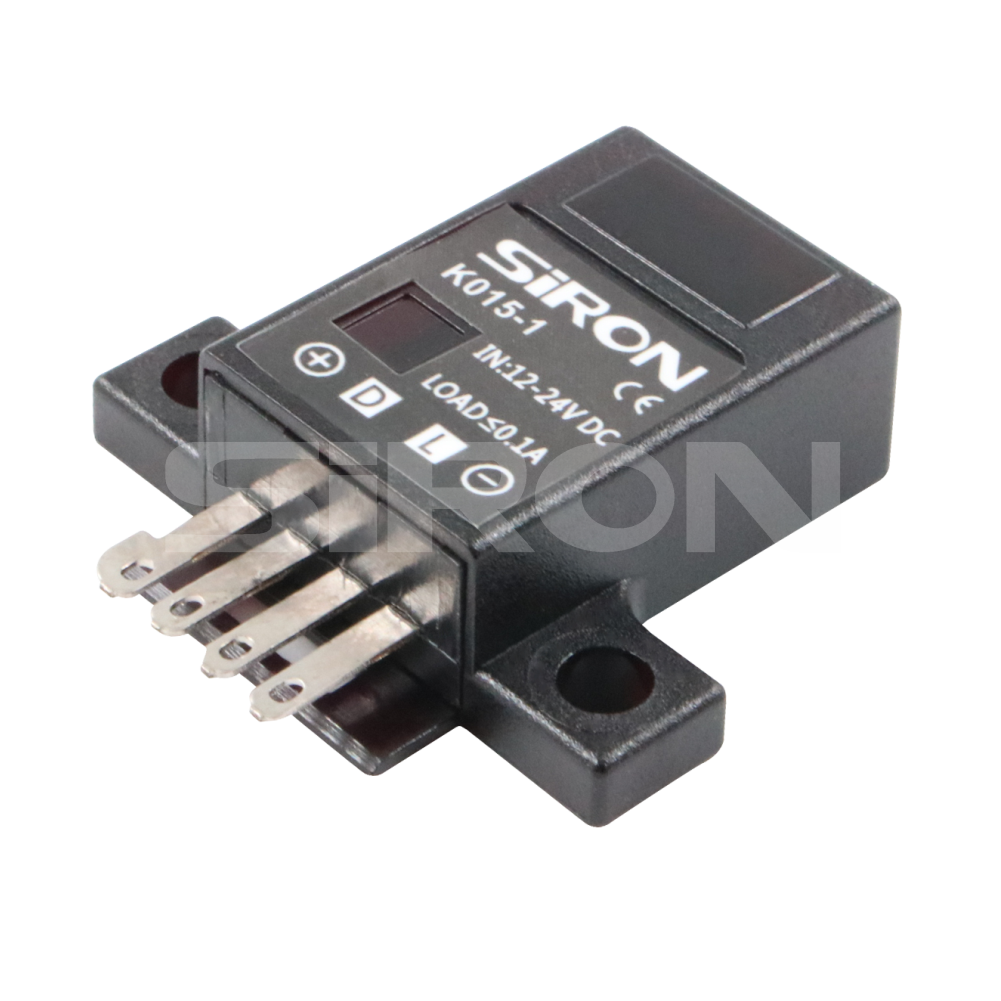

Model	NPN	K015-1	K015-2
	PNP	K015-1P	K015-2P
Detection surface		front	head
Appearance
Detection method		diffuse reflection
Detection distance		4 0 m m ( White paper )
Output mode		NPN/PNP open-collector
Switch mode		L.on(light-entering action)/D.on(light-blocking action) can be switched
Response time		<1ms
light source		infrared LED (940nm)
Operating Voltage		12~24V DC
Current consumption		<25mA
Load current		<100mA (24V DC)
Ambient temperature		- 20～+45℃,no freezing
environment humidity		3 5 % ～ 8 5 % R H , no condensation
Dielectric strength		>20MQ/500V DC
Withstand voltage		1000V/AC     50/60Hz     1min
Material		PC
Way out		4-core plug-in type
weight		≈3g

Example

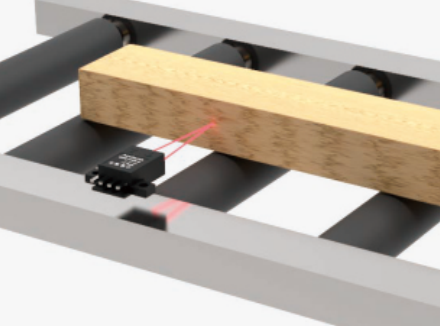

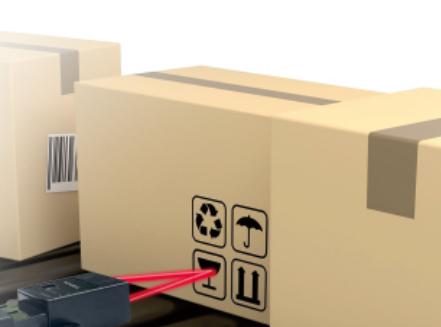

Detect the positioning and passage of objects                            wood inspection

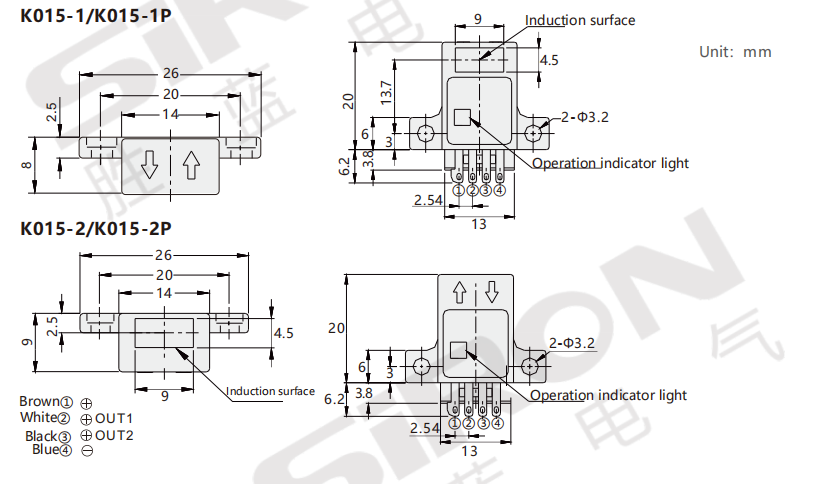

Dimension

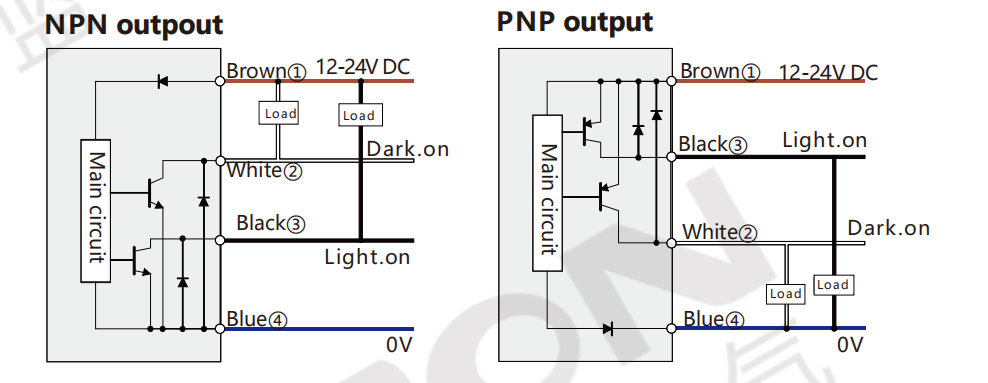

Wiring diagram
