SiRON K014-91 Series Liquid Level Sensor IP50

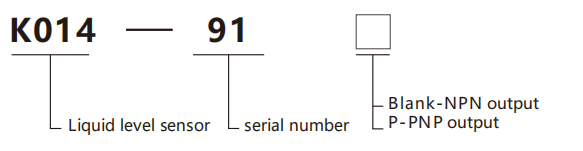

About selection

 Selection example: K014-91  indicates the K014 series, serial number 91, with NPN output;

                                      K014-91P indicates the K014 series, serial number 91, with PNP output.

Specifications

Name		Liquid level sensor
Model	NPN	K014-91
	PNP	K014-91P

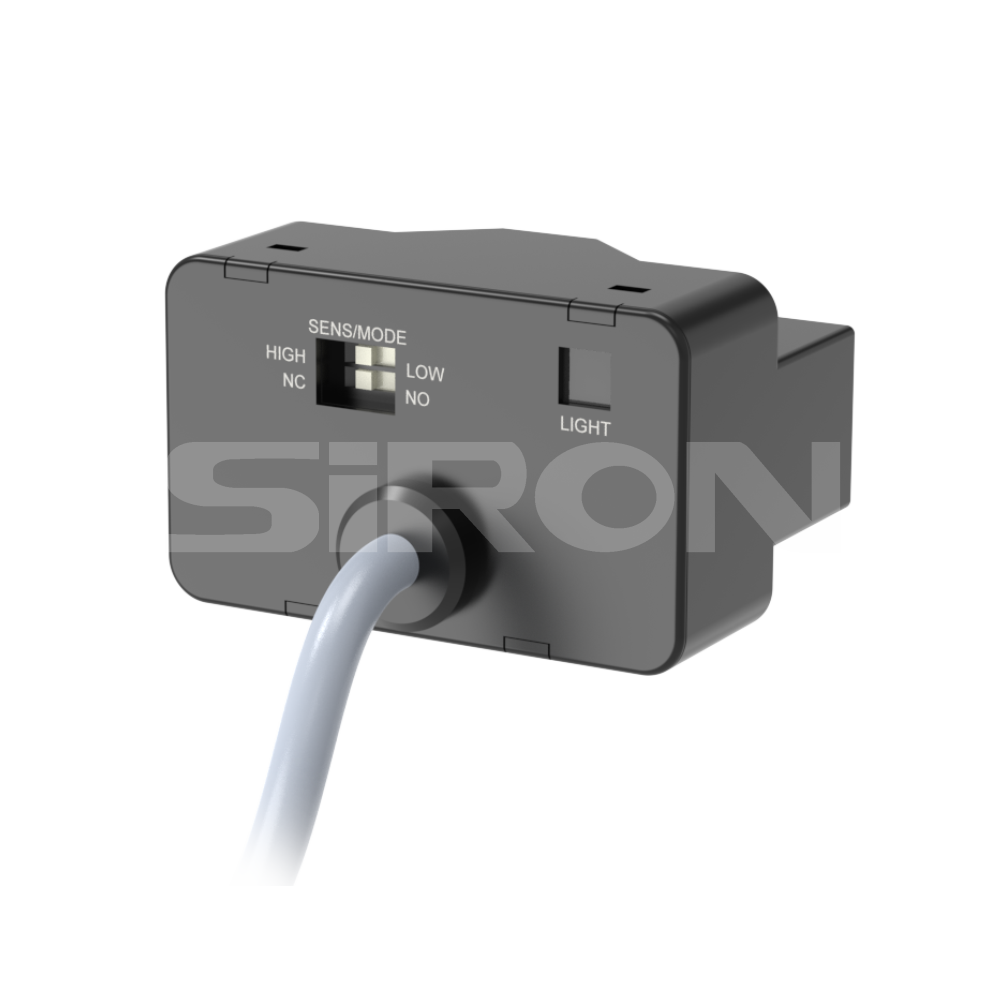

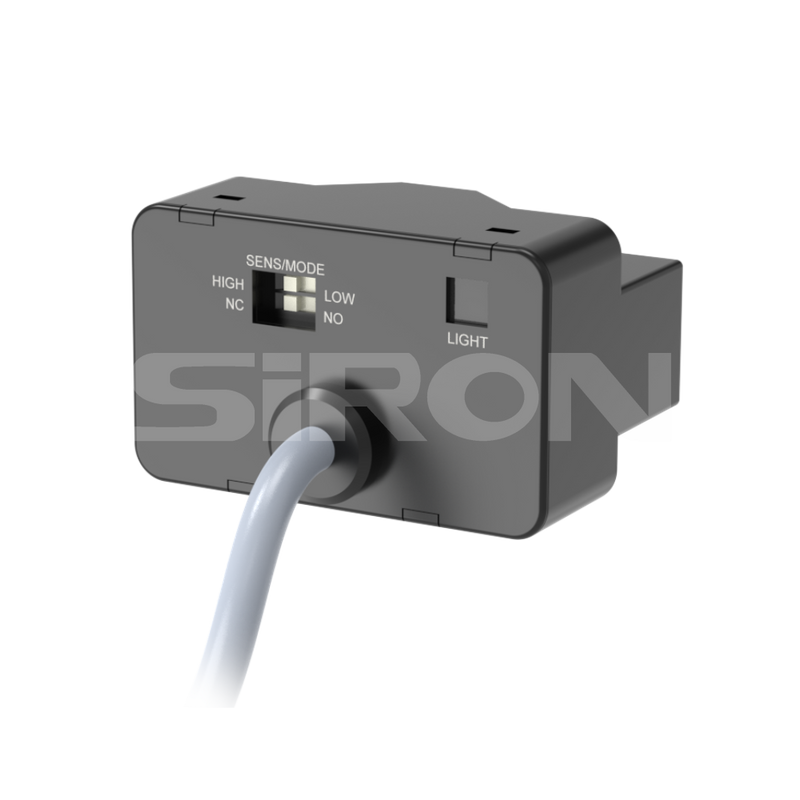

Appearance
Suitable pipe		Transparent tubes with an outer diameter of 6 to 13mm(a thickness of 1mm)
Standard test object		The liquid in the catheter
Operating voltage		10～30VDC
Voltage fuctuation		≤10%
No-load current		<25mA
Maximum load curent		100mA
Voltage drop		≤1V(I=100mA)
Light source		infrared ray(950nm)
Outpu mode		NO/NC
Output indication		yellow LED
Reverse polarity protection		YES
Short circuit protection		YES
Operating temperature		-40～+70℃((No condensation or frosting)
Use ambient illumination		Incandescent lamp. Sunlight: 3000Lux
Shell materia		polycarbonate
Protection class		IP50
Cable		PVC
Cable length		2M

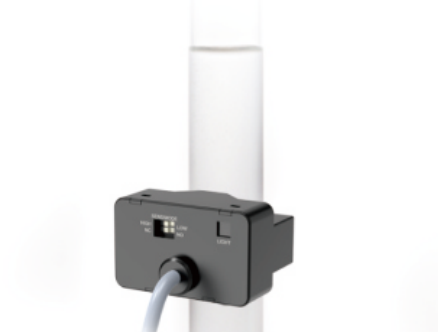

Example

  Detect the liquid in the pipeline                                                  Detect the liquid in the pipeline

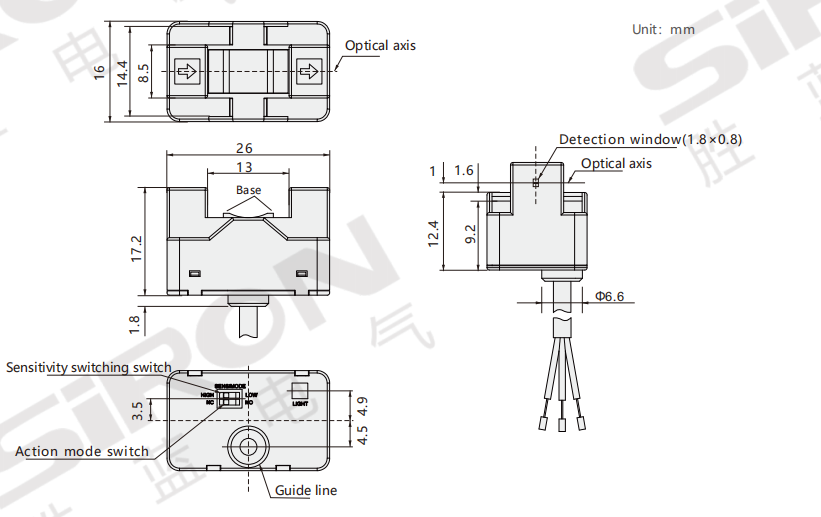

Dimension

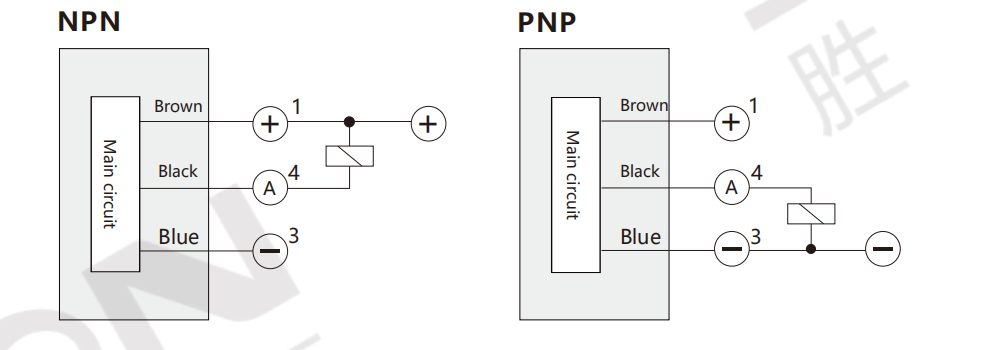

Wiring diagram
