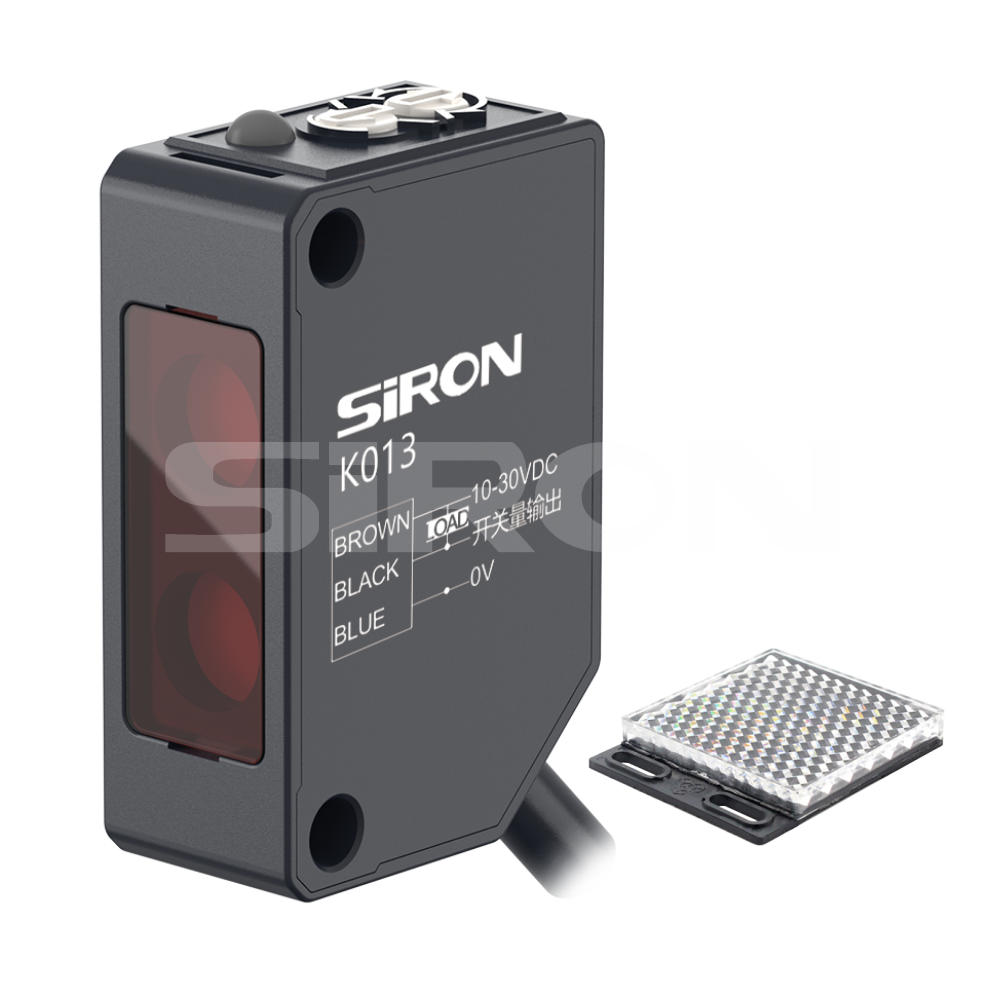

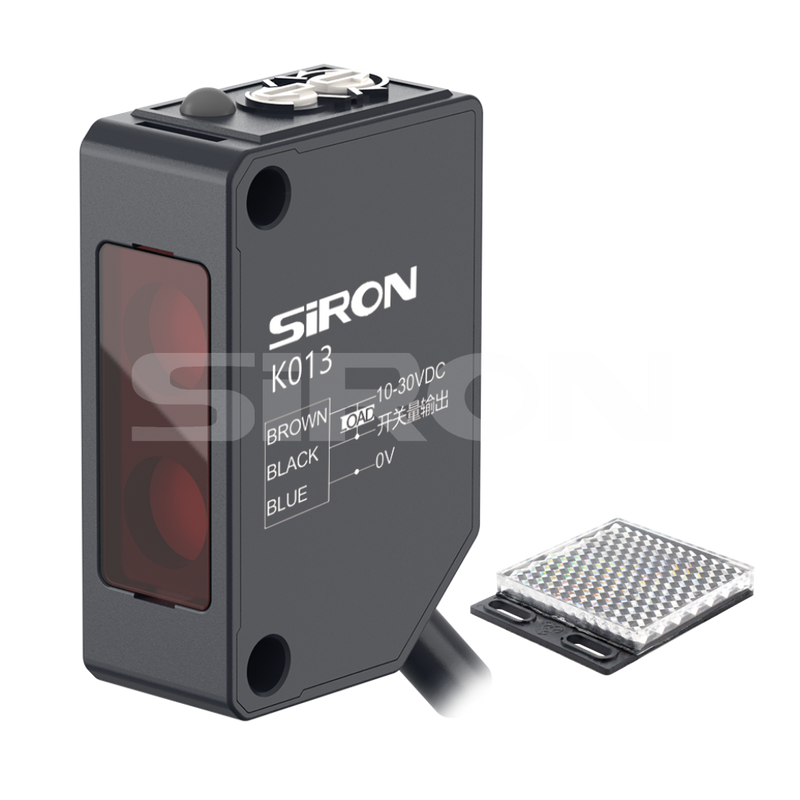

SiRON K013 Series Photoelectric Sensor Regression Reflection Type IP67

About selection

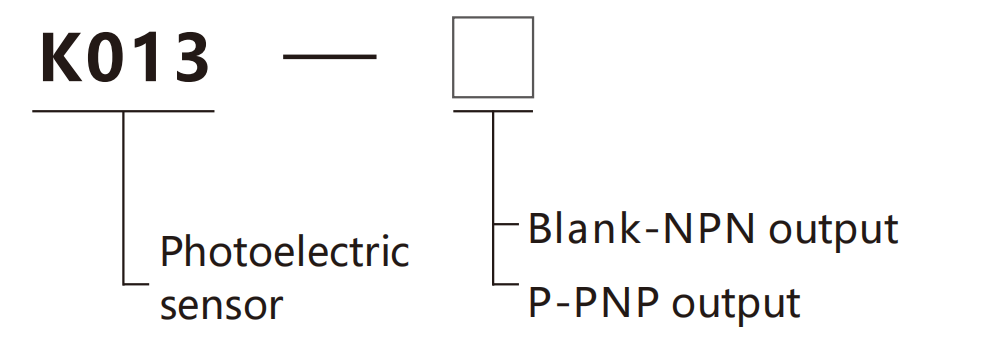

 Selection example: K013 indicates the K013 series, with NPN output;

                                         K013P indicates the K013 series, with PNP output.

Specifications

Name		Photoelectric sensor
Model	NPN	K013
	PNP	K013-P
Types of		Regression reflection (transparent object detection)
Appearance
Detection distance		0-200cm
Spot size		φ60mm/200cm
Lndicator light		Output indicator light: Orange (coaxial beam)
Response time		0.5ms
Light source		Red light LED(660nm)
Operating Voltage		10~30V     Dc±10%
Current consumption		≤20mA
Protection level		IP67
Cable		3-core cable
Material		Shell: Containing glass fiber ABS; Camera: PM MA
Output mode		NPN or PNP open collector, ≤100mA (30V DC)
Switch mode		Lon(light entry action)/D.on(light blocking action) can be switched
Ambient luminosity		Sunlight exposure ≤ 10,000 lux, incandescent lamp exposure ≤ 3,000 lux
Ambient temperature		- 25℃~+55℃,No freezing
Environment humidity		3 5 % ~ 8 5 % R H , No coagulation
Cable length		2M

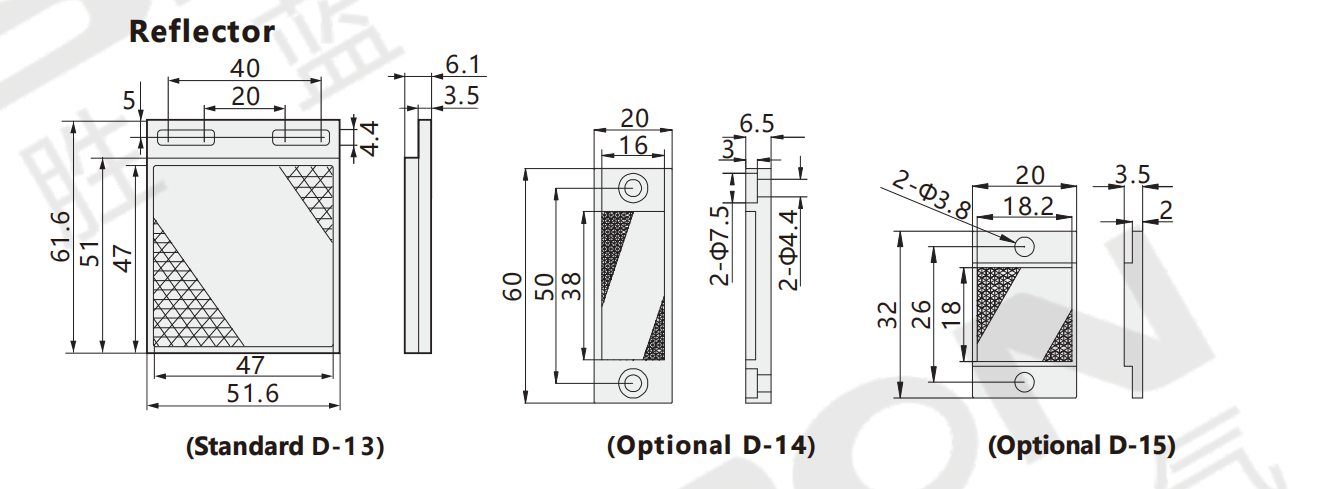

Example

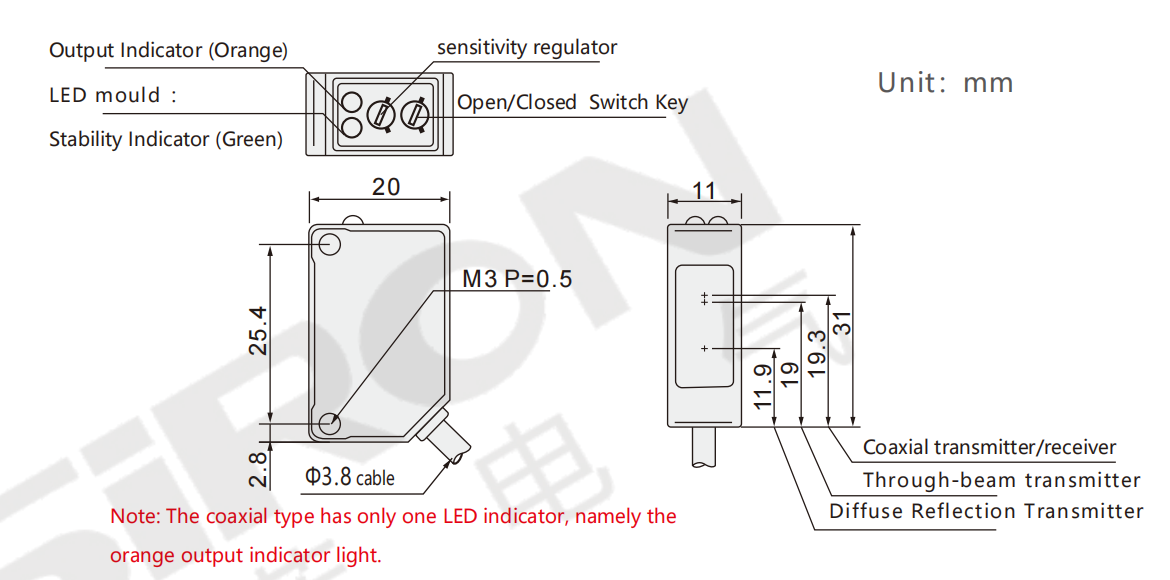

Dimension

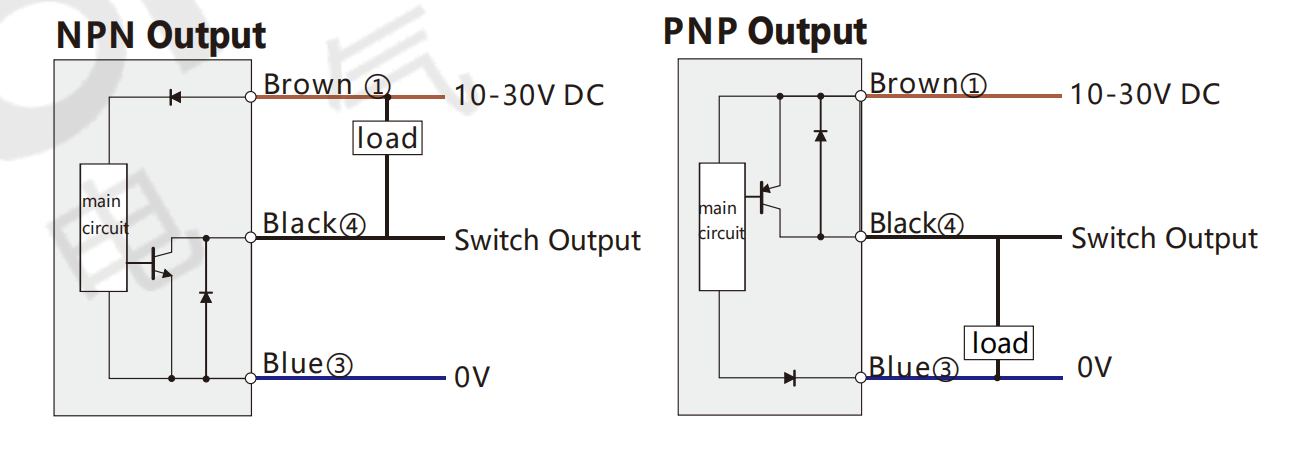

Wiring diagram
