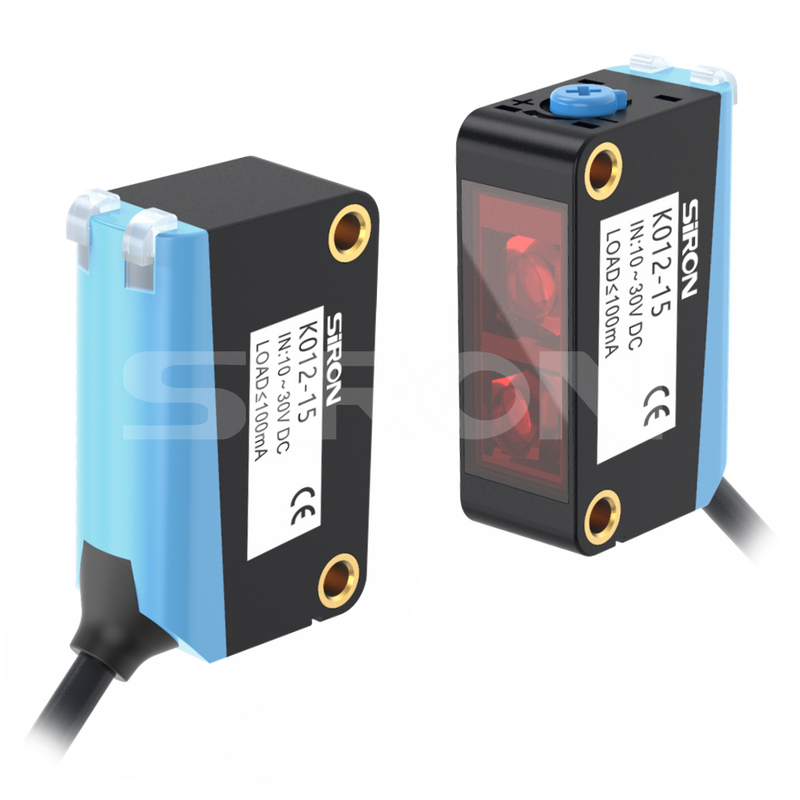

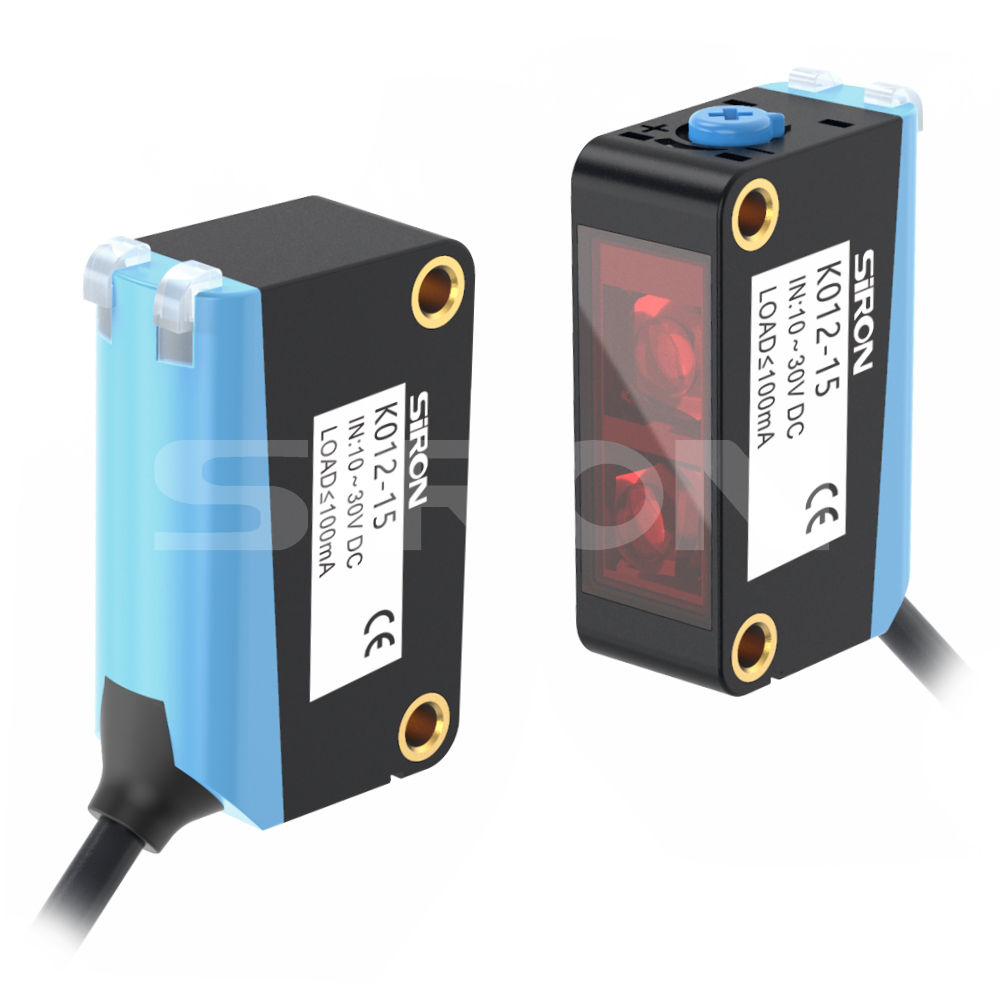

SiRON K012-15 Series Photoelectric Sensor Opposite Type IP65

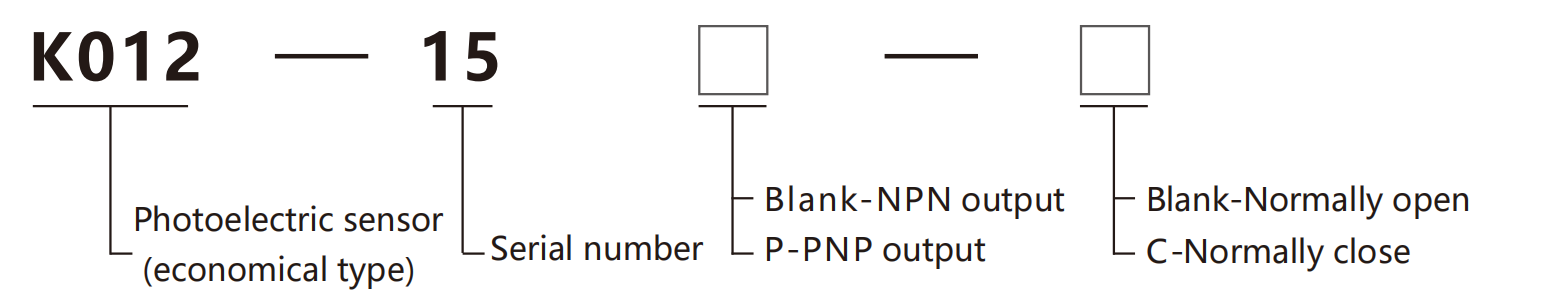

About selection

 Selection example: K012-15 indicates the K012 series, serial number 15, with NPN output，normally open;

                                         K012-15P-C indicates the K012 series, serial number 15, with PNP output，normally off.

Note: National standard installation hole positions.

Specifications

Name	Photoelectric sensor(economical type)
Model	K012-15	K012-15C	K012-15P	K012-15P-C
Mode of output	NPN    N.O	NPN    N.C	PNPN.O	PNP    N.C
Type	Opposite
Appearance
Detection distance	5m
Switching frequency	500Hz
Operating voltage	10~30V      DC
Type of light	Red light 6 5 0 n m
Reaction time	<2ms
Load current	100mA
Power-on delay	<300ms
Sensitive regulation	Single-turn potentiometer
Light interference resistance	<5000lux
Protection class	IP65
Ambient temperature	-25～55℃
Ambient humidity	35～85%
Shell matenal	ABS
Lens material	PC
LED indication	Output: Yellow; Power supply: Green
Cablelength	2M
Interface	PVC cable Receiving end: 3×0.18mm ⊃2; / Transmitting end: 2×0.25mm ⊃2;

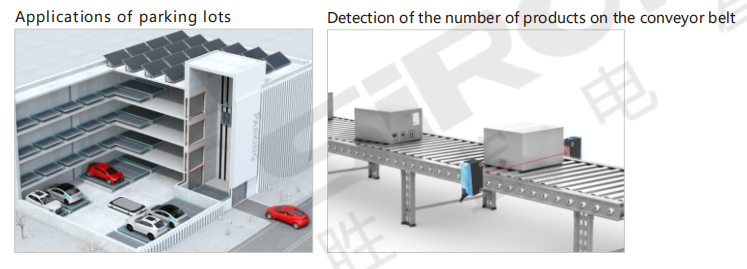

Example

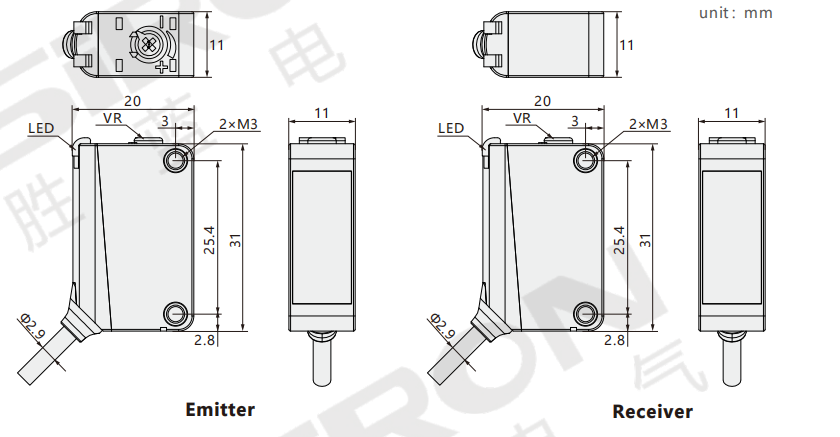

Dimension

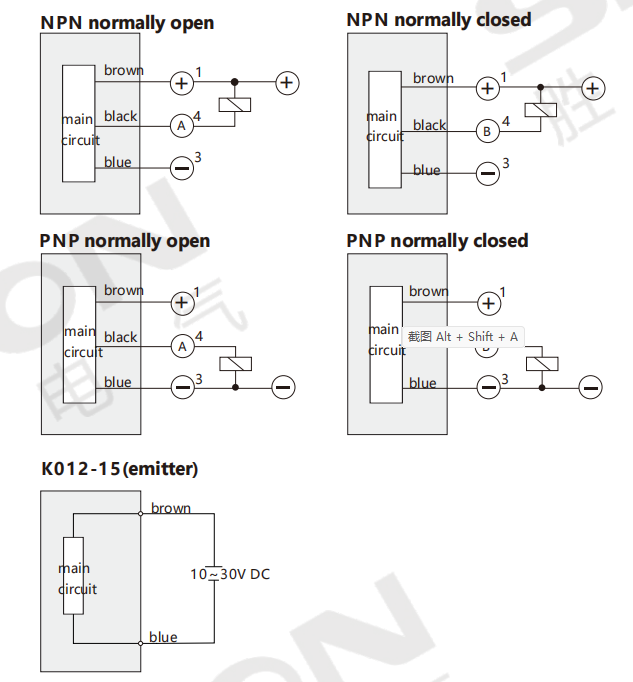

Wiring diagram
