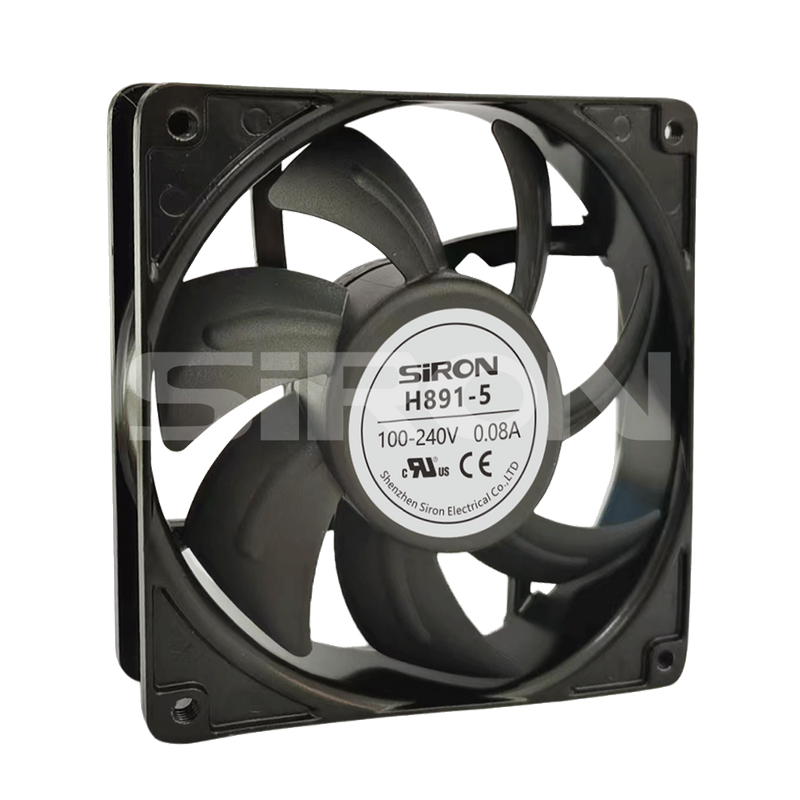

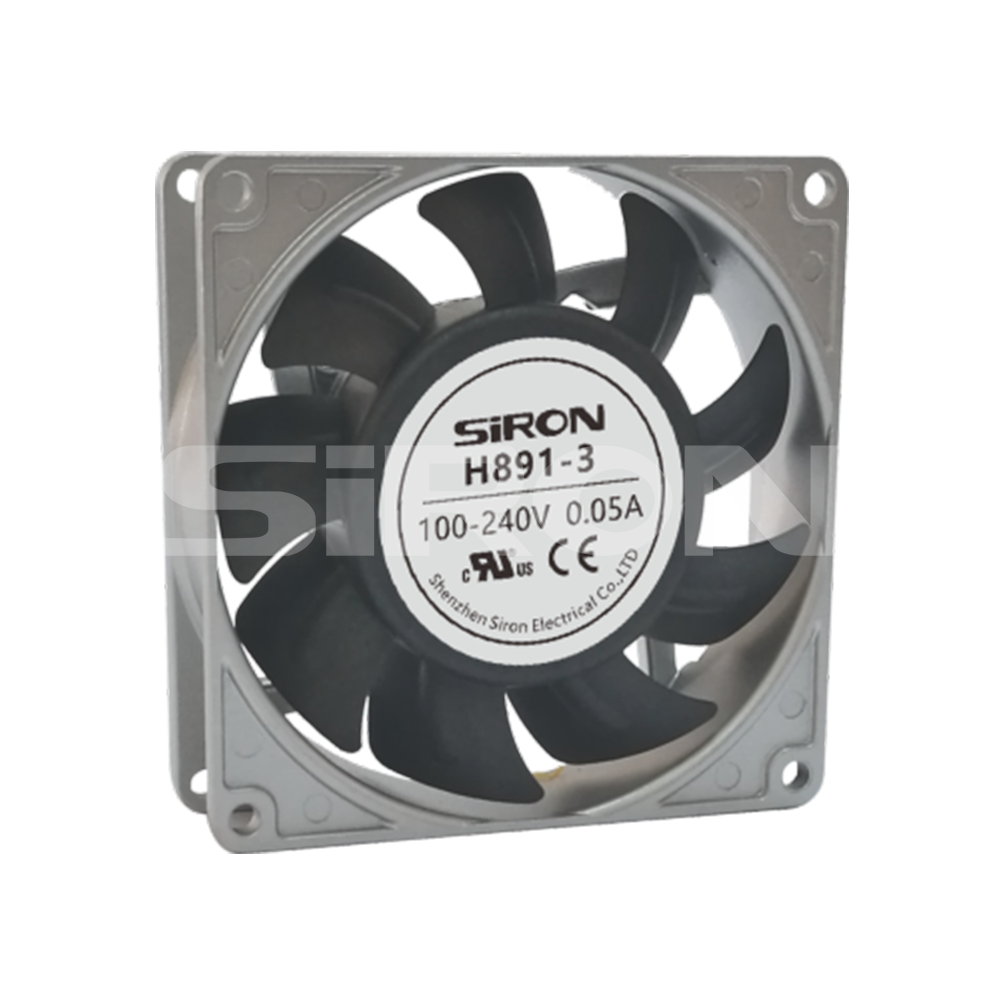

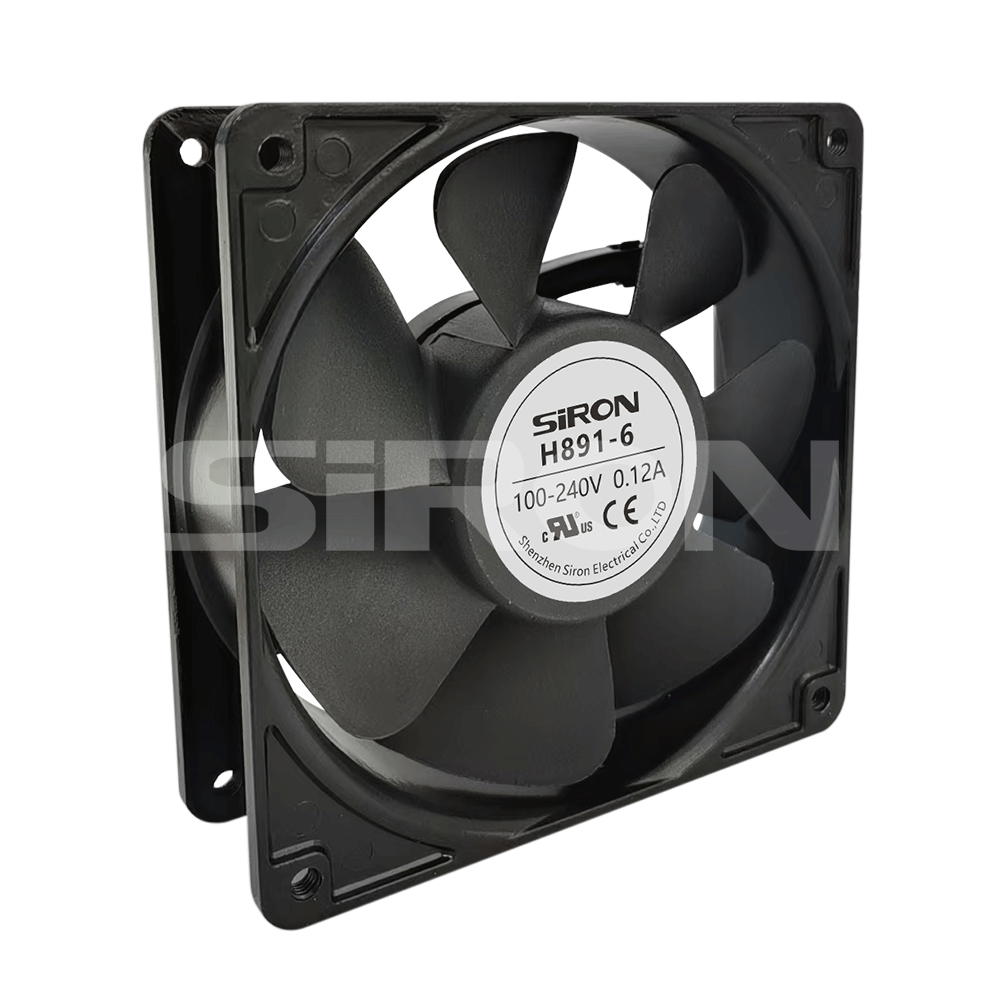

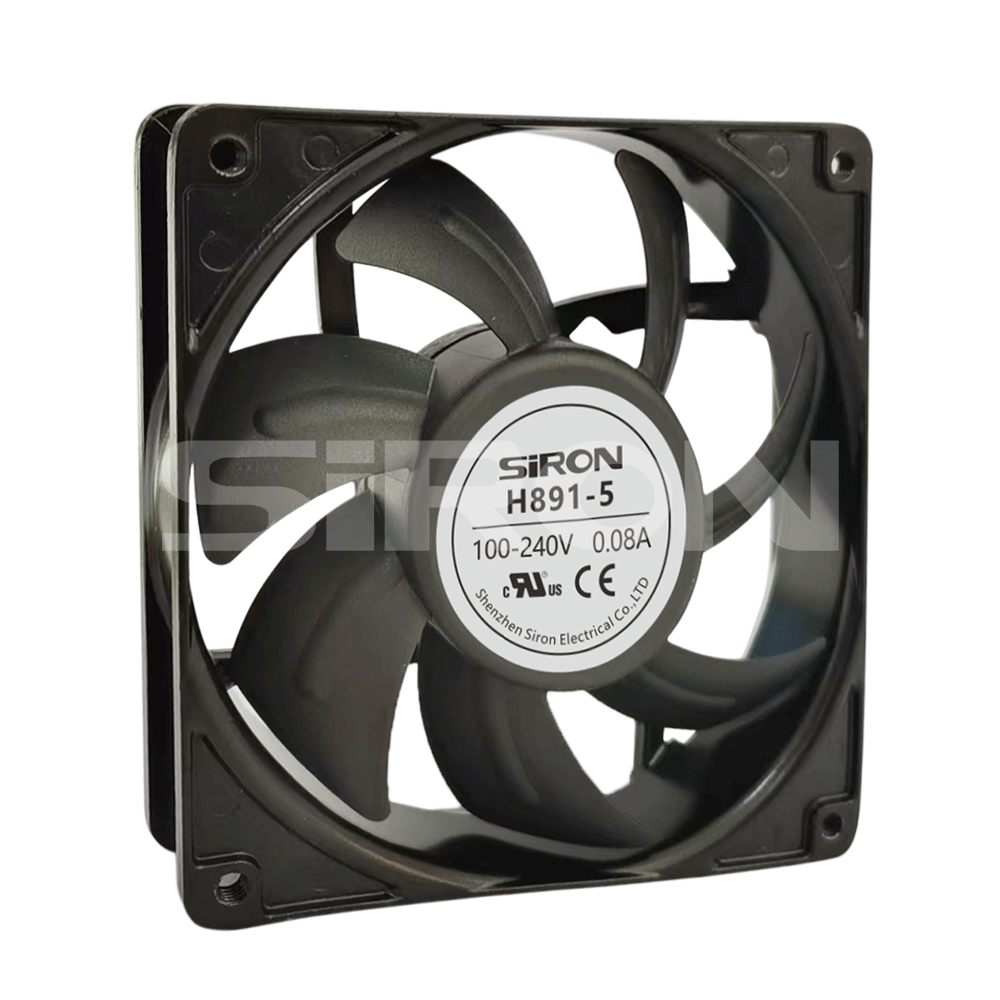

SiRON H891 Series EC Energy-saving Type Ac Axial Fan

Name: SiRON H891 Series EC Energy-saving Type Ac Axial Fan
Brand: SiRON
Rating: 5.0 (40 reviews)

Features

The inner coil of the fan adopts the automatic winding process of pure copper wire, which has low energyconsumption,sufficient power and is not easy to heat;
The surface of the aluminum alloy shell is oxidized, hard and high temperature resistant, anti-corrosion andrust-proof.
Ball bearing dynamic balance calibration, low noise, not easy to vibrate after long-term use, and large air
volume.
Hard PBT material fan blades, large air volume, not easy to damage, low noise and mute,
High efficiency andenergy saving,durable:
Filter grade G3, for 5um dust particles,efficiency 85%;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

Order

风扇4

Note: If you need other voltages, please consult the salesperson.

Specification

Model	H891-3	H891-5	H891-6
Side length	92×92	120×120	120×120
Thickness	25mm	25mm	38mm
Voltage	100-240V
Rated current	0.05A	0.08A	0.12A
Rated input power	5W	6W	12W
(RPM)	3300	3000	4000
(CFM)	60	75	166
(mm-H2O)	4.3	5.7	13.5
(Db[A])	38	40	60
Weight	186	210	310
Frequency	50/60
Wiring	Lead-wire type
Frame	Aluminum alloy
Impeller	PBT+30%GF
Bearing System	Ball bearing/ball bearing
Motor	shaded pole motor
Insulation Resistance	100MΩabove， DC 500V
Dielectric withstand voltage	AC 700V 1 minute
Operating Temperature	Ball： -30℃~70℃
Life Expectancy	Ball：≥50,000hr(=25℃)

Fan accessories selection

Plastic filter screen size table
