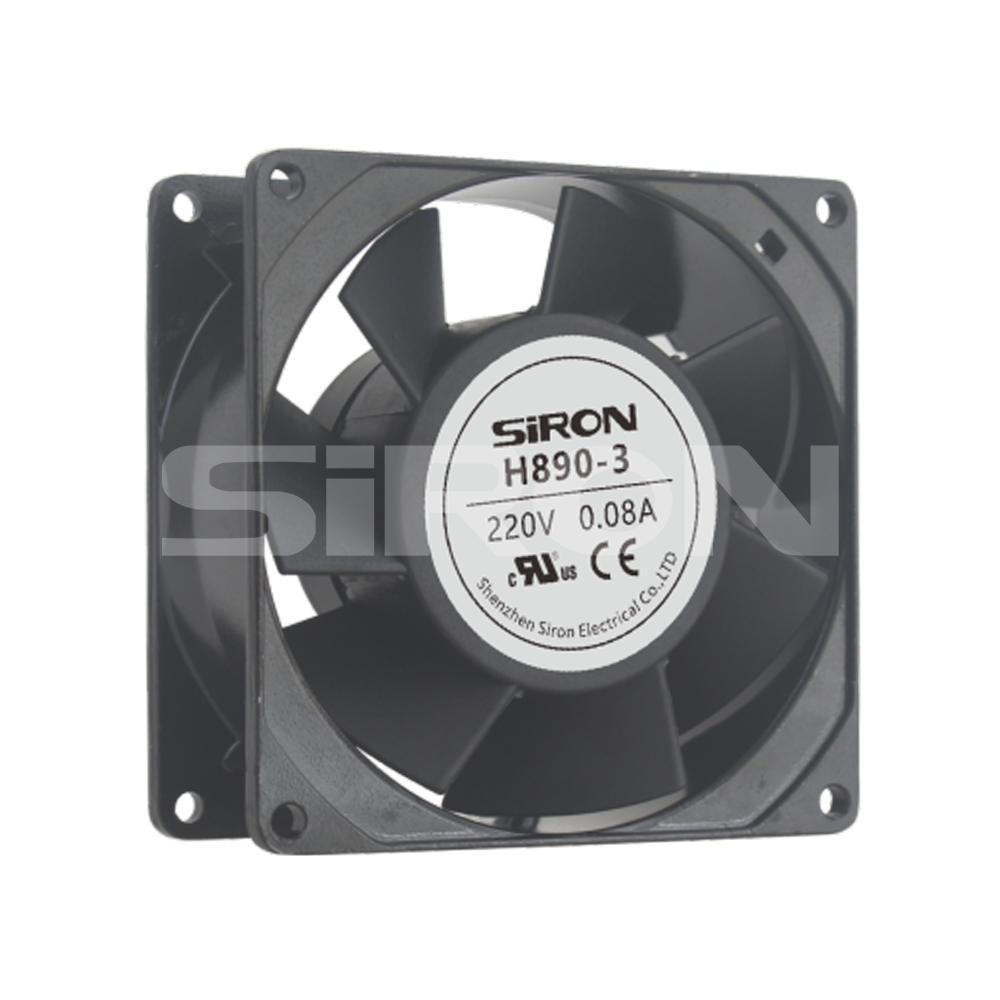

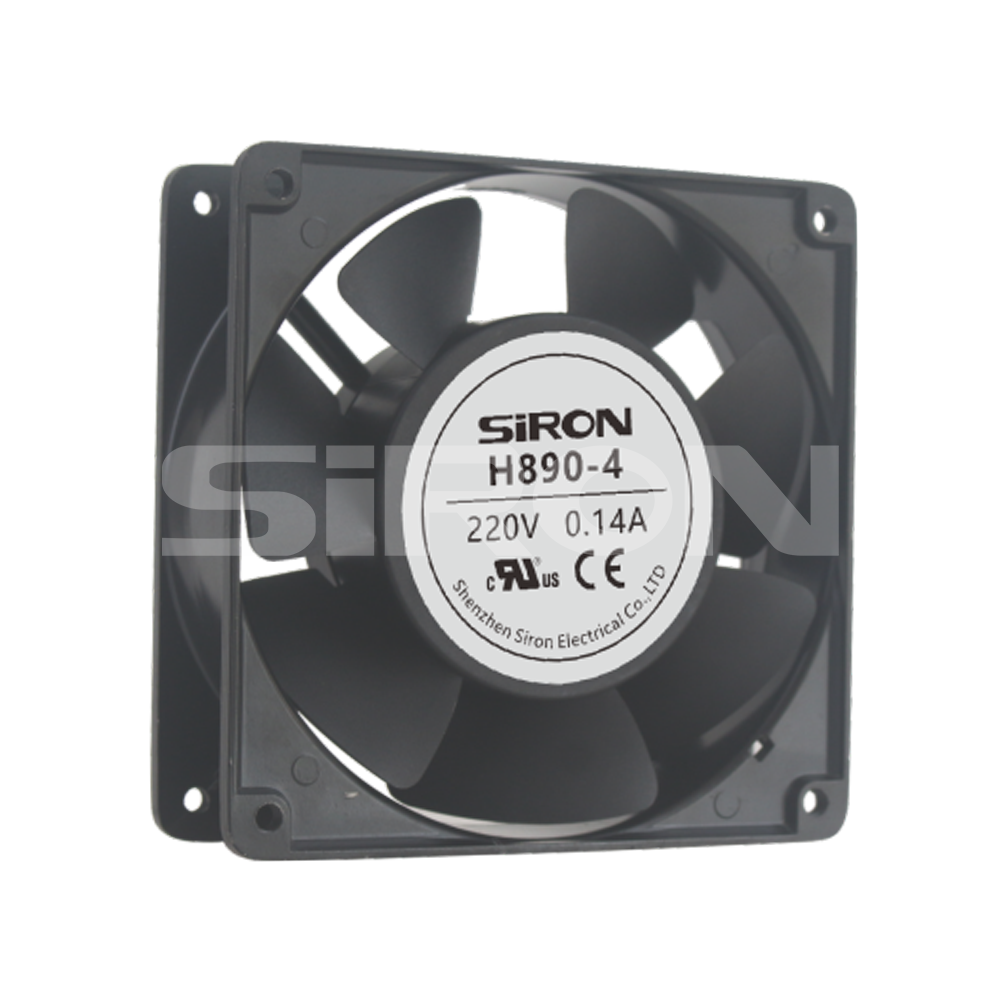

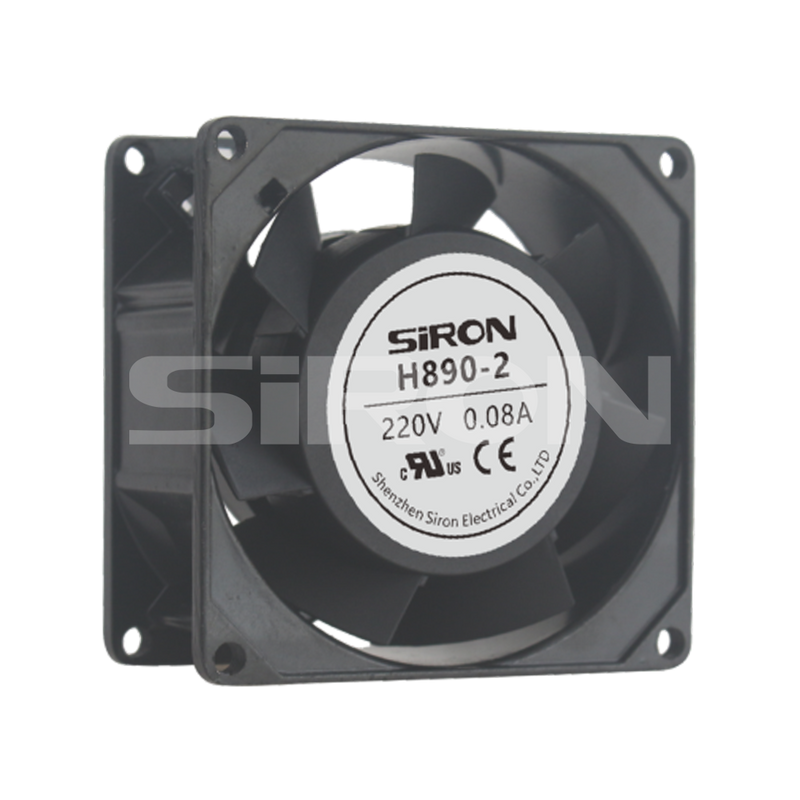

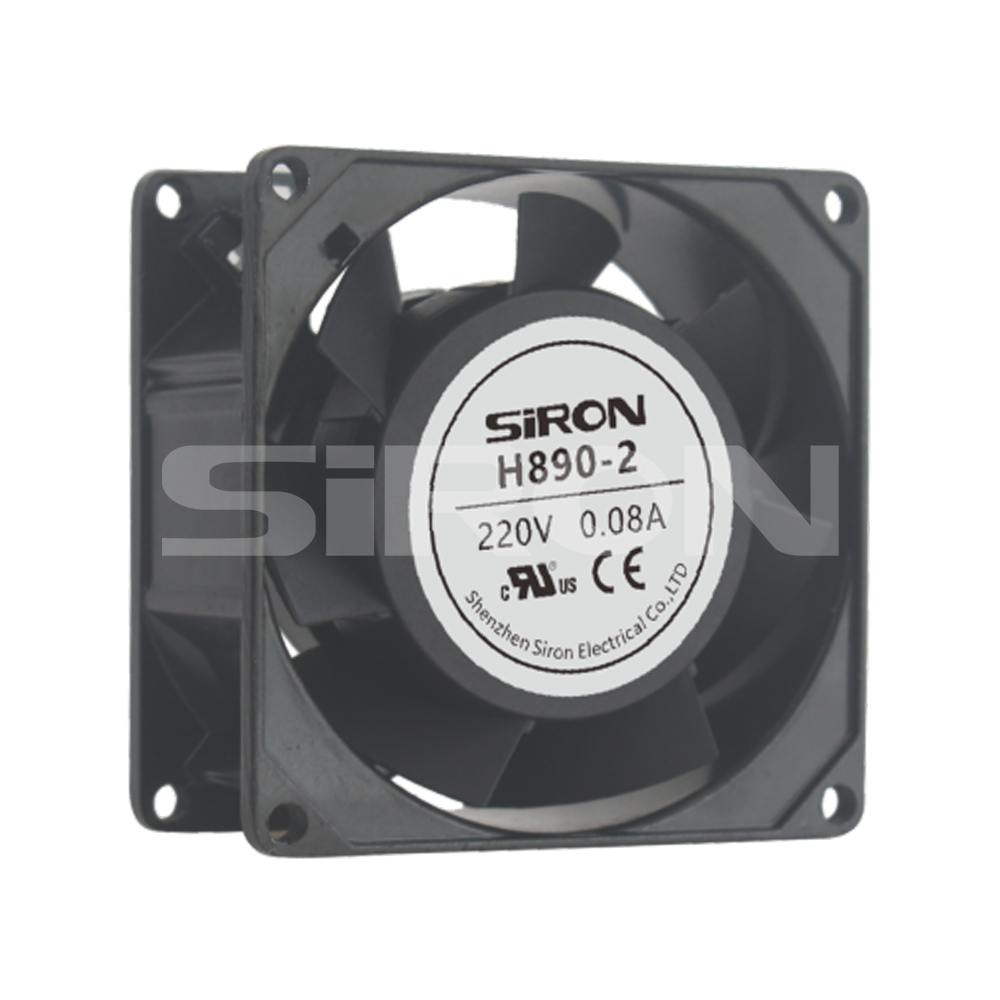

SiRON H890 Series Universal Type Ac Axial Fan

Name: SiRON H890 Series Universal Type Ac Axial Fan
Brand: SiRON
Rating: 5.0 (71 reviews)

Features

The inner coil of the fan adopts the automatic winding process of pure copper wire, which has low energyconsumption,sufficient power and is not easy to heat;
The surface of the aluminum alloy shell is oxidized, hard and high temperature resistant, anti-corrosion and rust-proof.
Ball bearing dynamic balance calibration, low noise, not easy to vibrate after long-term use, and large air volume.
Hard PBT material fan blades, large air volume, not easy to damage, low noise and mute,Filter grade G3, for 5um dust particles, efficiency 85%

Product Description

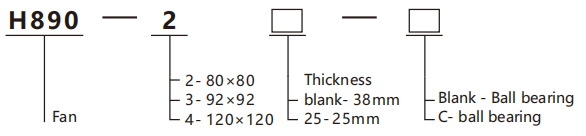

Order

风扇1

Note: If you need other voltages, please consult the salesperson.

Specification

Model	Thickness	38mm	H890-2	H890-3	H890-4
		25mm	H890-225	H890-325	H890-425
Side length			80×80	92×92	120×120
Voitage			220V
Current			0.08A	0.08A	0.14A
Rated input power			17/15W	17/15W	23/21W
(RPM)			2400/2800	2400/2800	2600/3000
(CFM)			23/28	39/46	98/112
(mm-H2O)			2.8/4.4	3.6/5.2	7.3/9.2
(Db[A])			34/36	34/36	40/45
Weight			290	340	560
Frequency			50/60
Wiring			Lead-wire type
Frame			Aluminum alloy
Impeller			PBT+30%GF
Bearing System			Ball bearing/ball bearing
Motor			shaded pole motor
Insulation Resistance			100MΩabove， DC 500V
Dielectric withstand voltage			AC1500V(50/60 Hz)1 minute
Operating Temperature			Ball： -30℃~70℃
Life Expectancy			Ball：≥50,000hr(=25℃)

Fan accessories selection

Plastic filter screen size table
