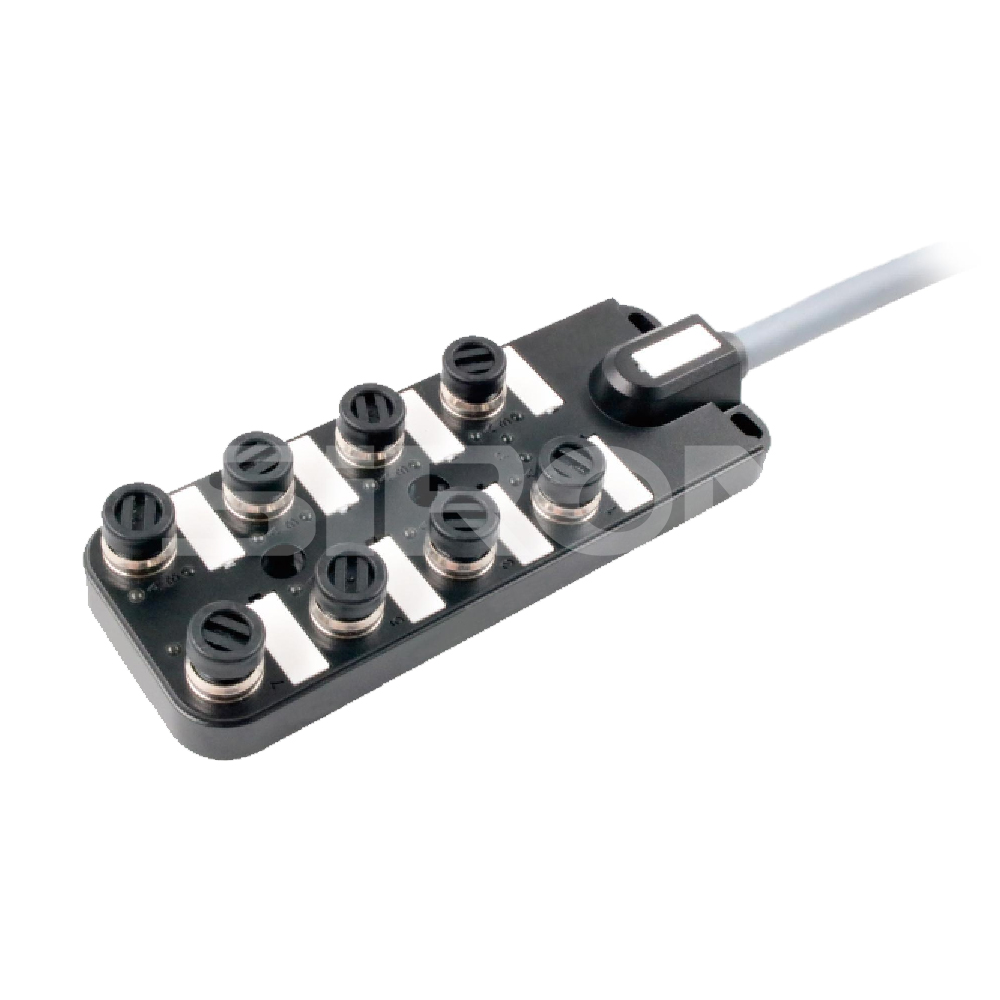

H422-M12
SiRON
8538900000
Order
| Model | Port |
| H422 | M12 |
Specifications
| Model | H422-M12 | H422-M12-P |
| Output function | Single-signal | |
| Outpu type | NPN | PNP |
| Connection specifications | M 12 hole end 4 cores | |
| Connection method | Thread M12 × 1 | |
| Supply voltage | 10～30V DC(Standard24VDC) | |
| Power Indicator | Green LED | |
| Number of I/O channels | 8 | |
| Output point | 1 | |
| Output indicator | Yellow LED | |
| Supply current | Max.2A | |
| Current parameter | Max.8A | |
| Shell material | Plastic (flame-retardant material）PC+ABS | |
| Protection level | Ip67 | |
| Temperature range | -40～+80℃ | |
| Impedance | Excellent resistance to chemicals and oils | |
| Cable material | Standard P U R | |
| Standard wiring length | 3m | |
4-pin connector
| Model | H422 - A5 |
| Stitch count | 4 |
| Wire diameter | 4 ～ 6 mm |
| Rated current/voltage | 4A/60V |
| Temperature range | - 25 ～ 85 ℃ |
| Protection grade | IP67 |
The cross-sectional area of the single-core cable connection is Max 0.75 mm². During the installation process, the length of the cable insulation that is stripped off is 20 mm, and the length of the wire that is stripped off is 5 mm.
