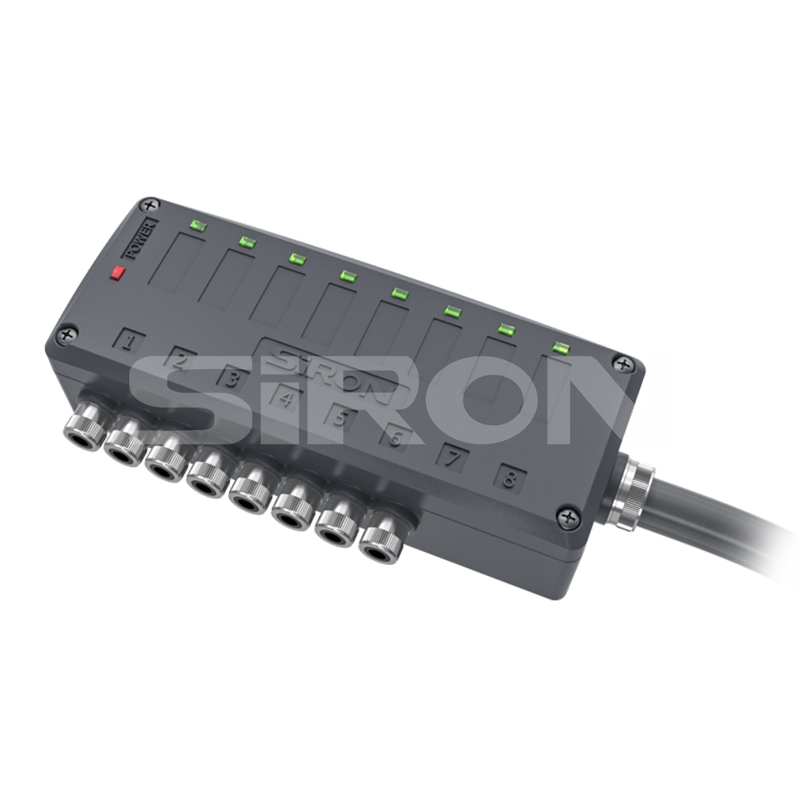

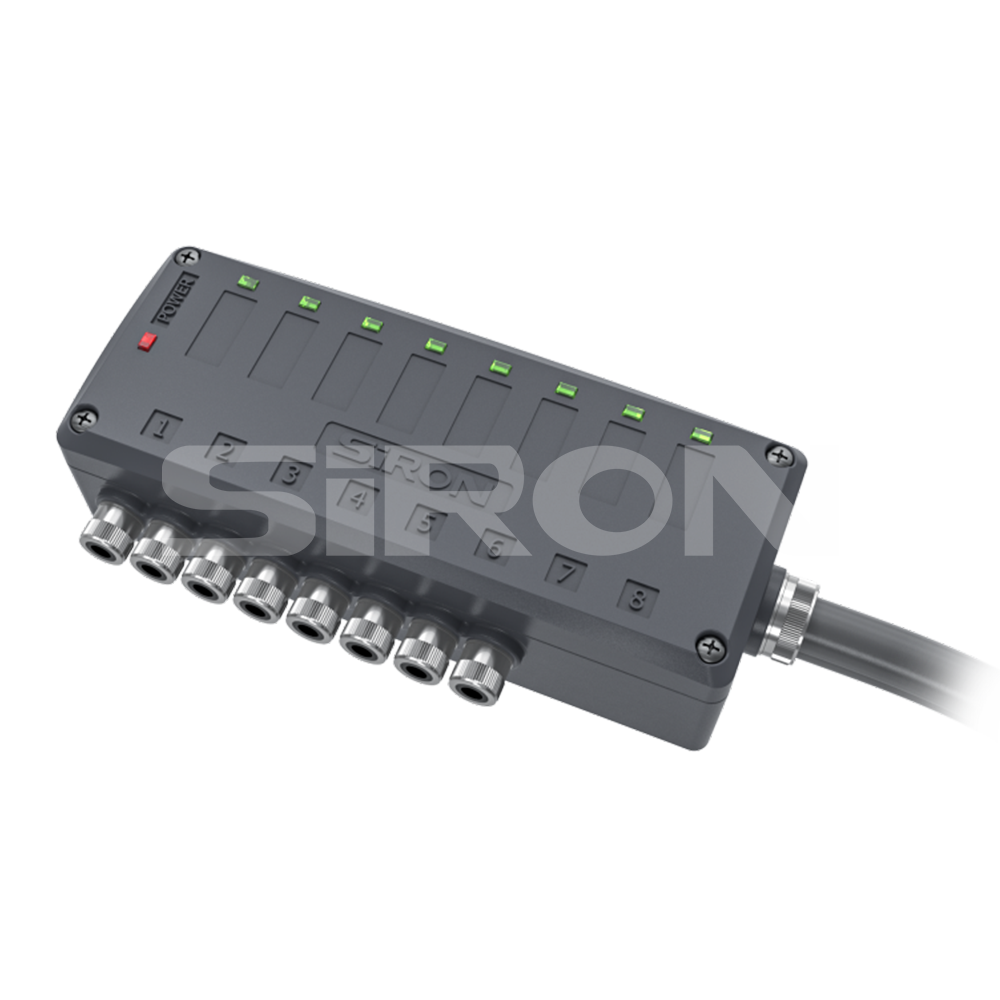

SiRON H421-8 Series NPN/PNP Convenient Junction Box

Name: SiRON H421-8 Series NPN/PNP Convenient Junction Box
Brand: SiRON
Rating: 5.0 (5 reviews)

Features

Sensor without special connector, LED lamp instant display working state, simple and intuitive.
NPN and PNP bipolar swappable.NPN -green light;
PNP - ared light.to the corresponding sensor cable size for:Ф2 3 Ф4 0(mm).

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

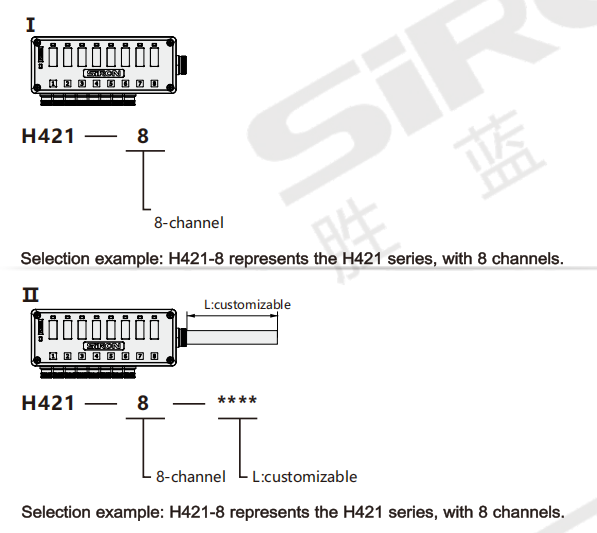

Order

企业微信截图_17551397971182

Note: Wired customization. For details, please consult our sales staff.

Specifications

Input	Nominal operating current	2A
Input	Nominal coil voltage	DC24V

Accessories

Name	Sealing ring at the incoming line end
Product drawing
Aperture	7.8mm	5.8mm
Cable diameter	0.3mm²	0.2mm²
Material	NBR50
Shrinkage rate	15%～25%
