SiRON H069 Series Φ16/Φ19/Φ22 Metal Emergency stop button

Name: SiRON H069 Series Φ16/Φ19/Φ22 Metal Emergency stop button
Brand: SiRON
Rating: 5.0 (50 reviews)

Features

The shell of metal button switch is made of metal material, which can enhance its beauty and diversify its appearance color;
The head is dustproof and waterproof, explosion-proof and corrosion-proof and its waterproof property is lp65,Explosion-proof performance lk08;
If welding connection is adopted, it is recommended to choose an appropriate electric soldering iron to speed up the welding30W soldering iron completed within 2 seconds at 320°C:

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

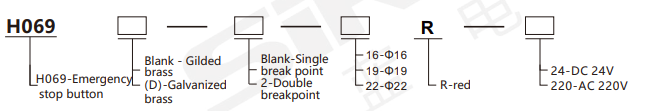

Order

c9a855be5b05ccc4038fcc489b6f2449

Pin definition

Symbol	Diagrammatic drawing	Equivalent circuit of lamp beads

Note: Single-break quick-acting switching contact switch with three terminals

Technical Features

Foot material	Gold-plated brass	H069-16R	H069-19R	H069-22R
	Brass galvanized	H069(D)-16R	H069(D)-19R	H069(D)-22R
Of the goods		Emergency stop button
Operation type		Push-lock rotary type
Switch rating		AC;5A/250V
Ambient temperature		-40℃~+80℃
Contact resistance		≤50MΩ
Insulation resistance		≥1000MΩ
Dielectric strength		AC1780V
Mechanical life		≥1000,000time
Electrical life		≥50,000time
Switch structure		Single-breakpoint quick-acting contact
Switch combination		1NO1NC
Surface explosion-proof grade		IK08(For metal materials)
Operating pressure		3～5N
Operating limits		3MM
Nut torque		5~14N
