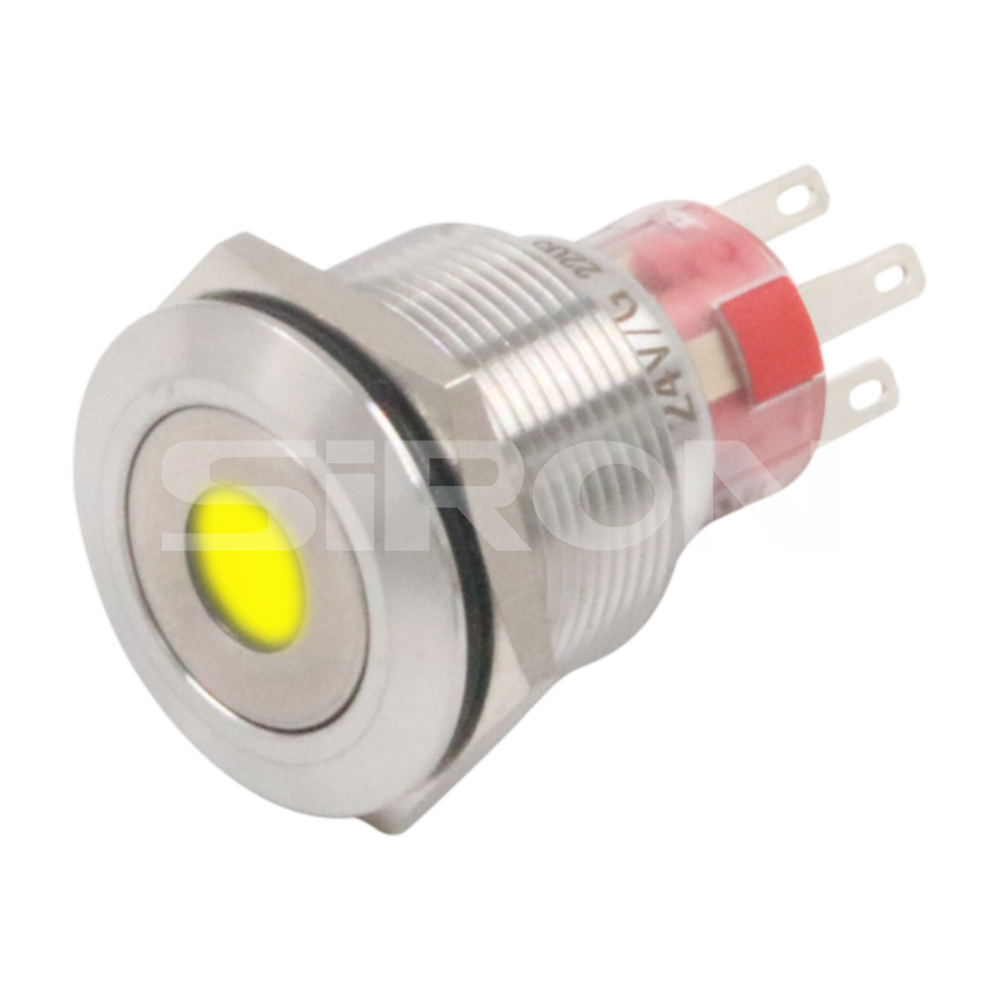

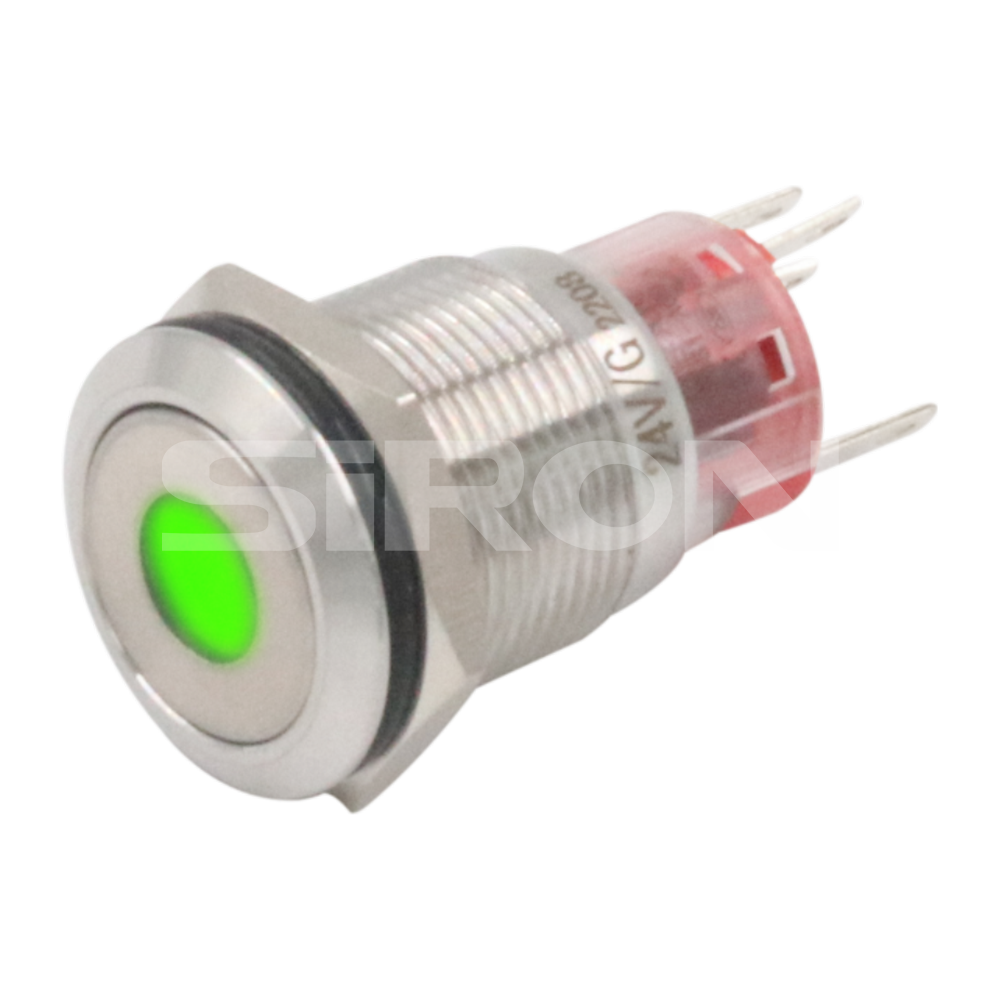

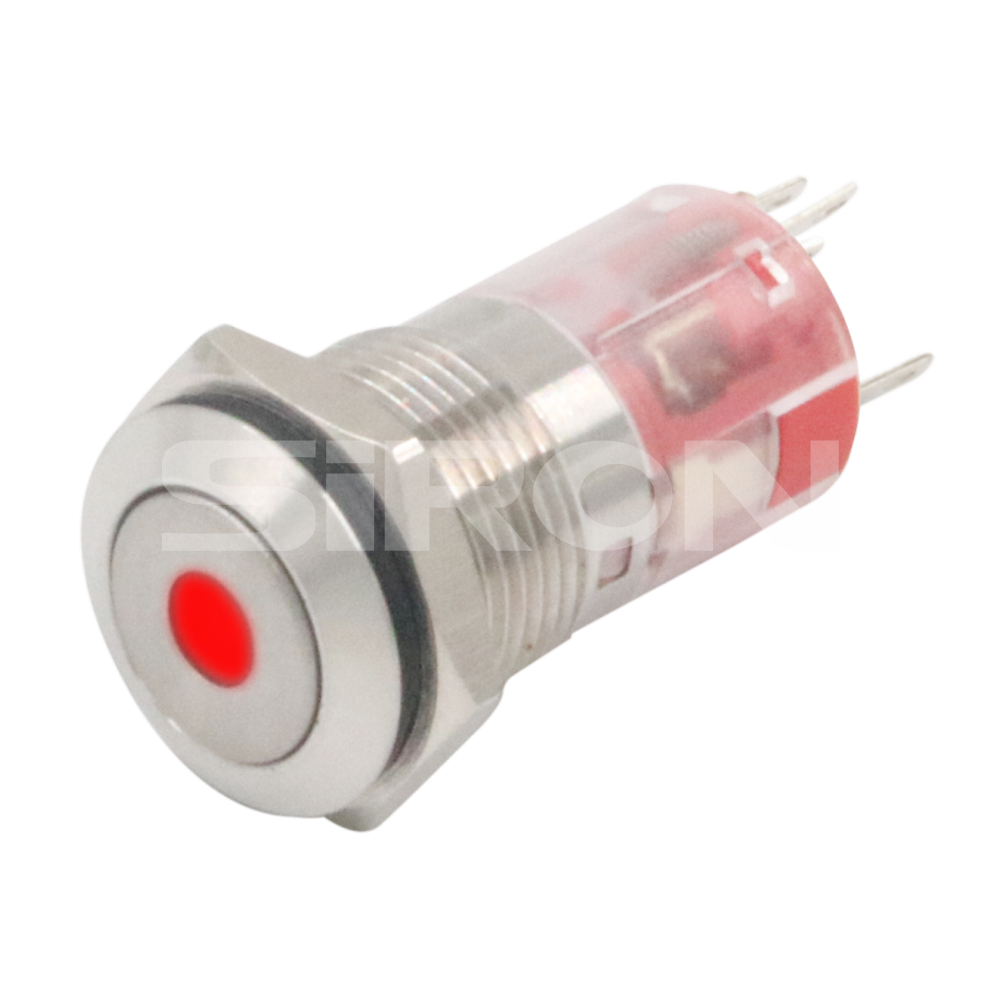

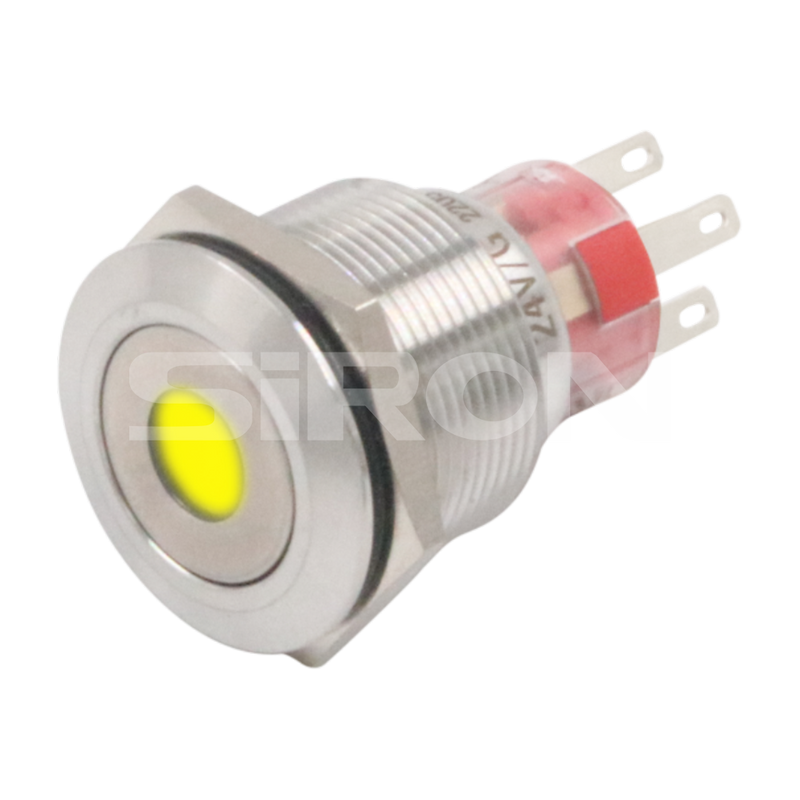

SiRON H060(D)-1/H061(D)-1 Series Φ16/Φ19/Φ22 Stainless Steel Metal Button

Name: SiRON H060(D)-1/H061(D)-1 Series Φ16/Φ19/Φ22 Stainless Steel Metal Button
Brand: SiRON
Rating: 5.0 (11 reviews)

Features

The shell of metal button switch is made of metal material, which can enhance its beauty and diversify its appearance color;
The head is dustproof and waterproof, explosion-proof and corrosion-proof and its waterproof property is lp65,Explosion-proof performance lk08;
If welding connection is adopted, it is recommended to choose an appropriate electric soldering iron to speed up the welding30W soldering iron completed within 2 seconds at 320°C:

Product Description

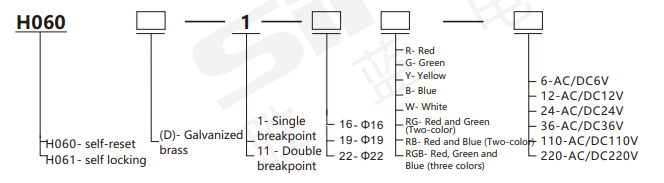

Order

88c62f735e885886b380a7f5e9f64c9d

Note: H061(D)-11-16R-24 indicates a self-locking type with brass zinc-coated welding pad, double break points, Φ16 red 24V button indicator light.

Pin definition

Symbol	Diagrammatic drawing	Equivalent circuit of lamp beads

Note: Single-break quick-acting switching contact switch with three terminals

Technical Features

Model number		H060(D)-1	H061(D)-1
Operation type		self-reset	self locking
Switch rating		AC;5A/250V
The environment temperature		-40℃~+80℃
Contact resistance		≤50MΩ
Insulation resistance		≥1000MΩ
Dielectric strength		AC1780V
Mechanical life		≥1000,000time
Electrical life		≥50,000time
Switch structure		Single-breakpoint quick-acting contact
Switch combination		1NO 1NC
Surface explosion-proof grade		IK08(For metal materials)
Operating pressure		3~5N
Operating limits		3MM
Nut torque		5~14N
Material	Shell	Nickel-plated brass/stainless steel
	Button	stainless steel
	Pedestal	Plastic base
	Contact	Aluminium alloy
LED lights	Lamp bead types	Bidirectional LED beads (AC/DC compatible)
	The rated voltage	6V/12V/24V/36V/110V/220V
	Rated current	about 1 5 m A
	life	50000Hours (reference value)
