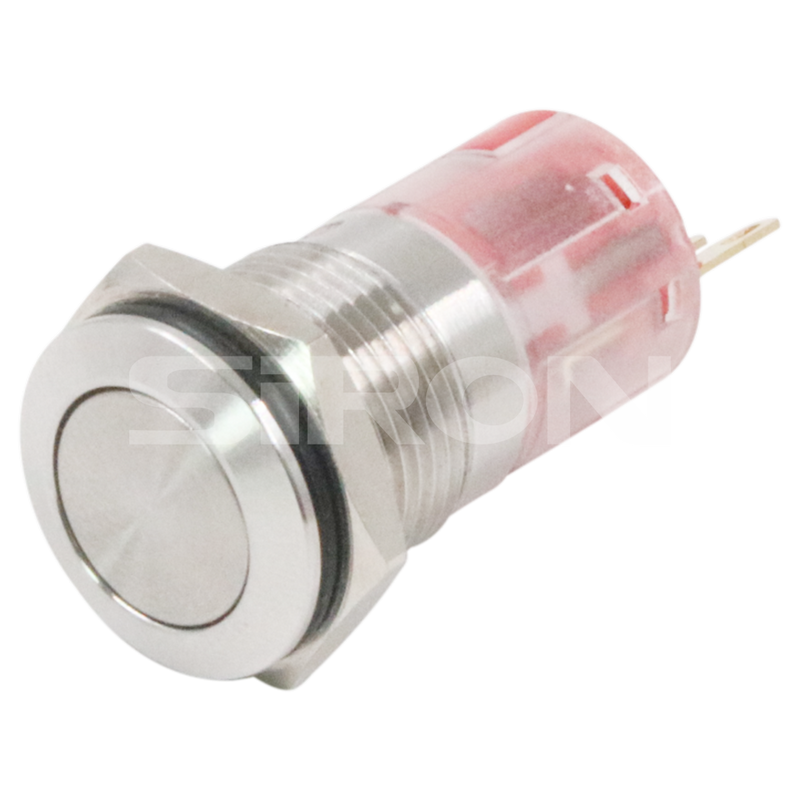

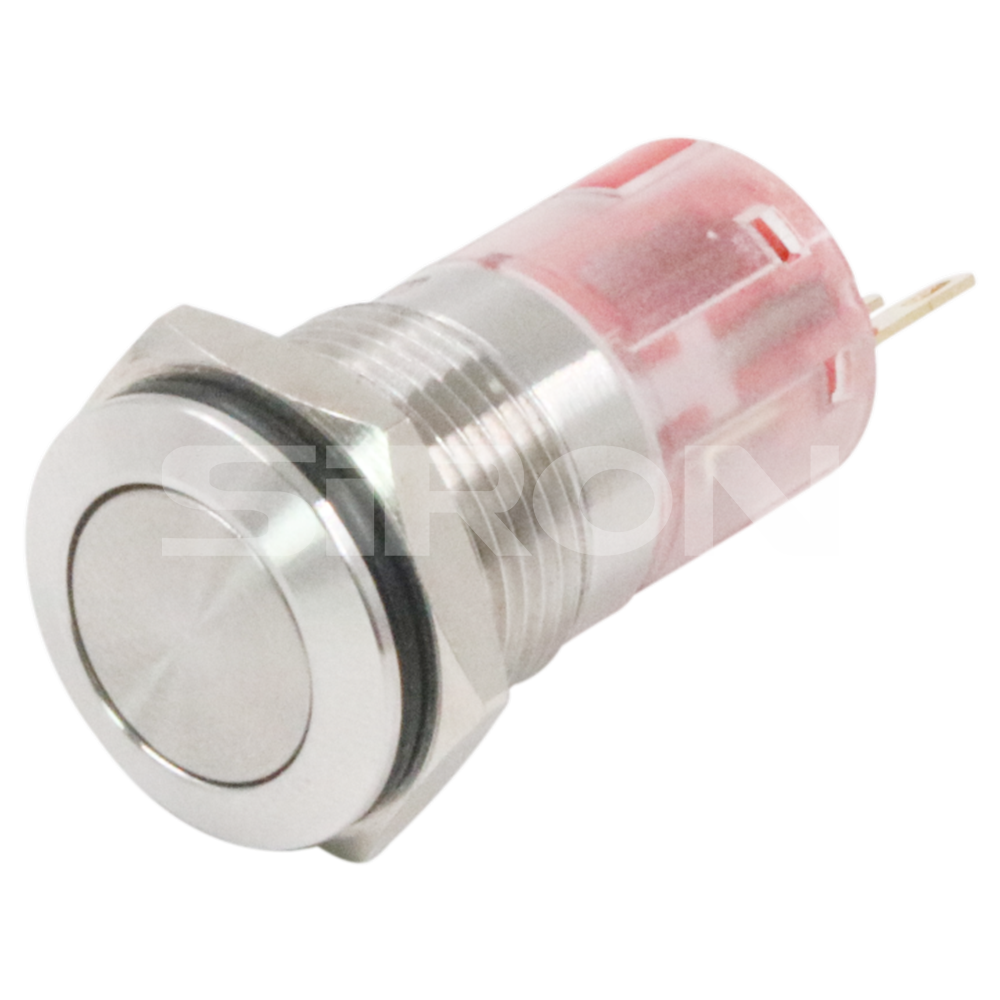

SiRON H060/61 Series Φ16 IP65 Stainless Steel Metal Button

Name: SiRON H060/61 Series Φ16 IP65 Stainless Steel Metal Button
Brand: SiRON
Rating: 5.0 (1 reviews)

Features

The shell of metal button switch is made of metal material, which can enhance its beauty and diversify its appearance color;
The head is dustproof and waterproof, explosion-proof and corrosion-proof and its waterproof property is lp65,Explosion-proof performance lk08;
If welding connection is adopted, it is recommended to choose an appropriate electric soldering iron to speed up the welding30W soldering iron completed within 2 seconds at 320°C:

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

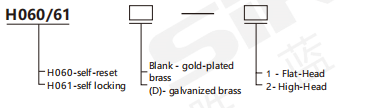

Order

Pin definition

Symbol	Diagrammatic drawing	Equivalent circuit of lamp beads

Note: A double-break slow-moving contact switch with three terminal

Technical Features

Foot material	Gold-plated brass	H060-1	H061-1	H060-2	H061-2
	Brass with galvanized coating	H060(D)-1	H061(D)-1	H060(D)-2	H061(D)-2
Head style		Flat-headed type		High head type
Operation type		self-reset	self locking	self-reset	self locking
Connection type		Wire connector (welding pin)
Switch rating		AC:5A/250V
The environment temperature		-40℃~+80℃
Contact resistance		≤50MΩ
Insulation resistance		≥1000MΩ
Dielectric strength		AC1780V
Mechanical/electrical life		≥1000,000time/≥50,000time
Switch structure		Single-breakpoint slow-moving contact
Switch combination		1NO 1NC
Surface explosion-proof grade		IK08(For metal materials)
Operating pressure		3~5N
Operating limits		3MM
Nut torque		5～14N
