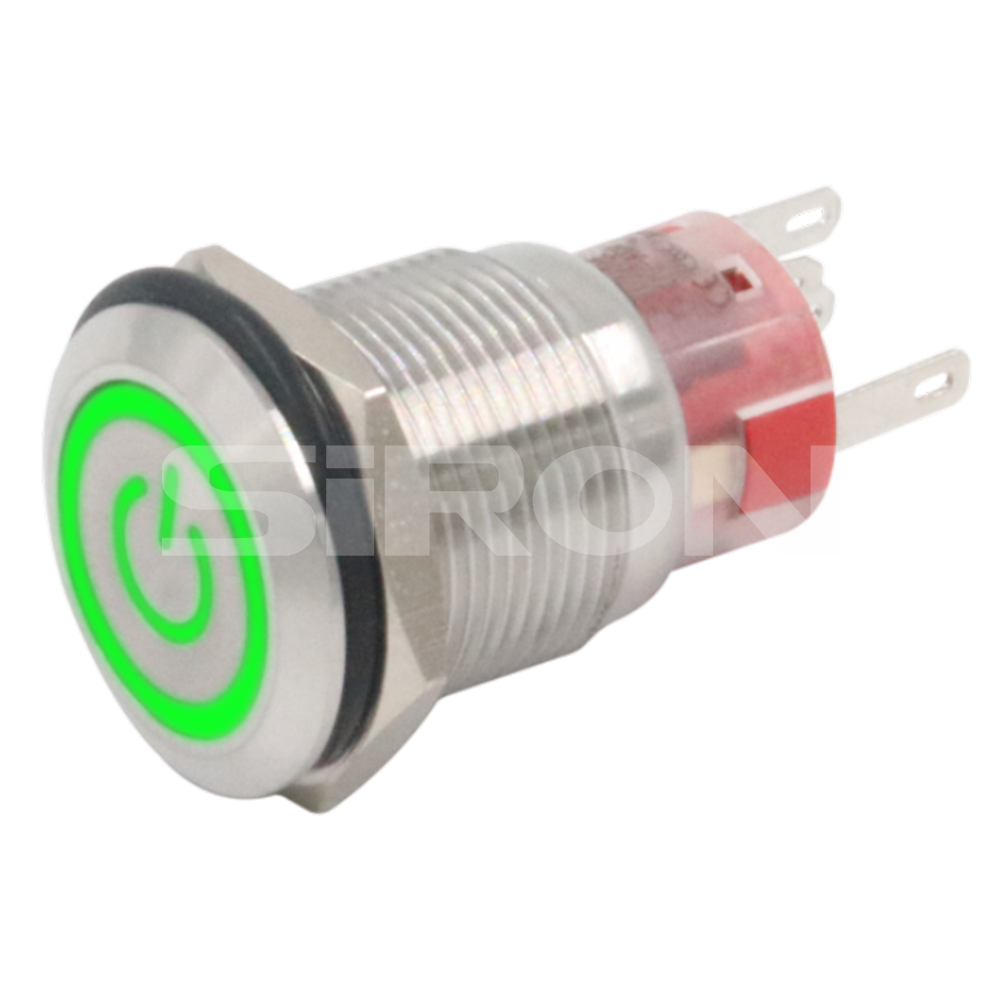

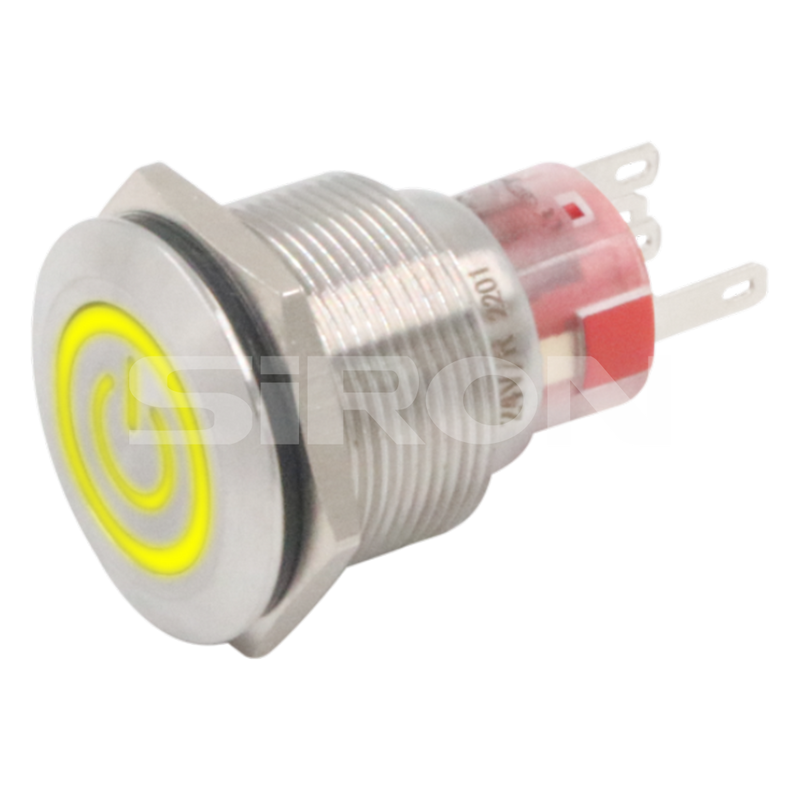

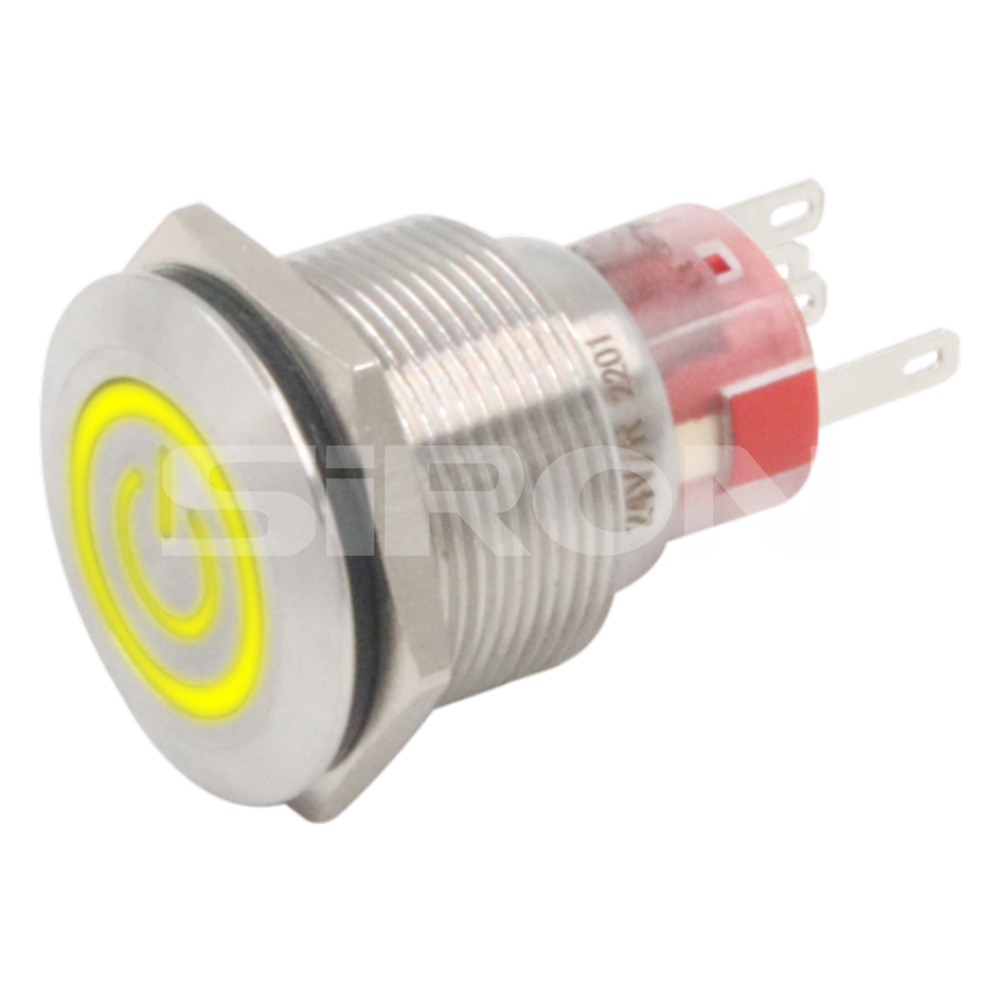

H060-2 /H061-2
SiRON
8538900000
Order

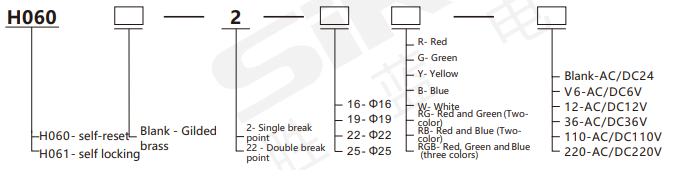

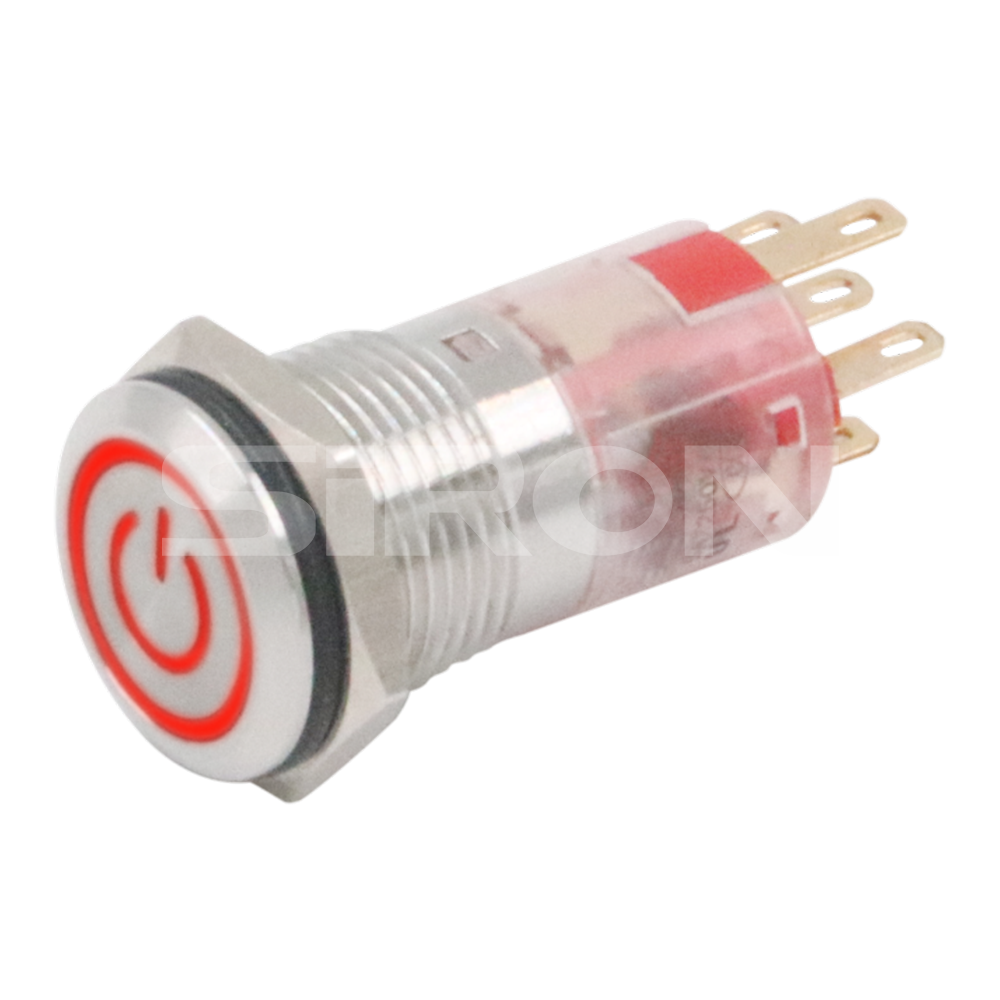

Note: H060-2-16R indicates a double-ended component. The material of the soldering pad is brass plated with gold. It has a single contact point and a red 24V button indicator light with a diameter of 16mm.
Pin definition
| Symbol | Diagrammatic drawing | Equivalent circuit of lamp beads | |
 |  | ||
| Note: Single-break quick-acting switching contact switch with three terminals | |||
Technical Features
| Model number | H060-2 | H061-2 | |
| Operation type | self-reset | self locking | |
| Switch rating | AC;5A/250V | ||
| The environment temperature | -40℃~+80℃ | ||
| Contact resistance | ≤50MΩ | ||
| Insulation resistance | ≥1000MΩ | ||
| Dielectric strength | AC1780V | ||
| Mechanical life | ≥1000,000time | ||
| Electrical life | ≥50,000time | ||
| Switch structure | Single-breakpoint quick-acting contact | ||
| Switch combination | 1NO 1NC | ||
| Surface explosion-proof grade | IK08(For metal materials) | ||
| Operating pressure | 3~5N | ||
| Operating limits | 3MM | ||
| Nut torque | 5~14N | ||
| Material | Shell | Nickel-plated brass/stainless steel | |
| Button | stainless steel | ||
| Pedestal | Plastic base | ||
| Contact | Aluminium alloy | ||
| LED lights | Lamp bead types | Bidirectional LED beads (AC/DC compatible) | |
| The rated voltage | 6V/12V/24V/36V/110V/220V | ||
| Rated current | about 1 5 m A | ||
| life | 50000Hours (reference value) | ||
